| SPECIFICATIONS |
| Brand | ASUS |
| Series | Pro WS Series |

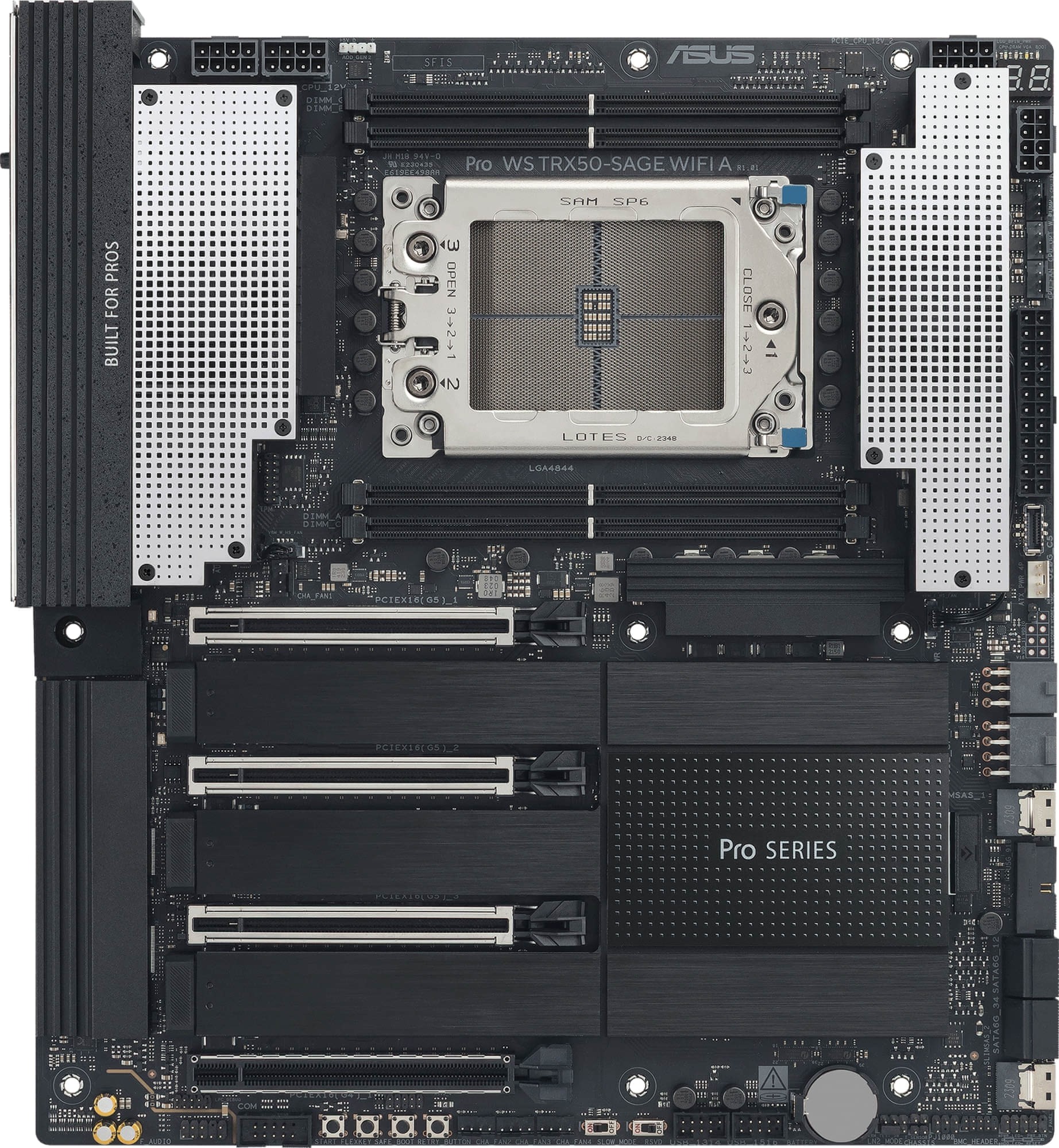

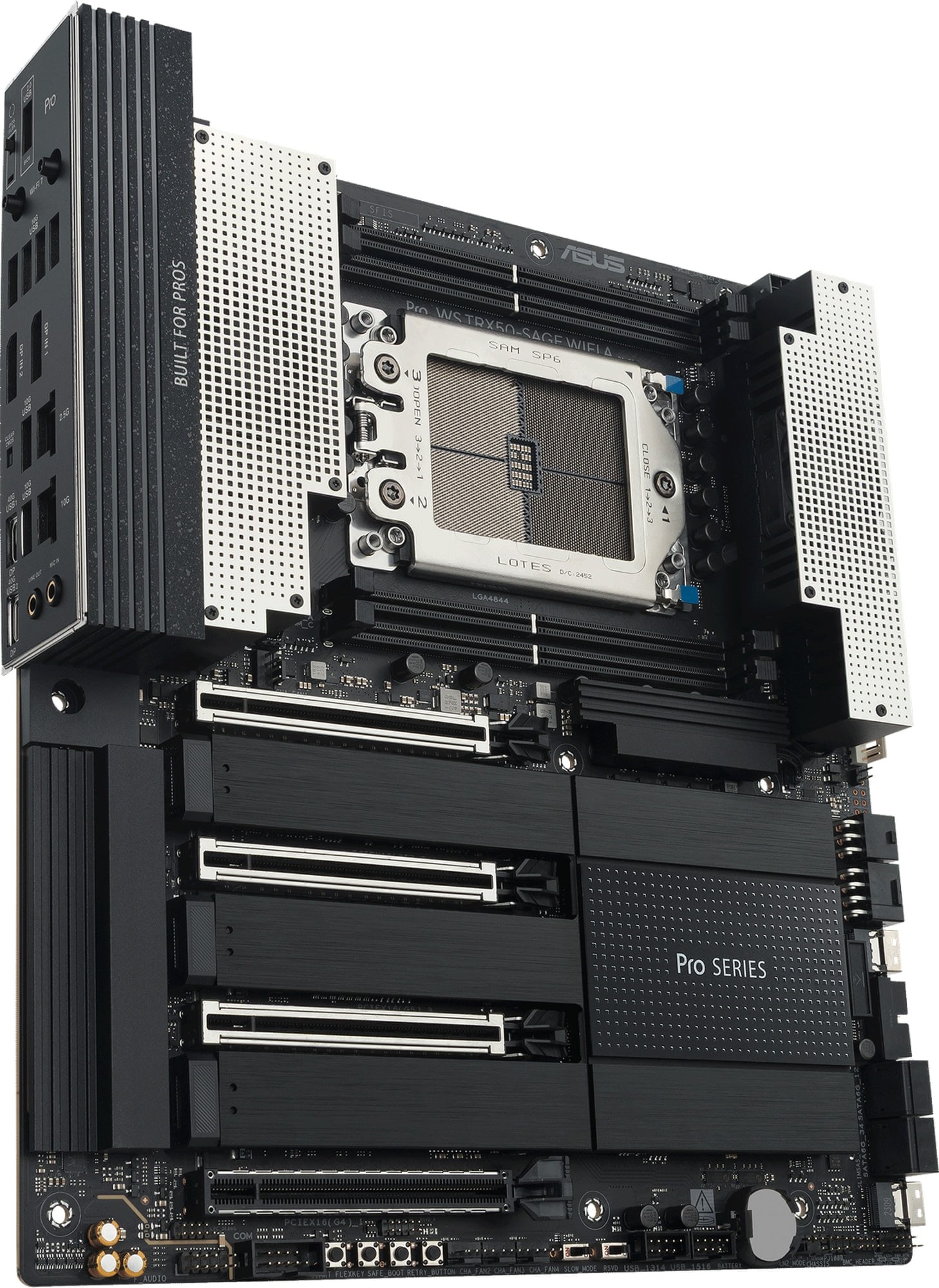

| Model | PRO WS TRX50-SAGE WIFI A (90MB1LE0-M0EAY0) |
| CPU Support | Supports AMD Ryzen Threadripper 7000 & 9000 Processors |
| Supports AMD Ryzen Threadripper PRO 7000 & 9000 WX Processors |
| Chipset | AMD TRX50 |
| Memory Support |
| AMD Ryzen 7000 Series | 4x DIMM slots, DDR5, ECC Registered Memory |
| Quad channel memory architecture |
| Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Expansion Slots |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical (PCIe_1) |
| 1x PCIe 5.0 x16 Physical, x16 Electrical (PCIe_2) |
| 1x PCIe 5.0 x16 Physical, x16 Electrical (PCIe_3) |
| 1x PCIe 4.0 x16 Physical, x16 Electrical (PCIe_4) |
| Storage |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| 2x SlimSAS slots supports PCIe 4.0 x4 mode NVMe device (SlimSAS_1, SlimSAS_2) |
| AMD TRX50 Chipset | M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) |
| 4x SATA 6Gbps Ports |
| Storage Configurations | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. |
| SlimSAS_1 only enabled with AMD Ryzen Threadripper PRO 7000 & 9000 WX Processors |
| SlimSAS_2 shares bandwidth with M.2_3 slot. |
| M.2_1 & M.2_2 slots support PCIe 4.0 x4 mode with AMD Ryzen Threadripper 7000 & 9000 Processors |
| Networking |
| LAN | Marvell AQtion AQC113C 10 Gigabit Ethernet RJ-45 Adapter |
| Intel i226-LM 2.5Gb Ethernet RJ-45 Adapter |
| WiFi | Realtek RTL8922AE WiFi 7 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio |
| Codec | Realtek ALC1220P CODEC |
| Impedance sense for front and rear headphone outputs |
| Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Supports up to 32-Bit/192 kHz playback |
| Connectivity |
| Rear Ports | 2x USB 40Gbps Type-C Ports with DisplayPort tooltip |
| 6x USB 10Gbps Type-A Ports |
| 1x USB 2.0 Type-A Port |
| 2x DisplayPort 1.4 Ports (Input) |
| 2x 3.5mm Audio Jacks (Line Out, Microphone) |
| 2x Antenna Connectors |
| 1x Marvell 10 Gigabit Ethernet RJ-45 LAN Port |
| 1x Intel 2.5 Gigabit Ethernet RJ-45 LAN Port |
| 1x BIOS FlashBack button |
| 1x Clear CMOS button |
| General |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header |
| 1x W_PUMP header |
| 4x 4-pin Chassis Fan headers |
| 2x 4-pin VRM Fan header (with VRM FAN onboard) |
| 1x 24-pin Main Power connectors |
| 1x 4-pin to 24-pin Main Power connectors |
| 2x 8-pin 12V CPU Power connector |
| 2x 8-pin PCIe to CPU power connectors |
| 1x 6-pin PCIe Power connector |
| 1x 8-pin PCIe Power connector |
| 4x M.2 slots (Key M) |
| 4x SATA 6Gb/s ports |
| 2x SlimSAS port |
| 1x USB 20Gbps connector supports USB Type-C |
| 1x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports |
| 1x Addressable RGB Gen 2 header |
| 1x BMC header |
| 1x COM Port header |
| 1x FlexKey button |
| 1x Front panel audio header (F_AUDIO) |
| 1x Start button |
| 1x Safe boot button |
| 1x ReTry button |
| 1x LN2 mode jumper |
| 1x Slow mode switch |
| 1x SPI TPM header (14-1pin) |
| 1x 10-1 pin Front Panel System header |
| 1x Chassis intrusion header |
| 1x Thermal Sensor header |
| 7x ProbeIt Measurement Points |
| I/O Controller | N/A |
| Remote Management | WOL by PME, PXE (UEFI mode) |
| ASUS Control Center Express (ACCE) |
| IPMI Expansion Card with 1x BMC header |
| LED Displays | 7-Segment Debug POST Code LED Display |
| BIOS | 256Mb UEFI AMI BIOS |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | SSI-CEB Form Factor, 305 x 280mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Accessories | 2x SATA 6Gb/s cables |
| 1x Thermistor cable pack |
| 1x DisplayPort cable |
| 1x 4pin to 24-pin ATX power connector |
| 1x ASUS WiFi Q-Antenna |
| 2x M.2 Q-Latch package(2 in 1) |
| 2x M.2 Q-Slide package |
| 2x M.2 Rubber Packages |
| 1x Fan bracket |
| 1x Q-connector |
| 1x ACC Express Activation Key Card |
| 1x QSG |
| Warranty Information |
| Warranty | 5 Year Warranty |
