| SPECIFICATIONS |
| Brand | ASUS |
| Series | PRO WS Series |

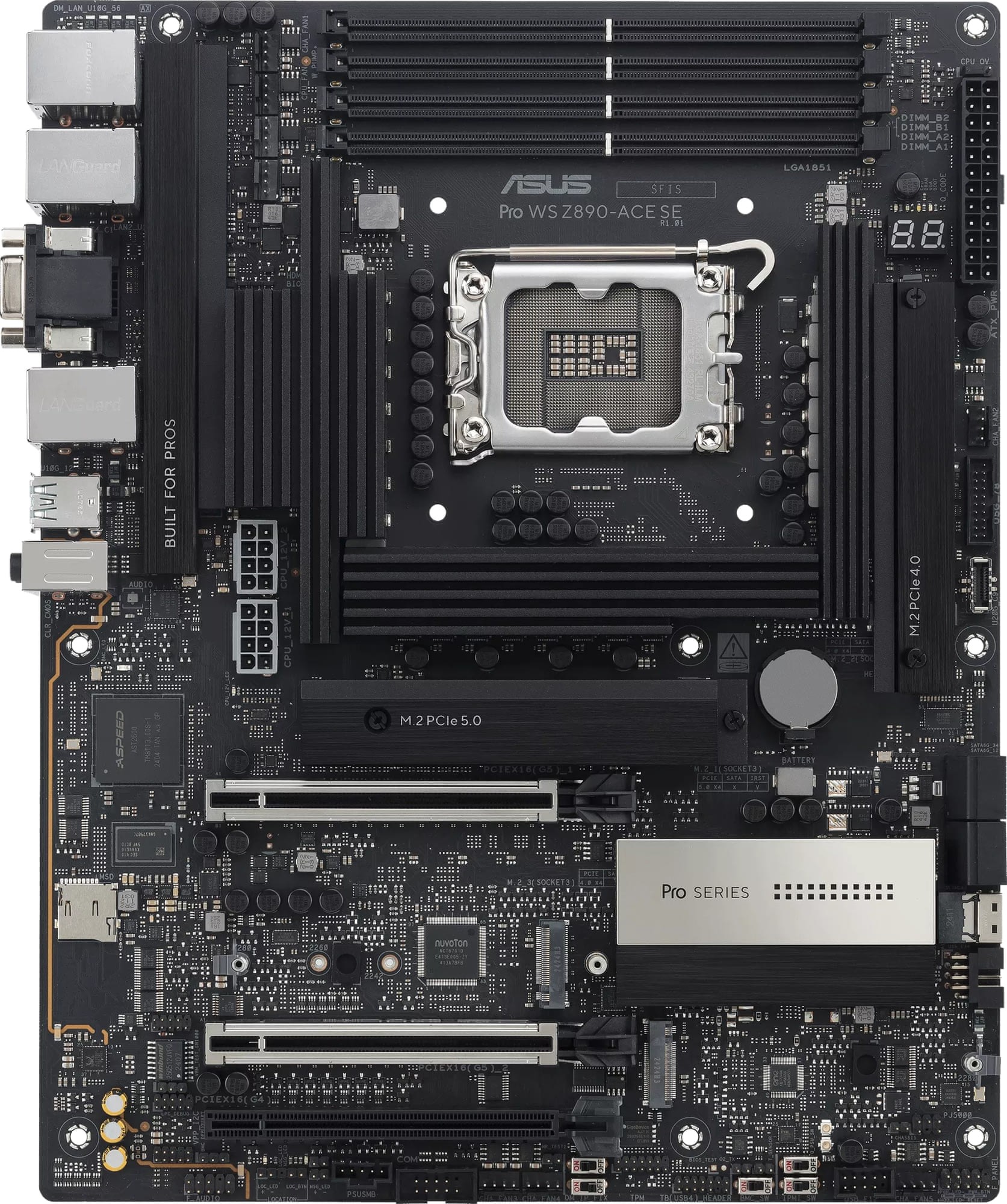

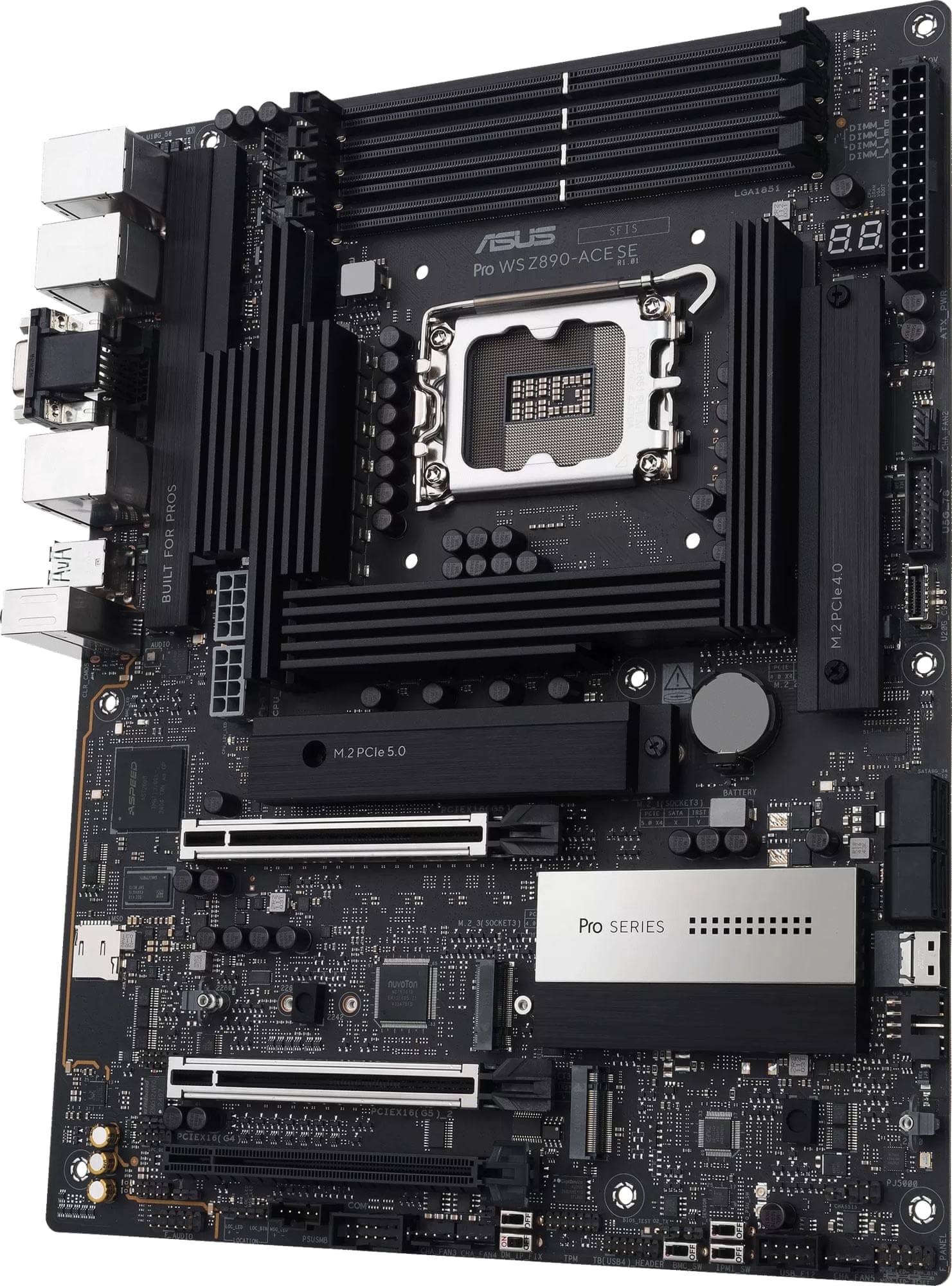

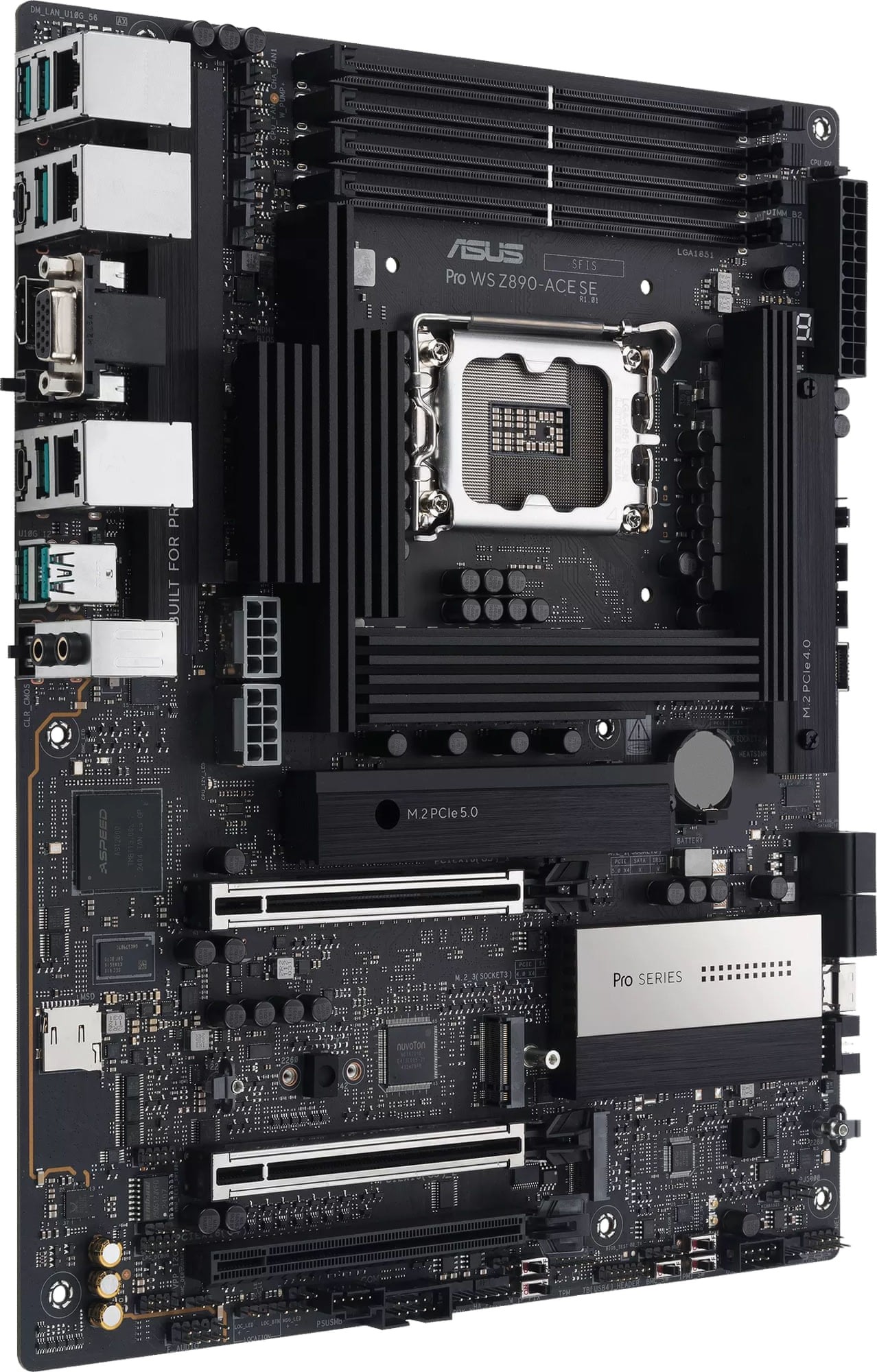

| Model | PRO WS Z890-ACE SE |
| CPU Support | LGA 1851 Supports Intel Core Ultra Processors (Series 2) |
| Chipset | Intel Z890 Express |
| Memory Support |
| Intel Core Ultra Processors (Series 2) | 4 x DIMM slots, max. 256GB, DDR5 |
| Support up to 9066 MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)* |
| Dual channel memory architecture |
| Supports DIMM Fit |
| Supports DIMM Flex |
| Supports Intel Extreme Memory Profile (XMP) memory module |
| ASUS Enhanced Memory Profile III (AEMP III) |
| Video |
| USB Type-C | 1x Thunderbolt 4 Port with DisplayPort 2.1, supporting a maximum resolution of 8K @ 60 Hz, Support for HDR and HDCP 2.3 |
| VGA D-Sub | 1x VGA D-Sub port, Directly connected to AST2600 BMIC |
| Integrated Intel graphics required for DisplayPort 2.1 support. Actual support may vary by CPU. |
| Expansion Slots |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical Slot (x8 mode capable) |
| 1x PCIe 5.0 x16 Physical, x16 Electrical Slot (x8 mode) |
| Intel Z890 Express | 1x PCIe 4.0 x16 Physical, x4 Electrical Slots |
| NOTE: The PCIe 5.0 x16 slots support x16/x0 and x8/x8 modes. PCIe Bifurcation must be supported by your CPU. |
| Storage |
| CPU Direct | M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe4.0 x4 mode) |
| Intel Z890 Express | M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| SlimSAS_1 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable |
| 4x SATA 6G |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 |
| Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| NOTE: The SlimSAS cable is purchased separately. SlimSAS port connected to a U.2 device via a transfer cable does not support VMD/RST. |
| Networking |
| LAN | Marvell 10 Gigabit Ethernet RJ-45 LAN Port |
| Intel 2.5 Gigabit Ethernet RJ-45 LAN Port |
| Realtek Gigabit Ethernet RJ-45 LAN (AST2600) |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio |
| Codec | Realtek ALC1220P Codec |
| Impedance sense for front and rear headphone outputs |
| Internal audio Amplifier to enhance the highest quality sound for headphone and speakers |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
| Supports up to 32-Bit/192 kHz playback |
| Audio Shielding |
| Premium audio capacitors |
| Connectivity |
| Ports | 1x Thunderbolt 4 USB 40Gbps Type-C Port with DisplayPort |
| 1x USB 20Gbps Type-C Port |
| 6x USB 10Gbps Type-A Ports |
| 1x HDMI 2.1 (TMDS) Port |
| 1x VGA D-Sub (AST2600) Port |
| 2x 3.5mm Audio Jacks |
| 1x Marvell 10 Gigabit Ethernet RJ-45 LAN Port |
| 1x Intel 2.5 Gigabit Ethernet RJ-45 LAN Port |
| 1x Realtek Gigabit Ethernet RJ-45 LAN (AST2600) |
| Buttons | Clear CMOS Button, BIOS Flashback button |
| General |

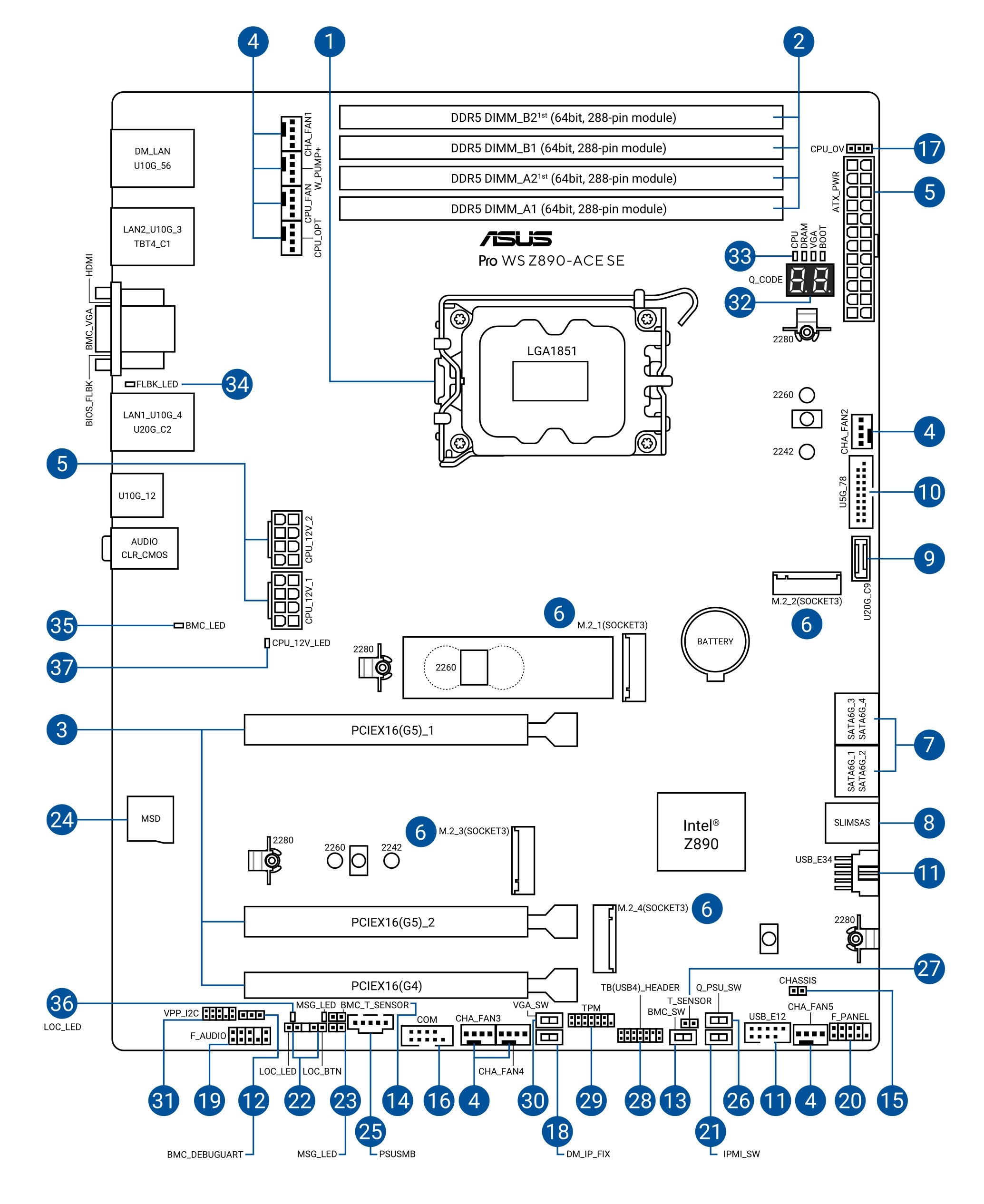

| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header |
| 5x 4-pin Chassis Fan headers |
| 1x W_PUMP header |
| 1x 24-pin Main Power connector |
| 2x 8-pin 12V CPU Power connector |
| 4x M.2 slots (Key M) |
| 4x SATA 6Gb/s ports |
| 1x SlimSAS port |
| 1x USB 20Gbps connector (supports USB Type-C ) |
| 1x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2x USB 2.0 header supports 4 additional USB 2.0 ports |
| 1x Chassis Intrusion header |
| 1x COM Port header |
| 1x CPU Over voltage jumper |
| 1x Front Panel Audio header (F_AUDIO) |
| 1x 10-1 pin Front System Panel header |
| 1x Thermal Sensor header |
| 1x Thunderbolt (USB4) header |
| 1x SPI TPM header (14-1 pin) |
| Remote Management | 1x BMC switch |
| 1x BMC debug UART header |
| 1x BMC LAN fixed IP switch |
| 1x IPMI switch |
| 1x Message LED header |
| 1x microSD card socket |
| 1x Location LED header |
| 1x Location button header |
| 1x PSU_SMB header |
| 1x SMART_PSU switch |
| 1x VGA switch |
| 1x VPP_I2C header |
| 1x BMC LED |
| I/O Controller | NUVOTON NCT6710D Controller Chip |
| LED Displays | Port 80 7-Segment POST Code Display |
| BIOS | 1x 256 Mb flash |
| UEFI AMI BIOS |
| Form Factor | ATX Form Factor, 305 x 244mm (H x W) |
| Operating System Support | Windows 11 64-bit (Recommended) |
| Windows 10 64-bit |
| Boxed Accessories | 2x SATA 6Gb/s cables |
| 1x AMI license sticker |
| 1x I/O shield |
| 2x M.2 Q-Latch packages |
| 2x M.2 rubber packages |
| 1x Q-connector |
| 1x ACC Express activation key card |
| 1x Quick start guide |
| Warranty Information |
| Warranty | 3 Year Warranty |
