| SPECIFICATIONS |
| Brand | ASUS |
| Series | ROG STRIX |

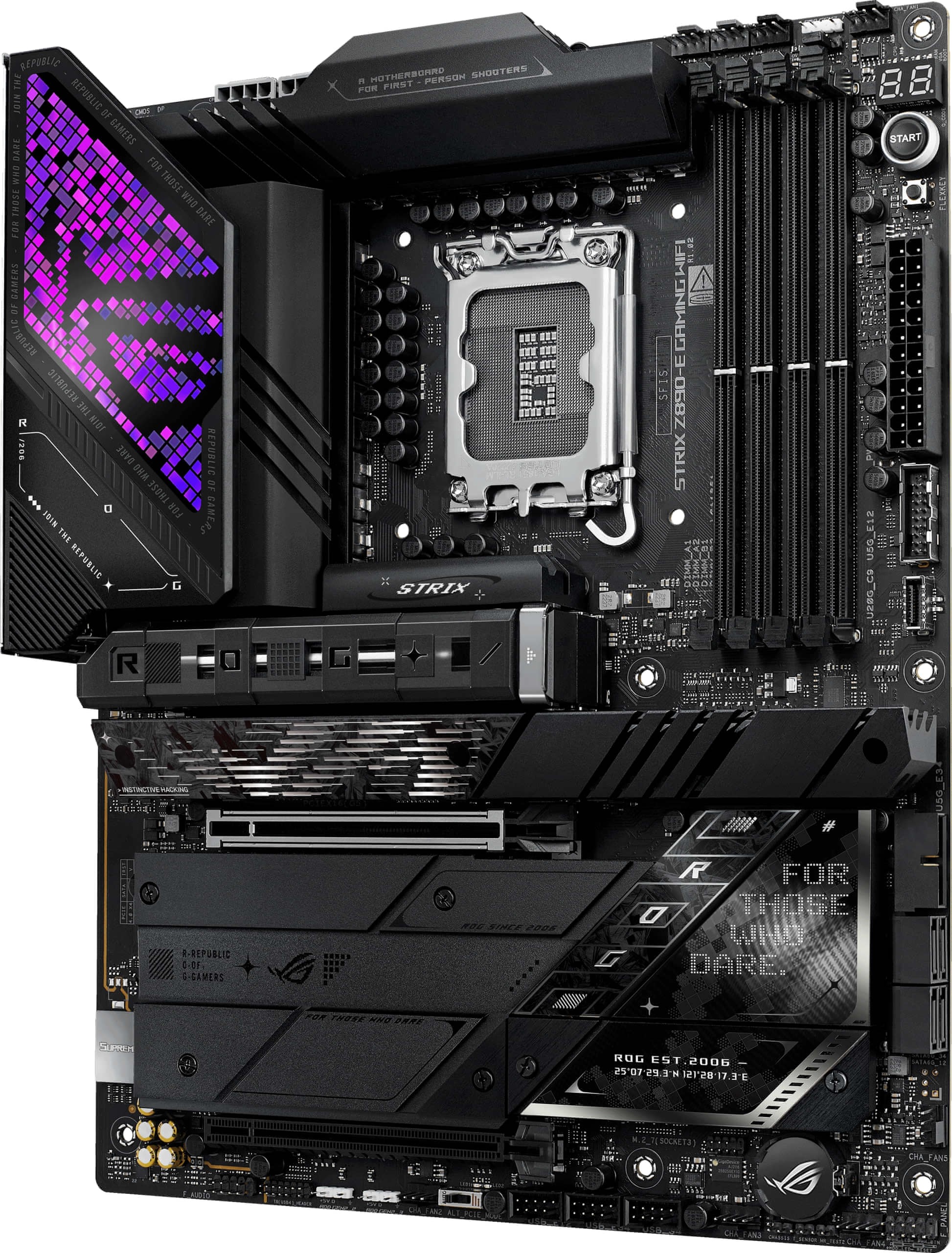

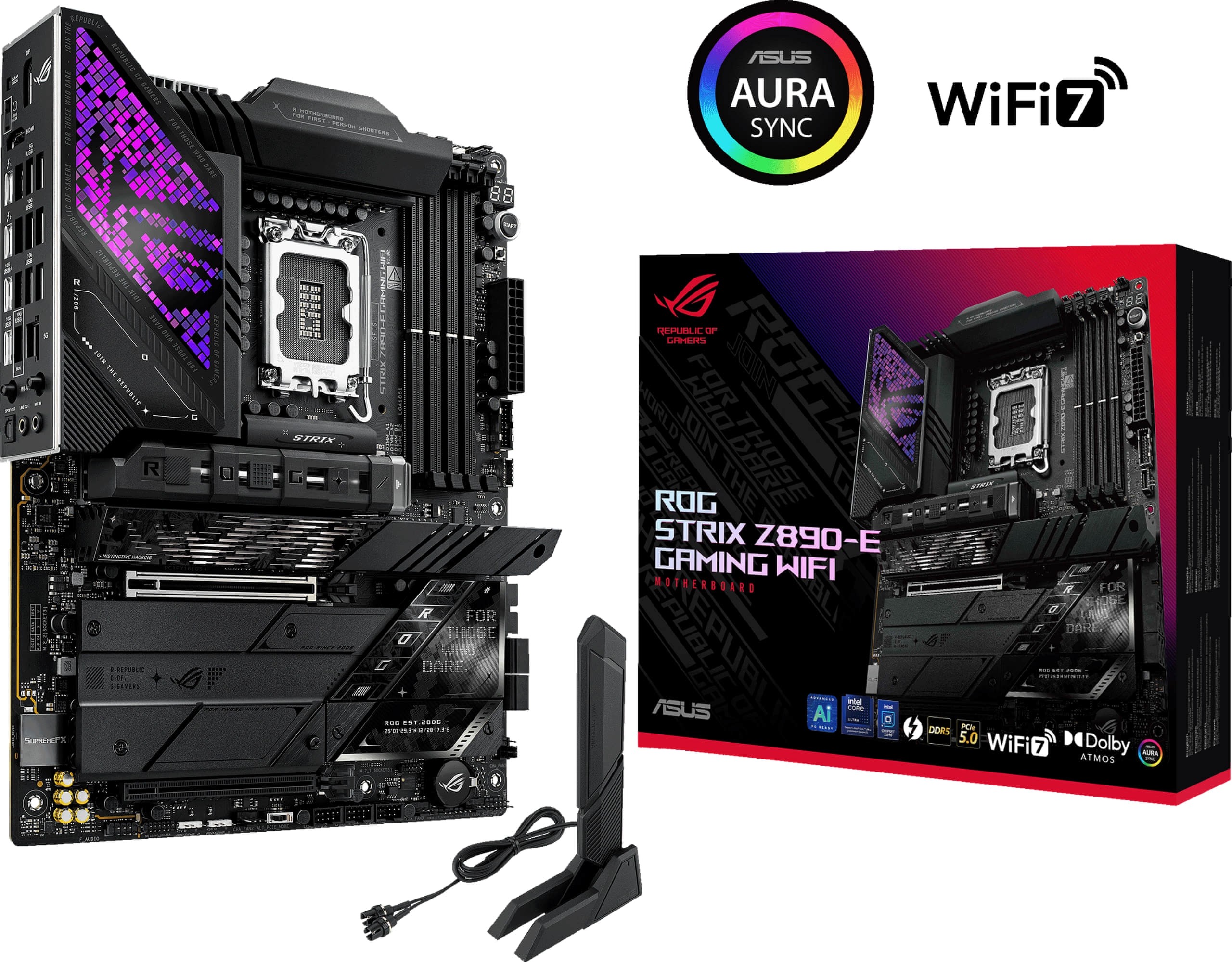

| Model | ROG STRIX Z890-E GAMING WIFI (90MB1IM0-M0EAY0) |
| CPU | Support Intel Core Ultra Processors(series 2), LGA1851 |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
| Chipset | Intel Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)* |
| Dual Channel Memory Architecture |
| Supports Intel Extreme Memory Profile (XMP) memory module |
| Supports DIMM Flex |
| NitroPath DRAM Technology |
| DIMM Fit |
| ASUS Enhanced Memory Profile III (AEMP III) |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
| Graphics | 1 x DisplayPort* |
| 1 x HDMI port** |
| 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs*** |
| * Supports max. 8K@60Hz as specified in DisplayPort 1.4. |
| ** Supports max. 4K@60Hz as specified in HDMI 2.1. |
| ***Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. |
| *** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
| Expansion Slots | Intel Core Ultra Processors(series 2)* |
| 1 x PCIe 5.0 x16 slots (supports x16 mode) |
| Intel Z890 Chipset** |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel Core Ultra Processors(series 2)* |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** |
| Intel Z890 Chipset |
| M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports |
| * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| ** M.2_2 & M.2_3 slots share bandwidth with PCIEX16(G5). When M.2_2 & M.2_3 are occupied with SSD devices, PCIEX16(G5) will run x8 only. |
| Ethernet | 1 x Realtek 5Gb Ethernet |
| ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** |
| Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. |
| Bluetooth v5.4*** |
| *Wi-Fi features may vary depending on the operating system |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. |
| For Windows 10, only Wi-Fi 6 is supported. |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 14 ports) |
| 2 x Thunderbolt 4 ports (2 x USB Type-C) |
| 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge)* |
| 3 x USB 5Gbps ports (3 x Type-A) |
| Front USB (Total 11 ports) |
| 1 x USB 20Gbps connector (supports USB Type-C) |
| 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports |
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| USB Type-C power delivery output: 5V/3A |
| * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* |
| - Impedance sense for front and rear headphone outputs |
| - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking |
| - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input |
| - Supports up to 32-Bit/384 kHz playback |
| Audio Features |
| - Audio Shielding |
| - Savitech SV3H712 AMP |
| - Gold-plated audio jacks |
| - Rear optical S/PDIF out port |
| - Premium audio capacitors |
| - Audio cover |
| * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Back Panel I/O Ports | 2 x Thunderbolt 4 USB Type-C ports (2 x USB Type-C) |
| 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C + 1 x USB Type-C with up to 30W PD Fast-charge) |
| 3 x USB 5Gbps ports (3 x Type-A) |
| 1 x DisplayPort |
| 1 x HDMI port |
| 1 x Wi-Fi Module |
| 1 x Realtek 5Gb Ethernet |
| 2 x Gold-plated audio jacks |
| 1 x Optical S/PDIF out port |
| 1 x BIOS FlashBack button |
| 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 5 x 4-pin Chassis Fan headers |
| Power related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V CPU Power connectors |
| Storage related |
| 7 x M.2 slots (Key M) |
| 4 x SATA 6Gb/s ports |
| USB |
| 1 x USB 20Gbps connector (supports USB Type-C) |
| 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports |
| 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x CPU Over Voltage jumper |
| 1 x FlexKey button |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x Start button |
| 1 x 10-1 pin System Panel header |
| 1 x Thermal Sensor header |
| Special Features | Extreme Engine Digi+ |
| - 5K Black Metallic Capacitors |
| ASUS Q-Design |
| - M.2 Q-Latch |
| - M.2 Q-Release |
| - M.2 Q-Slide |
| - PCIe Slot Q-Release Slim (with PCIe SafeSlot) |
| - Q-Antenna |
| - Q-Code |
| - Q-Dashboard |
| - Q-DIMM |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| - Q-Slot |
| ASUS Thermal Solution |
| - M.2 heatsinks |
| - M.2 heatsink backplate |
| - VRM heatsink design |
| ASUS EZ DIY |
| - BIOS FlashBack button |
| - BIOS FlashBack LED |
| - Clear CMOS button |
| - ProCool II |
| - Pre-mounted I/O shield |
| - SafeSlot |
| - SafeDIMM |
| Aura Sync |
| - Addressable Gen 2 headers |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty Information |
| Warranty | 3 Year Warranty |
