| SPECIFICATIONS |
| Brand | Gigabyte |
| Series | Motherboard Series |

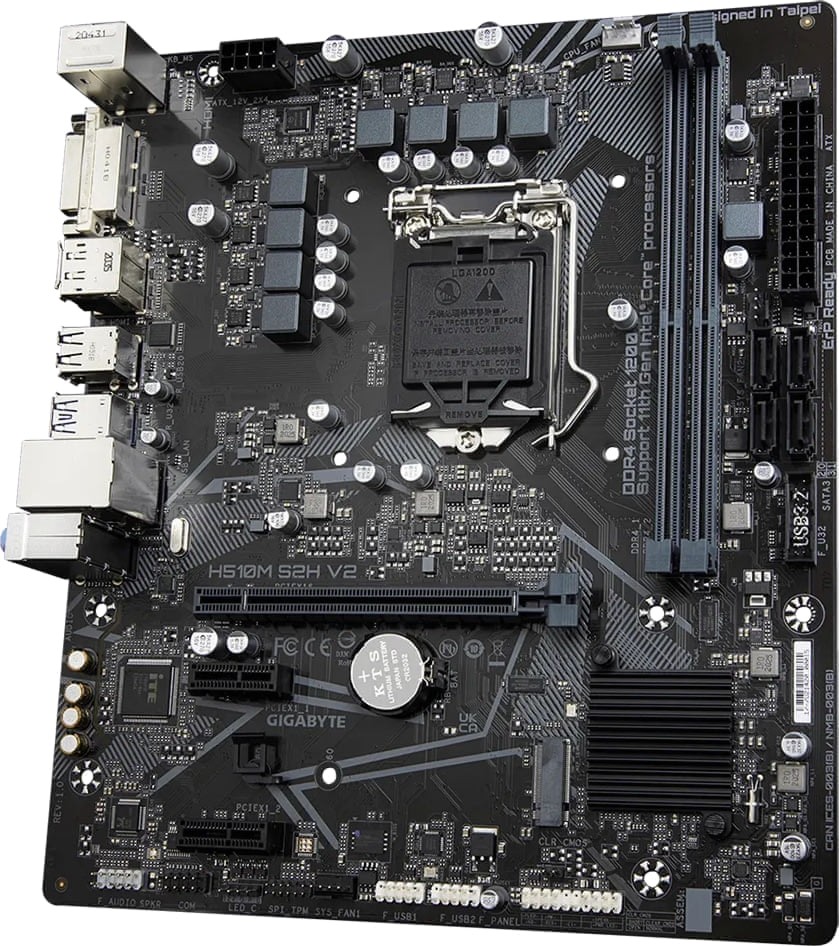

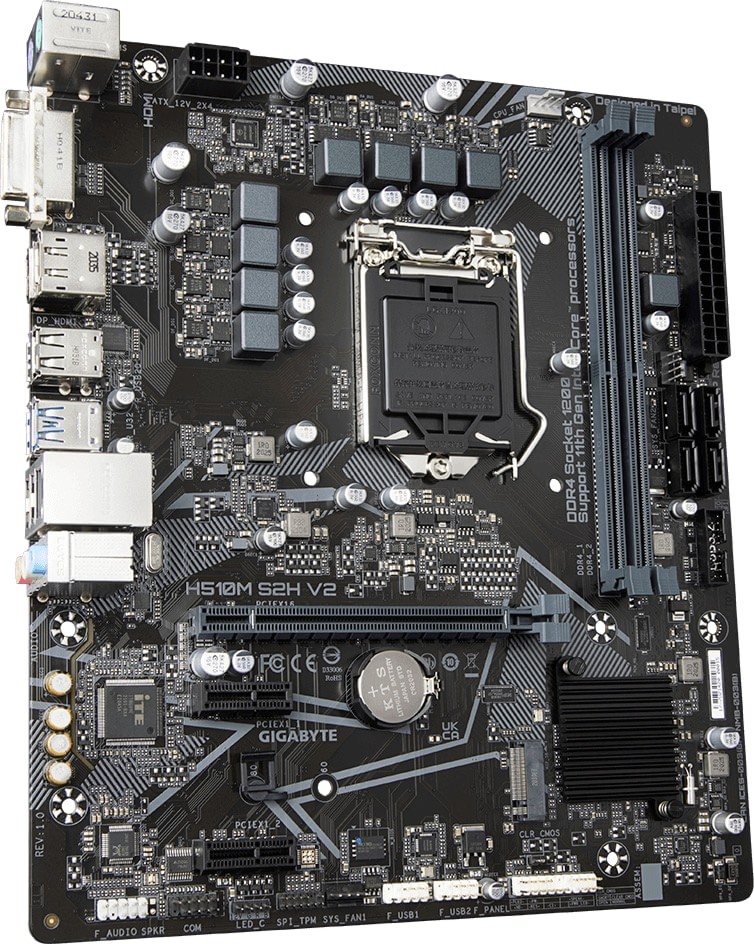

| Model | H510M S2H V2 (H510M-S2H-V2-rev-10) |
| CPU Support | LGA1200 socket: Support for 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors |
| LGA1200 socket: Support for 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
| Chipset | Intel H510 Express |
| Memory Support |
| Intel 10th & 11th Gen Series | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules |
| 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules |
| 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules |
| 2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Dual channel memory architecture |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| Video |
| DVI-D | 1x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30 Hz, Support for HDMI 1.4 and HDCP 2.3 |
| DisplayPort | 1x DisplayPort port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3 |
| Setup Notes | Integrated Intel graphics required. Actual support may vary by CPU. |
| The DVI-D port does not support D-Sub connection by adapter. |
| Expansion Slots |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel H510 Chipset | 2x PCIe 3.0 x1 Physical, x1 Electrical Slots |
| Storage |
| CPU Direct | 1x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
| Intel H510 Chipset | 4x SATA 6Gbps connectors |
| Setup Notes | Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 |
| The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. |
| Networking |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio |
| Codec | Realtek ALC897 High-Definition Audio Codec |
| 7.1-Channel USB High Performance Audio with front-panel jack retasking |
| Connectivity |
| Ports | 2x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports |
| 2x PS/2 Ports (Keyboard, Mouse) |
| 1x HDMI 1.4 Port |
| 1x DisplayPort 1.2 Port |
| 1x VGA D-Sub Port |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) |
| 1x Realtek Gigabit Ethernet RJ-45 LAN |
| Buttons | N/A |
| General |

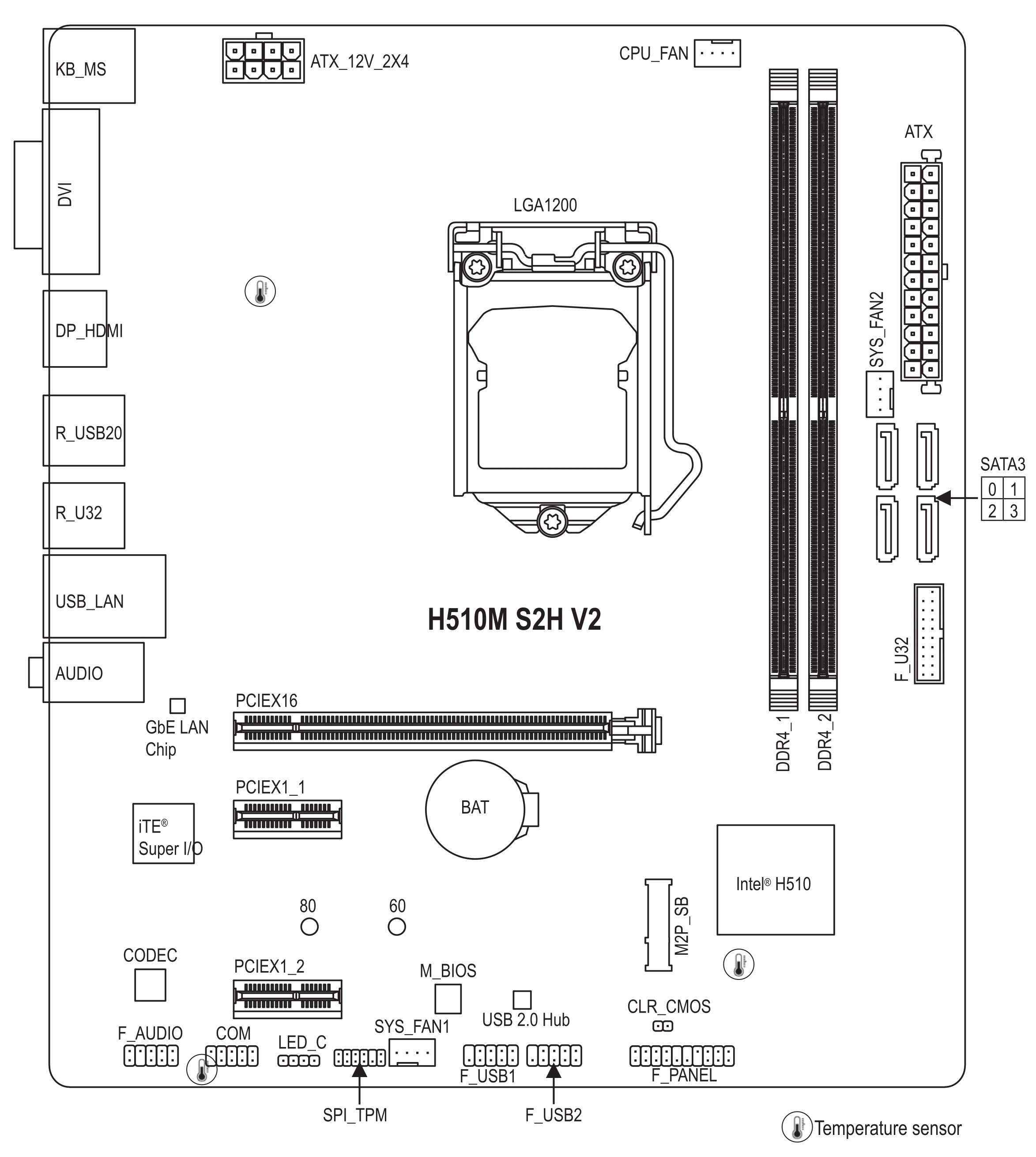

| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector |
| 4x SATA 6Gb/s connectors |
| 1x CPU fan header |
| 2x system fan headers |
| 1x RGB LED strip header |
| 1x front panel header |
| 1x front panel audio header |
| 1x USB 3.2 Gen 1 header |
| 2x USB 2.0/1.1 headers |
| 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| 1x serial port header |
| 1x Clear CMOS jumper |
| Setup Notes | All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| I/O Controller | iTE I/O Controller Chip |
| LED Displays | N/A |
| BIOS | 1x 256 Mb flash |
| UEFI AMI BIOS |
| ACPI 6.4, SMBIOS 3.5 |
| Multi-language |
| Form Factor | Micro-ATX Form Factor, 244 x 210mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (recommended) |
| Warranty Information |
| Warranty | 3 Year Warranty |
