| SPECIFICATIONS | |
| Brand | GMKtec |
| Series | NUCBOX Series |
| Model | NUCBOX EVO-X2 |
| Processor | |
| Model | AI Max 395 |
| Chipset Manufacturer | AMD |
| Boost Clock | 5.10GHz |
| Core Arrangement | 16x Zen 5 Cores |
| Core Count | 16 cores |
| Thread Count | 32 threads |
| Cache | 64MB L3 Cache |
| Lithography | TSMC 4nm Process |
| AI Accelerator | |
| Model | AMD Ryzen AI NPU Co-Processor |
| Performance | Up to 50 TOPS (NPU) |
| Up to 126 TOPS (SoC) | |
| Memory | |
| Total Installed | 64GB (On-Board) |
| Type | LPDDR5X |
| Speed | 8000 MHz |
| Maximum Capacity | No SO-DIMM Slots available for upgrades |
| Graphics | |
| Integrated | AMD Radeon 8060S RDNA3.5 Graphics |
| Storage | |
| Installed | 1x 1TB M.2 2280 PCIe 4.0 x4 NVMe SSD |
| Supported | 1x M.2 2280 PCIe 4.0 NVMe SSD Slot (Occupied) |
| 1x M.2 2280 PCIe 4.0 NVMe SSD Slot (Vacant) | |

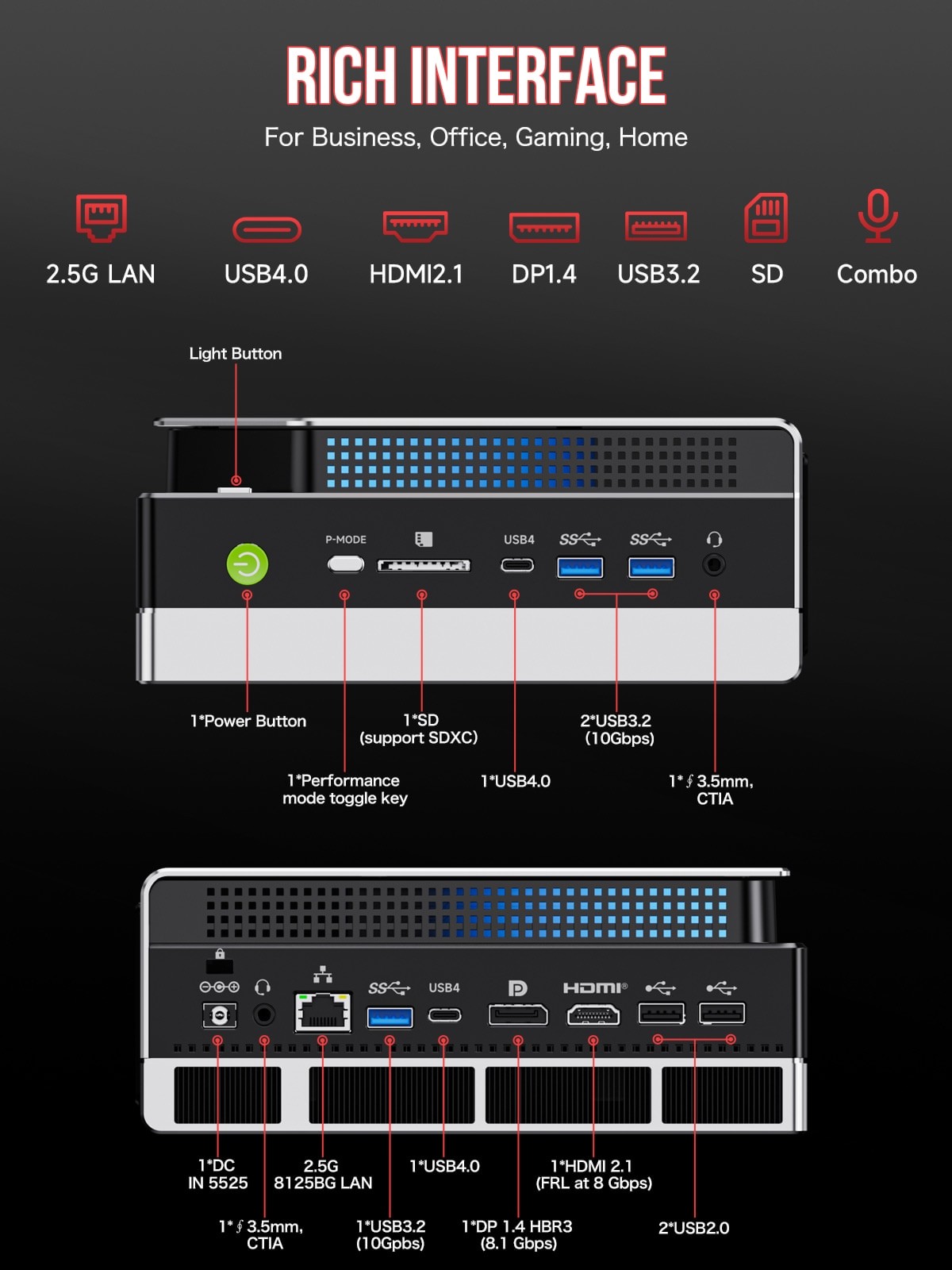

| Connectivity | |
| Ports (Front) | 1x USB 40Gbps Type-C Port |
| 2x USB 10Gbps Type-A Ports | |
| 1x SD Card Slot Reader | |
| 1x 3.5mm Combination Audio Jack | |
| Buttons (Front) | Power |
| System Fan Lighting Control | |
| Performance Mode Switch | |
| Ports (Rear) | 1x USB 40Gbps Type-C Port with DisplayPort |
| 1x USB 10Gbps Type-A Port | |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 FRL Port | |
| 1x DisplayPort 1.4 Port | |
| 1x 3.5mm Combination Audio Jack | |
| 1x DC In 5525 Interface | |
| 1x RJ45 2.5G Gigabit LAN (8125BG) | |
| Networking | |
| Ethernet | 2.5 Gigabit Ethernet RJ-45 |
| Wi-Fi | Mediatek MT7925 WiFi 7 Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| General | |
| Operating System | Windows 11 Pro |
| Power Adapter | 230W AC Adapter, Universal 110-230V, 50-60Hz |
| Dimensions | 193 x 185.8 x 77 mm (W x D x H) |
| Colour | Black & Silver Two-tone |
| Warranty Information | |
| Warranty | 1 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
