| SPECIFICATIONS | |
| Brand | J5Create |
| Series | Docking Station Series |
| Model | JCD533 |
| General | |
| Audio Supported | Yes |
| Host Connector | USB Type-C Male |
| Network Interface | RJ45(Gigabit Ethernet) |

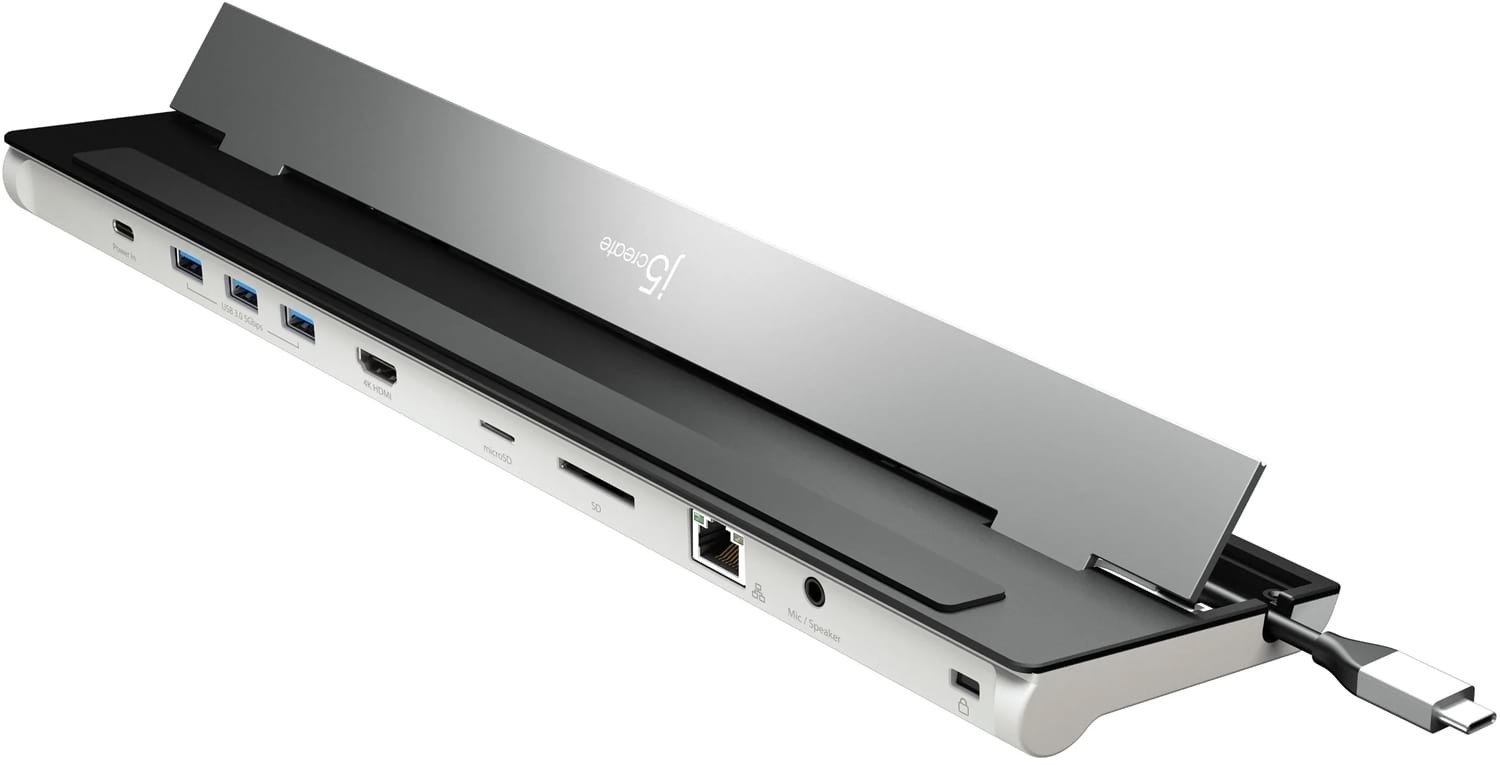

| Ports | 1x USB Type-C Power Delivery 3.0 |
| 3x USB 3.0 Type-A | |
| 1x 4K HDMI | |
| 1x SD & microSD Memory Card Reader/Writer | |
| 1x RJ45 Gigabit Ethernet | |
| 1x 3.5 mm combo Audio Jack | |
| Power Source | Bus-Powered |
| Video Output | 1x HDMI Female |
| Performance | |
| Audio Channel | HDMI 2.1/3.5mm Aux |
| Compatible Networks | 10/100/1000 Mbps |
| Displays Supported | 1 |
| Max Data Transfer Rate | 5 Gbps |
| Max Display Refresh Rate | 30Hz |
| Max Display Resolution | 3840 x 2160 |
| Features | Easily Connect To A 4K HDMI Display With DisplayPort Alt Mode Support Over USB Type-C |
| Up to 100W Power Pass-Through To Charge Your Laptop And Power The Connected Peripherals When Used With A USB Type-C Power Adapter (Not Included) | |
| Connect And Charge Your USB Devices With 3x USB Ports | |
| Reliable Network Connectivity Via The Gigabit Ethernet Port | |
| Direct Access To SD & MicroSD Memory Cards For Data Storage And Transfer | |
| 3.5mm Audio Jack To Connect Microphone/Headphones | |
| Security Lock Slot For Anti-Theft Protection | |

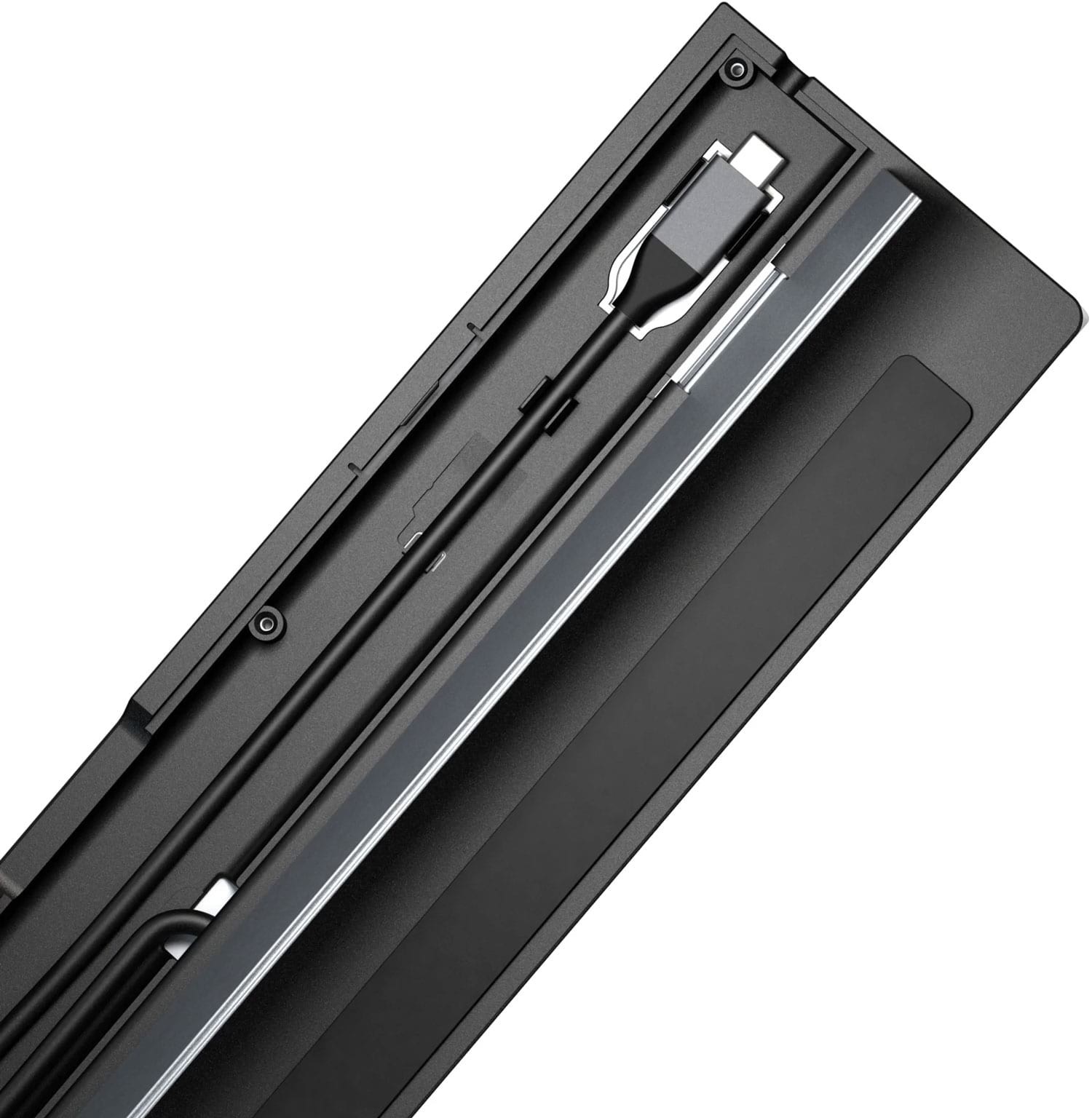

| Convenience Setup With Double-Sided Cable Storage Compartment | |
| Elevated Design To Assist With Heat Elimination | |
| Power | |
| Input Current | 5A |
| Input Voltage | 20V |
| Output Current | 5A |
| Output Voltage | 20V |
| Power Consumption | ≤ 900 mA |
| Power Delivery | Up to 100W Via USB Type-C |
| Physical | |
| Cable Length 45cm | |
| Colour | Grey & Black |
| Enclosure Type | Aluminium |
| Operating Humidity | < 85% Non-Condensing |
| Operating Temperature | 0 to 48°C |
| Product Dimensions(L x W x H) | 350.18 x 21.98 x 82.46mm |
| Product Weight | 0.300 Kg |
| Storage Humidity | < 85% Non-Condensing |
| Storage Temperature | -10 to 65°C |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
