| SPECIFICATIONS | |
| Brand | MSI |
| Series | PRO Series |

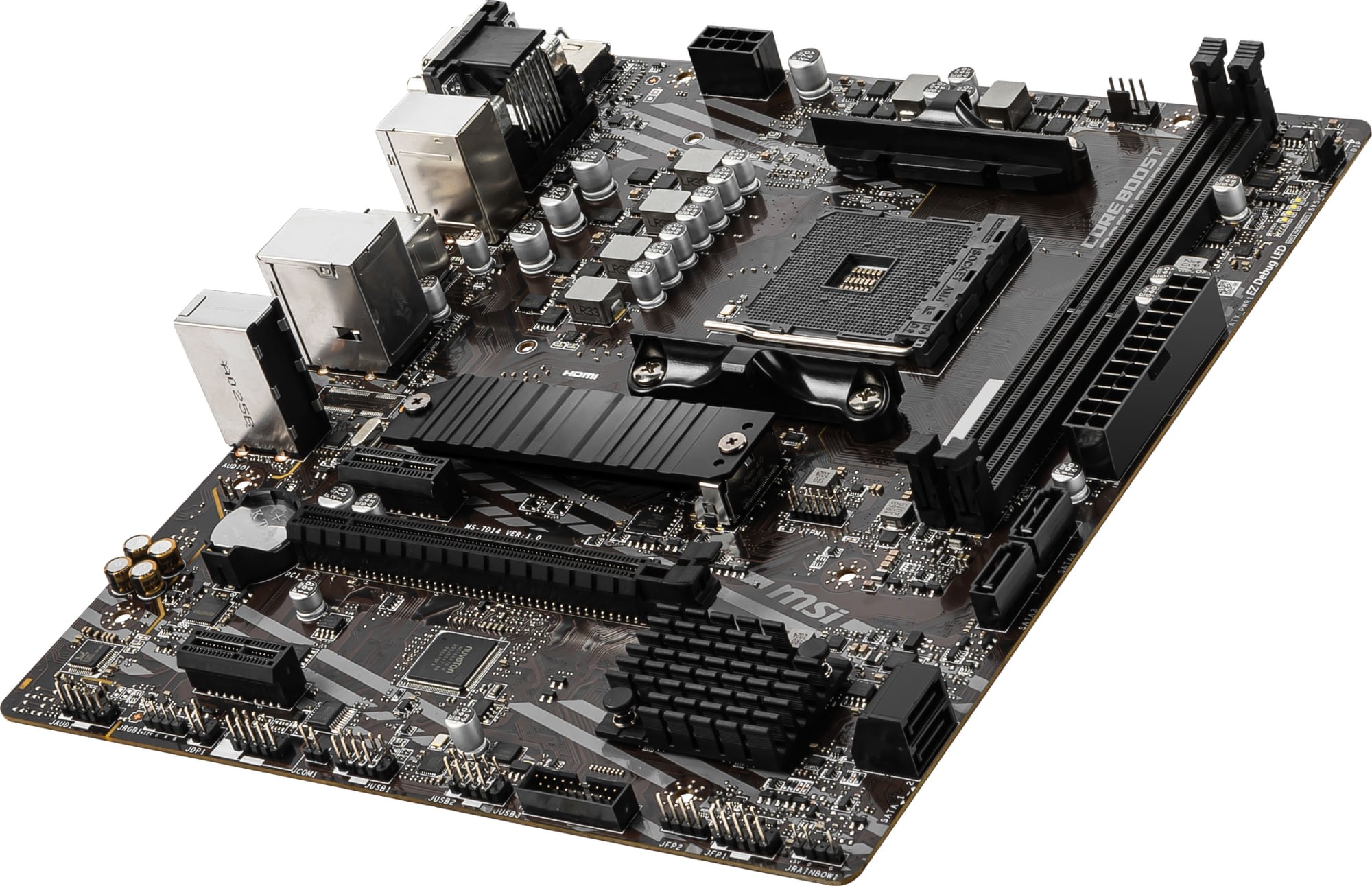

| Model | A520M PRO |
| CPU Support | Supports Ryzen 5000 / 5000G-Series Processors |
| Supports Ryzen 4000G / 3000-Series Processors | |
| Chipset | AMD A520 |
| Memory Support | |
| AMD Ryzen 7000 Series | 2x DDR4 memory slots, support up to 64GB 1 |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600 MHz by A-XMP OC MODE | |
| 1DPC 1R max speed 4600 MHz | |
| 1DPC 2R max speed 3866 MHz | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Video | |
| DisplayPort | 1x DisplayPort, supporting a maximum resolution of 4096x2160 @ 60Hz, Support for DisplayPort 1.4 version, HDCP 2.3, and HDR |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096x2160 @ 60Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR |
| VGA D-Sub | 1x VGA D-Sub port, supporting a maximum resolution of 2048x1536 @ 50Hz, 2048x1280 @60Hz, 1920 x 1200 @ 60Hz |
| Integrated AMD graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 3.0 x16 Physical, x16 Electrical Slot |
| AMD A520 Chipset | 2x PCIe 3.0 x1 Physical, x1 Electrical Slots |
| Storage | |
| CPU Direct | 1x M.2 connector, supporting M key, type 2280 SSDs, Supporting PCIe 3.0 x4/x2 NVMe SSDs |
| AMD A520 Chipset | 4x SATA3 6.0 Gbps Connectors |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Supports PCIe 3.0 x4 & SATA 6Gbps SSDs with Ryzen 5000, 5000G, 4000G, 3000 and 3000G processors | |
| Supports SATA 6Gbps with Athlon with Radeon Vega Graphics processors | |
| Networking | |
| LAN | Realtek Gigabit LAN Port 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek High Definition Audio |
| 2/4/5.1/7.1-channel support with front-panel jack retasking | |
| Connectivity | |
| Ports | 4x USB 5Gbps Type-A Ports |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port | |
| 1x DisplayPort 1.4 Port | |
| 1x VGA D-Sub Port | |
| 1x PS/2 Combo Port (Mouse, Keyboard) | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| Buttons | N/A |
| General | |

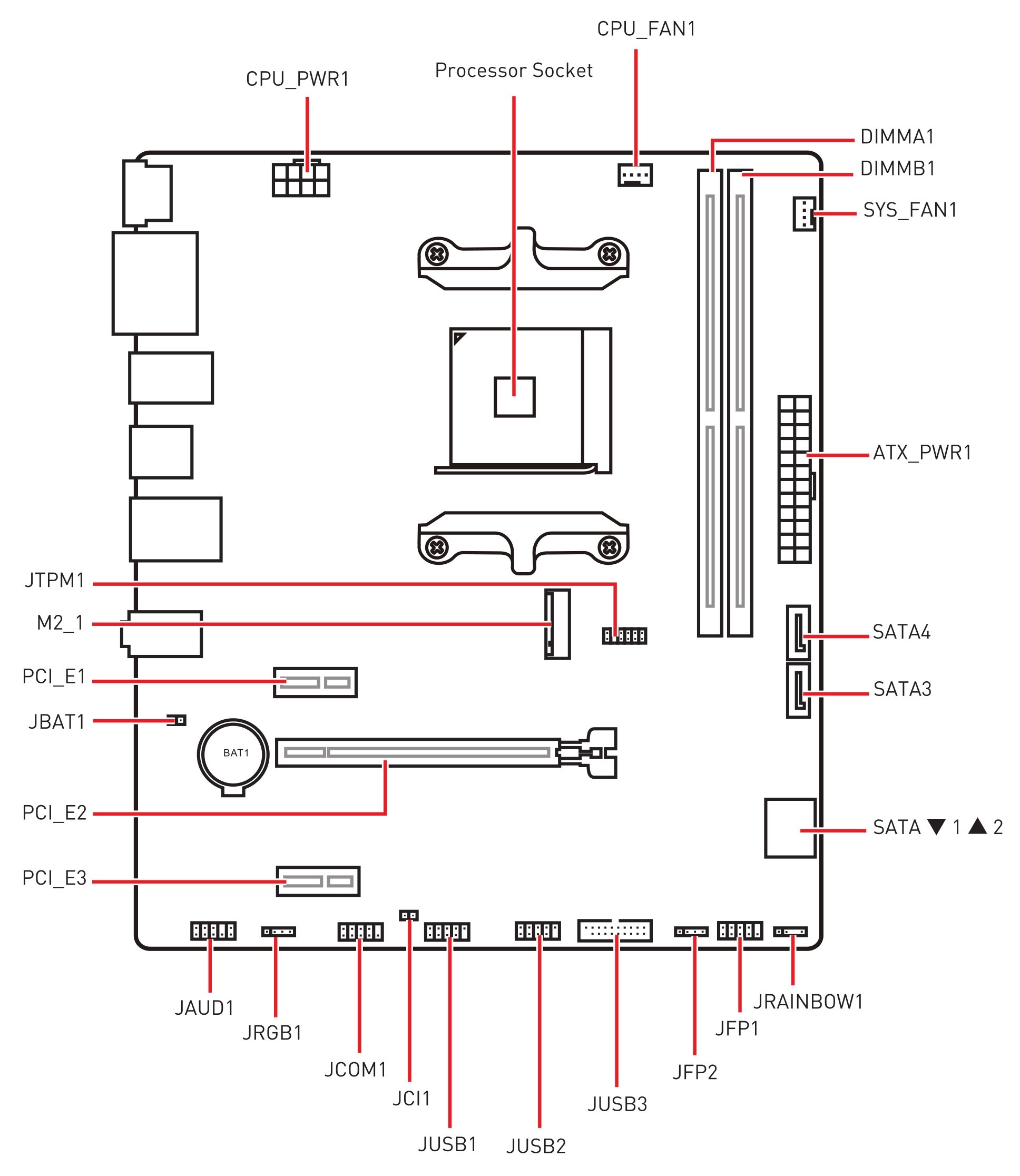

| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 1x Serial port connector | |
| 1x M.2 slot (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin system fan connector | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x 4-pin RGB LED connector | |
| 1x 3-pin RAINBOW LED connector | |
| 1x TPM module connector | |
| 1x Clear CMOS jumper | |
| LED Displays | 4x MSI EZ-Debug LEDs |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| UEFI AMI BIOS, ACPI 6.0, SMBIOS 2.8, Multi-language | |
| Form Factor | Micro-ATX Form Factor, 244 x 210 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (recommended) | |
| Boxed Accessories | 2x SATA 6G cables |
| 1x M.2 screw pack | |
| 1x I/O shield | |
| Quick Installation Guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Worth the price! - Adriaan, 13 March 2026
This motherboard is great if you don't really care all that much about overclocking and just looking for something that works! Don't expect it to have in depth overclocking settings.
- Perfect for a server or entry lvl gaming. - Jean, 17 February 2025
:grinning-face-with-sweat:
Works perfectly fine, can't complain. Price was better here than at Evetech on this mobo as well as the Ryzen 5 4500. Bought these Items for one of my clients.
