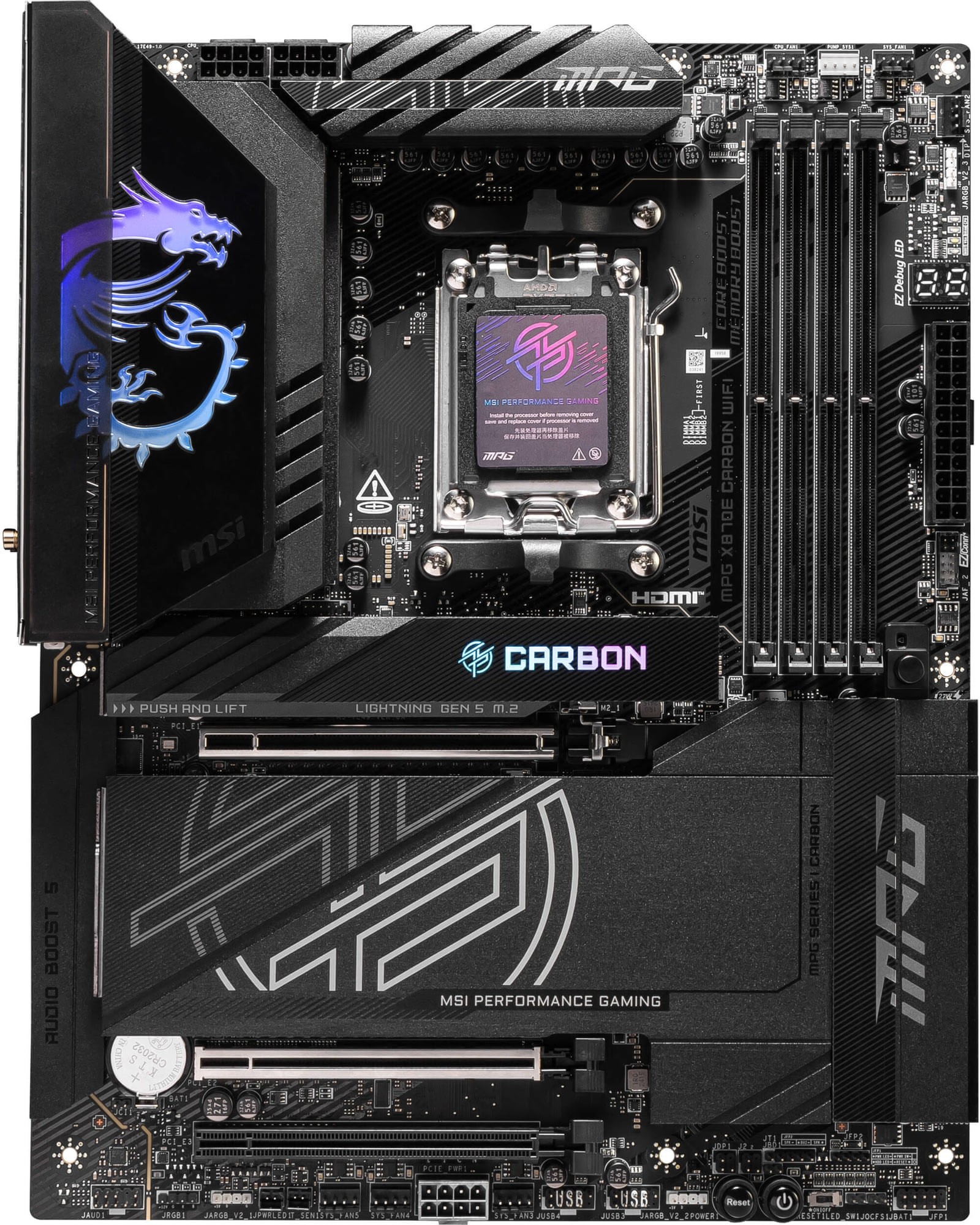

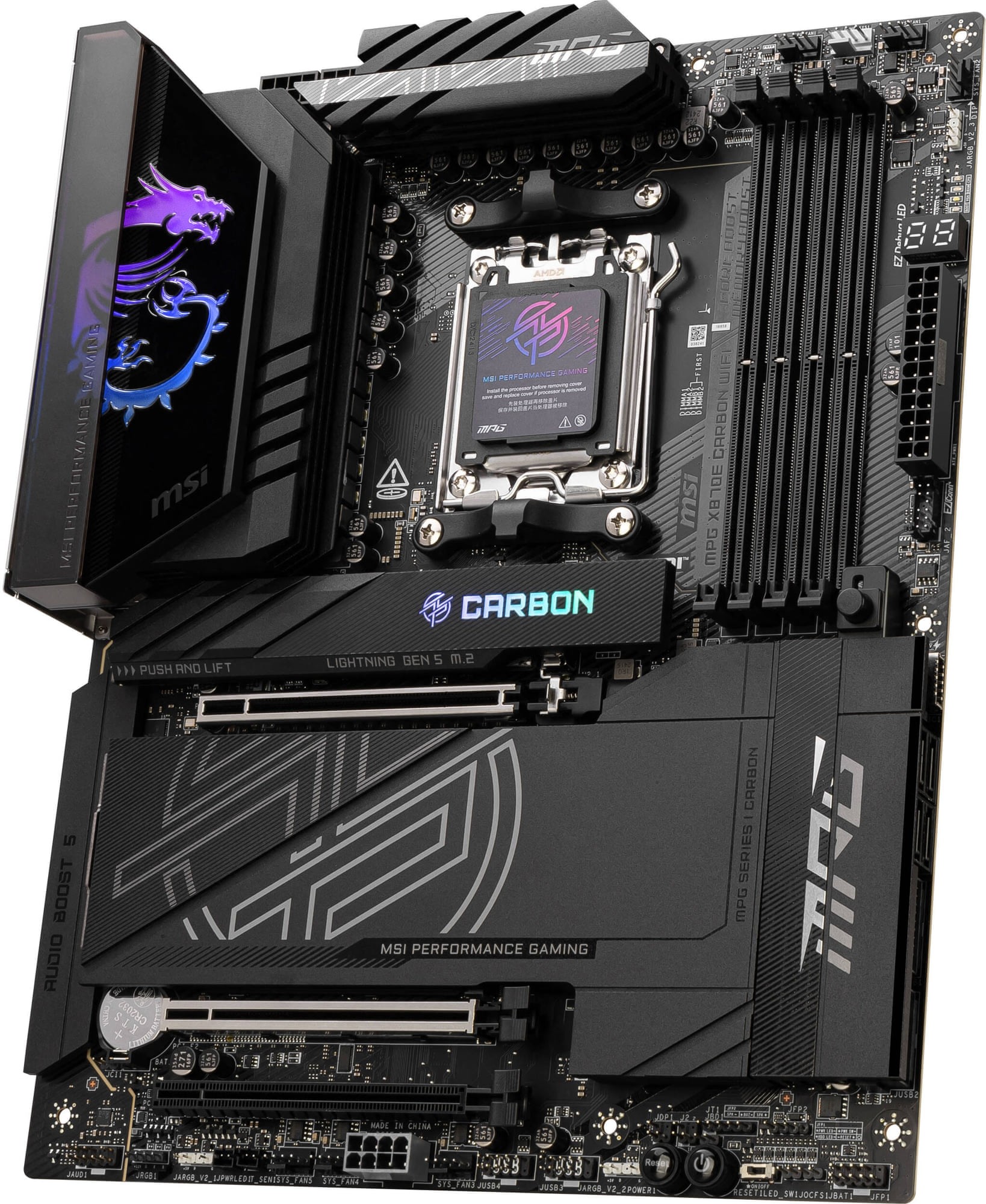

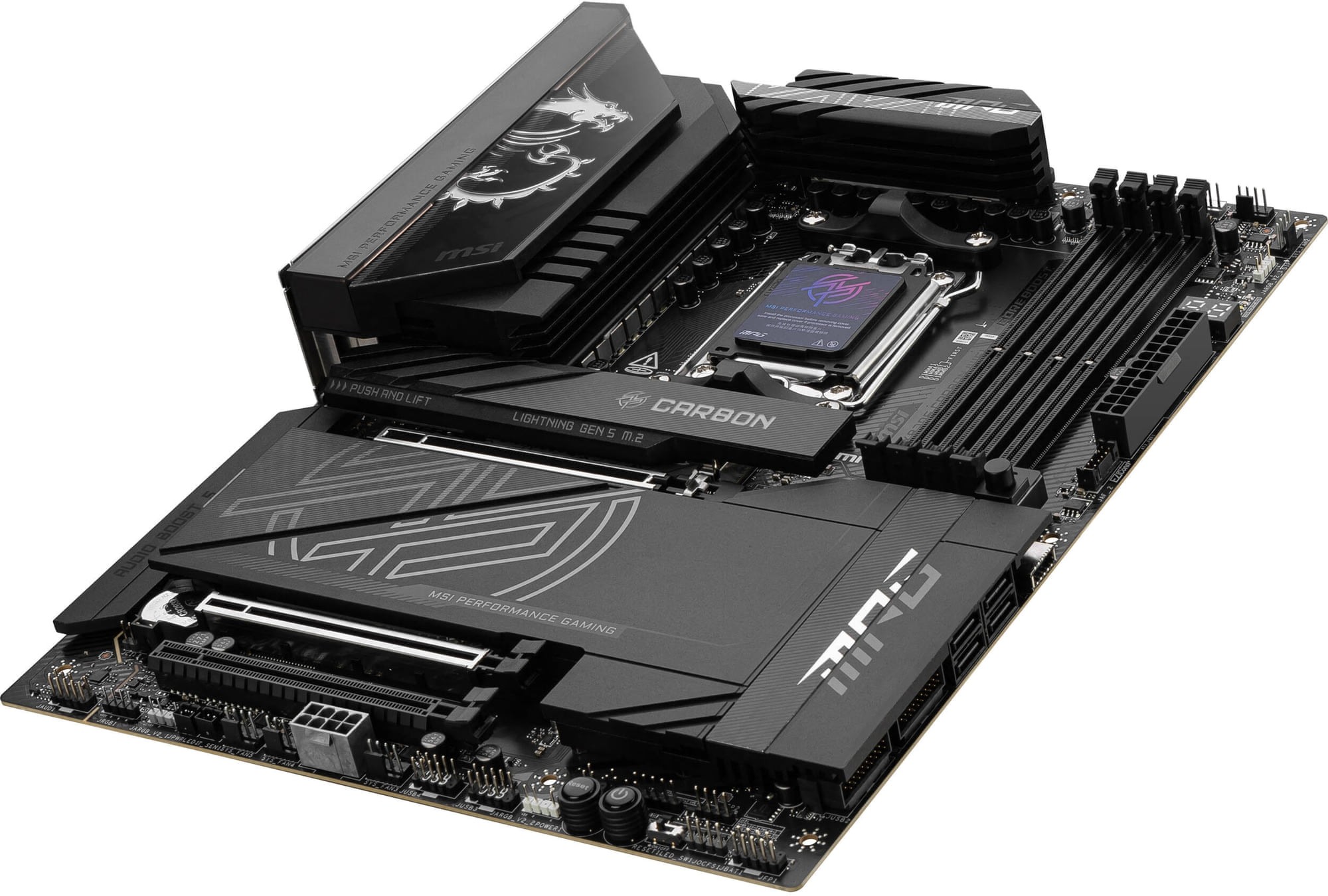

MSI MPG X870E CARBON WIFI AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI MPG X870E CARBON WIFI AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 48431

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

1 Review(s) | Add Your Review

- ATX Form Factor
- AMD X870E Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8400 (OC), Supports CUDIMM Clock Driver Bypass
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 5.0 x4 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 2x M.2 2280 PCIe 5.0 x4 NVMe SSD Slots
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 2x USB 40Gbps Type-C Ports with DisplayPort
- 2x USB 10Gbps Type-C Ports
- 7x USB 10Gbps Type-A Ports
- 1x HDMI 2.1 Port (FRL)
- 2x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Out
- 2x SMA Connectors
- Realtek 8126 5 Gigabit Ethernet RJ-45 LAN Port
- Realtek 8125 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC4080 High-Definition Audio Codec
- EZ PCIe Release Quick-Release Mechanism
- 18+2+1 Duet Rail Power System
- MSI EZ Debug 7-Segment Display
- MSI Mystic Light RGB Sync
- Supports Windows 11
- 3 Year Warranty

90 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R9,498.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)

Product Description

SPECIFICATIONS
Brand	MSI
Series	MPG Series
Model	MPG X870E CARBON WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870E Chipset
Memory Support
AMD X870E Chipset	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8400 (OC)/ 8200 (OC)/ 8000 (OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8400 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	2DPC 1R Max speed up to 6400 MT/s
	2DPC 2R Max speed up to 4800 MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
Video
DisplayPort	2x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, supports DisplayPort 1.4, HDCP & HDR
HDMI	1x HDMI 2.1 Port (FRL), supporting a maximum resolution of 8K@60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.

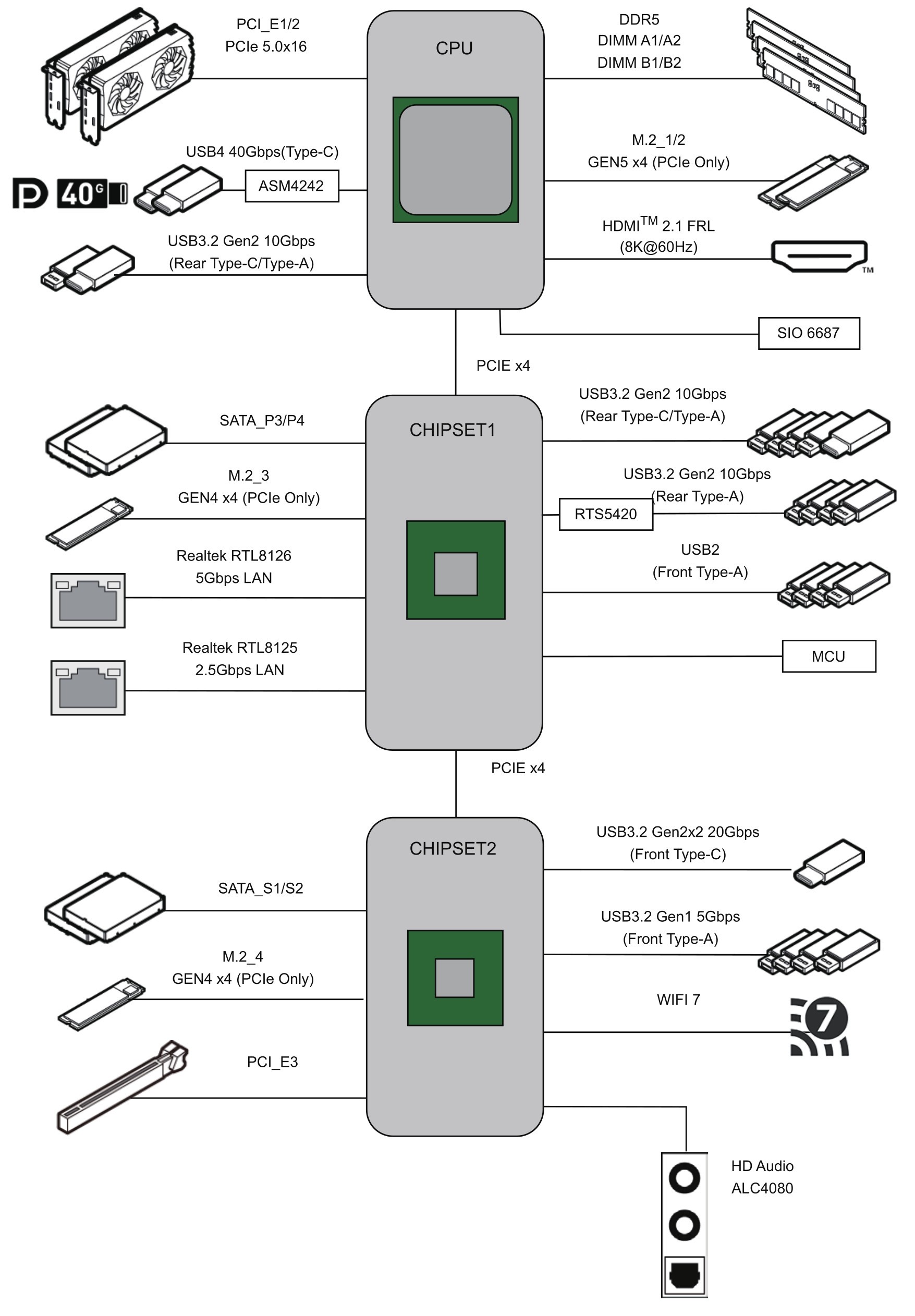

Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical) PCI_E1
CPU Direct	1x PCIe 5.0 x4 Slot (x16 Physical) PCI_E2
AMD X870E Chipset	1x PCIe 4.0 x4 Slots (x16 Physical) PCI_E3
Slot Configurations	PCI_E1 with Ryzen 8700/8600/8400 Processors support PCIe 4.0 x8 mode
	PCI_E1 with Ryzen 8500/8300 Processors support PCIe 4.0 x4 mode
	NOTE: PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU.
Storage
CPU Direct	M.2_1 Source supports up to PCIe 5.0 x4, supports 2280/2260 devices
CPU Direct	M.2_2 Source supports up to PCIe 5.0 x4, supports 2280/2260 devices
AMD X870E Chipset	M.2_3 Source supports up to PCIe 4.0 x4, supports 22110/2280 devices
	M.2_4 Source supports up to PCIe 4.0 x4, supports 2280/2260 devices
	4x SATA 6Gbps connectors
NOTES	M2_1 slot supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
	M2_1 slot supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Networking
LAN	Realtek 8126 5 Gigabit Ethernet RJ-45 LAN Port
LAN	Realtek 8125 2.5 Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC4080 High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection, Optical audio out

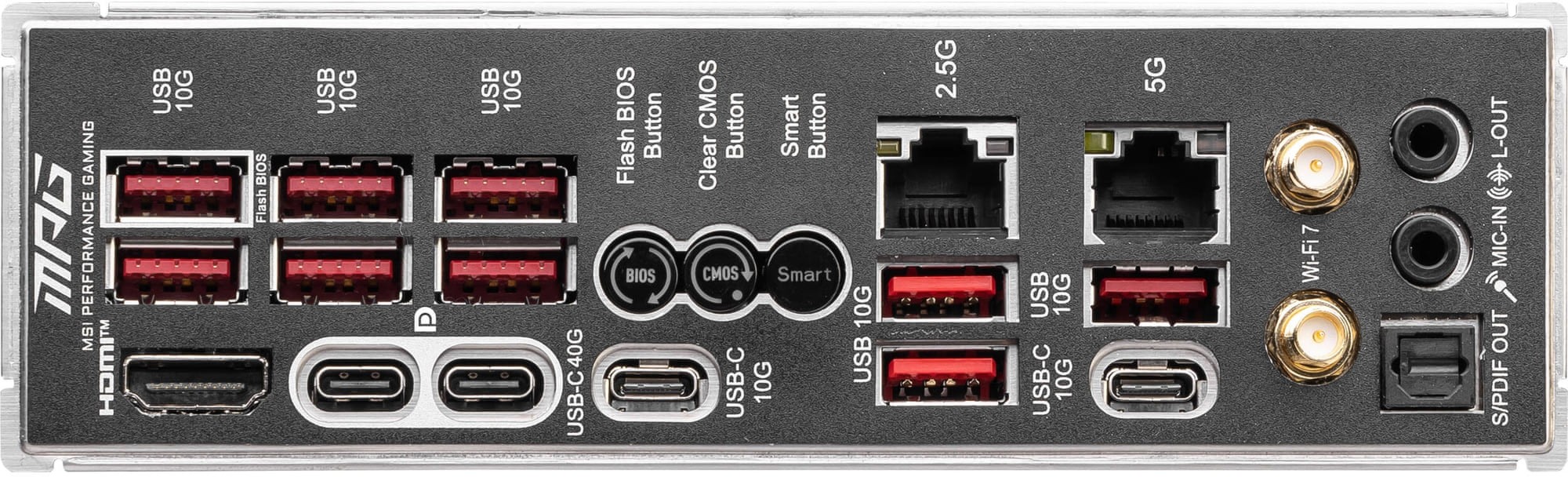

Connectivity
Ports	2x USB 40Gbps Type-C Ports with DisplayPort
	2x USB 10Gbps Type-C Ports
	7x USB 10Gbps Type-A Ports
	1x HDMI 2.1 Port (FRL)
	2x 3.5mm Audio Jacks
	1x Optical S/PDIF Audio Out
	2x SMA Connectors
	1x Realtek 8126 5 Gigabit Ethernet RJ-45 LAN Port
	1x Realtek 8125 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Clear CMOS Button, 1x BIOS Flash button, 1x Smart Button
General
Internal Connectors	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	5x System Fan
	1x EZ Conn-header (JAF_2)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Thermal Sensor connectors(T_SEN)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	4x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
LEDs	MSI EZ Debug 7-Segment Display
LEDs	MSI EZ Debug LED Array (BOOT, CPU, VGA, RAM)
I/O Controller	NUVOTON NCT6687-R Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	ACPI 6.5, SMBIOS 3.7
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit

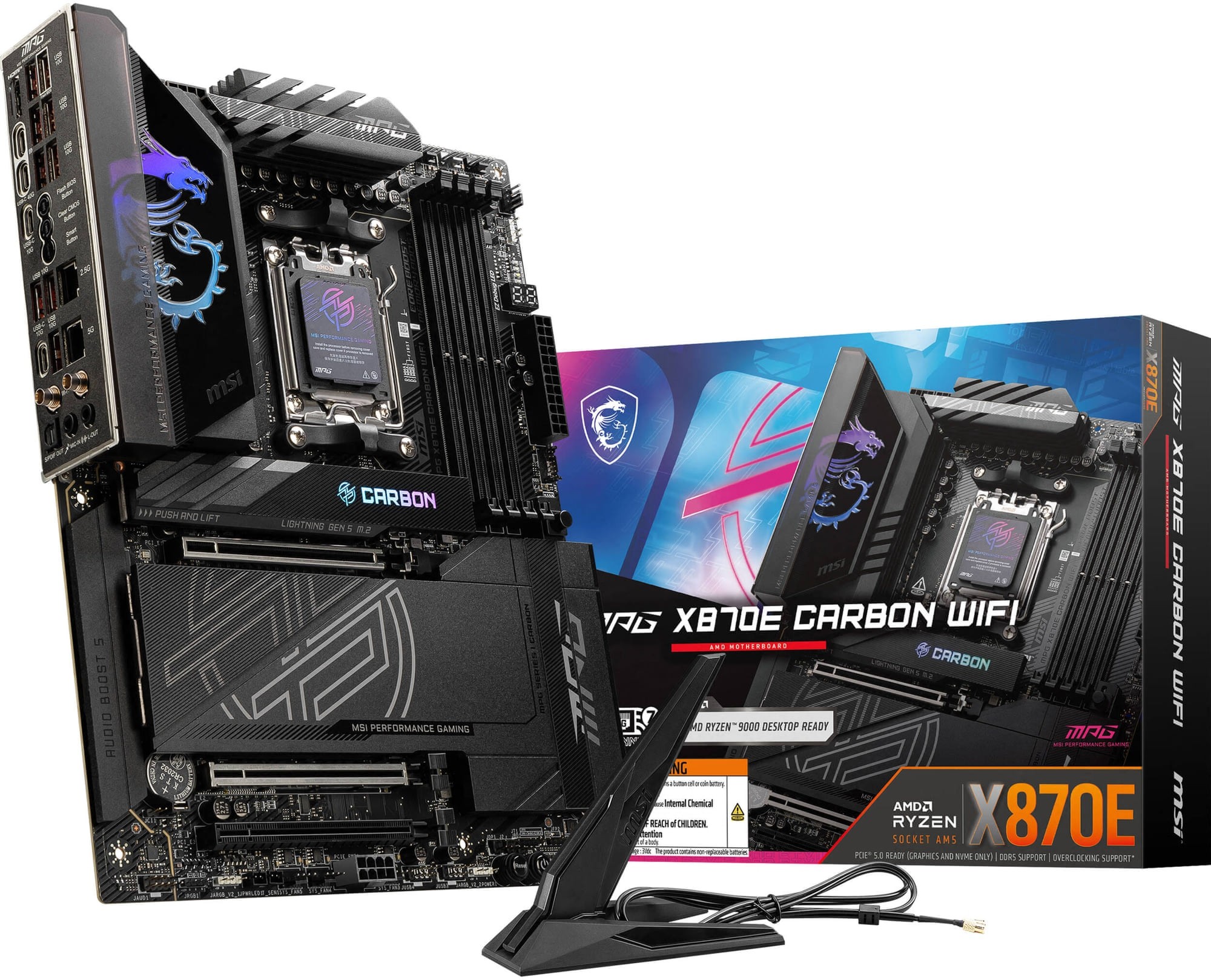

Boxed Accessories	1x Quick installation guide
	1x European Union Regulatory Notices
	1x USB drive
	2x SATA 6Gb/s cables
	1x 1 to 2 RGB extension cable
	1x ARGB extension cable
	1x 1 to 3 EZ Conn-Cable (V2)
	1x EZ Front panel cable
	1x EZ Wi-Fi Antenna
	1x Cable sticker
	1x EZ M.2 Clip II
	1x EZ M.2 Clip II Remover
Warranty Information
Warranty	3 Year Warranty
