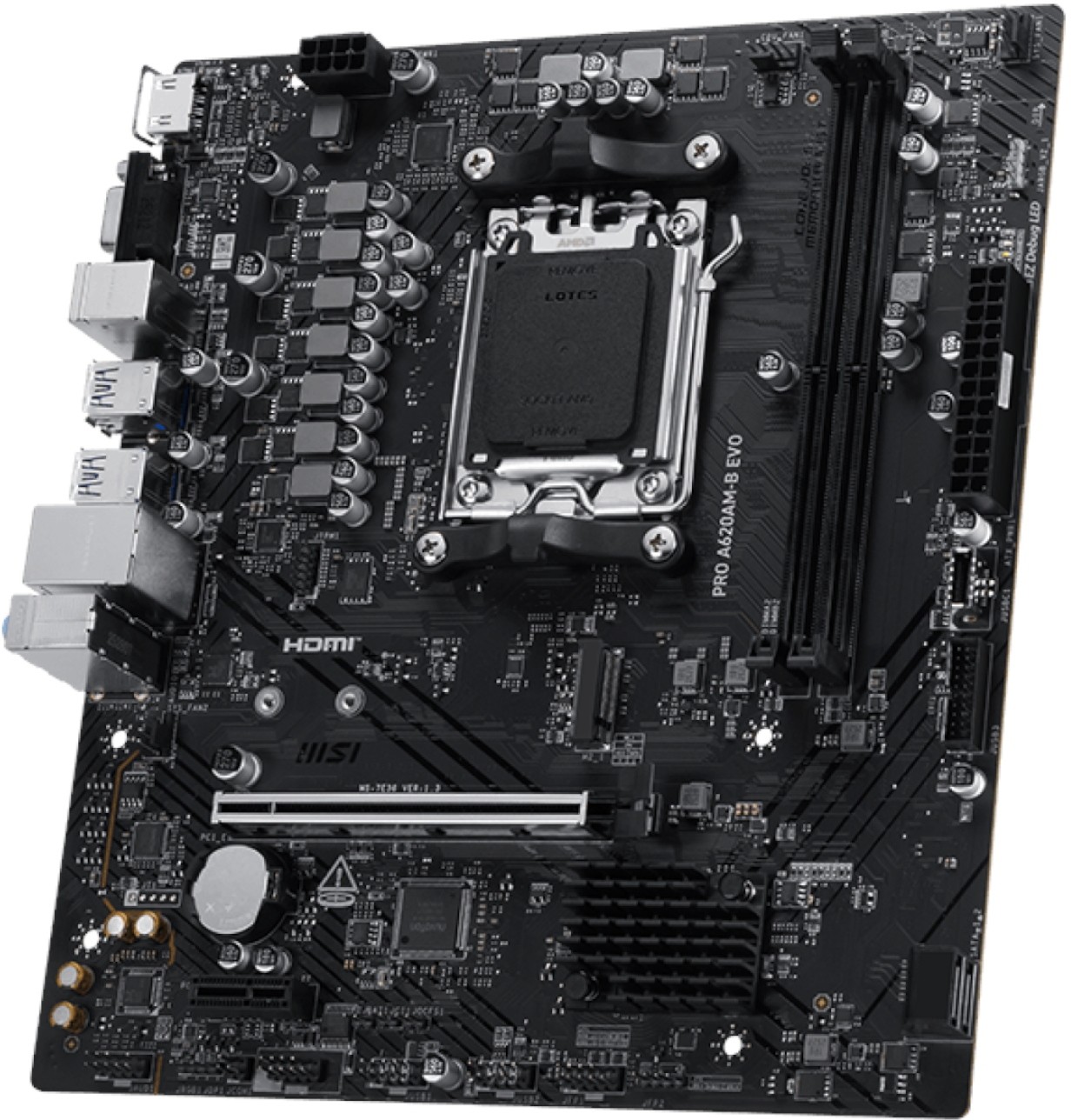

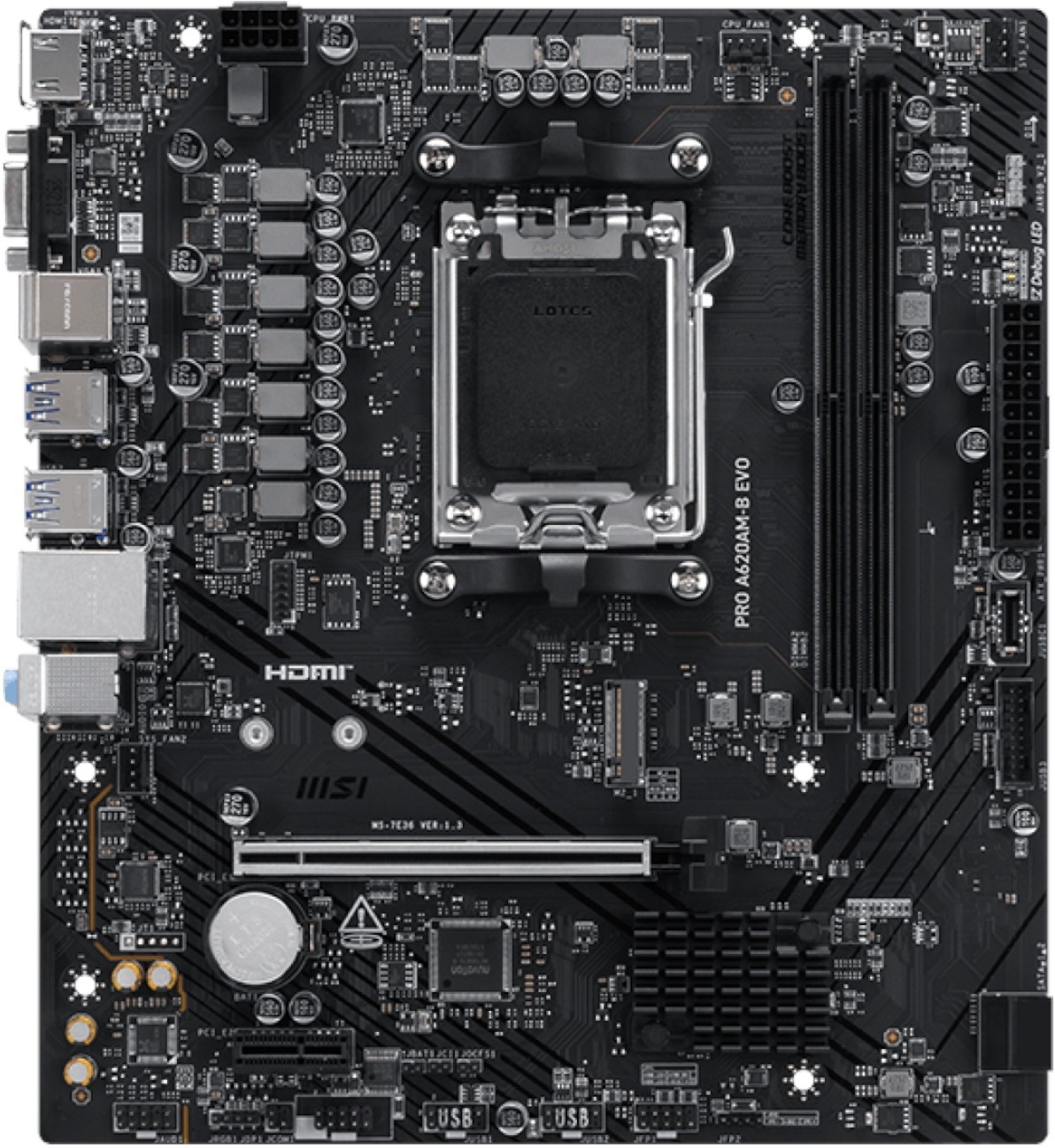

MSI PRO A620AM-B EVO AMD A620A Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO A620AM-B EVO AMD A620A Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 55066

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- Micro-ATX Motherboard
- AMD A620A Chipset, Socket AM5
- Supports AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
- 2x DDR5 DIMM Slots, Supports Up to 128GB (2x64GB)
- Supports Up to DDR5-6800+ (OC)
- - Supports AMD EXPO Memory
- 1x PCIe 4.0 x16 Slot, 1x PCIe 3.0 x1 Slot
- 1x M.2 PCIe 4.0 x4 Slot (2280/2260), 2x SATA 6Gbps
- 4x USB 5Gbps Type-A, 2x USB 2.0
- 1x HDMI 2.1 (4K@60Hz), 1x VGA
- Realtek RTL8125 2.5GbE LAN
- Realtek ALC897 7.1-Channel HD Audio
- 1x ARGB & 1x RGB Header
- 3 Year Warranty

108 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R1,749.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO A620A Series
Model	PRO A620AM-B EVO
Chipset	AMD A620A
CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
CPU	Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 128GB
	Memory Support DDR5 6800 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	- 1DPC 1R Max speed up to 6800+ MT/s
	- 1DPC 2R Max speed up to 6000+ MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPO
	Supports Dual-Channel mode
	Supports non-ECC, un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only*
	* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
	- The DIMM slots on this motherboard only have single-sided latches.
	- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/
Onboard Graphics	1x HDMI
	Support HDMITM 2.1, maximum resolution of 4K 60Hz*
	1x VGA
	Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot
	- Supports x16 (For Ryzen 9000 and 7000 Series processors)
	- Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
	- Supports x4 (For Ryzen 8500/ 8300 Series processors)
	1x PCI-E x1 slot
	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek ALC897 Codec
Audio	7.1-Channel High Definition Audio
Storage	1x M.2
	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	2x SATA 6G
	M2_1 slot
	- Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
	- Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID	Supports RAID 0 and RAID 1 for SATA storage devices
USB	2x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	4x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
	1x USB 5Gbps Type C (Front)
LAN	Realtek RTL8125 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 5Gbps Type C ports
LED FEATURE	4x EZ Debug LED
LED FEATURE	1x EZ Memory Detection LED
Back Panel Ports	1x HDMI
	1x VGA
	1x Keyboard/Mouse
	4x USB 5Gbps Type-A
	1x LAN port
	1x Audio connectors
	2x USB 2.0
PCB Info	M-ATX
PCB Info	218mm x 243.84mm
Warranty Information
Warranty	3 Year Warranty
