| SPECIFICATIONS | |

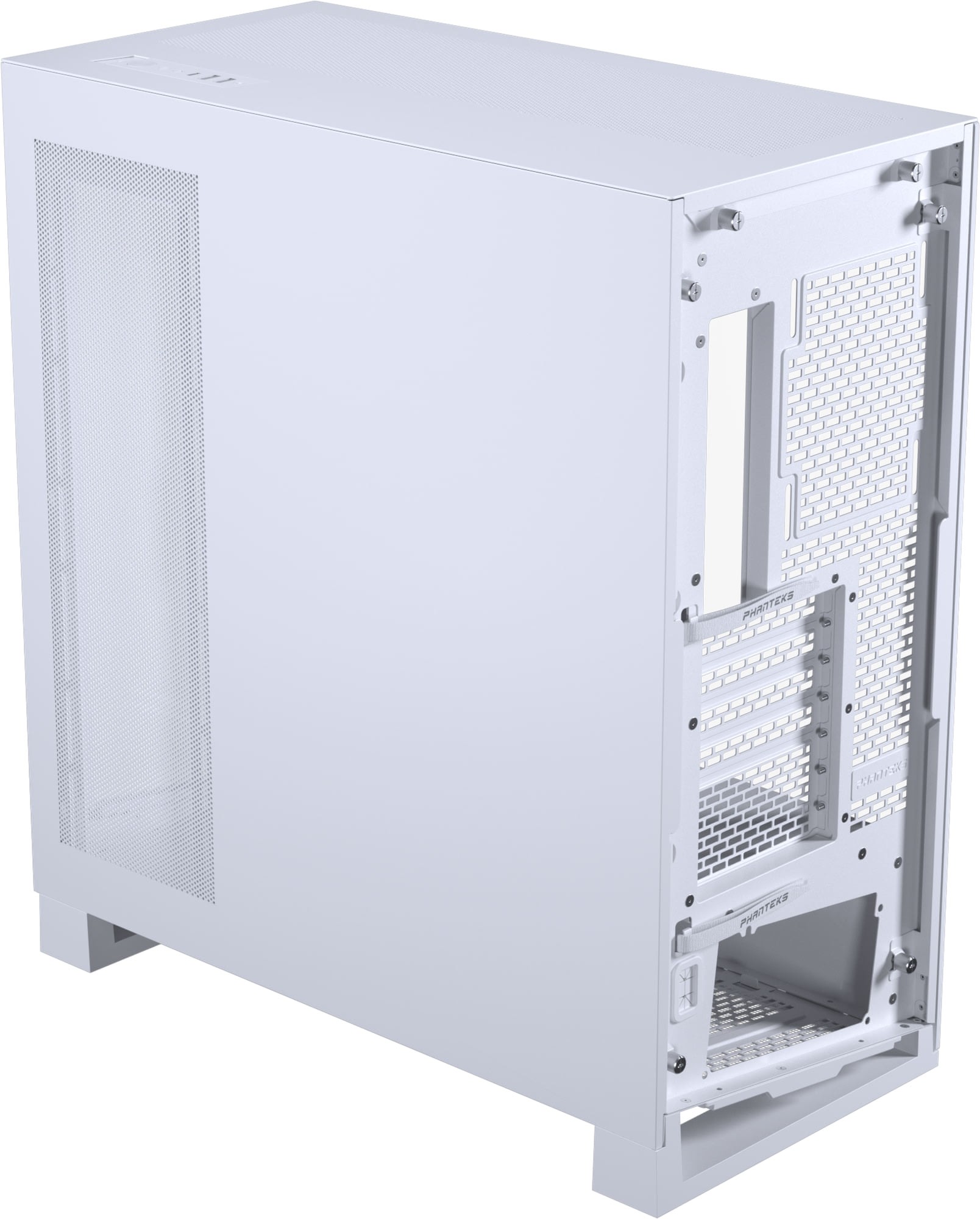

| Brand | Phanteks |
| Series | NV5 Series |

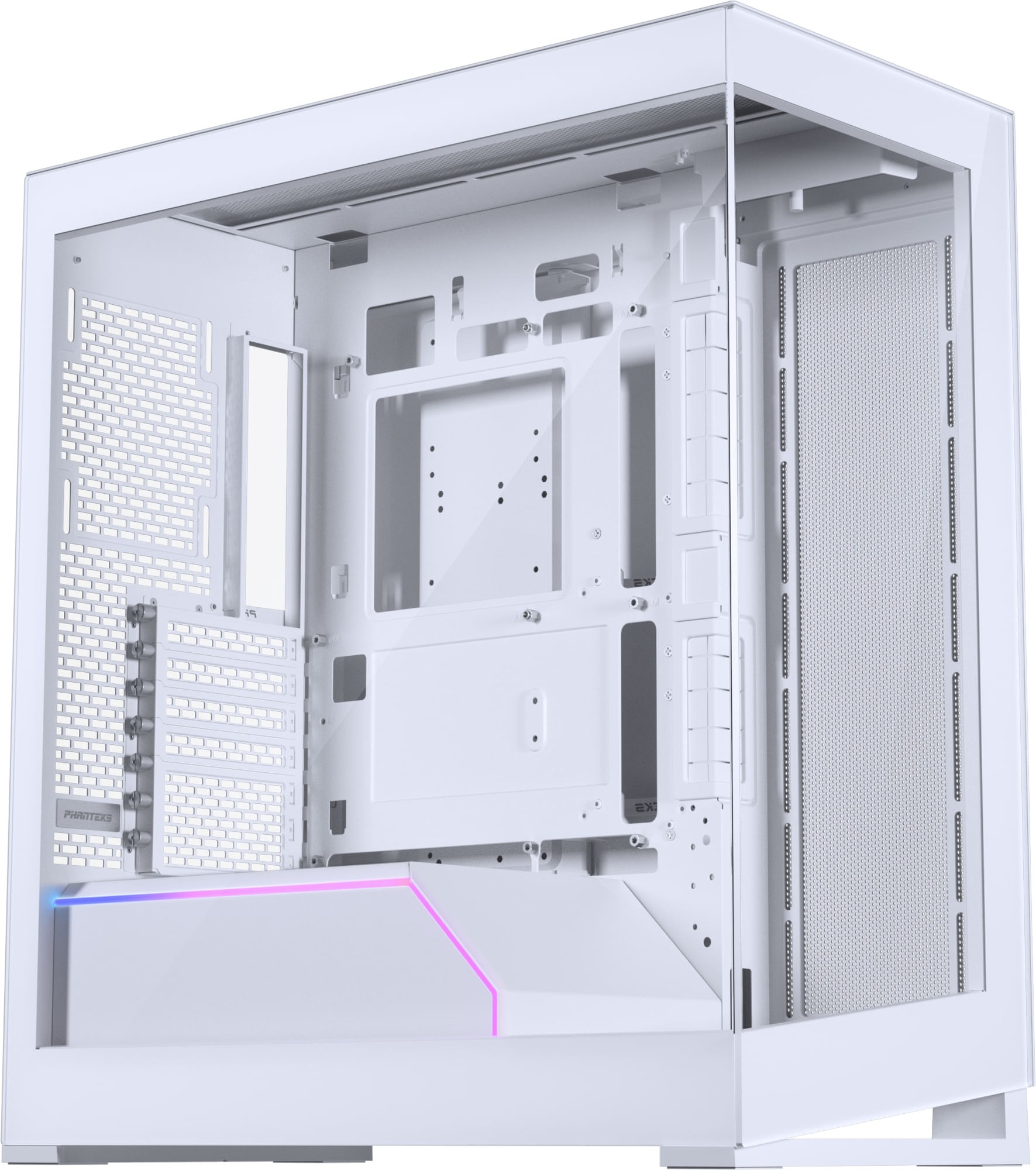

| Model | NV5 MK2 (PH-NV523TG_DMW02) |
| Colour | White |
| Materials | Steel |
| Tempered Glass | |

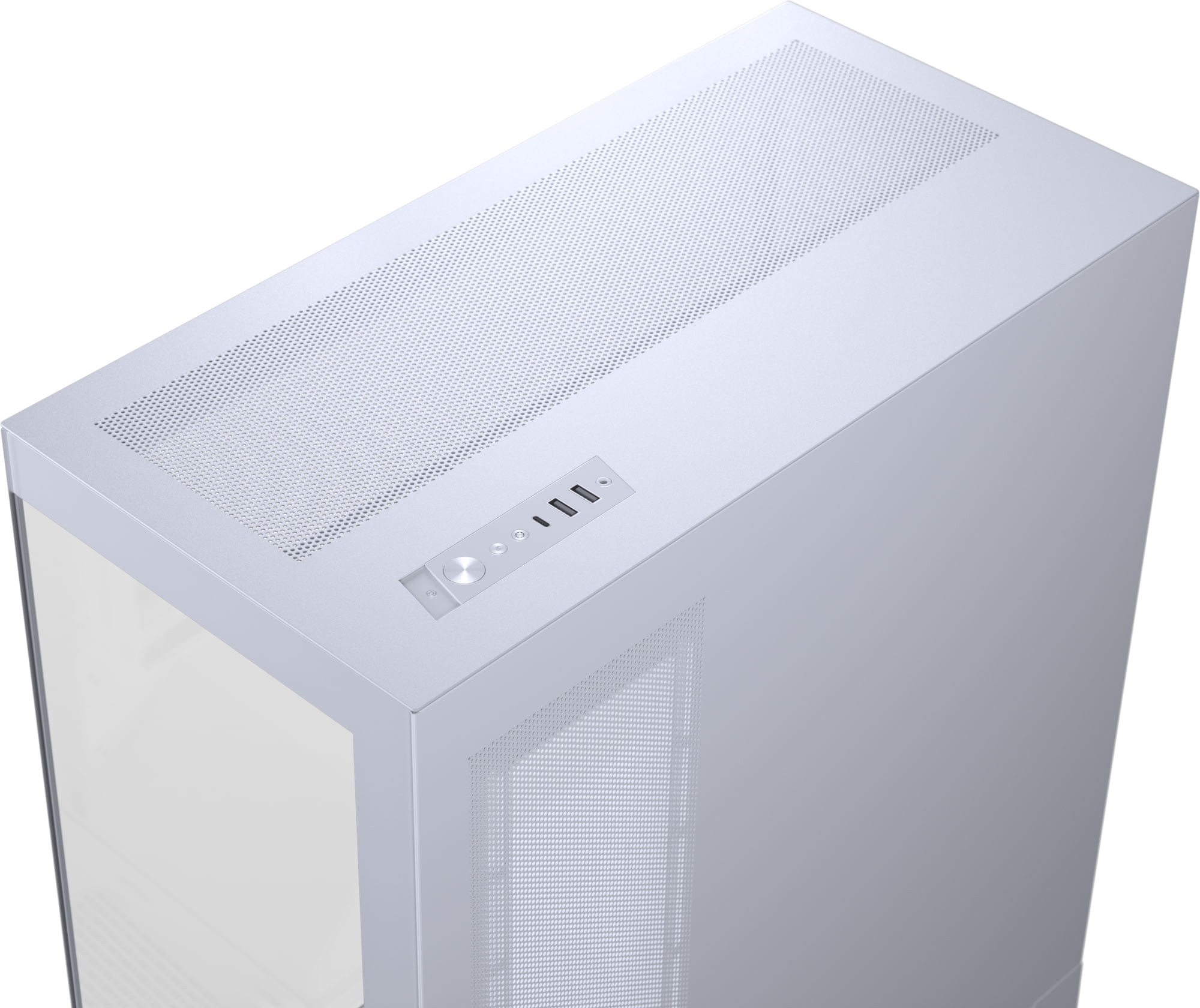

| Side Panel | Near-Seamless Tempered Glass Front & Left side panels |

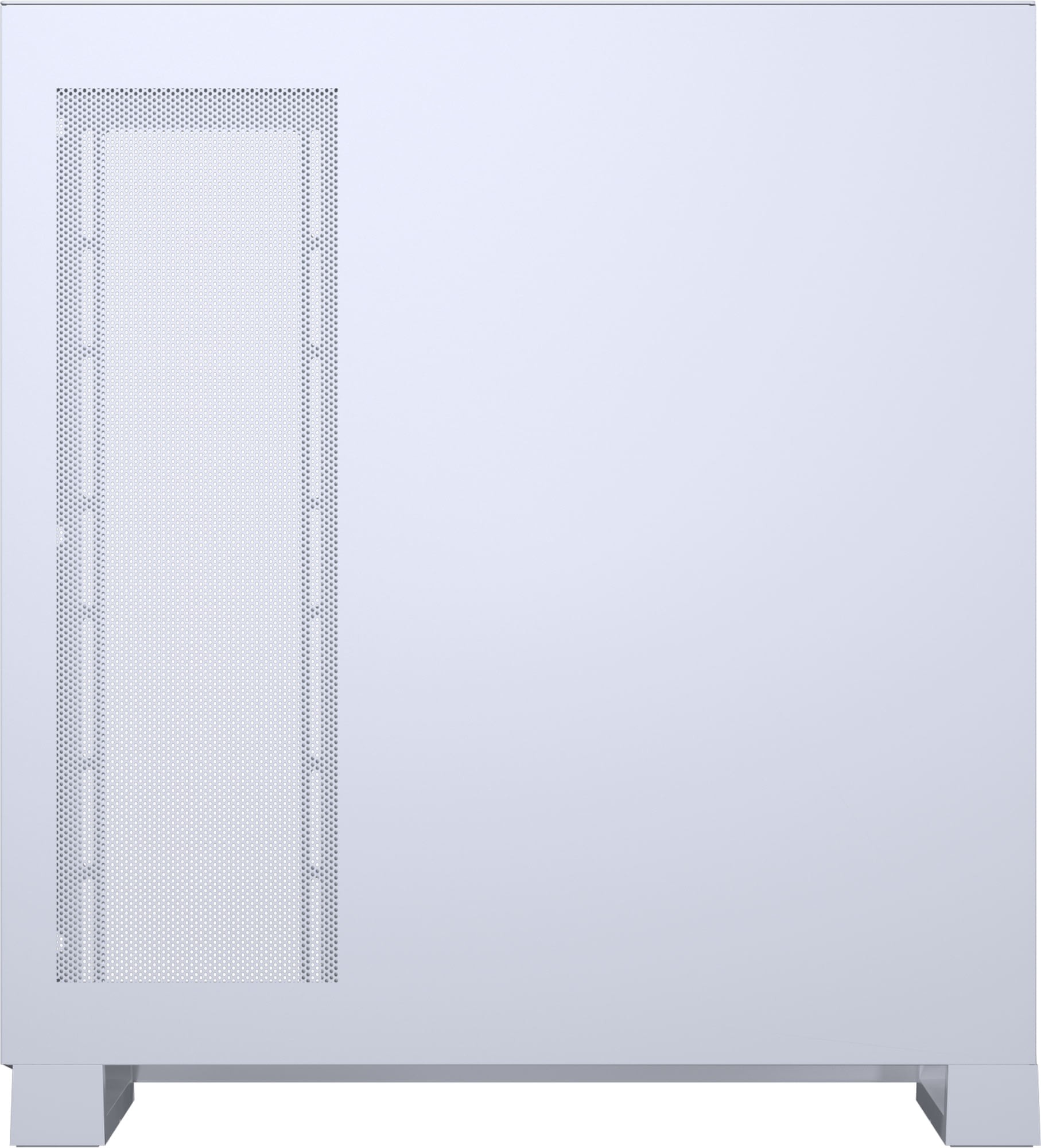

| Top & Right-side Partial Mesh panels | |
| I/O Ports | 1x USB 10Gbps Type-C Port |
| 2x USB 5Gbps Type-A Port | |
| 3.5mm Combination Audio Jack (Headphone, Microphone) | |
| Reset Button | |
| Power Button | |
| D-RGB Color button | |
| D-RGB Mode button | |

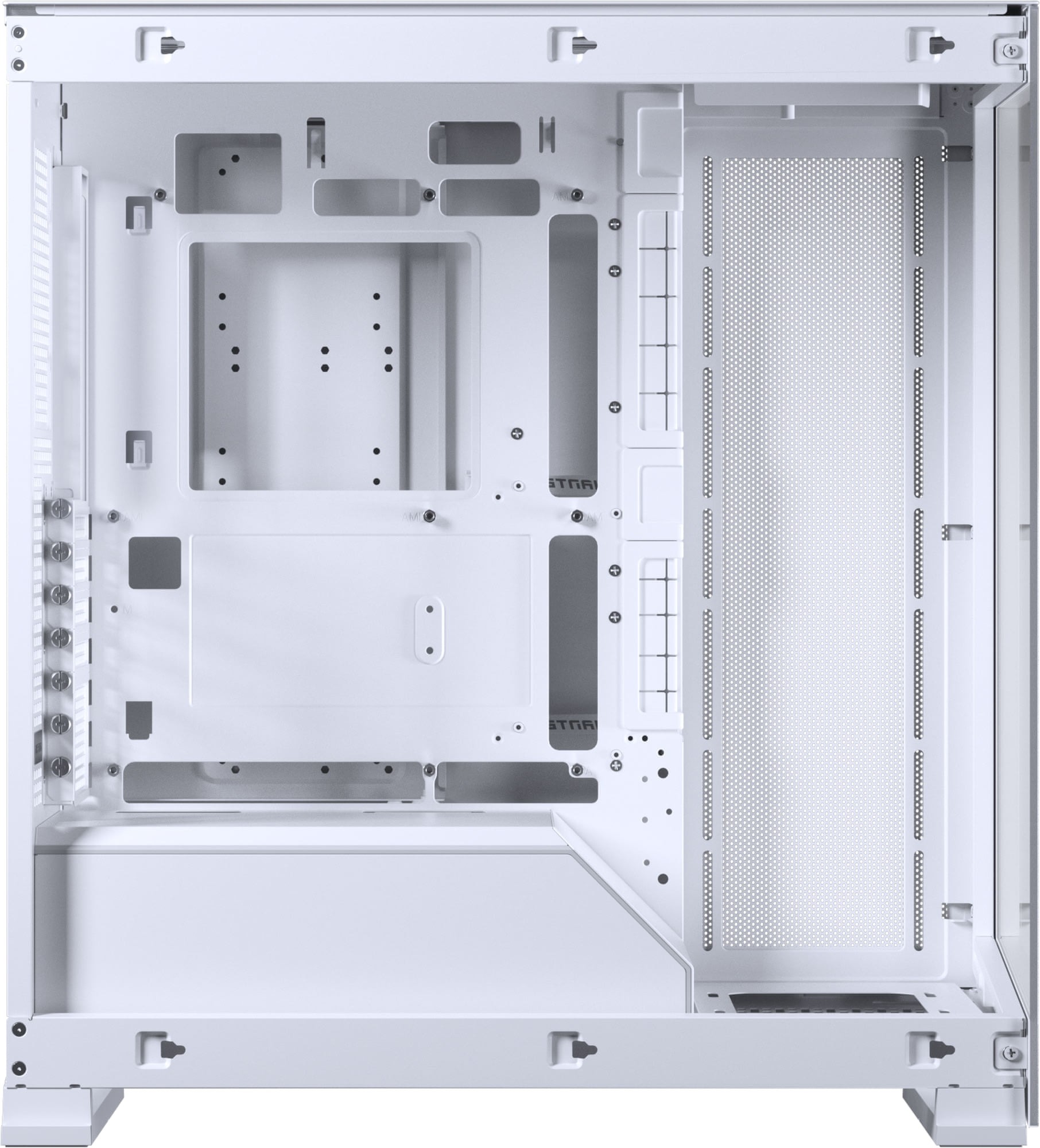

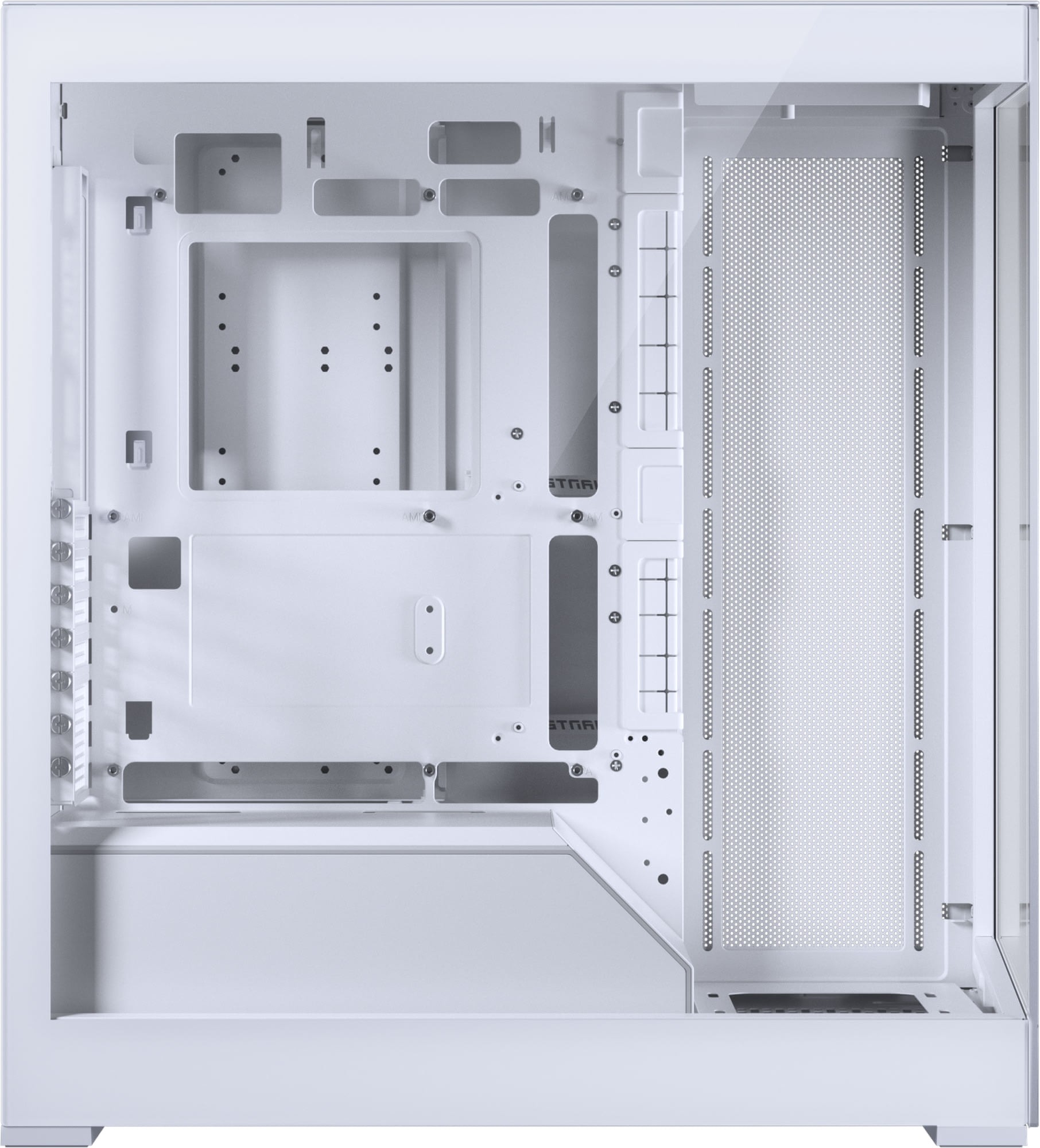

| Motherboard Support | Supports E-ATX (280mm without GPU support bracket), ATX, Micro-ATX, Mini-ITX Motherboards |

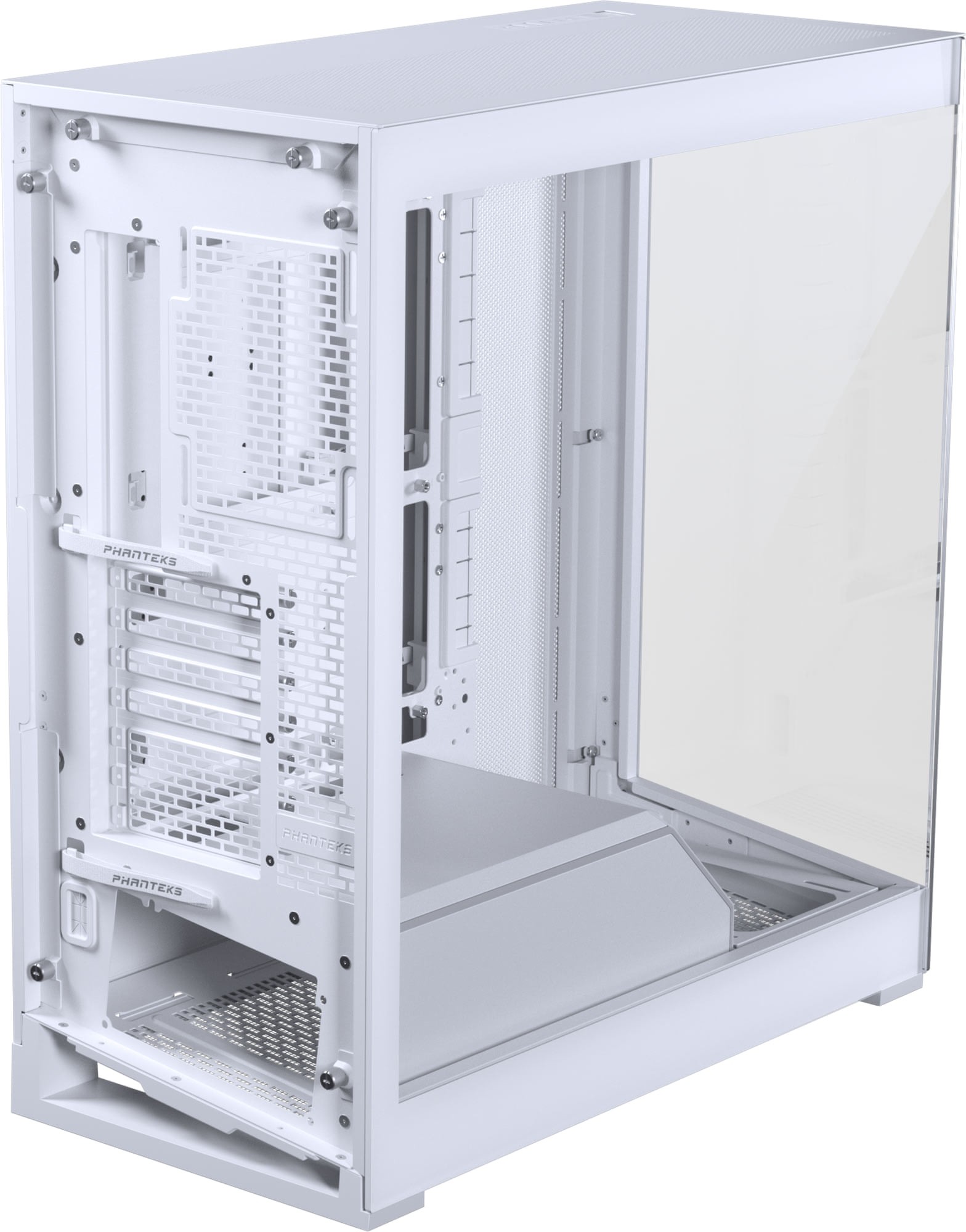

| Expansion Slots | 7 |
| Drive Bays | 4x 2.5" Drive Bays (removable) |
| 3x 3.5" Drive Bays (shared with 2.5" drive tray) | |
| Supported Drive Configurations | 4x 2.5" drives or 3x 3.5" drives (full tray) |
| 2x 3.5" drives & 1x 2.5" drive | |
| 2x 2.5" drives @ 1x 3.5" drive | |
| PSU Support | ATX |
| Dimensions | 239 x 477 x 528 mm (W x D x H) |
| Weight | 11.28kg |
| Pre-Installed Fans | |
| Top | N/A |
| Right Side | N/A |
| Rear | N/A |
| Bottom | N/A |
| Fan Support | |
| Top | 3x 120mm Fans |
| Right Side | 3x 120mm Fans |
| Rear | 1x 120 mm Fan |
| Bottom | 1x 120 mm Fan |
| Radiator Support | |
| Top | Up to 360mm Radiator (62mm clearance including fans) |
| Right Side | Up to 360mm Radiator (62mm clearance including fans) |
| Rear | 120mm Radiator |
| Bottom | N/A |
| Clearances | |
| Top Radiator | 134 x 430 x 62mm (W x H x D) |
| Right Side Radiator | 130 x 420 x 62mm (W x H x D) |
| CPU Cooler Height | Up to 180mm |
| GPU Length Limitation | Up to 440mm (170mm Width) |
| PSU Length Limitation | Up to 230mm |

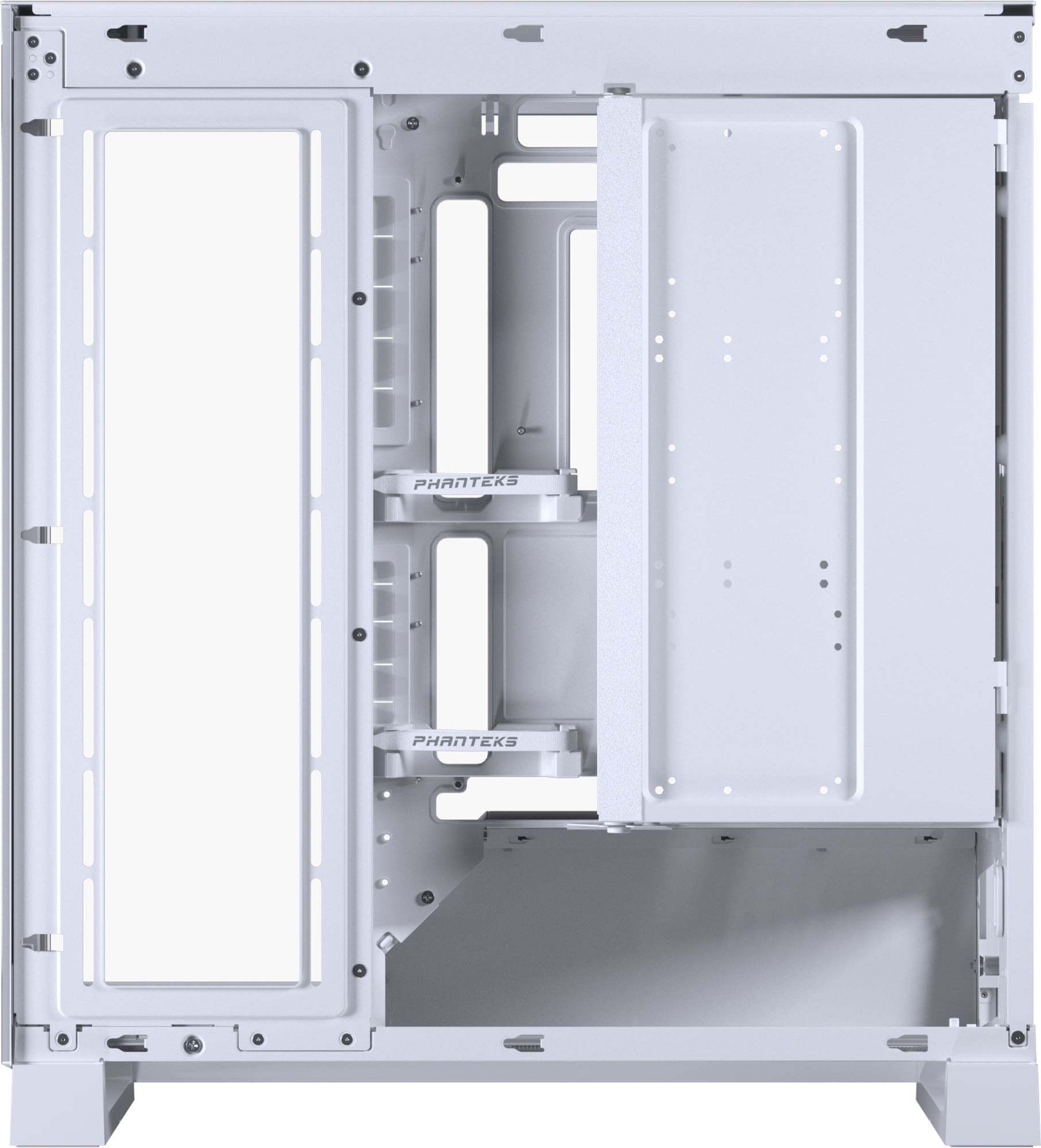

| Cable Management | Yes, behind motherboard tray, velcro straps and cable channels |
| General | |
| Dust Filters | Bottom & Top mounted removable PSU filter |
| Chassis Lighting | Yes, Phanteks D-RGB Controller with JST converter to motherboard 3-pin ARGB header |
| D-RGB Fans compatible with most motherboard RGB software utilities | |
| Boxed Accessories | 1x Storage Door Bracket |
| 1x DRGB Controller | |
| 1x Horizontal GPU Support Bracket | |
| Warranty Information | |
| Warranty | 5 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
