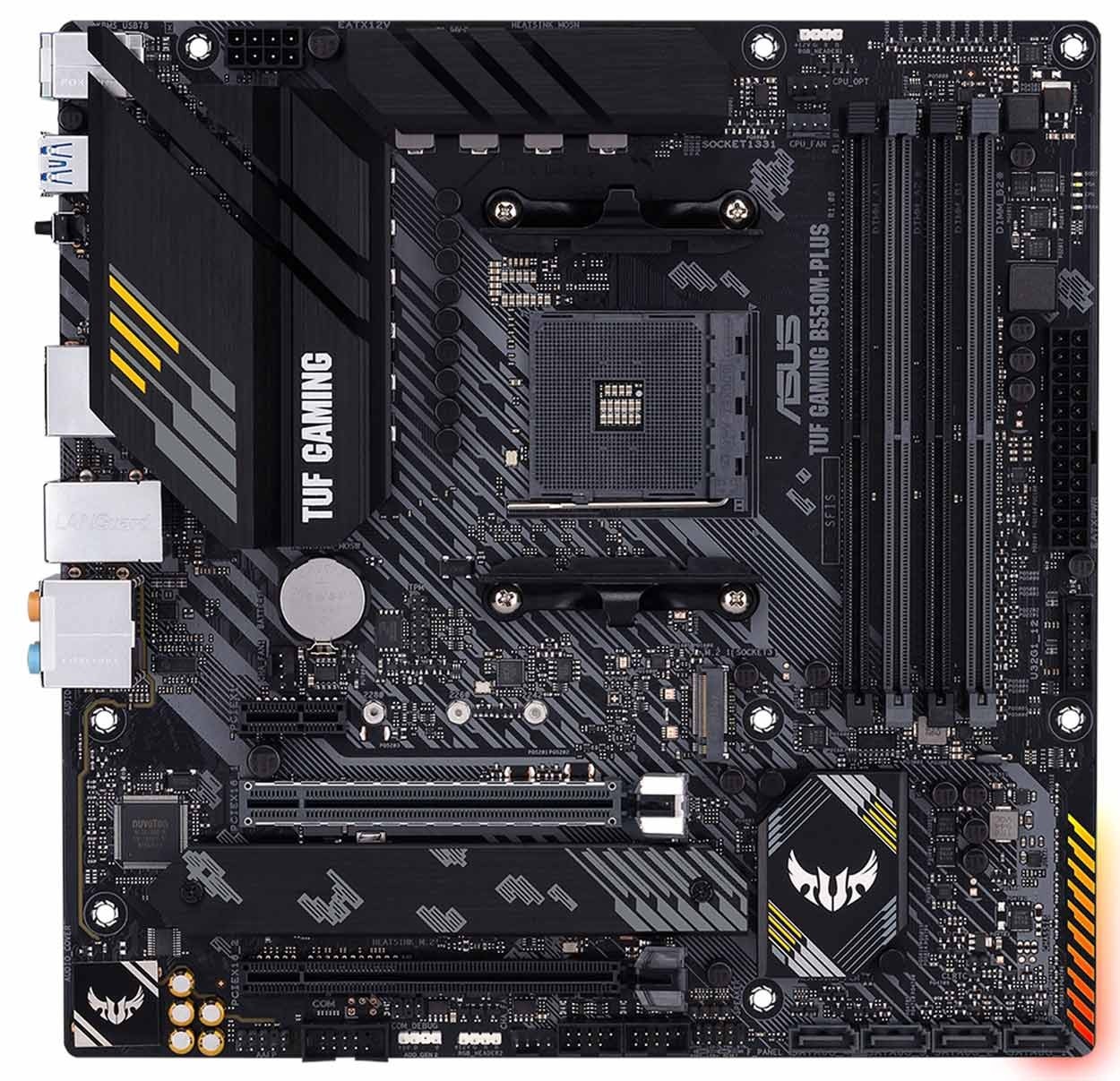

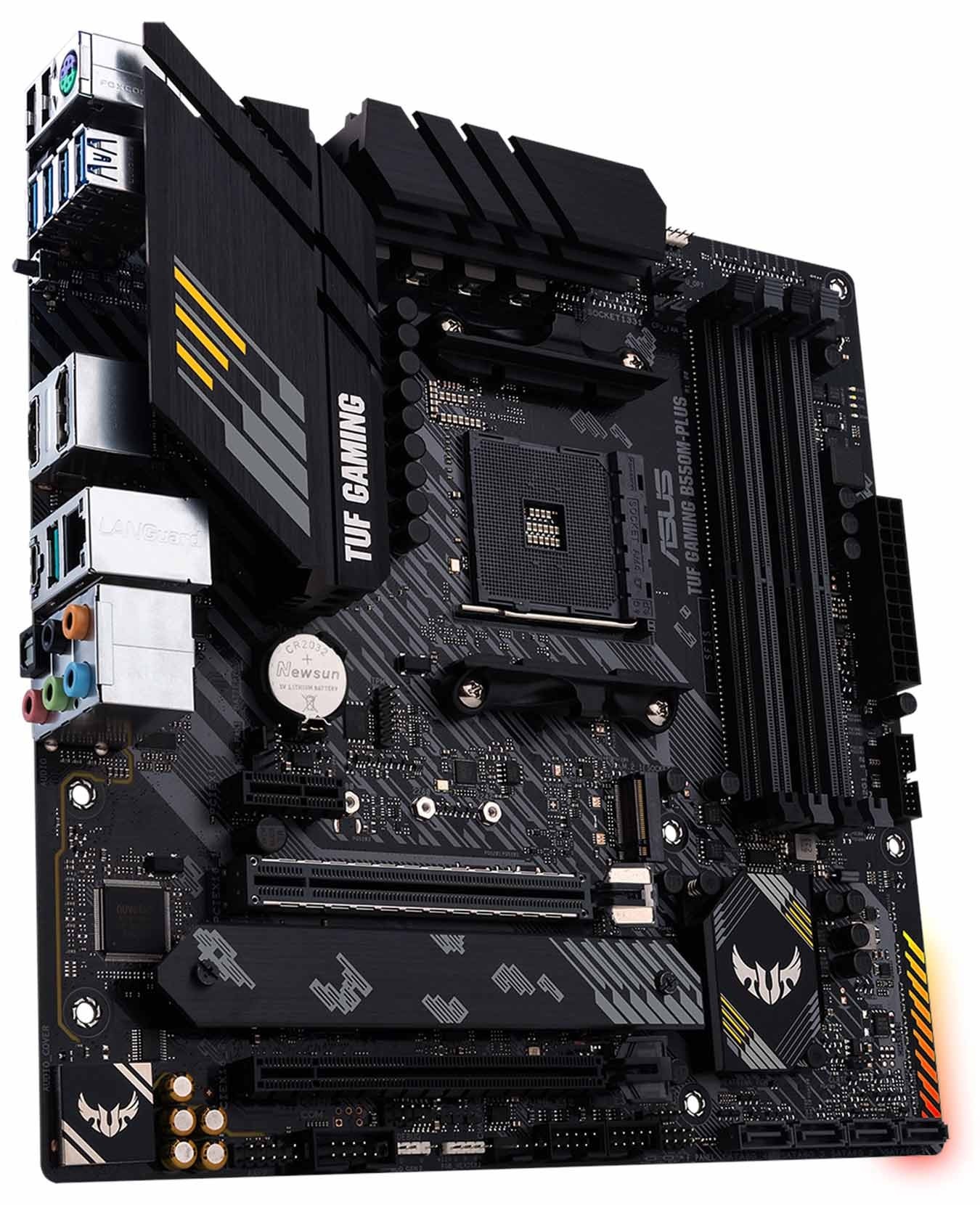

ASUS 90MB14A0-M0EAY0 TUF GAMING B550M-PLUS AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS 90MB14A0-M0EAY0 TUF GAMING B550M-PLUS AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard

Product ID: 32323

Be the first to review this product

- Micro-ATX Form Factor
- AMD B550 Chipset
- Socket AM4
- 4x DDR4 DIMM Slots, Supports up to 128GB
- Supports up to DDR4-4600(OC)
- 1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x1 Slots
- 4x SATA 6Gbps Ports, 1x M.2 PCIe 4.0 x4 M-Key Slot
- 1x M.2 PCIe 3.0 x4 M-Key Slot
- 1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen2 Type-A
- 4x USB 3.2 Gen1 Type-A, 2x USB 2.0 Type-A
- 1x DisplayPort, 1x HDMI, 1x BIOS FlashBack Button
- 8+2 Power Phase Design
- Stack Cool 3+
- TUF Safeslot, ESD Guards, LANGUARD & More
- 1x Realtek RTL8125B 2.5Gb LAN Port
- Realtek ALC S1200A 7.1 HD Audio CODEC
- 3 Year Warranty

277 Products

- Please note: The AMD B550 chipset is NOT compatible with AMD Ryzen 1st Gen & 2nd Gen CPUs, including the AMD Ryzen 3 3200G & AMD Ryzen 5 3400G.

End of Life

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS PRIME B550M-K ARGB AMD B550 Ryzen Socket AM4 Micro-ATX Deskt...

In stock with Wootware

R2,999.00

R1,749.00

Save: R 1,250!

6 Review(s)

ASUS ROG STRIX B550-F GAMING WIFI II AMD B550 Socket AM4 ATX Desk...

In stock with Wootware

R5,799.00

R3,999.00

Save: R 1,800!

11 Review(s)

Gigabyte GA-B550-GAMING-X V2 B550 Gaming X V2 AMD B550 Ryzen Sock...

In stock with Wootware

R2,999.00

R2,499.00

Save: R 500!

2 Review(s)

ASUS ROG STRIX B550-A GAMING AMD B550 Socket AM4 ATX Desktop Moth...

In stock with Wootware

R5,499.00

R3,499.00

Save: R 2,000!

23 Review(s)

Gigabyte B550M DS3H R2 AMD B550 Socket AM4 Micro-ATX Desktop Moth...

In stock with Wootware

R2,699.00

R1,999.00

Save: R 700!

4 Review(s)

MSI B550M-A PRO AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Mothe...

In stock with Wootware

R1,999.00

R1,699.00

Save: R 300!

Gigabyte B550M GAMING X WIFI6 AMD B550 Ryzen Socket AM4 Micro-ATX...

Stock Coming Soon

R2,999.00

R2,499.00

Save: R 500!

2 Review(s)

Gigabyte B550 EAGLE AMD AM4 Socket B550 ATX Desktop Motherboard

In stock with Wootware

R2,699.00

R2,299.00

Save: R 400!

1 Review(s)

Gigabyte B550 EAGLE WiFi6 AMD AM4 Socket B550 ATX Desktop Motherb...

In stock with Wootware

R3,299.00

R2,699.00

Save: R 600!

Gigabyte B550 AORUS ELITE AX V2 AMD AM4 Socket B550 Wi-Fi 6 ATX D...

Stock Coming Soon

R3,949.00

R3,299.00

Save: R 650!

4 Review(s)

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	TUF Gaming
Model	TUF GAMING B550M-PLUS (90MB14A0-M0EAY0)
CPU	Build in AMD AM4 Socket 3rd Gen AMD Ryzen Processors*
CPU	*Refer to www.asus.com for CPU support list
Chipset	AMD B550
Memory	3rd Gen AMD Ryzen Processors
	4x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
	Next Generation AMD Ryzen PRO Processors
	4x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *
	Dual Channel Memory Architecture
	ECC Memory (ECC mode) support varies by CPU.
	*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic	1x DisplayPort 1.2
Graphic	1x HDMI 2.1(4K@60HZ)
Multi-GPU Support	Supports AMD 2-Way CrossFireX Technology
Expansion Slots	3rd Gen AMD Ryzen Processors
	1x PCIe 4.0 x16 (x16 mode)
	AMD B550 Chipset
	1x PCIe 3.0 x16 (x4 mode)
	1x PCIe 3.0 x1
	*Support PCIe bifurcation for RAID on CPU function.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
	3rd Gen AMD Ryzen Processors:
	1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
	AMD B550 Chipset:
	1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
	4x SATA 6Gb/s port(s),
	Support Raid 0, 1, 10
LAN	Realtek RTL8125B 2.5Gb Ethernet
LAN	TUF LANGuard
Audio	Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
	Audio Feature:
	- Exclusive DTS Custom for GAMING Headsets.
	- Optical S/PDIF out port(s) at back panel
	- Audio cover
	- Audio Shielding
	- Dedicated audio PCB layers
	- Premium Japanese audio capacitors
USB Ports	Rear USB Port ( Total 8 )
	2x USB 3.2 Gen 2 port(s)(1 x Type-A 1 x USB Type-C)
	4x USB 3.2 Gen 1 port(s)(4 x Type-A)
	2x USB 2.0 port(s)(2 x Type-A)
	Front USB Port ( Total 6 )
	2x USB 3.2 Gen 1 port(s)(2 x Type-A)
	4x USB 2.0 port(s)(4 x Type-A)
Back I/O Ports	1x PS/2 keyboard/mouse combo port(s)
	1x DisplayPort
	1x HDMI
	1x LAN (2.5G) port(s)
	2x USB 3.2 Gen 2 (teal blue) (1 x Type-A 1 x USB Type-C)
	4x USB 3.2 Gen 1 (blue) Type-A
	2x USB 2.0
	1x Optical S/PDIF out
	5x Audio jack(s)
	1x BIOS FlashBack Button(s)
Internal I/O Ports	1x CPU Fan connector(s)
	1x CPU OPT Fan connector(s)
	2x Chassis Fan connector(s)
	2x Aura RGB Strip Headers
	1x Addressable Gen 2 header(s)
	1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
	2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
	1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
	1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
	1x SPI TPM header
	4x SATA 6Gb/s connector(s)
	1x 24-pin EATX Power connector(s)
	1x 8-pin EATX 12V Power connectors
	1x Front panel audio connector(s) (AAFP)
	1x Clear CMOS jumper(s)
	1x System panel connector
	1x COM port header
	1x Speaker connector
Accessories	User's manual
	I/O Shield
	2x SATA 6Gb/s cable(s)
	1x Supporting DVD
	1x TUF Gaming Sticker
	1x TUF Certification card(s)
	1x M.2 SSD screw package(s)
	1x M.2 Rubber Package(s)
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PXE
Operating System	Windows 10 64-bit
Form Factor	mATX Form Factor
Form Factor	24.4 cm x 24.4 cm
Warranty Information
Warranty	3 Year Warranty
