| SPECIFICATIONS |
| Brand | ASUS |
| Series | PRIME |

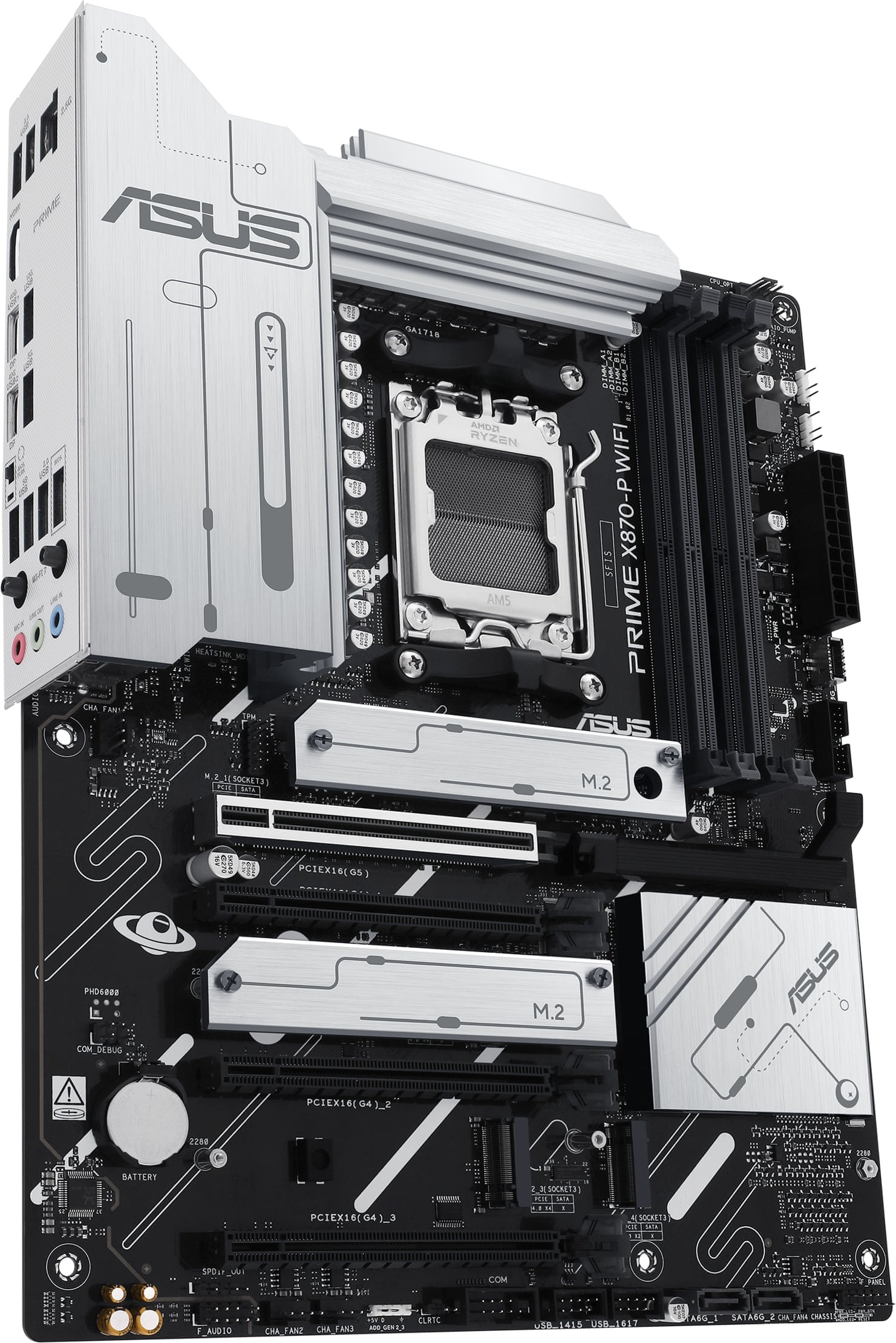

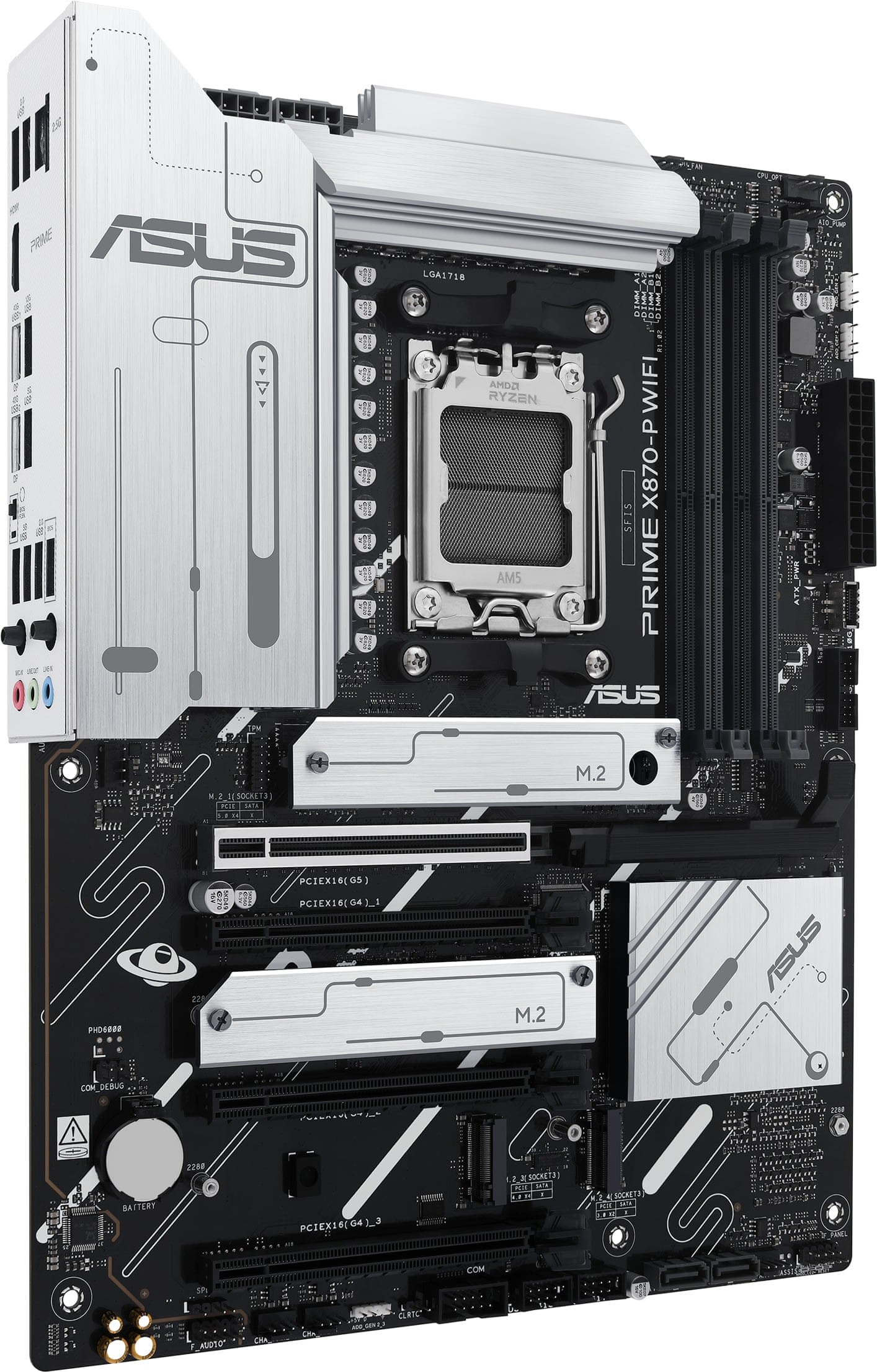

| Model | ASUS PRIME X870-P WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors |
| ECC and Non-ECC, Un-buffered DIMM* |
| Dual channel memory architecture |
| Supports AMD Extended Profiles for Overclocking (EXPO) |
| ASUS Enhanced Memory Profile (AEMP) |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x HDMI port** |
| 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. |
| ** Supports 4K@60Hz as specified in HDMI 2.1. |
| *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. |
| **** VGA resolution support depends on processors' or graphic cards' resolution. |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| AMD Ryzen 8000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** |
| AMD X870 Chipset |
| 3 x PCIe 4.0 x16 slots (support x1 mode)*** |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). |
| ** Specifications vary by CPU types. |
| *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. |
| *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* |
| AMD Ryzen 9000 & 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) |
| AMD Ryzen 8000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
| AMD X870 Chipset |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** |
| M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** |
| 2 x SATA 6Gb/s ports**** |
| * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU. |
| ** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. |
| *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. |
| **** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) |
| Supports 2.4/5/6GHz frequency band** |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. |
| Bluetooth v5.4*** |
| *Wi-Fi features may vary depending on the operating system |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
| For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
| USB | Rear USB (Total 10 ports) |
| 2 x USB4 (40Gbps) ports (2 x USB Type-C) |
| 1 x USB 10Gbps port (1 x Type-A) |
| 3 x USB 5Gbps ports (3 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| Front USB (Total 7 ports) |
| 1 x USB 10Gbps connector (supports USB Type-C) |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| * USB Type-C power delivery output: max. 5V/3A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| - Supports up to 24-Bit/192 kHz playback |
| Audio Features |
| - Audio Shielding |
| - Premium audio capacitors |
| - Dedicated audio PCB layers |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

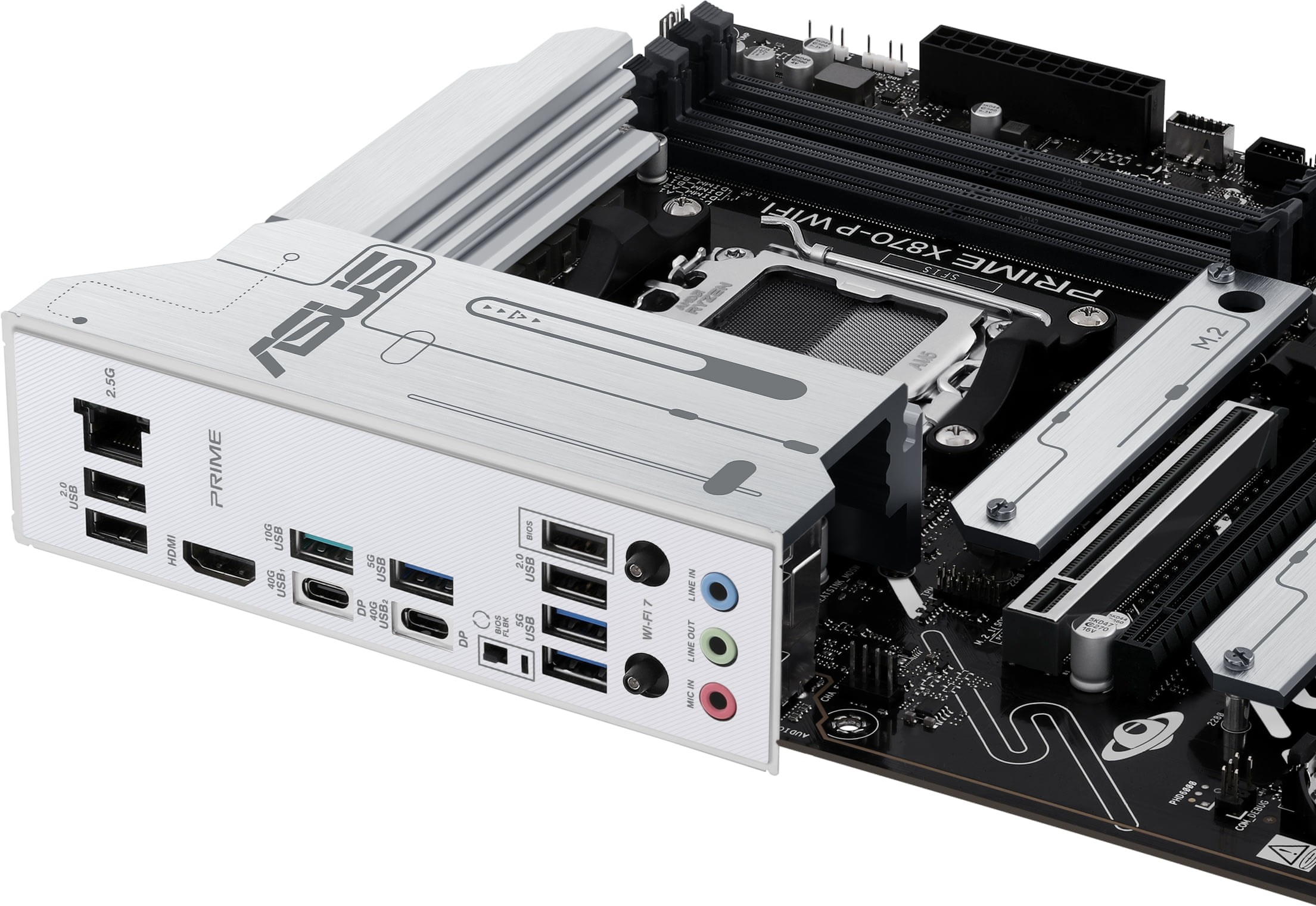

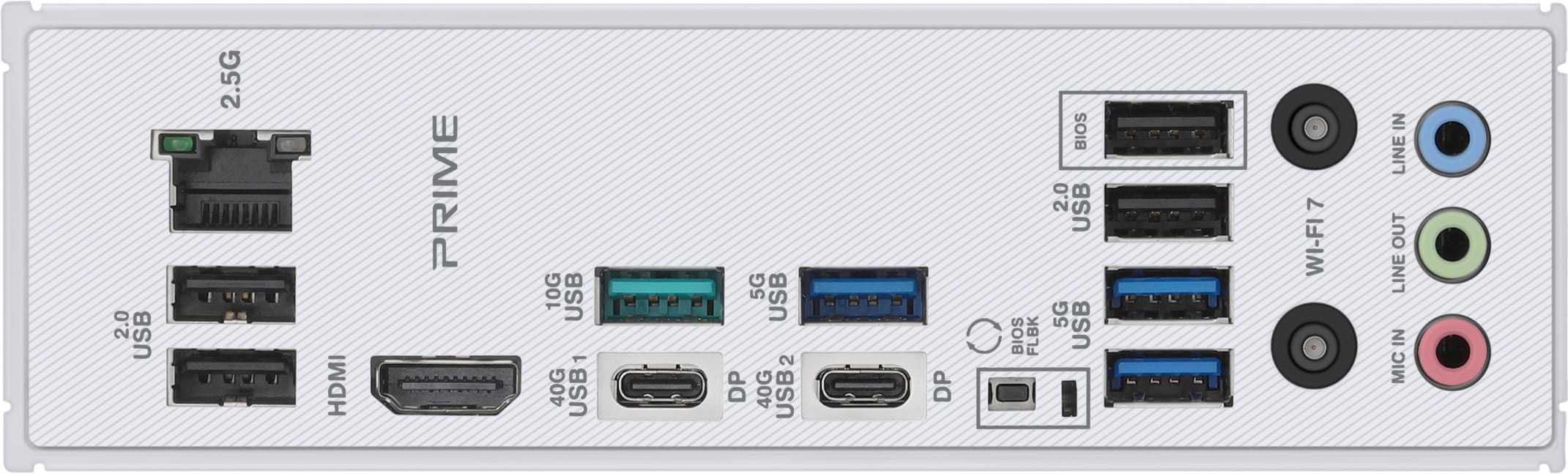

| Back Panel I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) |
| 1 x USB 10Gbps port (1 x Type-A) |
| 3 x USB 5Gbps ports (3 x Type-A) |
| 4 x USB 2.0 ports (4 x Type-A) |
| 1 x HDMI port |
| 1 x Wi-Fi module |
| 1 x Realtek 2.5Gb Ethernet port |
| 3 x Audio jacks |
| 1 x BIOS FlashBack button |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header |
| 1 x 4-pin CPU OPT Fan header |
| 1 x 4-pin AIO Pump header |
| 4 x 4-pin Chassis Fan headers |
| Power Related |
| 1 x 24-pin Main Power connector |
| 2 x 8-pin +12V CPU Power connectors |
| Storage Related |
| 4 x M.2 slots (Key M) |
| 2 x SATA 6Gb/s ports |
| USB |
| 1 x USB 10Gbps connector (supports USB Type-C) |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Miscellaneous |
| 3 x Addressable Gen 2 headers |
| 1 x Clear CMOS header |
| 1 x COM Port header |
| 1 x Front Panel Audio header (F_AUDIO) |
| 1 x S/PDIF Out header |
| 1 x SPI TPM header (14-1 pin) |
| 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM (- Digital power design with DrMOS) |
| - LANGuard |
| - Overvoltage protection |
| - SafeSlot |
| - Stainless-steel back I/O |
| ASUS Q-Design |
| - M.2 Q-Latch |
| - PCIe Slot Q-Release |
| - Q-Antenna |
| - Q-Dashboard |
| - Q-DIMM |
| - Q-LED Core |
| - Q-Slot |
| ASUS Thermal Solution |
| - Flexible M.2 heatsink |
| - VRM heatsink design |
| ASUS EZ DIY |
| - BIOS FlashBack button |
| - BIOS FlashBack LED |
| - ProCool |
| - Pre-mounted I/O shield |
| - SafeSlot |
| Aura Sync |
| - Addressable Gen 2 headers |
| BIOS | 256 Mb Flash ROM |
| UEFI AMI BIOS |
| Form Factor | ATX Form Factor |
| 30.5 cm x 24.4 cm |
| Warranty Information |
| Warranty | 3 Year Warranty |
