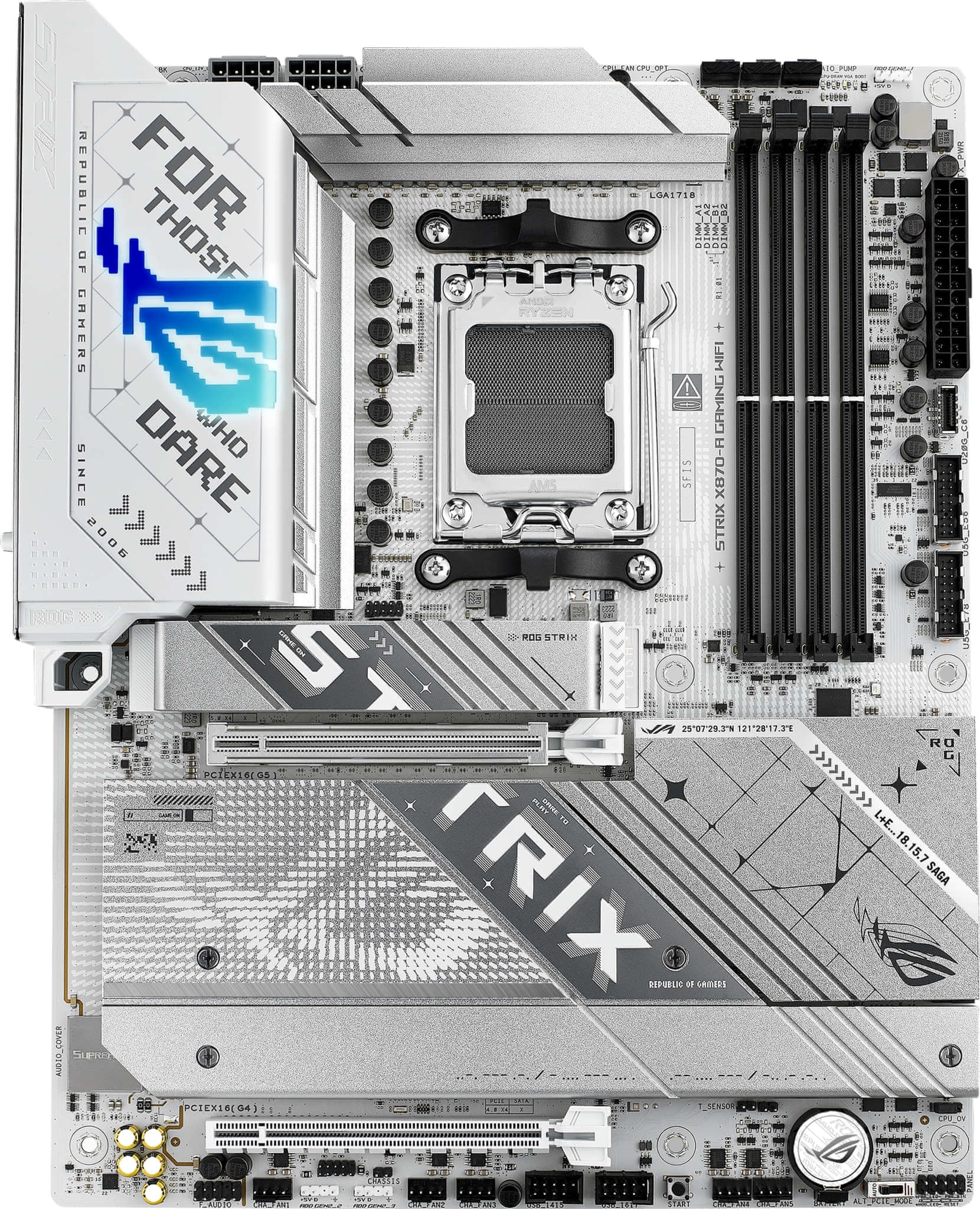

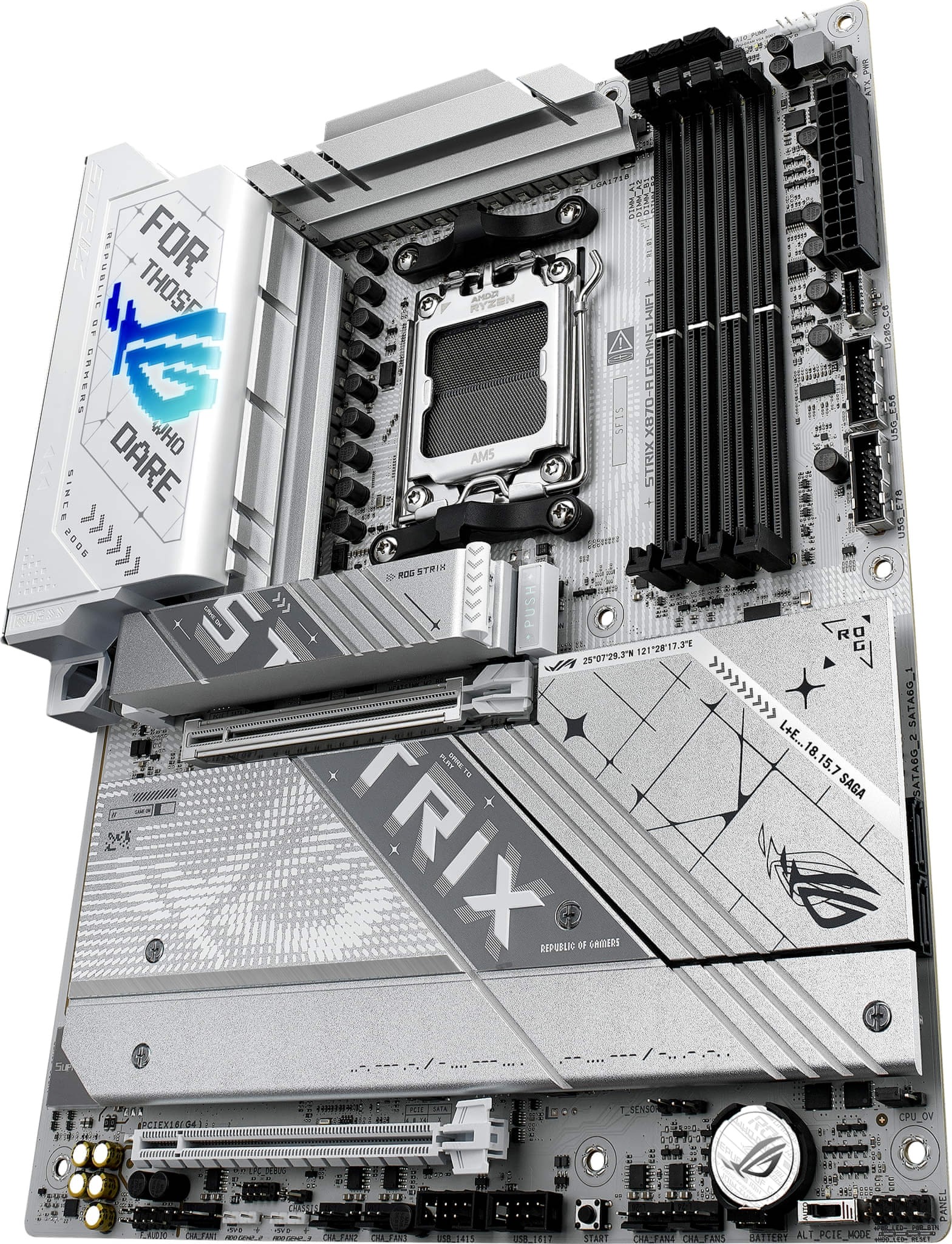

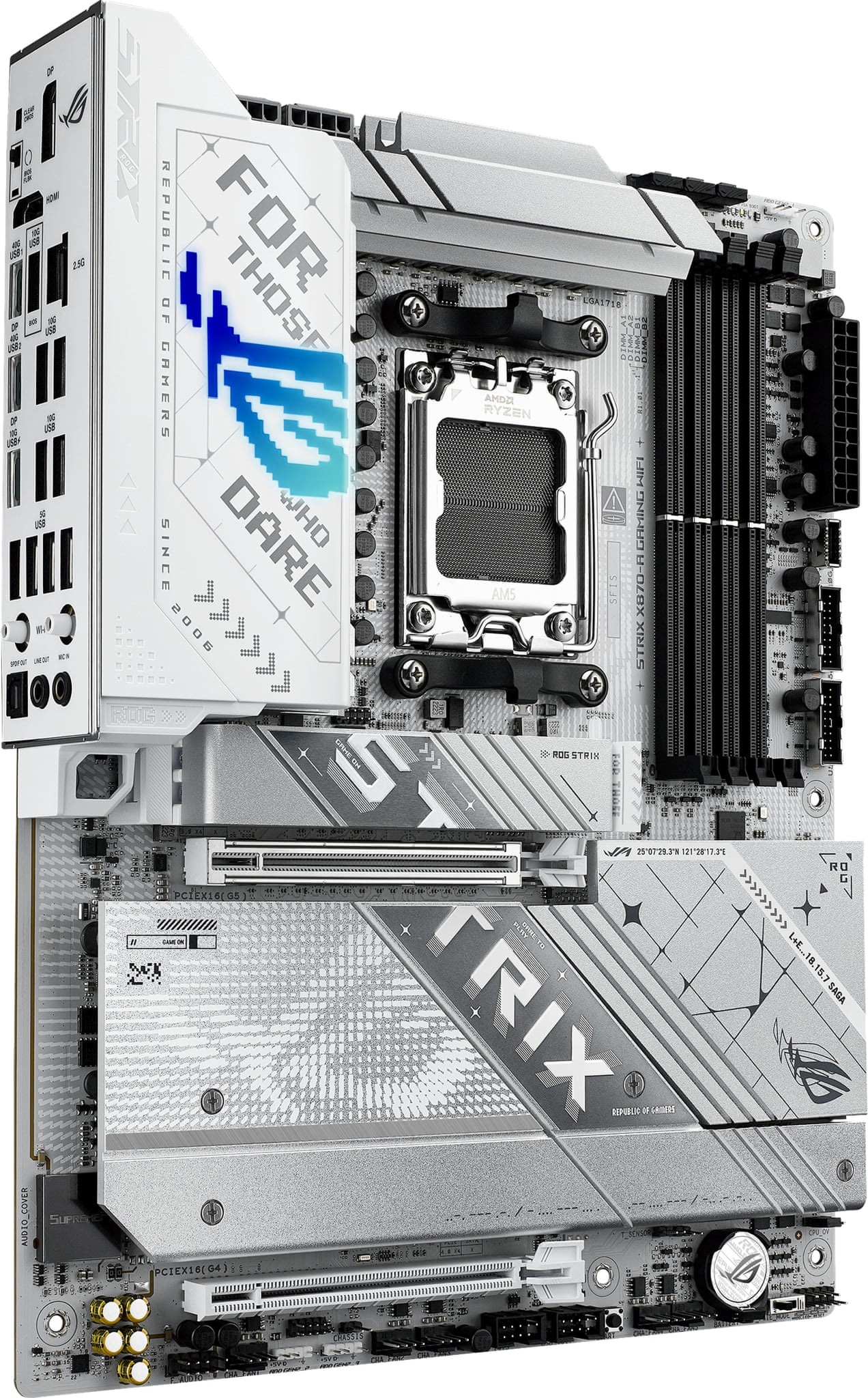

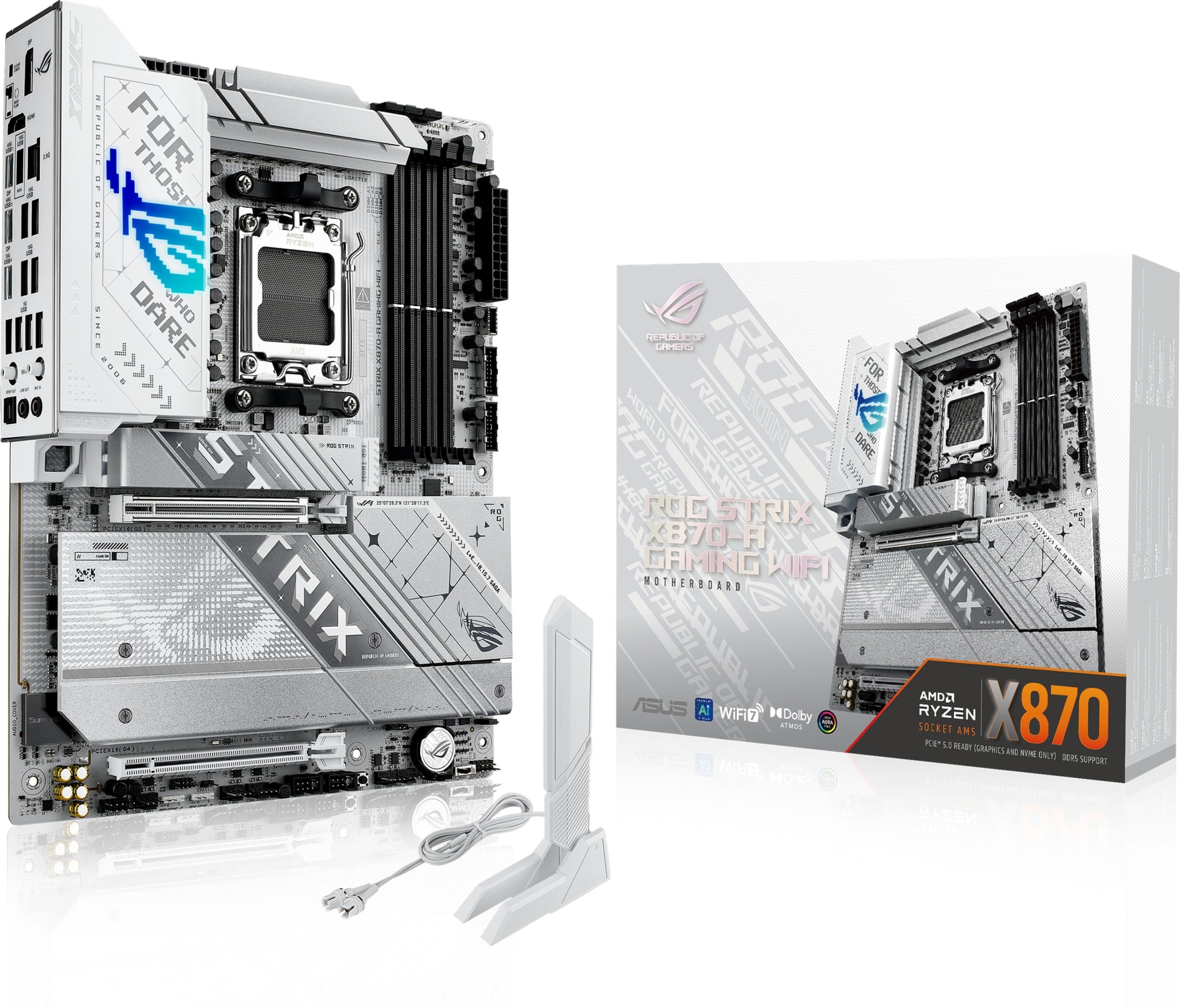

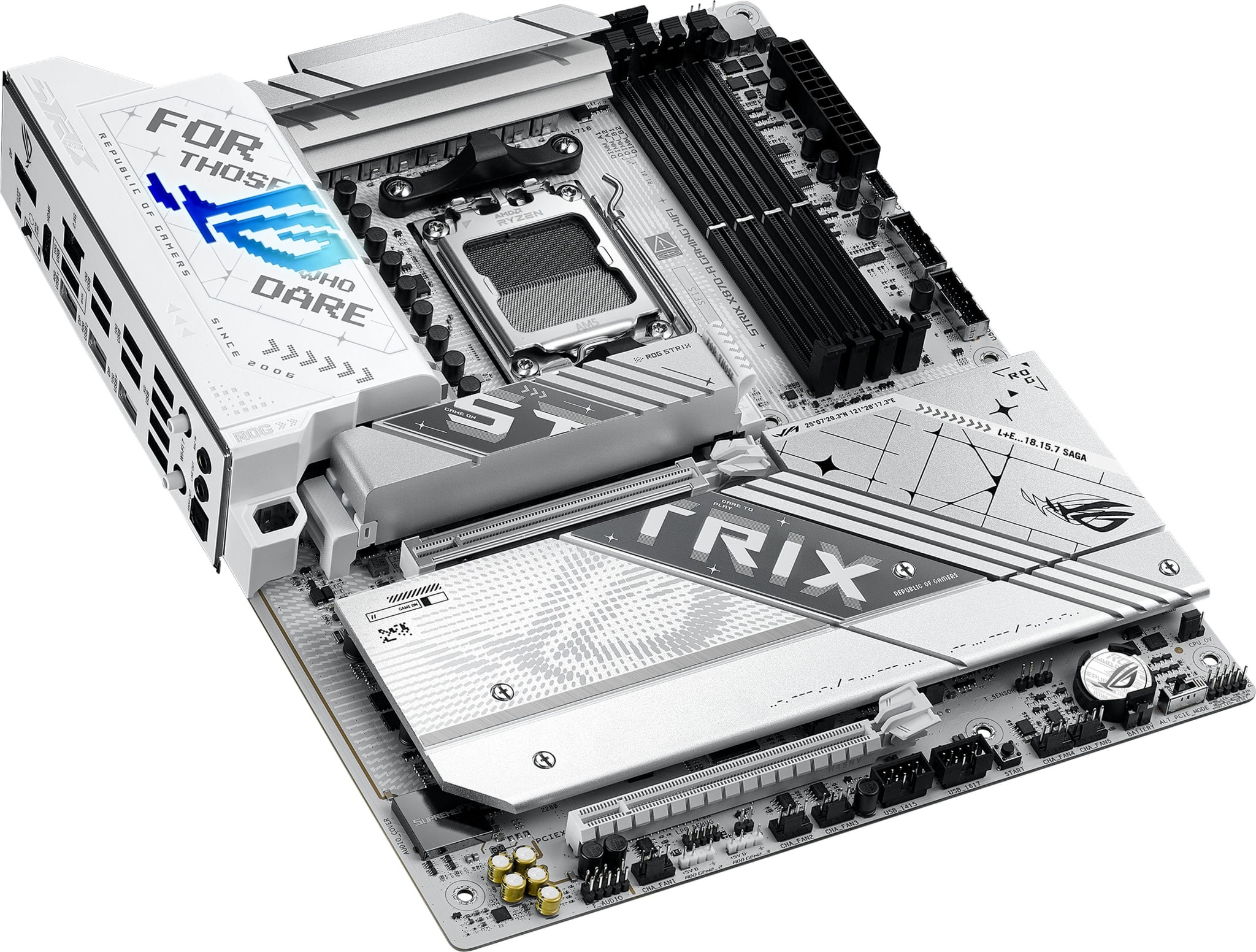

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 48248

2 Review(s) | Add Your Review

- ATX Form Factor
- AMD X870 Chipset
- Socket AM5
- AMD Ryzen 9000 & 8000 & 7000 Series CPUs Supported
- 4x DDR5 DIMM Slots, Supports Up to 192GB
- Supports up to DDR5-8000MHz+(OC)
- 1x PCIe 5.0 x16 slot (supports x16 mode)
- 1x PCIe 4.0 x16 slot (supports x8/x4 mode)
- 1x PCIe 4.0 x16 slot (supports x4 mode)
- 4x M.2 Slots and 2x SATA 6Gb/s Ports
- 2x USB 4 (40Gbps) Type-C Ports (With DP-Alt-Mode)
- 5x USB 10Gbps Type-A Ports, 1x USB 10Gbps Type-C Ports
- 4x USB 5Gbps Port
- 1x HDMI Port,1x DisplayPort, 1 x Wi-Fi Module
- Fast Ethernet: 1x Intel 2.5Gb Port
- 1x Optical S/PDIF out port, 1x BIOS FlashBack Button
- 1x Clear CMOS Button
- 802.11be 2x2 Tri-Band WiFi 7
- Bluetooth v5.4
- 16+2+2 Power Stages
- ASUS Control Center Express
- AI Overclocking
- AI Cooling II
- ASUS GlidEx
- 3 Year Warranty

264 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS TUF Gaming X870-PLUS WIFI AMD X870 Ryzen Socket AM5 ATX Desk...

In stock with Wootware

R7,999.00

R6,199.00

Save: R 1,800!

Gigabyte X870 AORUS ELITE WIFI 7 AMD X870 Ryzen Socket AM5 ATX De...

In stock with Wootware

R7,299.00

R5,999.00

Save: R 1,300!

3 Review(s)

Gigabyte X870 EAGLE WIFI7 AMD X870 Ryzen Socket AM5 ATX Desktop M...

In stock with Wootware

R6,299.00

R4,699.00

Save: R 1,600!

2 Review(s)

Gigabyte X870 GAMING X WIFI7 AMD X870 Ryzen Socket AM5 ATX Deskto...

In stock with Wootware

R6,899.00

R4,999.00

Save: R 1,900!

Gigabyte X870 AORUS ELITE X3D ICE WIFI7 AMD X870 Ryzen Socket AM5...

In stock with Wootware

R6,899.00

R6,199.00

Save: R 700!

Sapphire 52122-02-40G PURE X870A WIFI 7 AMD X870 Ryzen Socket AM5...

In stock with Wootware

R6,599.00

R5,499.00

Save: R 1,100!

MAXSUN iCraft X870M WIFI AMD X870 Ryzen Socket AM5 Micro-ATX Desk...

In stock with Wootware

R6,199.00

R4,499.00

Save: R 1,700!

Product Description
Additional Information
Reviews (2)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	Gaming Motherboards
Model	ROG STRIX X870-A GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen 9000, 8000, 7000 Series Desktop Processors*
CPU	Refer to www.asus.com for CPU support list
Chipset	AMD X870
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to 8000 MT/s (OC) with Ryzen 9000, 8000, 7000 Series Processors
	ECC and Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports AMD Extended Profiles for Overclocking (EXPO)
	ASUS Enhanced Memory Profile (AEMP)
	Refer to www.asus.com for memory support list
Graphics	1 x DisplayPort**
	1 x HDMI port***
	2 x USB4 (40Gbps) ports support USB Type-C display outputs****
	Refer to AMD CPU specifications
	Supports max. 8K@30Hz as specified in DisplayPort 1.4
	Supports 4K@60Hz as specified in HDMI 2.1
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors*
	1 x PCIe 5.0 x16 slot (supports x16 mode)
	AMD Ryzen 8000 Series Desktop Processors*
	1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
	AMD X870 Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	Refer to www.asus.com for supported peripherals
Storage	4 x M.2 slots and 2 x SATA 6Gb/s ports*
	AMD Ryzen 9000 & 7000 Series Desktop Processors*
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
	AMD Ryzen 8000 Series Desktop Processors**
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (not supported)****
	AMD X870 Chipset
	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
	M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	Supports AMD RAIDXpert2 Technology
Ethernet	1 x Intel 2.5Gb Ethernet
Ethernet	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency bands**
	Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
	Bluetooth v5.4***
Rear USB	Total 12 ports
	2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)*
	6 x USB 10Gbps ports (5 x Type-A, 1 x USB Type-C with up to 30W PD Fast-charge)**
	4 x USB 5Gbps ports (4 x Type-A)
Front USB	Total 9 ports
	1 x USB 20Gbps connector (supports USB Type-C)
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
	Impedance sense for front and rear headphone outputs
	Supports Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	Supports up to 32-Bit/384 kHz playback on front panel
	The LINE OUT port on the rear panel does not support spatial audio

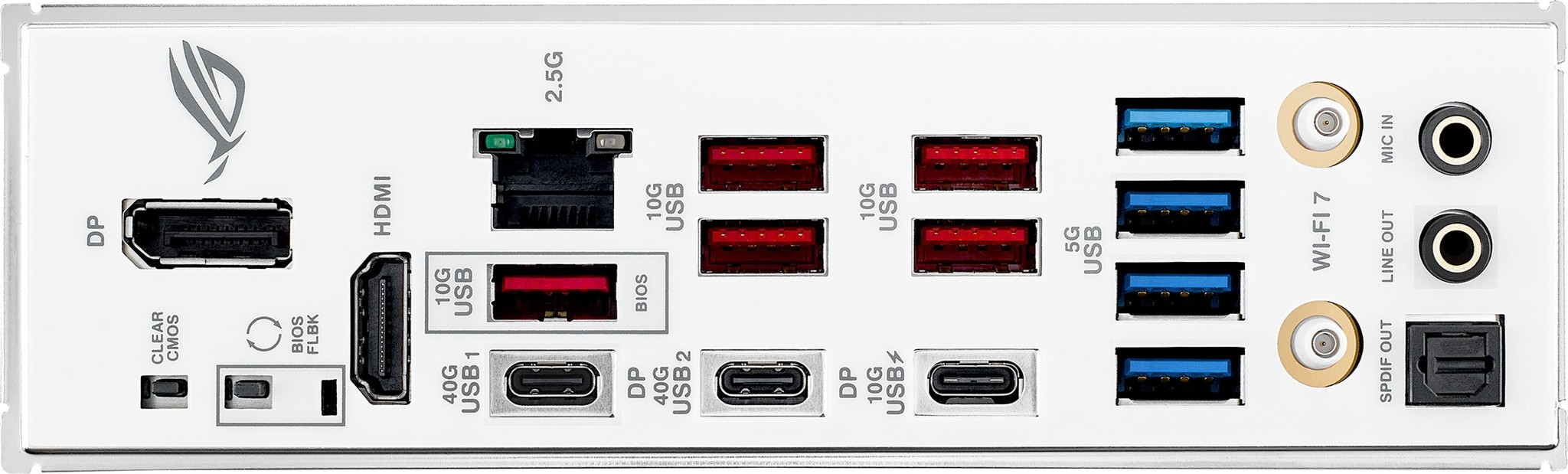

Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode)
	6 x USB 10Gbps ports (5 x Type-A, 1 x USB Type-C with up to 30W PD Fast-charge)**
	4 x USB 5Gbps ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Wi-Fi module
	1 x Intel 2.5Gb Ethernet
	2 x Audio jacks
	1 x Optical S/PDIF out port
	1 x BIOS FlashBack button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	5 x 4-pin Chassis Fan headers
Power Related	1 x 24-pin Main Power connector
Power Related	2 x 8-pin 12V CPU Power connectors
Storage Related	4 x M.2 slots (Key M)
Storage Related	2 x SATA 6Gb/s ports
USB	1 x USB 20Gbps connector (supports USB Type-C)
	2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous	3 x Addressable Gen 2 headers
	1 x Alteration PCIe mode switch
	1 x Chassis Intrusion header
	1 x CPU Over voltage jumper
	1 x Front Panel Audio header (F_AUDIO)
	1 x Start button
	1 x 10-1 pin System Panel header
	1 x Thermal Sensor header
Special Features	Extreme Engine Digi
Special Features	5K Black metallic capacitors
ASUS Q-Design	M.2 Q-Latch
	M.2 Q-Release
	M.2 Q-Slide
	PCIe Slot Q-Release Slim (with PCIe SafeSlot)
	Q-Antenna
	Q-DIMM
	Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	Q-Slot
ASUS Thermal Solution	M.2 heatsink backplate
ASUS Thermal Solution	M.2 heatsink
ASUS EZ DIY	BIOS FlashBack button
	BIOS FlashBack LED
	Clear CMOS button
	ProCool II
	Pre-mounted I/O shield
	SafeSlot
	SafeDIMM
Aura Sync	Addressable Gen 2 headers
Software Features	ROG Exclusive Software
	ROG CPU-Z
	Dolby Atmos
	AIDA64 Extreme (60 days free trial)
	Aura Creator
	Aura Sync
	Fan Xpert 4 (with AI Cooling II)
	GameFirst
	HWiNFO
	Power Saving
	ASUS Driver Hub
	ASUS GlideX
	USB Wattage Watcher
	TurboV Core
	Adobe Creative Cloud (Free Trial)
	Norton 360 for Gamers (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
UEFI BIOS	AI Overclocking Guide
	ASUS EZ DIY
	ASUS CrashFree BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI BIOS EZ Mode
	ASUS MyHotkey
	Dynamic OC Switcher
	FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

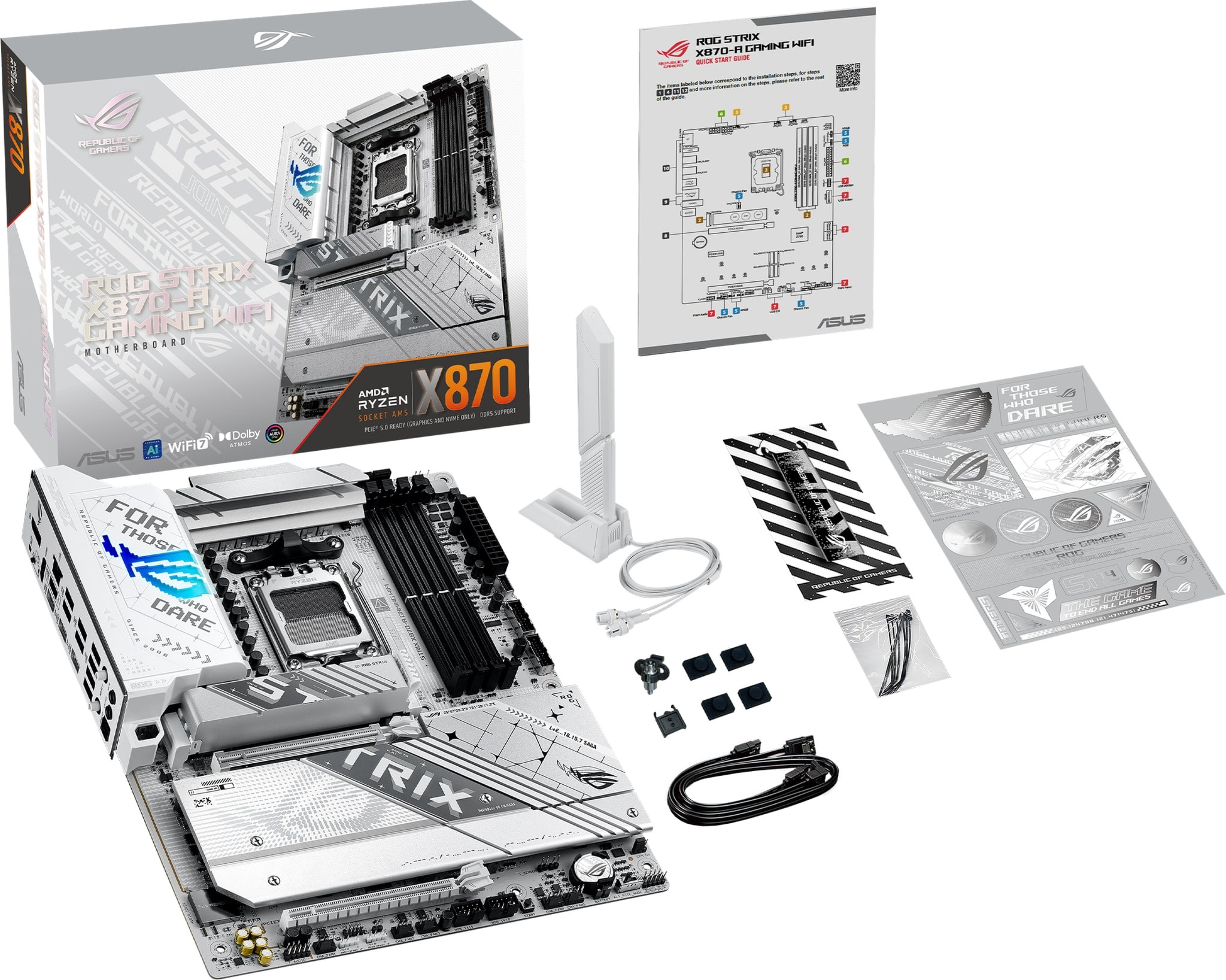

Accessories	2 x SATA 6Gb/s cables
Additional Cooling Kit	1 x Thermal pad for M.2 22110
Miscellaneous	1 x ASUS WiFi Q-Antenna
	1 x Cable ties package
	1 x M.2 Q-Latch package
	1 x M.2 Q-Slide package
	1 x ROG key chain
	1 x ROG Strix stickers
	4 x M.2 rubber packages
Documentation	1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor, 30.5 cm x 24.4 cm
Warranty Information
Warranty	3 Year Warranty
