| SPECIFICATIONS | |
| Brand | MAXSUN |
| Series | iCraft Series |

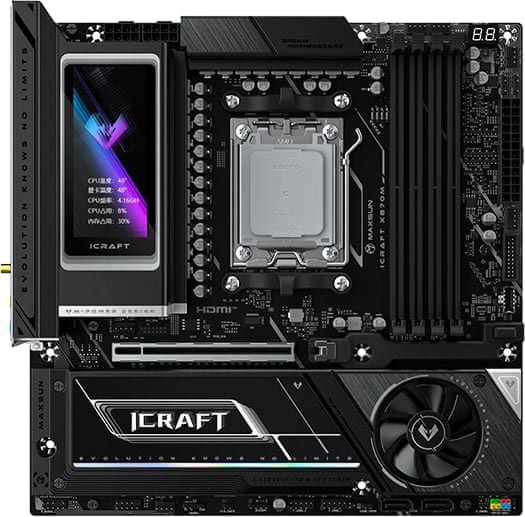

| Model | iCraft X870M WIFI (MS-ICRAFT-X870M) |
| CPU Support | Supports Ryzen 7000, 8000, 9000-Series Processors |
| Chipset | AMD X870 Chipset |
| Memory Support | |
| AMD X870 Chipset | 4× DIMM DDR5 slots, up to 192GB total capacity |
| Supports dual-channel memory architecture | |
| Supports AMD EXPO memory overclocking | |
| Supported frequencies: | |
| Supported speeds: 4800 / 5200 / 5600(OC) / 5800(OC) / 6000(OC) / 6200(OC) / 6400(OC) / 6800(OC) / 7200(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz | |
| Video | |
| DisplayPort | 1x DisplayPort 1.4 Port, supporting a maximum resolution of 8K @ 30 Hz, supports HDCP & HDR |
| HDMI | 1x HDMI 2.0 Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Slot (x16 Physical) (PCIE1) |
| Slot Configurations | PCIE1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCIE1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| Storage | |
| CPU Direct | M.2_A slot (Key M): supports PCIe 5.0 x4/x2 mode, 2280 length |
| AMD X870 Chipset | M.2_B slot (Key M): supports PCIe 4.0 x4/x2 mode, 2280 length |
| M.2_C slot (Key M): supports PCIe 4.0 x4/x2 mode, 2280 length (rear motherboard mount) | |
| 2x SATA 6Gbps connectors | |
| Storage Configurations | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices |
| M.2_A with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs | |
| M.2_A with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| Networking | |
| LAN | Realtek RTL8126 5 Gigabit Ethernet RJ-45 LAN Port |
| WiFi | MediaTek MT7925 WiFi 7 Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Codec | Realtek ALC1220 High-Definition Audio Codec |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports Optical S/PDIF Audio Out | |
| Connectivity | |

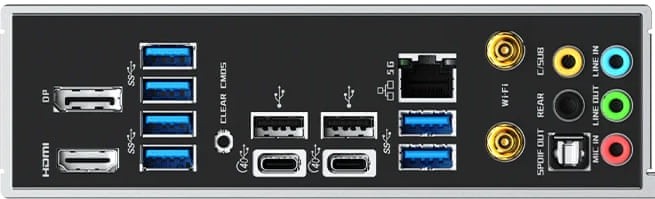

| Ports | 2x USB 40Gbps Type-C Ports |
| 6x USB 5Gbps Type-A Ports | |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.0 Port | |
| 1x DisplayPort 1.4 Port | |
| 5x 3.5mm Audio Jacks | |
| 1x Optical S/PDIF Audio Port | |
| 2x WiFi Antenna Connectors | |
| 1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x CMOS Reset Button |
| General | |
| Internal Connectors | 1x 24 Pin ATX power connector |
| 2x 8 Pin 12V power connector | |
| 1x 4 Pin CPU fan connector | |
| 1x 4 Pin PUMP connector (DC adjustable) | |
| 1x 4 Pin Memory fan connector | |
| 3x 4 Pin System fan connector | |
| 3x M.2 slots (Key_M) | |
| 2x SATA 6Gb/s interface | |
| 1x USB 10G Type-C front interface | |
| 1x USB 5G 19Pin with support for 2 additional USB 5G ports | |
| 2x USB 2.0 9Pin, supports 2 additional USB 2.0 ports | |
| 3x 3 Pin ARGB interface | |
| 1x COM port connection pin | |
| 1x front panel audio interface | |
| 1x 10-1 Pin system panel interface | |
| 1x CLR_CMOS reset pin | |
| 1x TPM pin | |
| LEDs | 7-Segment BIOS POST Code Debug Display |
| I/O Controller | N/A |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS, MAXSUN PTM UI | |
| Form Factor | Micro-ATX Form Factor, 245 x 245 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Box Contents | MS-iCraft X870M motherboard |
| 2x SATA 6Gb/s data cable | |
| 1x Magnetic Wi-Fi gain antenna | |
| 1x 4in1 screwdriver | |
| 1x AIGA Q-version stickers | |
| 1x Product Warranty Card | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
