| SPECIFICATIONS | |
| Brand | DeepCool |
| Series | CH Series |
| Model | CH160 PLUS Black (R-CH160-BKNGM0-G) |
| Physical Details | |
| Colour | Black |
| Materials | Steel |
| Plastic | |
| Tempered Glass | |

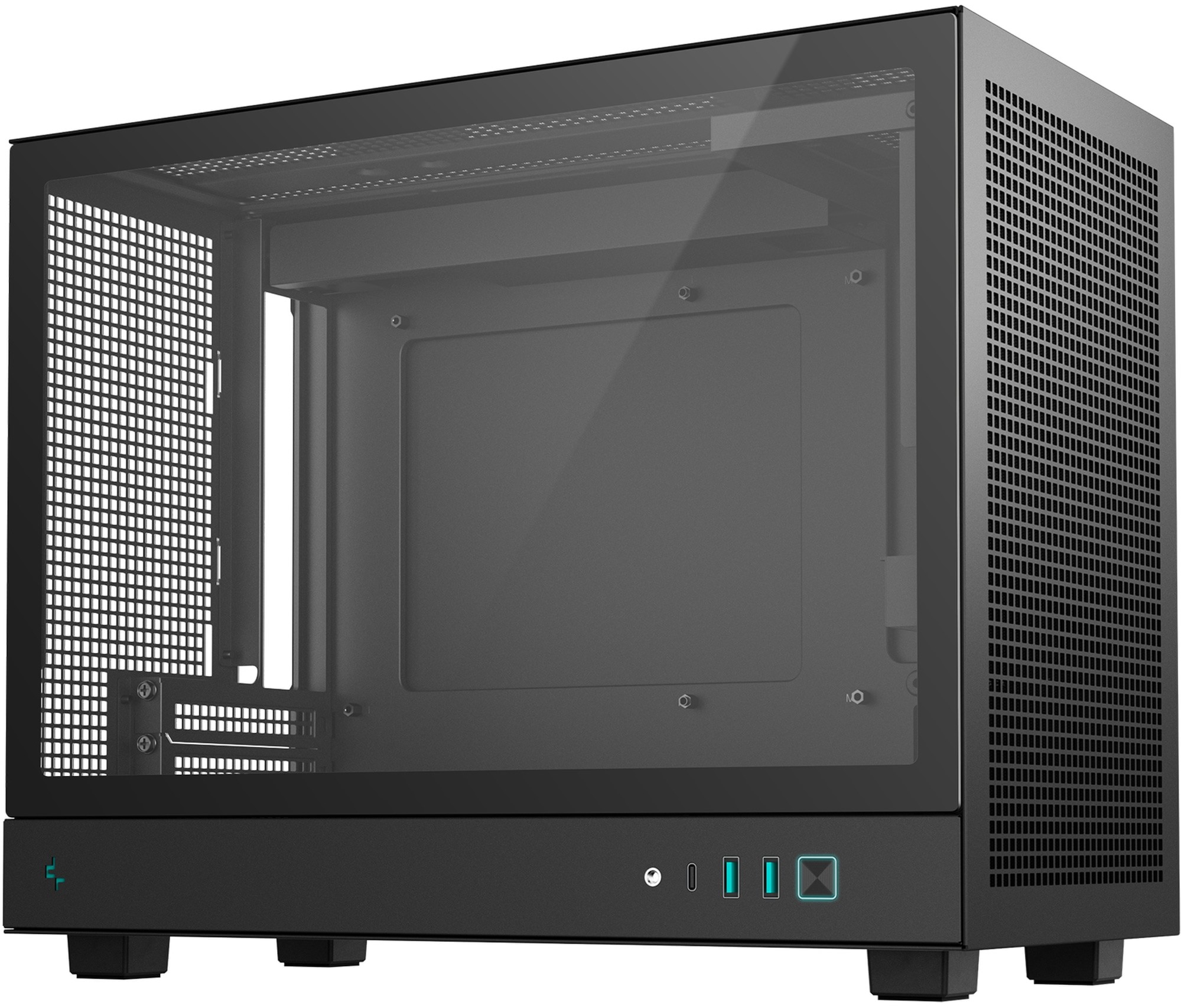

| Side Panel | Clear Tempered Glass Side Panel |
| Front I/O | 1x USB 5Gbps Type-C Port |
| 2x USB 5Gbps Type-A Ports | |
| 1x 3.5mm Combination Audio Jack | |

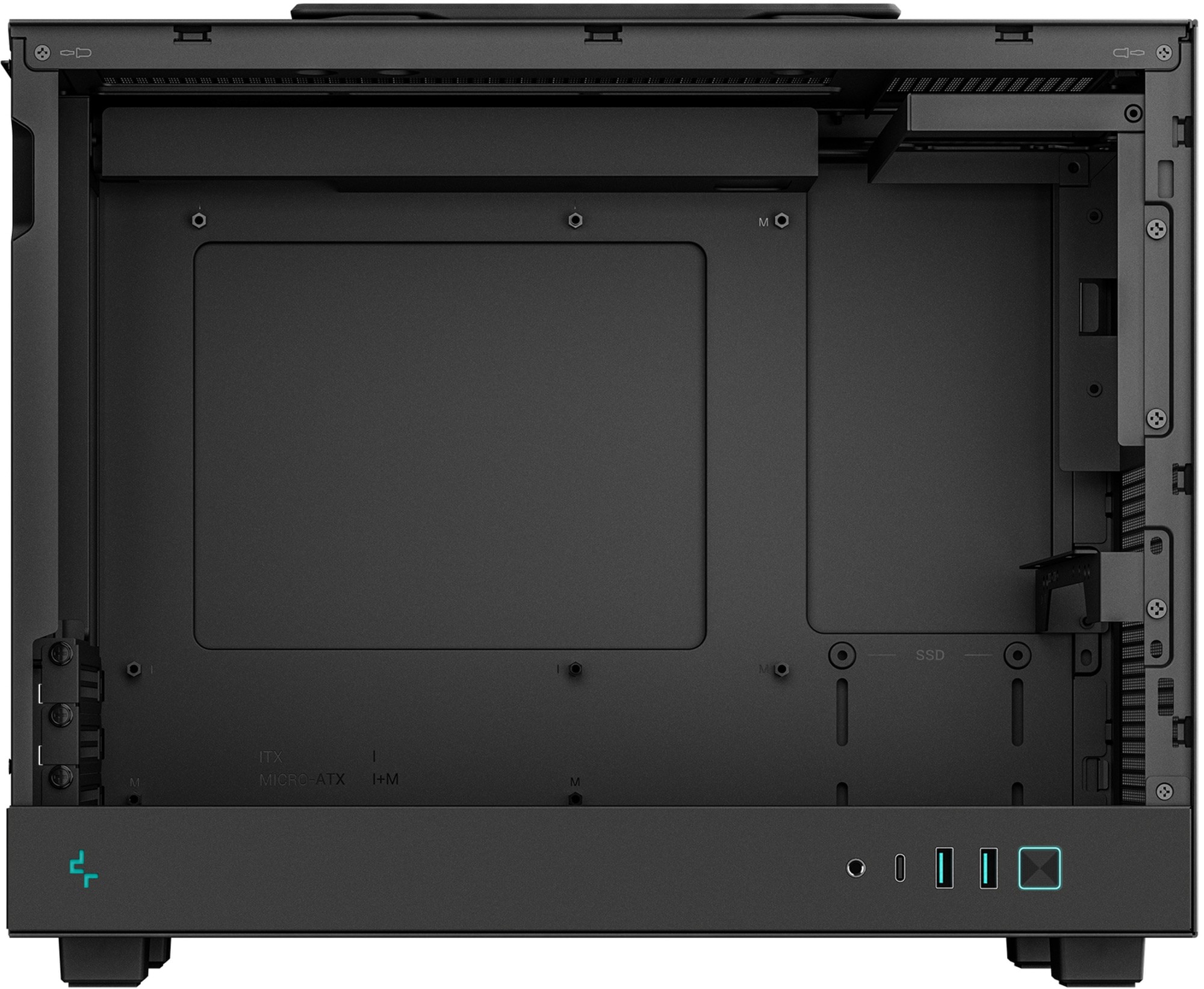

| Motherboard Support | Supports Micro ATX/Mini-ITX Motherboards |
| Expansion Slots | 4x PCI Slots |
| Drive Bays | 1x 2.5/3.5" Combo Drive Bay (Removable, Conflicts with Fan Mount) |
| PSU Support | Supports ATX, SFX, SFX-L Power Supplies |
| NOTE: ATX power supplies may conflict with a 140mm fan mount in the front of the chassis. | |
| Dimensions | 375 x 195 x 323.5 mm (D x W x H) |
| Weight | 4.2kg |
| Pre-Installed Fans | |
| Front | N/A |
| Top | N/A |
| Rear | N/A |
| Fan Support | |
| Front | 1x 120mm or 1x 140mm Fan (Conflicts with 2.5/3.5" Drive Bay, SFX-L PSU) |
| Top | 2x 120mm Fans |
| Rear | 1x 120mm Fan |
| Radiator Support | |
| Front | N/A |
| Top | 120 / 240mm Radiator |
| Rear | N/A |
| Clearance | |
| CPU Cooler Height Limitation | Up to 164mm |
| GPU Length Limitation | Up to 342mm (without front fan) |
| Up to 328mm (with 25mm front fan) | |
| Cable Management | N/A |
| PSU Length Limit | Up to 140mm (ATX) |
| General | |
| Dust Filters | 3x Removable Magnetic Dust Filters (Front, Top, Bottom) |
| Chassis Lighting | N/A |
| Warranty Information | |
| Warranty | 2 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
