| SPECIFICATIONS | |
| Brand | Montech |
| Series | X5 Series |
| Model | X5M Black |
| Physical Details | |
| Colour | Black |
| Side Panel | Tempered Glass |
| I/O Ports | 1x USB Type-C |
| 1x USB 3.0 Type-A | |
| 1x USB 2.0 Type-A | |
| 1x Audio Jack | |
| Power Button | |
| LED Button | |
| Motherboard Support | Micro-ATX, Mini-ITX |
| Expansion Slots | 5 |
| Drive Bays | 2x 3.5" |
| 4x 2.5" | |
| PSU Support | ATX |
| Dimensions | 468mm x 215mm x 450mm |
| 525mm x 287mm x 510mm (Carton) | |
| Pre-Installed Fans | |

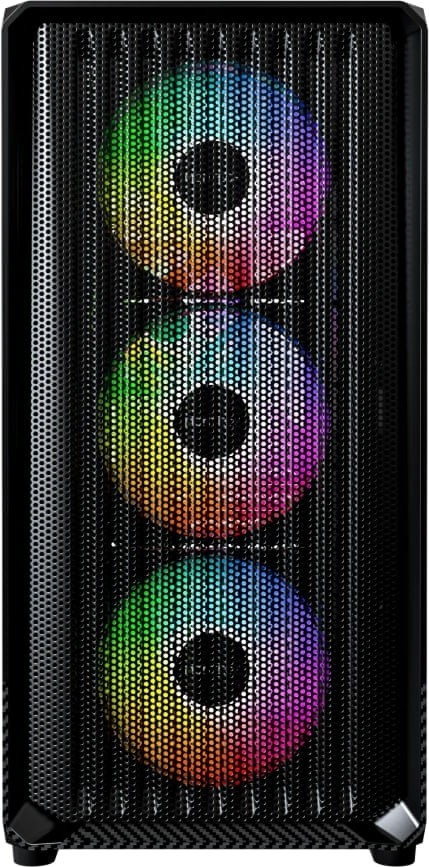

| Front | 3x 120mm ARGB Fan |
| Rear | 1x 120mm ARGB Fan |
| Fan Support | |
| Top | 3x 120mm / 2x 140mm |
| Front | 3x 120mm / 2x 140mm |
| Rear | 1x 120mm |
| PSU Shroud | 2x 120mm |
| Radiator Support | |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Top | 120mm, 140mm, 240mm, 280mm, 360mm |
| Rear | 120mm |
| Clearance | |
| CPU Cooler Height Limitation | Up to 165mm |
| GPU Length Limitation | Up to 405mm |
| PSU | Up to 230mm |
| General | |
| Dust Filters | Top, Bottom |
| Features | Front Panel Carbon Fiber Print Detailing |
| 4 preinstalled ARGB Fans, with 25 Built-in Lighting Modes | |
| Warranty Information | |
| Warranty | 1 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Nice case, exceeded my expectations - Leon, 2 November 2025
This case has really made my last build the easiest build to date
why i selected the case the space above the io/board
meaning when you fit a liquid cooller at the top it does not overlap the board and limit ram choices
or more inportantly when you encounter problems and want to re-seat/replace the ram you don't have to remove the cooler to get at the clips to remove the ram and to have clearance to remove
the case also looks better in person vs photo's imo, i bought for budget not looks :)
used the id cooling 280mm which is also a lovely cooler which plays nice with the rest of the selection
