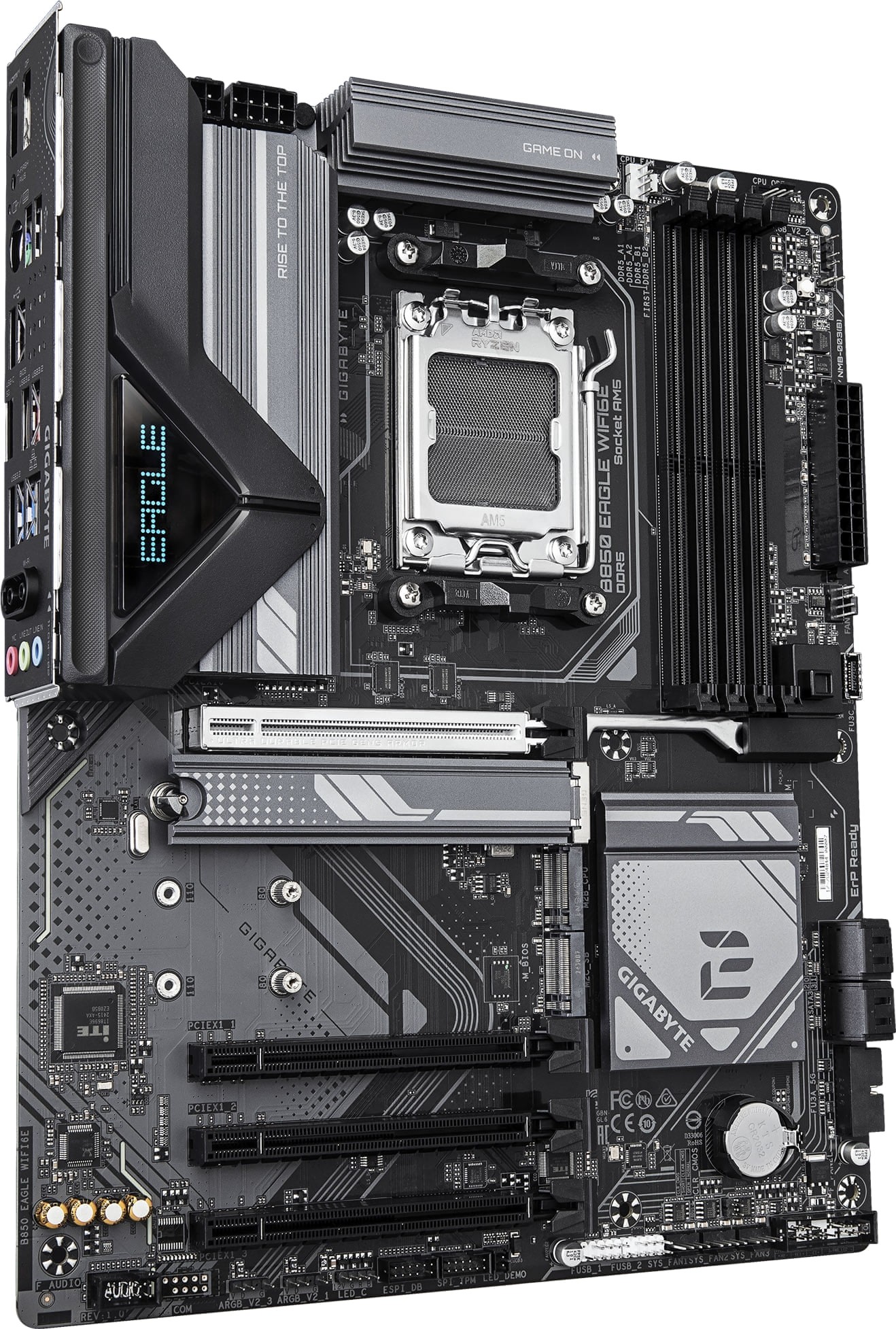

Gigabyte B850 EAGLE WIFI6E AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B850 EAGLE WIFI6E AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 49406

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 599.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

6 Review(s) | Add Your Review

- ATX Form Factor
- AMD B850 Chipset
- AMD Socket AM5
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports DDR5 Up To 8200MHz (O.C)
- 1x PCIe 5.0 x16
- 3x PCIe 3.0 x16 (x1 Mode)
- 3x PCIe M.2 Slots, 4x SATA 3 6Gb/s Ports
- 1 x Q-Flash Plus button
- 1x DisplayPort, 1x HDMI Port
- 2x Antenna Connectors (2T2R)
- 1x USB 3.2 Gen1 Type-C Port
- 2x USB 3.2 Gen 1 Type-A Ports, 4x USB 2.0 Type-A Ports, 2x USB 3.2 Gen2 Type-A Ports (Red)
- 1x RJ-45 Port, 3x Audio Jacks
- Twin Digital 8+2+2 Phase VRM Design
- AMD EXPO Memory Module Support
- X3D Turbo Mode
- Aorus AI Snatch
- Realtek GbE LAN Chip (1Gbps)
- Intel Wi-Fi 6E AX210 Wi-Fi 6E 802.11ax (PCB rev. 1.1)
- Bluetooth v5.3
- Realtek Audio Codec
- Gigabyte Ultra-Durable Design
- 3 Year Warranty

158 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,799.00

R3,999.00

Save: R 800!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (6)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Gaming Motherboards
Model	B850 EAGLE WIFI6E (GA-B850-EAGLE-WIFI6E)
CPU	AMD Socket AM5
	AMD Ryzen 9000 Series Processors
	AMD Ryzen 8000 Series Processors
	AMD Ryzen 7000 Series Processors
	Go to GIGABYTE's website for the latest CPU support list.
Chipset	AMD B850
Memory	DDR5 8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C), 7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400(O.C), 6200(O.C), 6000(O.C), 5800(O.C), 5600(O.C), 5200, 4800, 4400 MT/s
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO)
	Support for Extreme Memory Profile (XMP) memory modules
	The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to "Memory Support List" on GIGABYTE's website for more information.
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics
	1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	Supports DisplayPort 1.4 version and HDR.
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	Supports HDMI 2.1 version, HDCP 2.3, and HDR.
	Supports native HDMI 2.1 TMDS compatible ports.
	Graphics specifications may vary depending on CPU support.
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication	Intel Wi-Fi 6E AX210 (PCB rev. 1.0):
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	Bluetooth 5.3
	Support for 11ax 160MHz wireless standard
	Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1):
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	Bluetooth 5.3
	Support for 11ax 160MHz wireless standard
	Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	The PCIEX16 slot can only support a graphics card or an NVMe SSD.
	If only one graphics card is to be installed, install it in the PCIEX16 slot.
	Chipset:
	3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU
	Supports Socket 3, M key, type 22110/2280 SSDs
	AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2B_CPU), integrated in the CPU
	Supports Socket 3, M key, type 22110/2280 SSDs
	AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	1 x M.2 connector (M2C_SB), integrated in the Chipset
	Supports Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 5 is only available on AMD Ryzen 9000 Series Processors.
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
	2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
	Chipset:
	1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
	4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	4 x USB 2.0/1.1 ports on the back panel
	Chipset USB 2.0 Hub:
	4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x 4-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	3 x system fan headers
	1 x system fan/water cooling pump header
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper

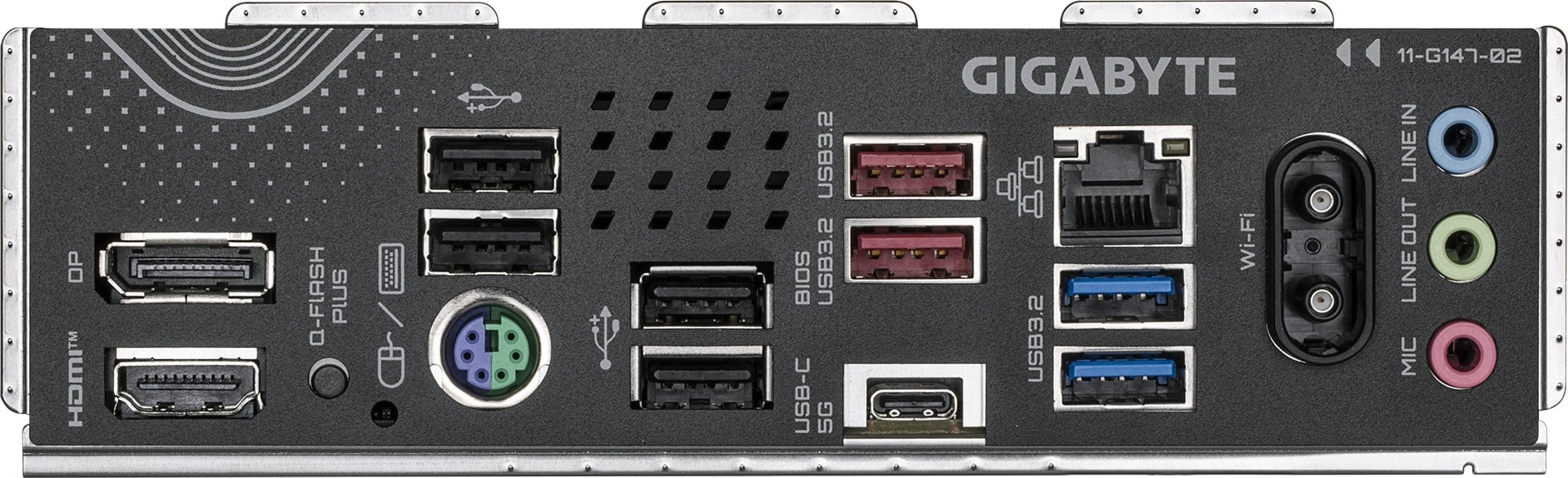

Back Panel Connectors	1 x DisplayPort (Actual support may vary by CPU.)
	1 x HDMI port (Actual support may vary by CPU.)
	1 x Q-Flash Plus button
	4 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	2 x USB 3.2 Gen 2 Type-A ports (red)
	1 x USB Type-C port, with USB 3.2 Gen 1 support
	1 x RJ-45 port
	2 x USB 3.2 Gen 1 ports
	2 x antenna connectors (2T2R)
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
#REF!	Voltage detection
H/W Monitoring	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	ATX Form Factor
Form Factor	30.5cm x 24.4cm
Warranty Information
Warranty	3 Year Warranty
