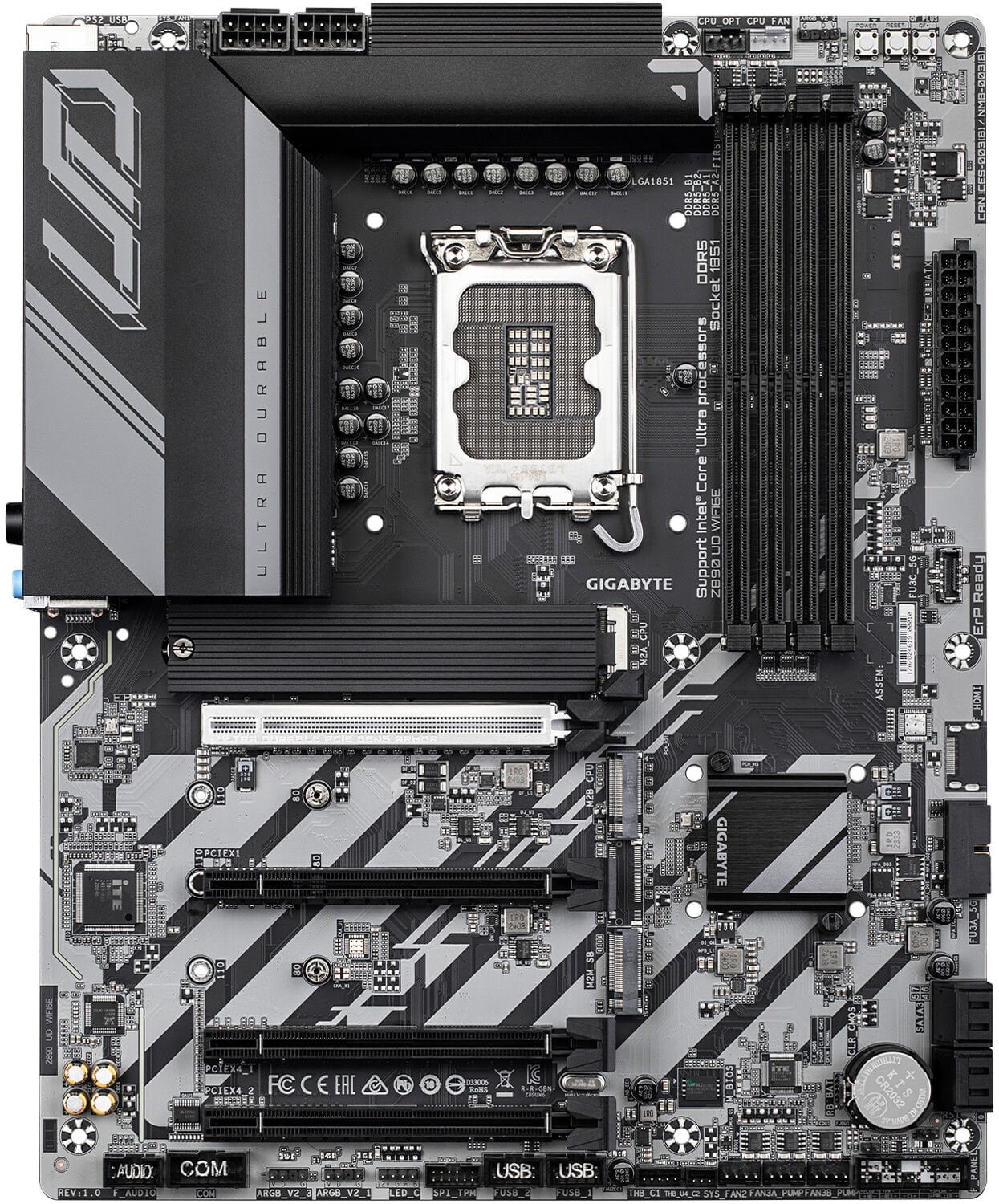

Gigabyte GA-Z890-UD-WIFI6E Z890 UD WIFI6E Intel Z890 Arrow Lake LGA1851 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte GA-Z890-UD-WIFI6E Z890 UD WIFI6E Intel Z890 Arrow Lake LGA1851 ATX Desktop Motherboard

Product ID: 48623

In stock with Supplier

Lead time before dispatch; 2 - 5 business days
Limited stock with Supplier

1 Review(s) | Add Your Review

- ATX Form Factor
- Intel Z890 Chipset
- Intel Socket LGA1851
- 4x DIMM Slots, Max. 256GB, DDR5
- Supports up to DDR5-8800MHz+(OC)
- Supports Memory Overclocking and Intel XMP 3.0
- 1x PCIe 5.0 x16 Slot (supports up to x16)
- 2x PCIe 4.0 x16 Slots (supports up to x4)
- 1x PCIe 4.0 x16 Slot (supports up to x1)
- Total Supports 3x M.2 Slots and 4x SATA 6Gb/s Ports
- 1x USB 4 Type-C Port (DisplayPort)
- 1x USB 3.2 Gen 2 Type-A Port, 4x USB 2.0/1.1 Type-A Ports, 4x USB 3.2 Gen 1 Type-A Ports
- Realtek 2.5GbE LAN Chip
- Realtek Audio Codec
- 12+1+2 Twin Digital VRM Design
- 60A DrMOS Power Stage
- D5 Bionic Corsa: for Infinite Memory Performance
- VRM Thermal Armor Advanced & M.2 Thermal Guard
- Gigabyte RGB FUSION
- 1x RGB LED Header, 3x ARGB LED Headers
- AORUS AI Auto-Overclocking Software
- AI Perfdrive: Optimal & Customized BIOS Preset Profiles
- 3 Year Warranty

185 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,530.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Ultra Durable
Model	Z890 UD WIFI6E
CPU	LGA1851 socket: Support for Intel Core Ultra Processors
	L3 cache varies with CPU
	* Please refer to "CPU Support List" for more information.
Chipset	Intel Z890 Express Chipset
Memory	Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	- 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version
	- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 160MHz wireless standard
	Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	CPU:
	- 1 x USB4 USB Type-C port on the back panel
	Chipset:
	- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+2 USB 2.0 Hubs:
	- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	2 x system fan headers
	2 x system fan/water cooling pump headers
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	3 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	2 x Thunderbolt add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x power button
	1 x reset button
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
Back Panel Connectors	4 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	1 x DisplayPort (Note)
	4 x USB 3.2 Gen 1 ports
	1 x USB4 USB Type-C port (DisplayPort (Note))
	1 x USB 3.2 Gen 2 Type-A port (red)
	1 x RJ-45 port
	2 x SMA antenna connectors (2T2R)
	3 x audio jacks
	(Note) Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor
Form Factor	30.5cm x 24.4cm
Warranty Information
Warranty	3 Year Warranty
