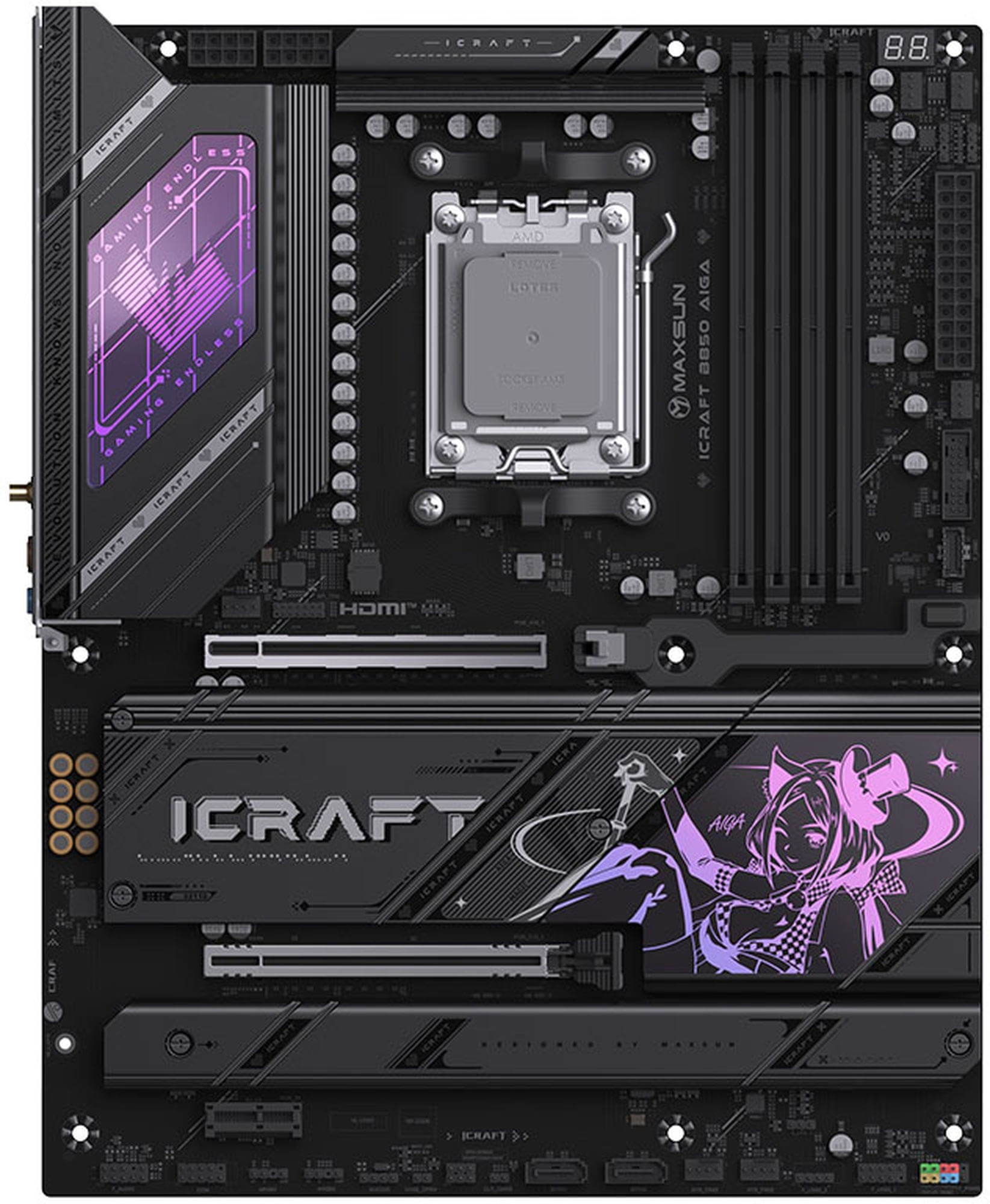

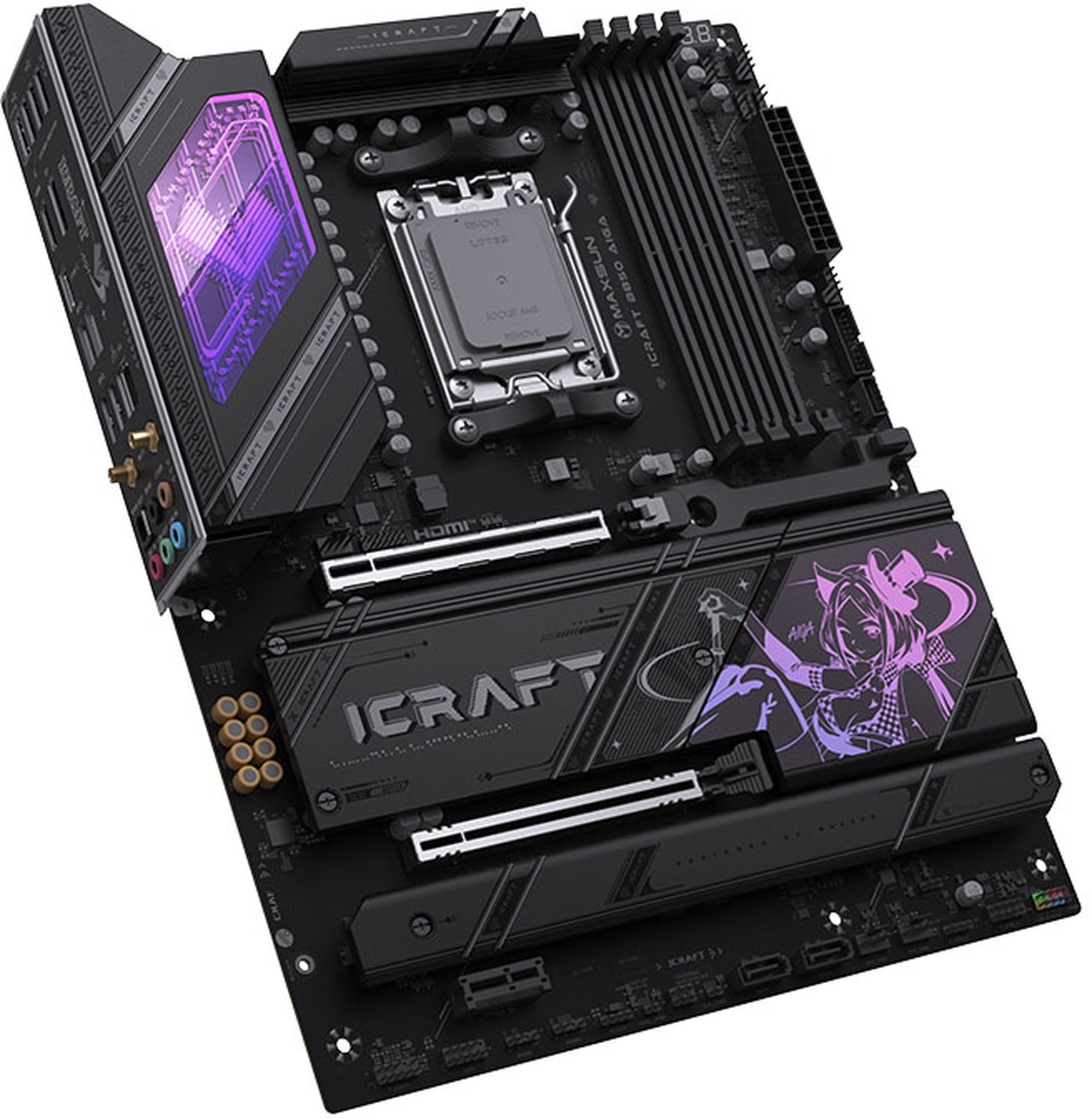

MAXSUN iCraft B850 AIGA WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MAXSUN iCraft B850 AIGA WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 52977

In stock with Wootware

Lead time before dispatch; 1 - 2 business days
Limited stock remaining

Be the first to review this product

- AIGA-Magic, Power-Unleashed!
- ATX Form Factor
- Socket AM5, AMD B850 Chipset
- Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8400 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16/x8 Slot (x16 Physical)
- 1x PCIe 5.0 x8 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 22110/2280 PCIe 4.0 x2 NVMe SSD Slots
- 2x SATA 3.0 Ports
- Supports Front-Panel USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-C Port with DisplayPort 1.4
- 4x USB 10Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.0 Port
- 1x DisplayPort 1.4 Port
- 5x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port
- 2x Antenna Connectors
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- Mediatek WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC1220 High-Definition Audio Codec
- 16+2+1 Dual Power Phase with Dr.Mos
- 7-Segment BIOS POST Code Debug Display
- BIOS Flashback Supports Future Processors
- MAXSUN PCIe GPU Slot Release Mechanism
- MAXSUN Sync RGB Utility
- Supports Windows 11
- 3 Year Warranty

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R5,999.00

R4,199.00

Save: R 1,800!

Qty:

Add to Wishlist

Features
Product Description
Additional Information
Reviews (0)

Features Product Description

SPECIFICATIONS
Brand	MAXSUN
Series	iCraft Series
Model	iCraft B850M AIGA WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	4× DIMM DDR5 slots, up to 256GB total capacity
	Supports dual-channel memory architecture
	Supports AMD EXPO memory overclocking
	Supported frequencies:
	400(OC)/8200(OC)/ 8000(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6400(OC)/6000(OC)/5600(OC)/4800 Mhz Mem
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
USB Type-C	1x USB Type-C Port with DisplayPort 1.4, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	1x HDMI 2.0 Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16/x8 Slot (x16 Physical) (PCIeX16_A)
CPU Direct	1x PCIe 5.0 x8 Slot (x16 Physical) (PCIeX16_B)
AMD B850 Chipset	1x PCIe 3.0 x1 Slot (x16 Physical) (PCIeX16_C)
Slot Configurations	PCIeX16_A with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
	PCIeX16_A with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
	PCIeX16_B with Ryzen 8000 Processors will be disabled in BIOS
	PCIeX16_A and PCIeX16_B share bandwidth of 8 lanes each
	Supports AMD CrossFire and NVIDIA SLI
Storage
CPU Direct	M.2_A Slot (Key_M) : Supports PCIe 5.0 X4/X2 Mode，Type 2242 / 2280
CPU Direct	M.2_B Slot (Key_M) : Supports PCIe 5.0 X4/X2 Mode，Type 2242 / 2280 / 22110
AMD B850 Chipset	M.2_C Slot (Key_M) : Supports PCIe 4.0 X4/X2 Mode，Type 2242 / 2280 / 22110
	M.2_D Slot (Key_M) : Supports PCIe 4.0 X4/X2 Mode，Type 2242 / 2280 / 22110
	2x SATA 6Gbps connectors
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Configurations	M.2_A with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_A with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_B with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_B with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Networking
LAN	Realtek 5 Gigabit Ethernet RJ-45 LAN Port
WiFi	MediaTek MT7925 WiFi 7 Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC1220 High-Definition Audio Codec
Codec	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

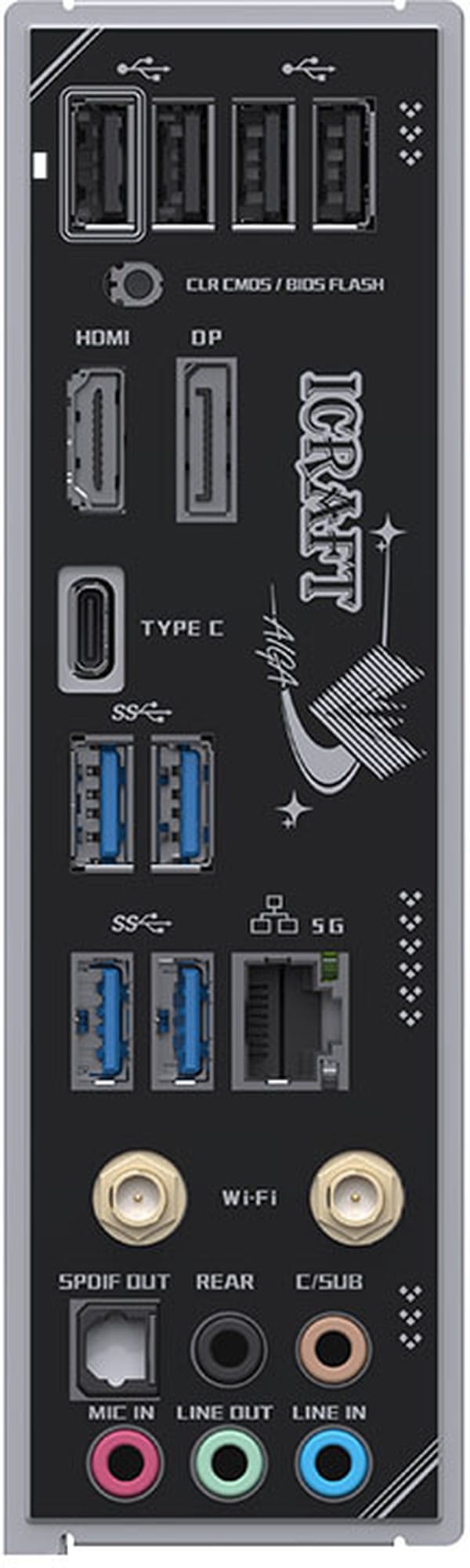

Connectivity
Ports	1x USB 10Gbps Type-C Port with DisplayPort 1.4
	4x USB 10Gbps Type-A Port
	4x USB 2.0 Type-A Ports
	1x HDMI 2.0 Port
	1x DisplayPort 1.4 Port
	5x 3.5mm Audio Jacks
	1x Optical S/PDIF Audio Port
	2x Antenna Connectors
	1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x CMOS Reset Button, 1x BIOS Flash Button
General
Internal Connectors	1x 24 Pin ATX Main Power Connector
	2x 8 Pin 12V Power Connector
	1x 4 Pin CPU_FAN Header
	1x 4 Pin PUMP Header (Support DC Speed Control)
	4x 4 Pin SYS_FAN Header
	4x M.2 Slots(Key_M)
	2x SATA 6Gb/s Ports
	1x USB-C 20G Front_Ports
	1x USB 5G 19-Pin Header ,Supports 2 additional USB 5G Ports
	1x USB 2.0 9-Pin Header, Supports 2 additional USB 2.0 Ports
	1x USB 2.0 4-Pin Header, Supports 1 additional USB 2.0 Ports
	3x 3 Pin ARGB Header
	1x 4 Pin NRGB Header
	1x COM Port Header
	1x Front_Audio Header
	1x 10-1 Pin System Panel Header
	1x CLR_CMOS Header
Displays	7-Segment BIOS POST Code Debug Display
LEDs	Flash BIOS LED
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	ATX Form Factor, 305 x 245 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	2x SATA 6Gb/s Cable
	1x 4-in -1 Screwderiver
	1x AIGA Acrylic Display Sign
	1x AIGA Stickers
	1x M.2 SSD Screws
	1x Magntic Wi-Fi Antenna
	Warranty Card
Warranty Information
Warranty	3 Year Warranty
