| SPECIFICATIONS | |
| Brand | MSI |
| Series | PRO Series |

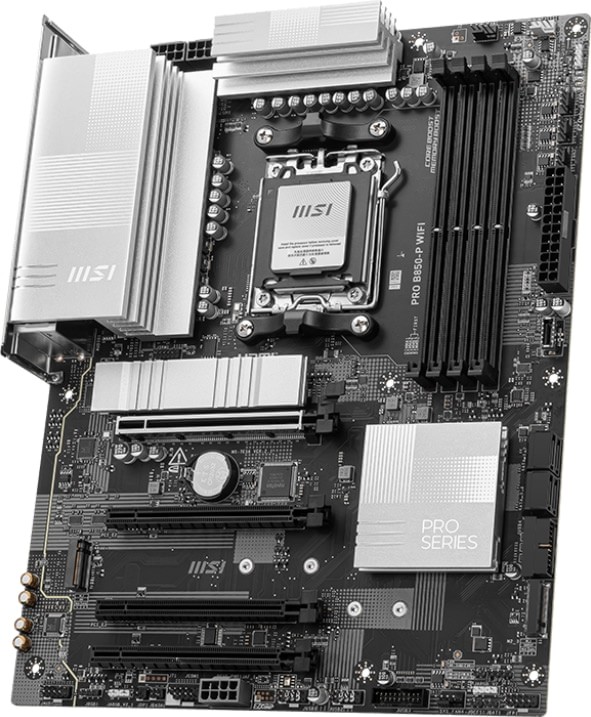

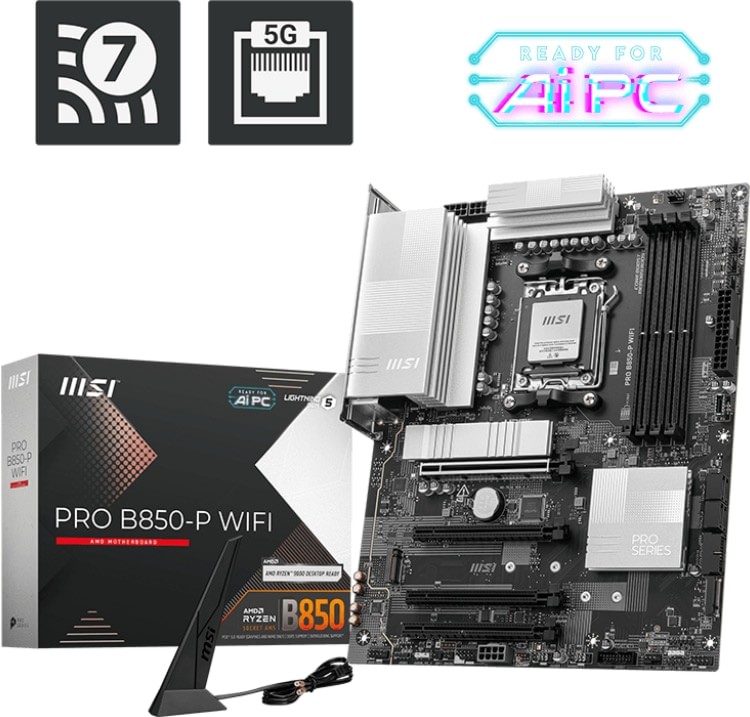

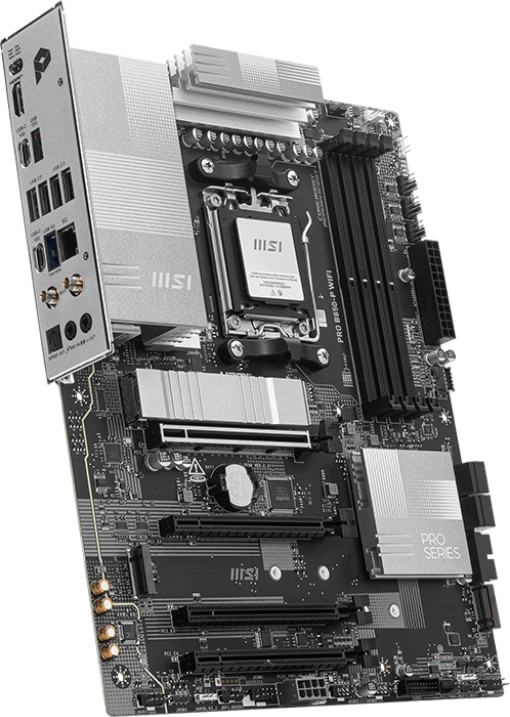

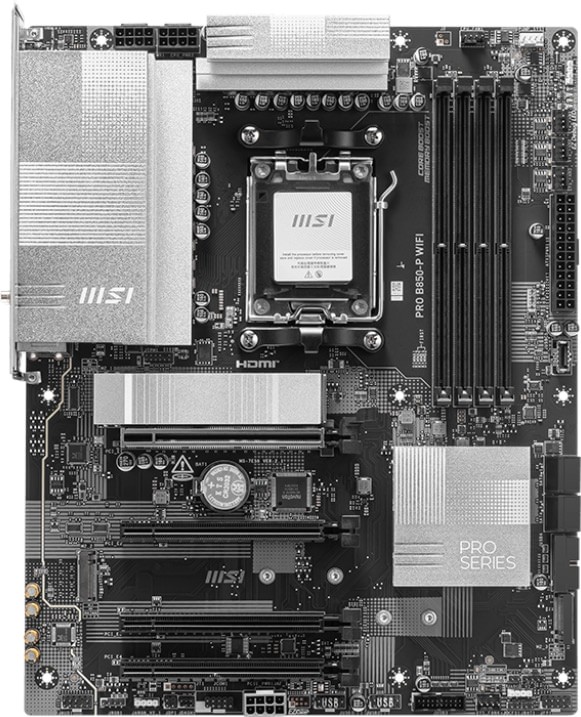

| Model | PRO B850-P WIFI |
| CPU Support | Supports Ryzen 7000, 8000, 9000-Series Processors |
| Chipset | AMD B850 Chipset |
| Memory Support | |
| AMD B850 Chipset | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | |
| Ryzen 9000 Series Processors max. overclocking frequency: | |
| 1DPC 1R Max speed up to 8200 MT/s | |
| 1DPC 2R Max speed up to 6400 MT/s | |
| 2DPC 1R Max speed up to 6400 MT/s | |
| 2DPC 2R Max speed up to 4800 MT/s | |
| Supports AMD POR Speed and JEDEC Speed | |
| Supports Memory Overclocking and AMD EXPOTM | |
| Supports Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM, Clock Driver bypass mode only | |
| Video | |
| HDMI | 1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Slot (x16 Physical) (PCI_E1) |
| AMD B850 Chipset | 1x PCIe 4.0 x4 Slot (x16 Physical) (PCI_E3) |
| 2x PCIe 3.0 x1 Slots (x16 Physical) (PCI_E2, PCI_E4) | |
| Slot Configurations | PCI_E1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode |
| PCI_E1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode | |
| PCI_E2, PCI_E3 & PCI_E4 share bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. | |
| Storage | |
| CPU Direct | 1x M.2 22110 / 2280 PCIe 5.0 x4 NVMe SSD Slot (M.2_1) |
| AMD B850 Chipset | 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slots (M.2_2) |
| 1x M.2 2280 PCIe 4.0 x2 NVMe SSD Slots (M.2_3) | |
| 4x SATA 6Gbps connectors | |
| NOTE: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices | |
| Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, and RAID 10 support for SATA storage devices | |
| Storage Configurations | M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs | |
| Networking | |
| LAN | Realtek 8126VB 5G Gigabit Ethernet RJ-45 LAN Port |
| WiFi | WiFi 7 Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 |
| Audio | |
| Codec | Realtek High-Definition Audio Codec |
| Support for 7.1 Surround with front-panel jack retasking, jack detection | |
| Connectivity | |
| Ports | 2x USB 10Gbps Type-C Ports |
| 1x USB 10Gbps Type-A Port | |
| 1x USB 5Gbps Type-A Port | |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 Port (TMDS) | |
| 2x 3.5mm Audio Jacks (Headphone, Microphone) | |
| 2x SMA Connectors | |
| 1x Optical S/PDIF Audio Port | |
| 1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | 1x MSI Flash BIOS button, Reset CMOS button |
| General | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Power Connector(PCIE_PWR 8pin) | |
| 1x CPU Fan | |
| 1x Combo Fan (Pump_Sys Fan) | |
| 4x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 4x USB 5Gbps Type A ports | |
| 1x USB 5Gbps Type C ports | |
| LEDs | MSI EZ-Debug Status LEDs (BOOT, CPU, VGA, MEM) |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| BIOS | 1x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
