MSI PRO X870-P WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO X870-P WIFI AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 48430

In stock with Supplier

Lead time before dispatch; 2 - 5 business days
Limited stock with Supplier

Be the first to review this product

- ATX Form Factor
- AMD X870 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8200 (OC), Supports CUDIMM Clock Driver Bypass
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x2 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 1x USB 40Gbps Type-C Port with DisplayPort
- 1x USB 20Gbps Type-C Port
- 2x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS)
- 3x 3.5mm Audio Jacks
- 2x SMA Connectors
- Realtek 8126VB 5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- 14+2+1 Duet Rail Power System
- MSI Mystic Light RGB Sync
- Supports Windows 11
- 3 Year Warranty

124 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R6,747.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO X870-P WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870 Chipset
Memory Support
AMD X870 Chipset	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8200 (OC)/ 8000 (OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8200 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	2DPC 1R Max speed up to 6400 MT/s
	2DPC 2R Max speed up to 4800 MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
Video
DisplayPort	1x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, supports DisplayPort 1.4, HDCP & HDR
HDMI	1x HDMI 2.1 Port (TMDS), supporting a maximum resolution of 4K@60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical) PCI_E1
AMD X870 Chipset	1x PCIe 3.0 x1 Slot (x16 Physical) PCI_E2
	1x PCIe 3.0 x1 Slot (x16 Physical) PCI_E3
	1x PCIe 4.0 x4 Slots (x16 Physical) PCI_E4
Slot Configurations	PCI_E1 with Ryzen 8700/8600/8400 Processors support PCIe 4.0 x8 mode
	PCI_E1 with Ryzen 8500/8300 Processors support PCIe 4.0 x4 mode
	NOTE: PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Storage
CPU Direct	M.2_1 Source supports up to PCIe 5.0 x4 , supports 2280/2260 devices
AMD X870 Chipset	M.2_2 Source supports up to PCIe 4.0 x4 , supports 22110/2280 devices
	M.2_3 Source supports up to PCIe 4.0 x2 , supports 2280/2260 devices
	4x SATA 6Gbps connectors
NOTES	M2_1 slot supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
	M2_1 slot supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Networking
LAN	Realtek 8126VB 5 Gigabit LAN 10/100/1000/2500/5000 Mbps
WiFi	WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection

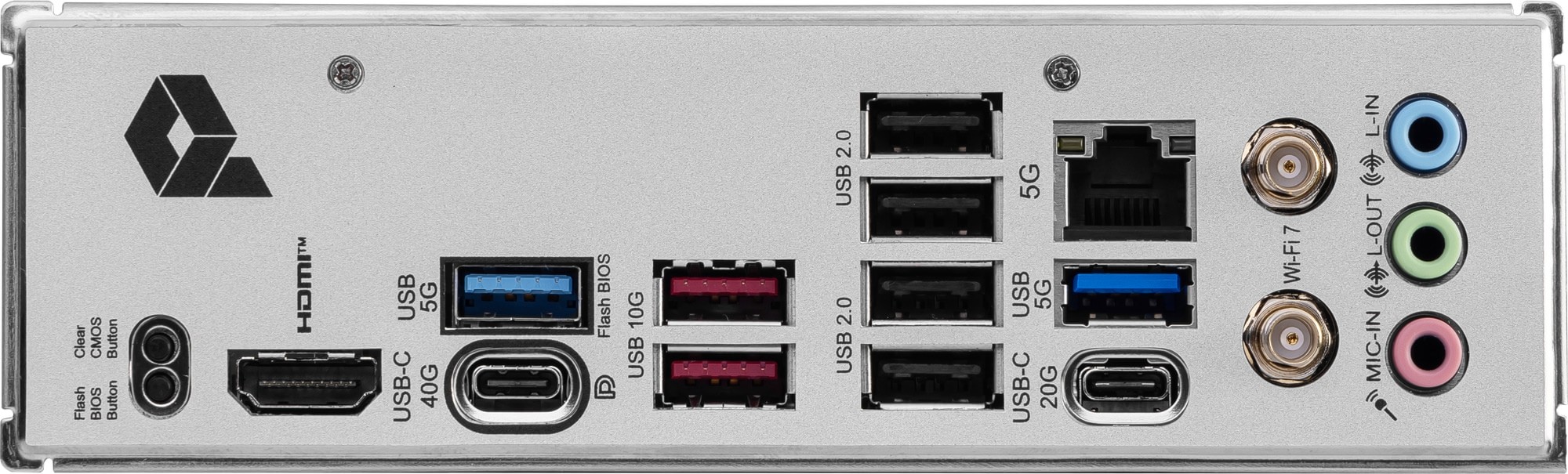

Connectivity
Ports	1x USB 40Gbps Type-C Port with DisplayPort
	1x USB 20Gbps Type-C Port
	2x USB 10Gbps Type-A Ports
	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (FRL)
	3x 3.5mm Audio Jacks
	2x SMA Connectors
	1x 5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Clear CMOS Button, 1x BIOS Flash button
General
Internal Connectors	1x 24-pin ATX main power connector
	2x 8-pin 12V power connectors
	1x 8-pin PCIe power connector
	1x USB 10Gbps Type-C front panel port (From X870 chipset)
	1x USB 5Gbps connector (From X870 chipset)
	2x USB 2.0 connectors (From X870 chipset)
	1x 4-pin CPU fan connector
	1x 4-pin water-pump/ system fan connector
	6x 4-pin system fan connectors
	1x Front panel audio connector
	2x System panel connectors
	1x Chassis Intrusion connector
	1x TPM module connector
	1x Tuning Controller connector
	1x EZ Conn-Header V1 (JAF_1
	1x Clear CMOS jumper
	1x OC safe boot jumper
	1x 4-pin RGB LED connector
	3x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
	4x EZ Debug LED
LEDs	MSI EZ Debug LED Array (BOOT, CPU, VGA, RAM)
I/O Controller	NUVOTON NCT6687-R Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	ACPI 6.5, SMBIOS 3.7
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	1x Quick installation guide
	1x European Union Regulatory Notices
	2x SATA 6Gb/s cables
	1x 1 to 2 EZ Conn-Cable (V1)
	1x EZ Wi-Fi antenna
	3x EZ M.2 Clip II
	1x EZ M.2 Clip II Remover
Warranty Information
Warranty	3 Year Warranty
