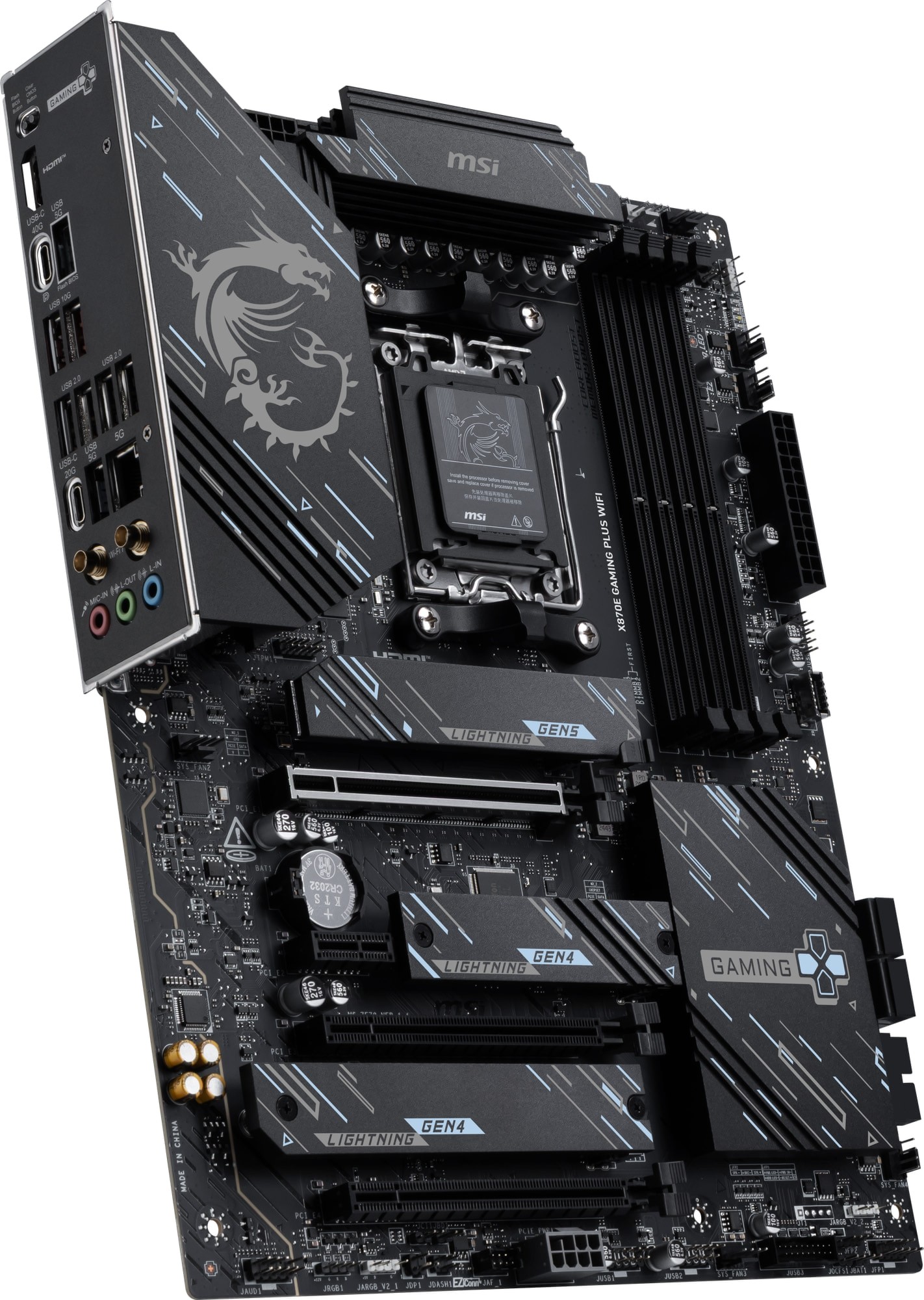

MSI X870E GAMING PLUS WIFI AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI X870E GAMING PLUS WIFI AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 52108

In stock with Supplier

Lead time before dispatch; 1 - 2 business days
Limited stock with Supplier

1 Review(s) | Add Your Review

- ATX Form Factor
- AMD X870E Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8200 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- Supports CUDIMM Clock Driver Bypass Memory
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slots
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 2x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports USB 10Gbps Type-C Chassis Front Port
- 1x USB 40Gbps Type-C Port with DisplayPort
- 1x USB 20Gbps Type-C Port
- 2x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (FRL) Port
- 3x 3.5mm Audio Jacks
- 2x Antenna SMA Connectors
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- 14+2+1 Duet Rail 60A Power System
- MSI EZ PCIe CLIP II GPU Release Mechanism
- MSI EZ Debug POST LEDs
- MSI Mystic Light RGB Sync
- Supports Windows 11
- 3 Year Warranty

121 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R5,643.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)
Questions (0)

Product Description

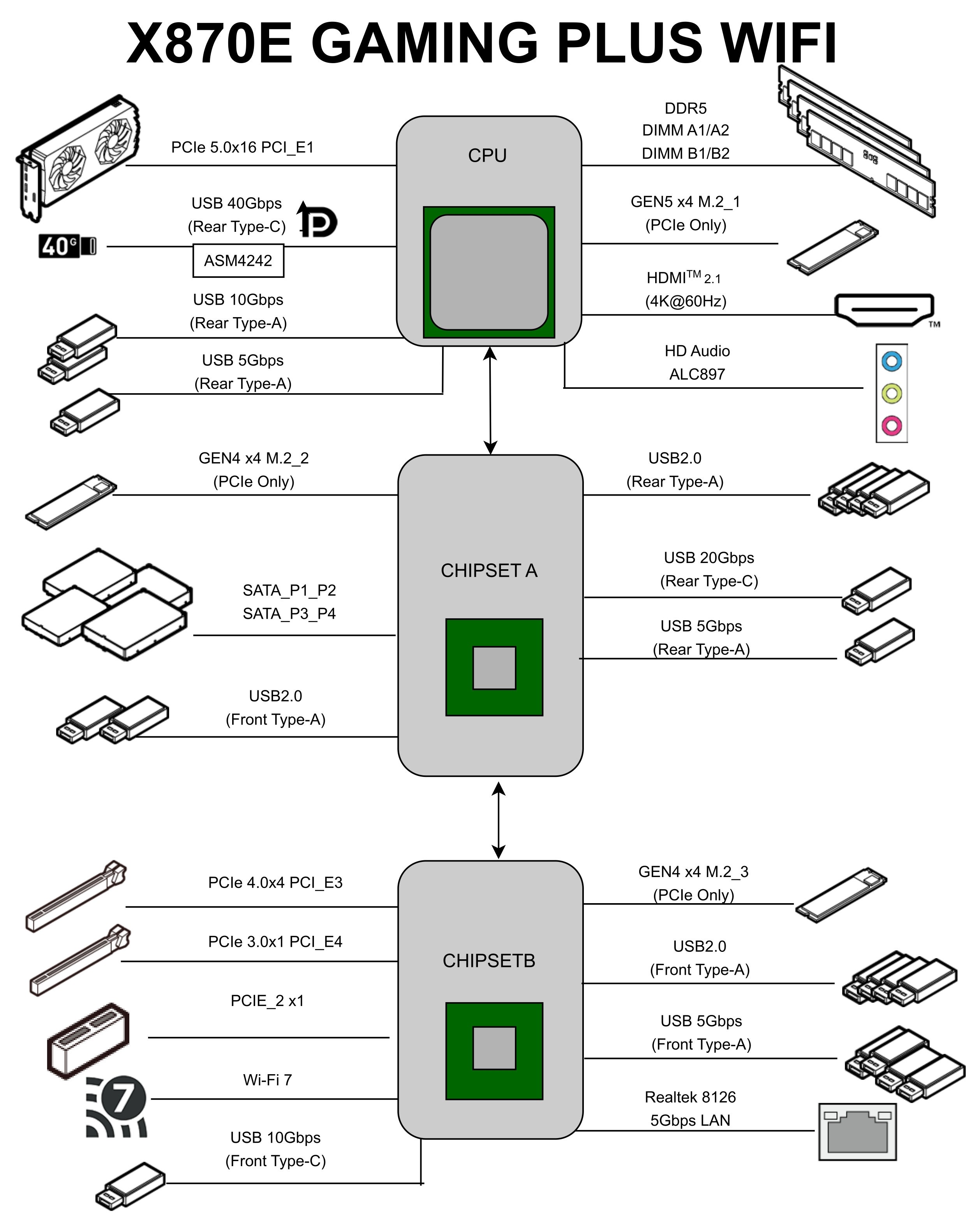

SPECIFICATIONS
Brand	MSI
Series	GAMING Series
Model	X870E GAMING PLUS WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870E Chipset
Memory Support
AMD X870E Chipset	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8200 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	2DPC 1R Max speed up to 6400 MT/s
	2DPC 2R Max speed up to 6000 MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
Video
DisplayPort	1x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, supports DisplayPort 1.4, HDCP & HDR
HDMI	1x HDMI 2.1 Port (FRL), supporting a maximum resolution of 4K @ 60Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical) (PCI_E1)
AMD X870E Chipset	1x PCIe 3.0 x1 Slot (x1 Physical) (PCI_E2)
	1x PCIe 4.0 x4 Slot (x16 Physical) (PCI_E3)
	1x PCIe 3.0 x1 Slot (x16 Physical) (PCI_E4)
Slot Configurations	PCI_E1 with Ryzen 8700/8600/8400 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCI_E1 with Ryzen 8500/8300 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 Source supports up to PCIe 5.0 x4 , supports 2280/2260 devices

AMD X870E Chipset	M.2_2 Source supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_3 Source supports up to PCIe 4.0 x4 , supports 22110/2280 devices
	4x SATA 6Gbps connectors
Slot Configurations	M2_1 slot supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
Slot Configurations	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices on Ryzen 9000
Networking
LAN	Realtek 8126VB 5 Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection
Connectivity
Ports	1x USB 40Gbps Type-C Port with DisplayPort
	1x USB 20Gbps Type-C Port
	2x USB 10Gbps Type-A Ports
	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 (FRL) Port
	3x 3.5mm Audio Jacks
	2x Antenna SMA Connectors
	1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Clear CMOS Button, 1x BIOS Flash button
General
Internal Connectors	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	6x System Fan
	1x EZ Conn-header (JAF_1)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	6x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
LEDs	MSI EZ Debug LED Array (BOOT, CPU, VGA, RAM)
I/O Controller	NUVOTON NCT6687-R Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	ACPI 6.5, SMBIOS 3.7
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	1x Quick installation guide
	1x European Union Regulatory Notices
	2x SATA 6Gb/s cables
	1x 1 to 2 EZ Conn-Cable (V1)
	1x EZ Wi-Fi antenna
	2x EZ M.2 Clip II
	1x EZ M.2 Clip II Remover
Warranty Information
Warranty	3 Year Warranty
