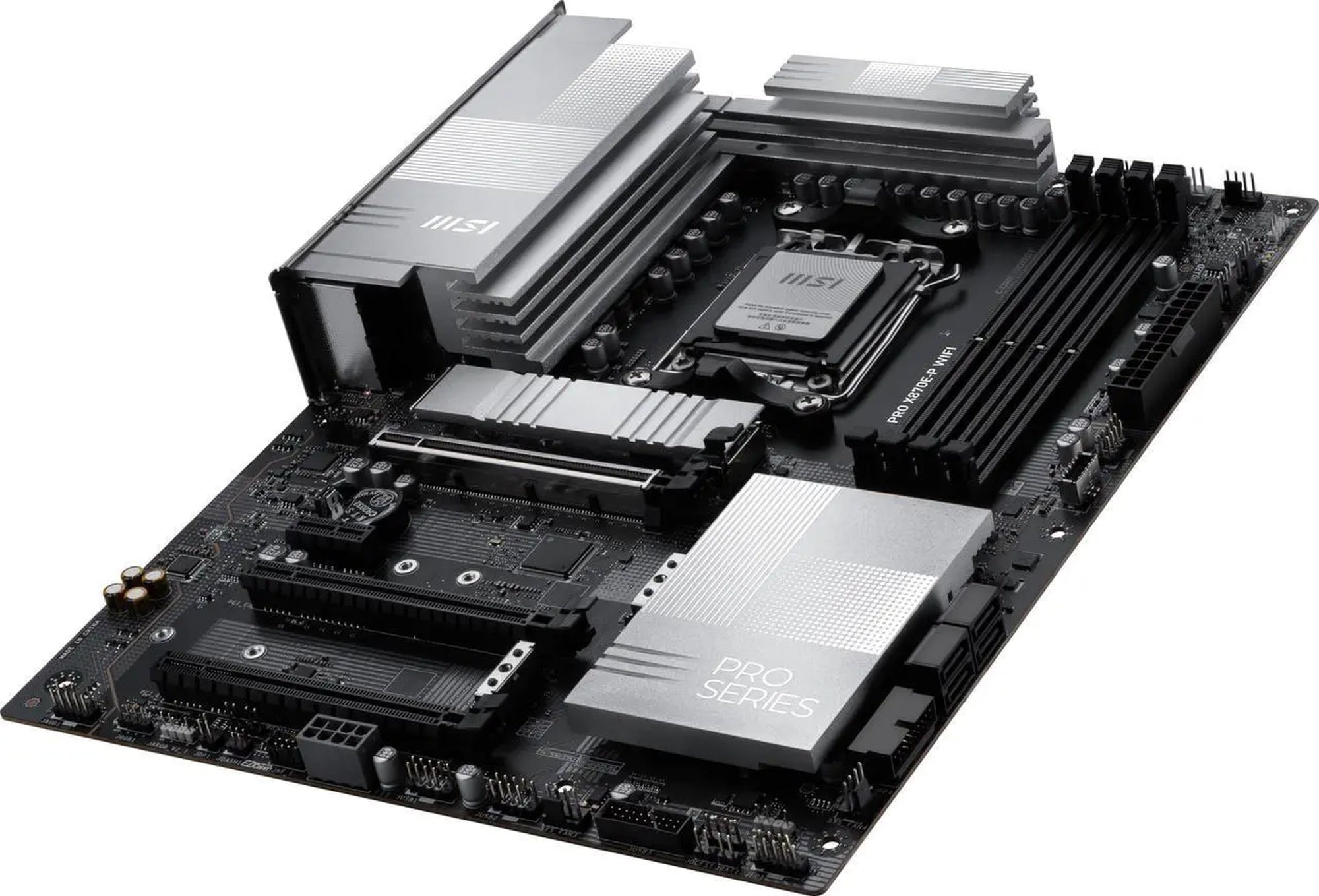

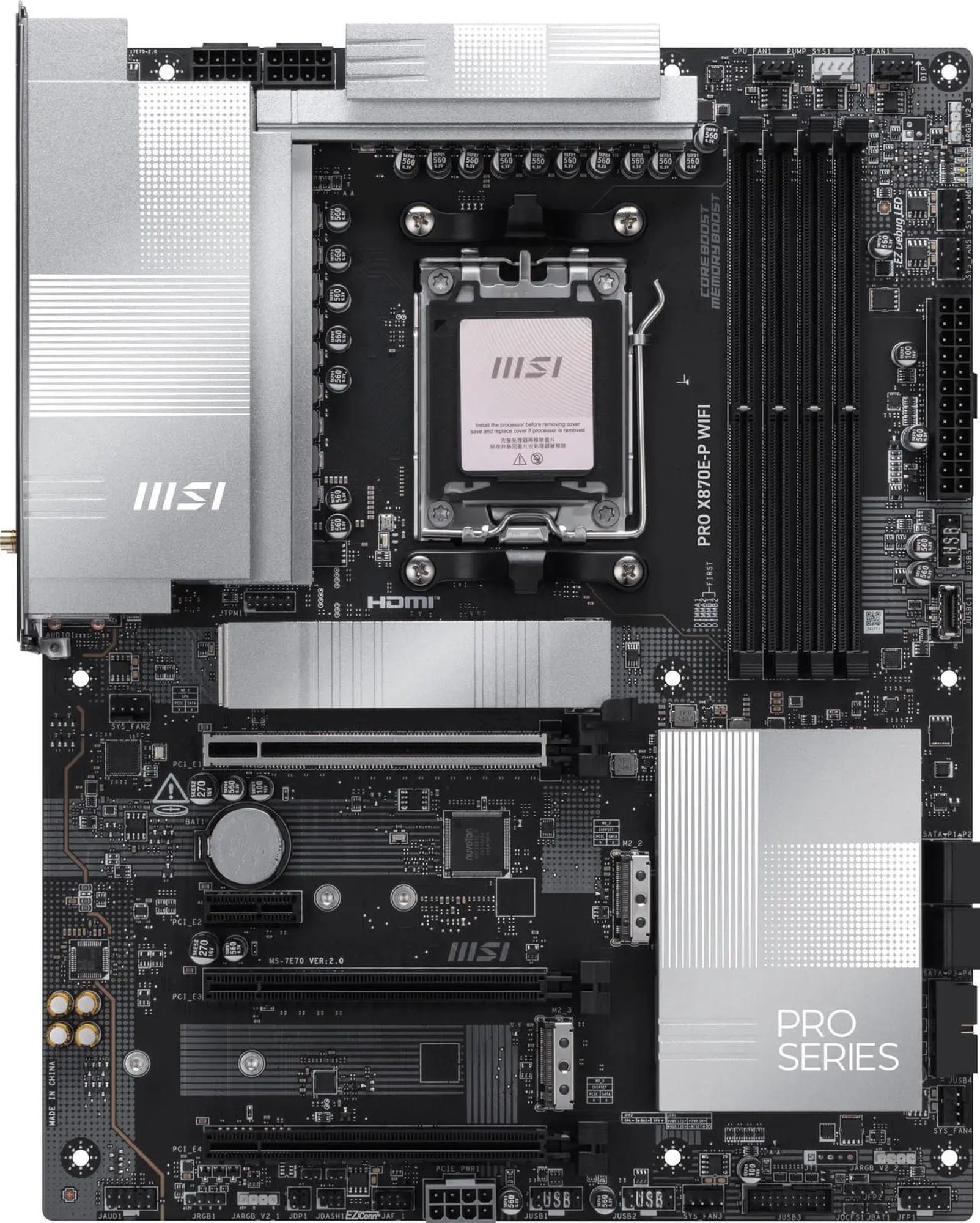

MSI PRO X870E-P WIFI AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO X870E-P WIFI AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 54282

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- ATX Form Factor
- AMD X870E Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8200+ (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- Supports CUDIMM Clock Driver Bypass Memory
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot
- 1x M.2 2280/2260 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280/2260 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 1x USB 40Gbps Type-C Port with DisplayPort
- 1x USB 20Gbps Type-C Port
- 2x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 3x 3.5mm Audio Jacks
- 2x Antenna SMA Connectors
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- 14+2+1 Duet Rail Power System
- MSI EZ PCIe Clip II Release Mechanism
- MSI EZ Debug LED & EZ Memory Detection LED
- MSI Mystic Light RGB Sync
- Supports Windows 11
- 3 Year Warranty

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R5,450.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO X870E-P WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870E Chipset
Memory Support
AMD X870E Chipset	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8200 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	2DPC 1R Max speed up to 6400 MT/s
	2DPC 2R Max speed up to 6000 MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
Video
DisplayPort	1x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 @ 240 Hz, supports DisplayPort 1.4, HDCP & HDR
HDMI	1x HDMI 2.1 Port (TMDS), supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical) (PCI_E1)
AMD X870E Chipset	1x PCIe 3.0 x1 Slot (x16 Physical) (PCI_E2)
	1x PCIe 4.0 x4 Slot (x16 Physical) (PCI_E3)
	1x PCIe 3.0 x1 Slot (x1 Physical) (PCI_E4)
Slot Configurations	PCI_E1 with Ryzen 8700/8600/8400 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCI_E1 with Ryzen 8500/8300 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 Source supports up to PCIe 5.0 x4, supports 2280/2260 devices
AMD X870E Chipset	M.2_2 Source supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	M.2_3 Source supports up to PCIe 4.0 x4 , supports 22110/2280 devices
	4x SATA 6Gbps connectors
Slot Configurations	M2_1 slot supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
Slot Configurations	Ryzen 9000 series has RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Networking
LAN	Realtek 8126VB 5 Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection
Connectivity
Ports	1x USB 40Gbps Type-C Port with DisplayPort
	1x USB 20Gbps Type-C Port
	2x USB 10Gbps Type-A Ports
	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	3x 3.5mm Audio Jacks
	2x Antenna SMA Connectors
	1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A
General

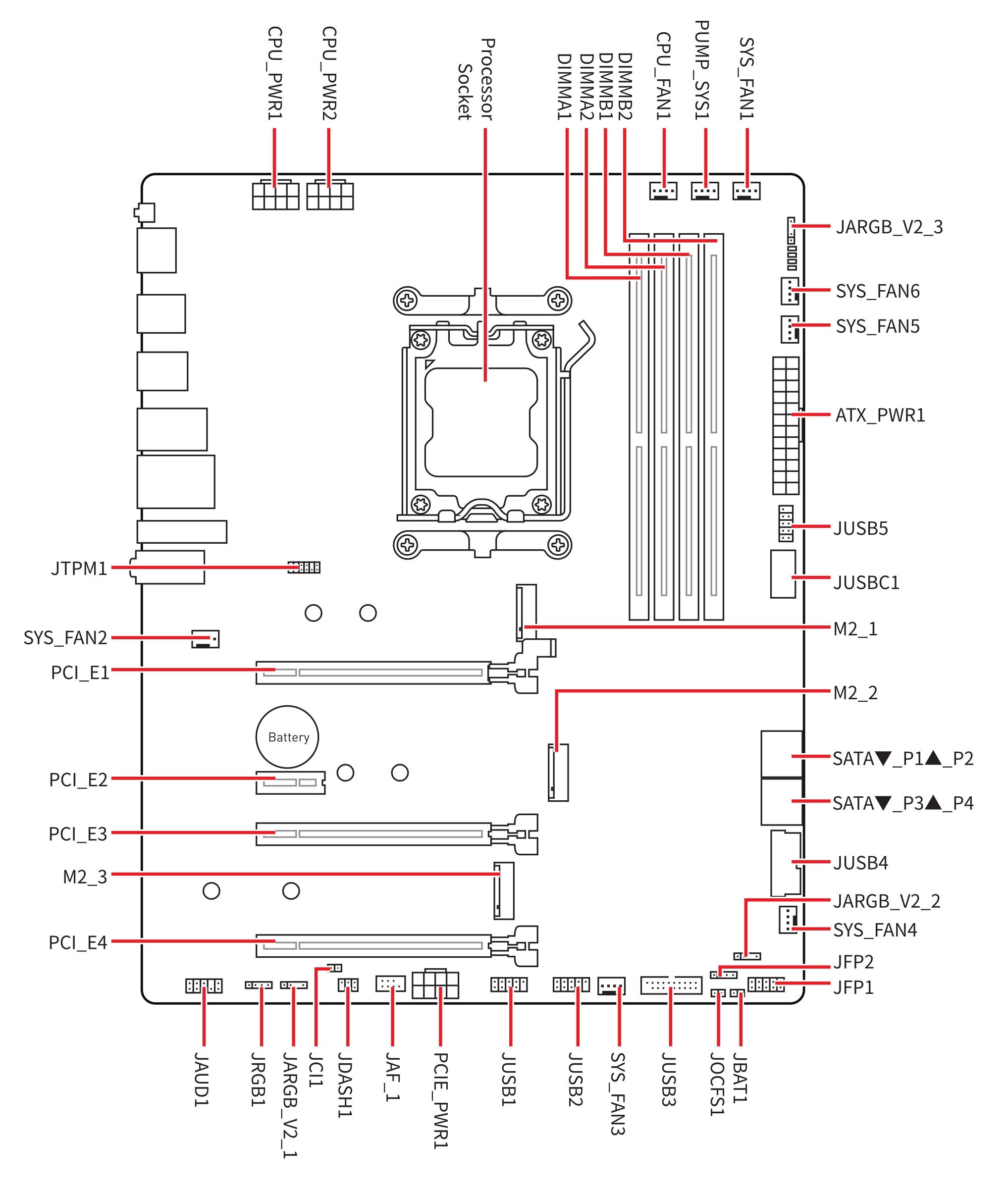

Internal Connectors	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	6x System Fan
	1x EZ Conn-header (JAF_1)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	6x USB 2.0 ports
	4x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
LEDs	4x EZ Debug LED (BOOT, VGA, CPU, MEM)
LEDs	1x EZ Memory Detection LED
I/O Controller	NUVOTON NCT6687-R Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	ACPI 6.5, SMBIOS 3.7
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	1x Quick installation guide
	1x European Union Regulatory Notices
	2x SATA 6Gb/s cables
	1x 1 to 2 EZ Conn-Cable (V1)
	1x EZ Wi-Fi antenna
	3x EZ M.2 Clip II
	1x EZ M.2 Clip II Remover
Warranty Information
Warranty	3 Year Warranty
