ASUS ROG CROSSHAIR 2006 AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS ROG CROSSHAIR 2006 AMD X870E Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 54761

Stock Coming Soon

ETA: 7 August 2026 (Pre-Order Now to Reserve Stock!)

Be the first to review this product

- For Those Who Dare
- 2" Monochrome OLED Aura Sync Display
- ATX Form Factor with Retro Colours
- AMD X870E Chipset, Socket AM5
- Socket AM5 Support for Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8600 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- ASUS NitroPath DRAM Technology
- 2x PCIe 5.0 x16 Slots (x16 Electrical)
- PCIe Slots Support x16/x0 or x8/x8 Modes
- 2x M.2 2280 PCIe 5.0 x4 NVMe SSD Slots
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 1x M.2 2230 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports 2x USB 20Gbps Type-C Front-Panel Ports (1x Power Delivery)
- 2x USB 40Gbps Type-C Ports with DisplayPort
- 3x USB 10Gbps Type-C Ports
- 6x USB 10Gbps Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 2x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port
- 2x Antenna Connectors
- Realtek 10 Gigabit Ethernet RJ-45 LAN Port
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- Mediatek WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- ROG SupremeFX 7.1 Surround Sound ALC4082 Audio CODEC
- ESS Sabre ES9219 QUAD DAC
- 20+2+2 Digital VRM Solution
- ASUS AIO Q-Connector Cable Link
- ASUS M.2 Q-Latch & PCIe Q-Release Mechanisms
- ASUS AI Cache Boost Technology
- ASUS Armoury Crate Software
- Supports Windows 11 64-bit
- 3 Year Warranty

273 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R17,999.00

R15,499.00

Save: R 2,500!

Qty:

Add to Wishlist

Features
Product Description
Additional Information
Reviews (0)
Questions (0)

Features Product Description

SPECIFICATIONS
Brand	ASUS
Series	ROG Series
Model	ROG CROSSHAIR 2006
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870E Chipset
Memory Support
AMD X870E Chipset	4x DIMM slots, max. 256GB, DDR5, Supports up to:
	8600 MT/s(OC)**/8200 MT/s(OC) with Ryzen 9000 Series Processors,
	9600 MT/s(OC)**/9200 MT/s(OC) with Ryzen 8000 Series Processors,
	8000 MT/s(OC)**/8000 MT/s(OC) with Ryzen 7000 Series Processors,
	ECC and Non-ECC, Un-buffered DIMM"
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO)
	Supports DIMM Fit and DIMM Fit Pro
	NitroPath DRAM Technology
	ASUS Enhanced Memory Profile (AEMP)
Video
DisplayPort	2x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, supports DisplayPort 1.4a, HDCP & HDR
HDMI	1x HDMI 2.1 Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Setup Notes	The USB4 40Gbps ports and the M.2 Socket 3 slot (M.2_2) share bandwidth. Configuring the M.2_2 slot to use x4 lanes will disable both USB4 Type-C ports.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical)(PCIEx16(G5)_1)
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical)(PCIEx16(G5)_2)
Setup Notes	The PCIEX16 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEx16(G5)_1 slot.
	PCIEx16(G5)_2 with Ryzen 8700 & 8600 & 8400 Series Processors support PCIe 3.0 x4 mode
	PCIEx16(G5)_2 with Ryzen 8500 & 8300 Series Processors support PCIe 3.0 x4 mode
Storage
CPU Direct	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
CPU Direct	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X870E Chipset	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_5 slot (Key M), type 2230 (supports PCIe 4.0 x2 mode)
	2x SATA 6Gbps connectors
ASMedia ASM1162 Controller	2x SATA 6Gbps connectors
Setup Notes	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
	M.2_1 and M.2_2 with Ryzen 8700 & 8600 & 8400 Series Processors support PCIe 4.0 x4 SSDs
	M.2_1 with Ryzen 8500 & 8300 Series Processors supports PCIe 4.0 x4 SSDs. M.2_2 will be disabled.
Networking
LAN	Realtek 10 Gigabit LAN Adapter
LAN	Realtek 5 Gigabit LAN Adapter
WiFi	Mediatek MT7927 WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
	Impedance sense for front and rear headphone outputs
	Supports Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	Supports up to 32-Bit/384 kHz playback on front panel
	SupremeFX Shielding Technology
	ESS ES9219 QUAD DAC
	Gold-plated audio jacks
	Rear optical S/PDIF out port
	Premium audio capacitors
Connectivity
Ports	2x USB 40Gbps Type-C Ports with DisplayPort
	3x USB 10Gbps Type-C Ports
	6x USB 10Gbps Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	2x 3.5mm Audio Jacks
	1x Optical S/PDIF Audio Port
	2x Antenna Connectors
Buttons	1x BIOS Flashback button, 1x Clear CMOS Button
General

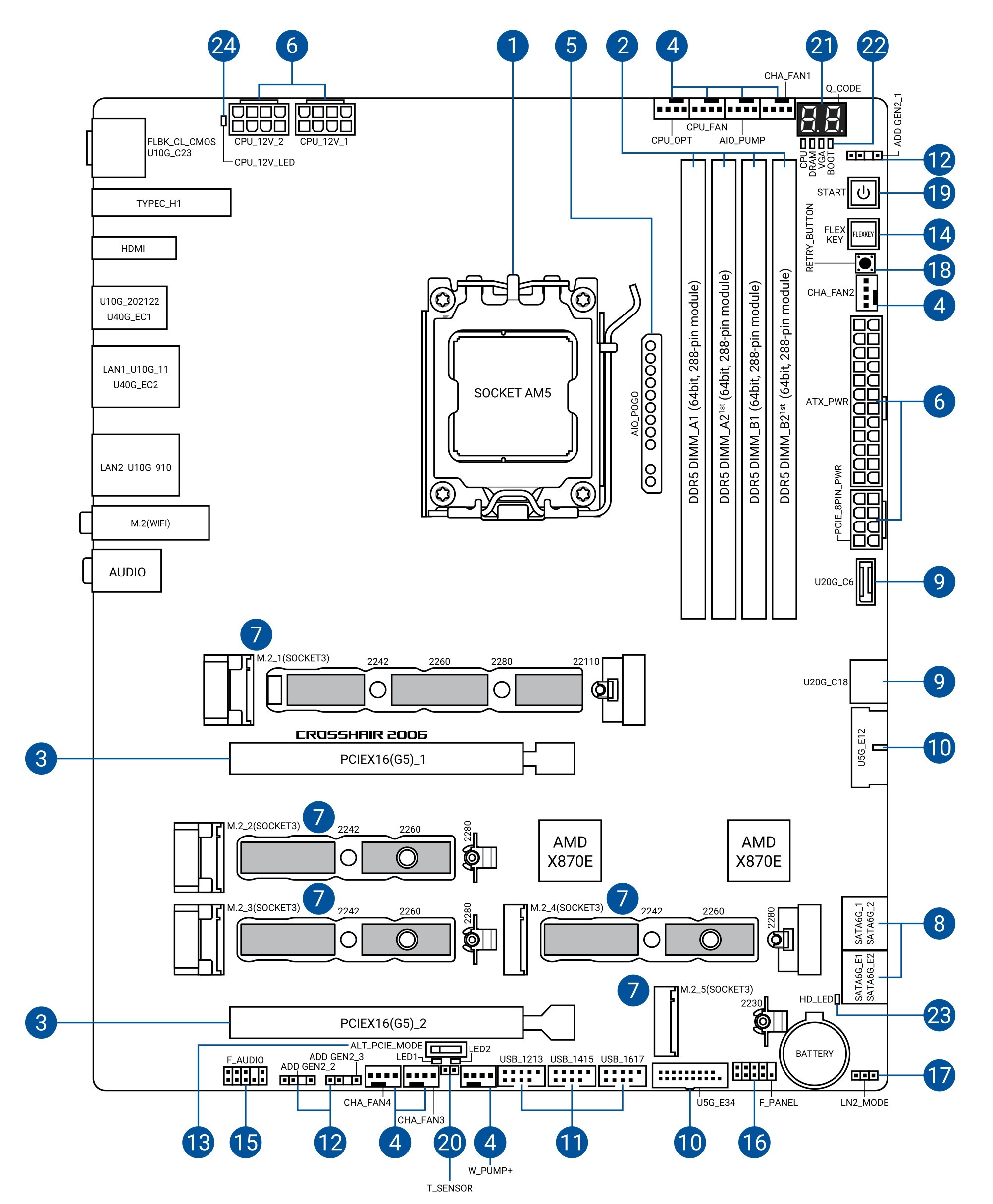

Internal Connectors	1x 4-pin CPU Fan header
	1x 4-pin CPU OPT Fan header
	1x 4-pin AIO Pump header
	4x 4-pin Chassis Fan headers
	1x W_PUMP header
	1x AIO Q-Connector
	1x 24-pin Main Power connector
	2x 8-pin 12V CPU Power connector
	1x 8-pin PCIe Power connector
	5x M.2 slots (Key M)
	4x SATA 6Gb/s ports
	2x USB 20Gbps connectors (support USB Type-C )
	2x USB 5Gbps headers support 4 additional USB 5Gbps ports
	3x USB 2.0 headers support 6 additional USB 2.0 ports
	3x Addressable Gen2 headers
	1x Alteration PCIe mode switch
	1x FlexKey button
	1x Front Panel Audio header (F_AUDIO)
	1x ReTry button
	1x Start button
	1x 10-1 pin System Panel header
	1x Thermal Sensor header
	1x LN2 Mode jumper
LEDs	7-Segment Diagnostic Display
LEDs	POST Status LEDS (BOOT, CPU, VGA, MEM)
I/O Controller	N/A
BIOS	1x 512 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit

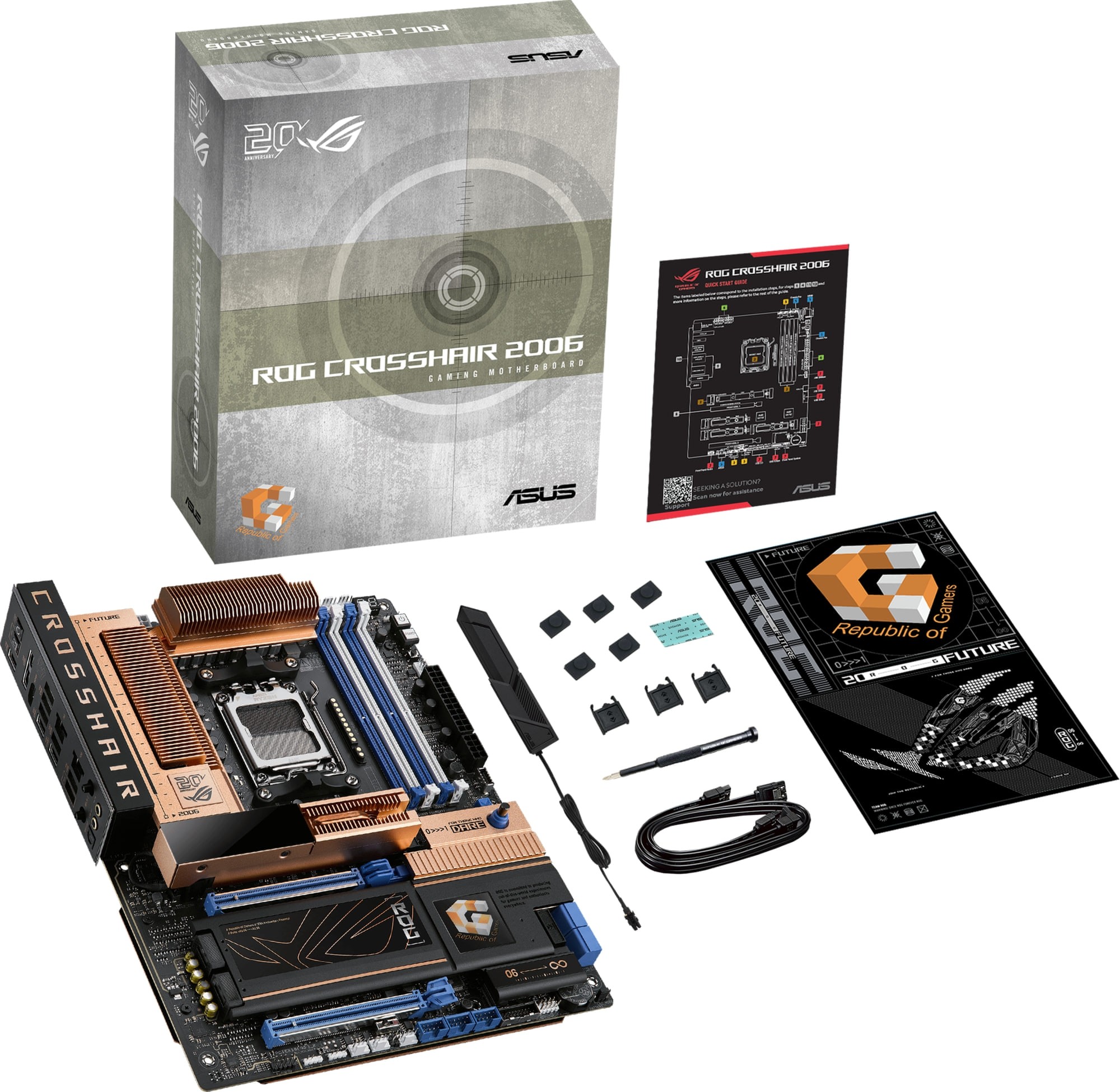

Boxed Accessories	4x SATA 6Gb/s cables
	1x Thermal pad for M.2 22110
	1x ASUS WiFi Q-Antenna
	1x Q-connector
	3x M.2 Q-Slide package
	5x M.2 backplate rubber packages
	1x ROG stickers
	1x ROG screwdriver
	1x Quick start guide
Warranty Information
Warranty	3 Year Warranty
