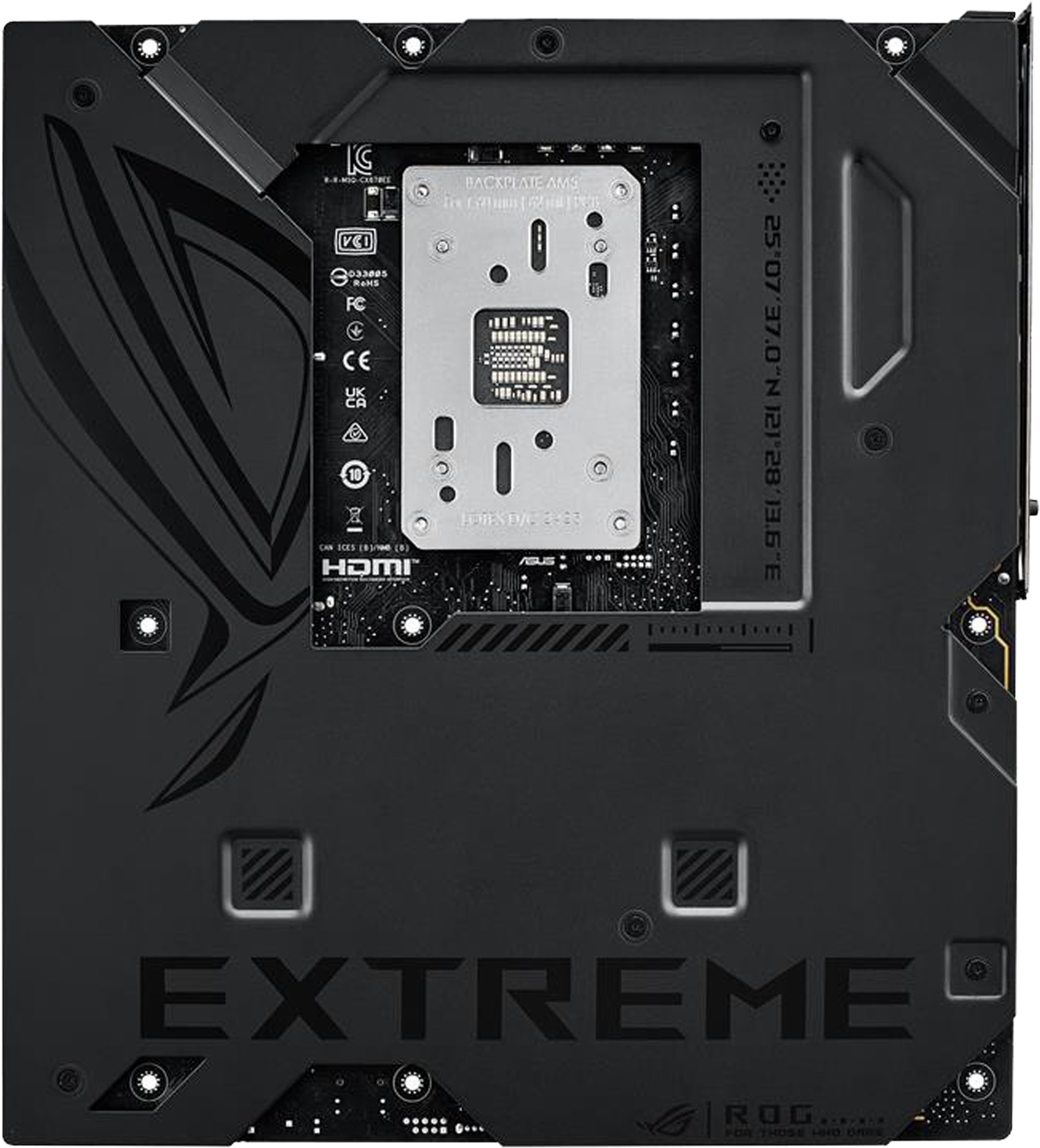

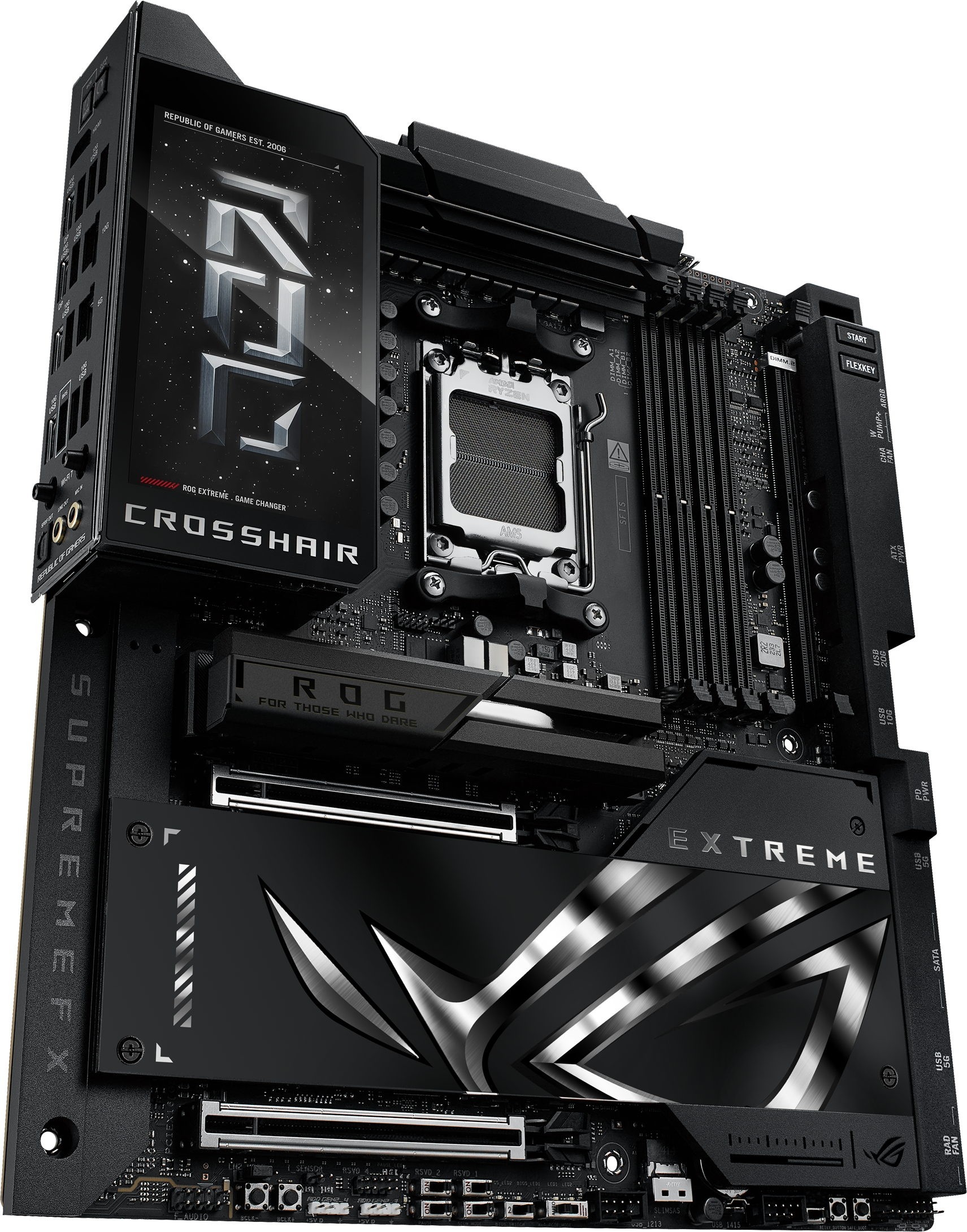

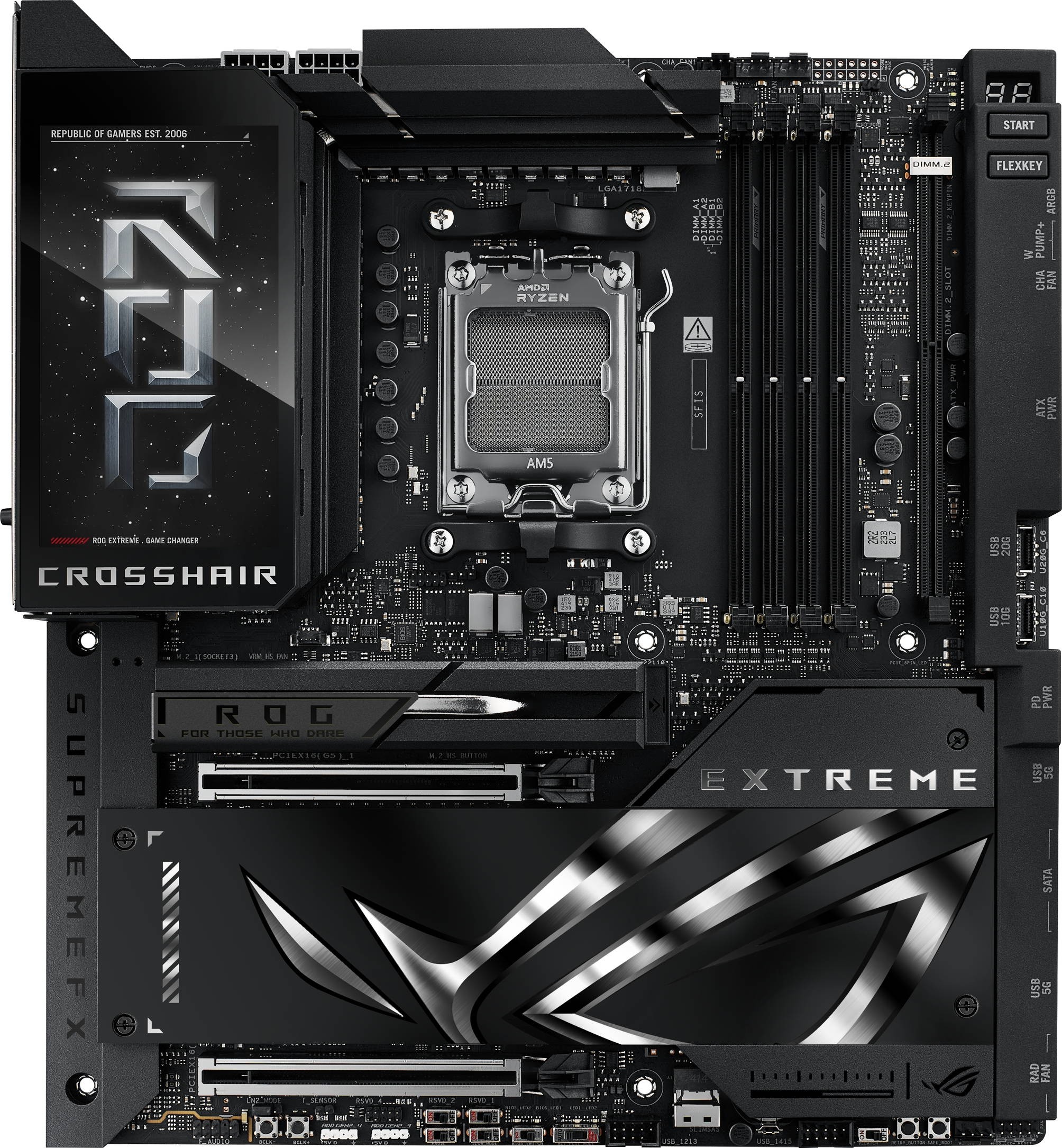

ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Ryzen Socket AM5 E-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Ryzen Socket AM5 E-ATX Desktop Motherboard

Product ID: 54585

In stock with Supplier

Lead time before dispatch; 2 - 5 business days
Limited stock with Supplier

Be the first to review this product

View more game promotions →

- E-ATX Form Factor
- AMD X870E Chipset
- Socket AM5 Supports Ryzen 9000 & 8000 & 7000 Series Processors
- ROG Ultimate Power Solution: 20(110A)+2(110A)+2(80A) Power Stages
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports Up to DDR5-9000MT/s+ (OC)
- Supports AMD EXPO Modules
- ASUS Enhanced Memory Profile (AEMP)
- NitroPath DRAM Technology
- 2x PCIe 5.0 x16 Slots with Q-Release Slim
- 3x PCIe 5.0 M.2 Slots (On-Board)
- 2x PCIe 4.0 M.2 Slots (ROG Q-DIMM.2)
- 1x SlimSAS Connector
- 4x SATA 6Gb/s Ports
- 2x USB4 40Gbps Type-C Ports
- 8x USB 10Gbps Type-A Ports
- 2x USB 10Gbps Type-C Ports
- 1x HDMI Port
- Realtek 5Gb Ethernet
- Marvell AQtion 10Gb Ethernet
- ASUS LANGuard
- Wi-Fi 7 2x2 Tri-Band 320MHz Adapter
- Bluetooth v5.4
- BIOS FlashBack Button
- Clear CMOS Button
- ROG SupremeFX 7.1 Surround Sound ALC4082 Audio
- ESS ES9219 QUAD DAC
- Full Colour 5” LCD Display
- AI Cache Boost
- AI Overclocking
- AI Cooling II
- Extreme OC Kit
- ASUS Thermal Solution
- 3 Year Warranty

318 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R22,843.00

Qty:

Add to Wishlist

Features
Product Description
Additional Information
Reviews (0)
Questions (0)

Features Product Description

SPECIFICATIONS
Brand	ASUS
Series	Motherboards
Model	ASUS ROG CROSSHAIR X870E EXTREME
CPU	AMD Socket AM5
	AMD Ryzen 9000 Series Desktop Processors
	AMD Ryzen 8000 Series Desktop Processors
	AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD X870E
Memory	4 × DIMM slots
Memory	Max 256GB DDR5
Memory Speed	Up to 8200 MT/s (OC) with Ryzen 9000 Series Processors
	Up to 9000 MT/s (OC) with Ryzen 8000 Series Processors
	Up to 8000 MT/s (OC) with Ryzen 7000 Series Processors
Memory Support	ECC and Non-ECC Un-buffered DIMM
	Dual Channel Memory Architecture
	AMD EXPO
	ASUS AEMP
	NitroPath DRAM Technology
Graphics	1 × HDMI port
Graphics	2 × USB4 40Gbps Type-C display outputs
HDMI Support	Up to 4K@60Hz
USB4 Display Support	Up to 4K@60Hz
Expansion Slots	2 × PCIe 5.0 x16 slots with Q-Release Slim
Expansion Slots	Supports x16 or x8/x8 or x8/x4/x4 modes
Storage	Up to 5 × M.2 slots
	1 × SlimSAS connector
	4 × SATA 6Gb/s ports
M.2_1 Slot	Key M, 2242/2260/2280/22110
	PCIe 5.0 x4 with Ryzen 9000/7000
	PCIe 4.0 x4 with Ryzen 8000
M.2_2 Slot	Key M, 2242/2260/2280
M.2_2 Slot	PCIe 5.0 x4 with Ryzen 9000/7000
M.2_3 Slot	Key M, 2242/2260/2280/22110
M.2_3 Slot	PCIe 5.0 x4 with Ryzen 9000/7000
DIMM.2_1 Slot	Key M via ROG Q-DIMM.2
	2230/2242/2260/2280/22110
	PCIe 4.0 x4
DIMM.2_2 Slot	Key M via ROG Q-DIMM.2
	2230/2242/2260/2280/22110
	PCIe 4.0 x4
SlimSAS Connector	PCIe 4.0 x4 via SFF-8654 adapter cable
SATA Ports	4 × SATA 6Gb/s
RAID Support	AMD RAIDXpert2
Ryzen 9000 RAID	RAID 0/1/5/10
Ryzen 8000 RAID	RAID 0/1
Ryzen 7000 RAID	RAID 0/1/10
Ethernet	1 × Realtek 5Gb Ethernet
	1 × Marvell AQtion 10Gb Ethernet
	ASUS LANGuard
Wireless	Wi-Fi 7
	2×2 Wi-Fi 7 (802.11be)
	2.4GHz / 5GHz / 6GHz
	320MHz bandwidth
	Up to 6.5Gbps
Bluetooth	Bluetooth 5.4
Rear USB	2 × USB4 40Gbps Type-C
Rear USB	10 × USB 10Gbps
Rear USB Type	8 × USB Type-A
Rear USB Type	2 × USB Type-C
Front USB	1 × USB 20Gbps Type-C
	1 × USB 10Gbps Type-C
	2 × USB 5Gbps headers for 4 ports
	2 × USB 2.0 headers for 4 ports
Front USB-C Power Delivery	Up to 60W PD/QC4
	5/9/15/20V max 3A
	PPS: 3.3–21V max 3A
Audio	ROG SupremeFX 7.1 Surround Sound
Audio Codec	ALC4082
Audio Features	Impedance sense
	Jack detection
	Multi-streaming
	Front Panel MIC Jack-retasking
	120 dB SNR stereo playback
	110 dB SNR recording input
	Up to 32-bit/384 kHz playback
Audio Hardware	SupremeFX Shielding Technology
	ESS ES9219 QUAD DAC
	LED-illuminated audio jacks
	Rear optical S/PDIF out
	Premium audio capacitors
Back Panel I/O	2 × USB4 40Gbps Type-C
	10 × USB 10Gbps
	1 × HDMI port
	1 × Wi-Fi module
	1 × Realtek 5Gb Ethernet
	1 × Marvell AQtion 10Gb Ethernet
	2 × LED-illuminated audio jacks
	1 × Optical S/PDIF out
	1 × BIOS FlashBack button
	1 × Clear CMOS button
Fan & Cooling Headers	1 × 4-pin CPU Fan header
	1 × 4-pin CPU OPT Fan header
	2 × 4-pin Chassis Fan headers
	2 × 4-pin Radiator Fan headers
	2 × W_PUMP headers
	1 × VRM Heatsink Fan header
Power Connectors	1 × 24-pin Main Power connector
	2 × 8-pin 12V CPU Power connector
	1 × 8-pin PCIe Power connector
Internal Storage Connectors	3 × M.2 slots
	1 × DIMM.2 slot supporting 2 × M.2
	1 × SlimSAS connector
	4 × SATA 6Gb/s ports
Internal USB Connectors	1 × USB 20Gbps Type-C
	1 × USB 10Gbps Type-C
	2 × USB 5Gbps headers
	2 × USB 2.0 headers
Miscellaneous Connectors	1 × 6-pin ARGB Gen 2 header to support 2 × ARGB Gen 2 headers
	2 × Addressable Gen 2 headers
	1 × Alteration PCIe mode switch
	2 × BCLK buttons
	1 × BIOS Switch
	1 × FlexKey button
	1 × Front Panel Audio header
	1 × LN2 Mode jumper
	12 × ProbeIt Measurement Points
	1 × ReTry button
	2 × RSVD switches
	1 × RSVD header
	1 × Safe Boot button
	1 × Slow Mode switch
	1 × Start button
	1 × 10-1 pin System Panel header
	1 × Thermal Sensor header
	1 × Pause switch
Extreme OC Kit	FlexKey button
	LN2 Mode
	ProbeIt
	ReTry button
	Safe Boot button
	Start button
	Slow Mode
Extreme Engine Digi	10K Black Metallic Capacitors
Extreme Engine Digi	MicroFine Alloy Choke
ASUS Q-Design	M.2 Q-Latch
	M.2 Q-Release
	M.2 Q-Slide
	Q-Release Slim with PCIe SafeSlot
	Q-Antenna
	Q-Code
	Q-Connector
	Q-Dashboard
	Q-LED
	Q-Slot
	Q-DIMM.2
ASUS Thermal Solution	Fan bracket
	M.2 heatsink backplate
	M.2 heatsink
	Metal backplate
	VRM heatsink design
	3D VC M.2 Heatsink
ASUS EZ DIY	Backplate
	BIOS FlashBack button
	Clear CMOS button
	CPU Socket lever protector
	ProCool II
	Pre-mounted I/O shield
	SafeSlot
	SafeDIMM
Aura Sync	Addressable Gen 2 headers
BIOS Features	Dual BIOS
Display	Full Colour 5" LCD Display
Front Panel USB Charging	USB 20Gbps with Quick Charge 4
	Up to 60W fast charging
	USB Wattage Watcher
	PD3.0 and PPS compatible
ROG Exclusive Software	ROG CPU-Z
	Dolby Atmos
	Internet Security 1-year full version
ASUS Software	Armoury Crate
	AIDA64 Extreme 1-year full version
	Aura Creator
	Aura Sync
	Fan Xpert 4 with AI Cooling II
	GameFirst
	HWiNFO
	Power Saving
	LCD Display
	ASUS AI Advisor
	ASUS DriverHub
	Turbo Vcore
	ASUS GlideX
	USB Wattage Watcher
	WinRAR 40-day trial
	Adobe Creative Cloud trial
UEFI BIOS	AI Overclocking Guide
	ASUS CrashFree BIOS 3
	ASUS EZ Flash 3
	ASUS UEFI BIOS EZ Mode
	ASUS MyHotkey
	FlexKey
BIOS	2 × 256 Mb Flash ROM
BIOS	UEFI AMI BIOS
Manageability	WOL by PME
Accessories - Cables	1 × 1-to-3 ARGB splitter cable
	1 × 1-to-2 ARGB splitter cable
	2 × 1-to-4 fan splitter cable
	2 × ROG weave SATA 6G cable packages
	1 × 3-in-1 Thermistor cables pack
ROG Q-DIMM.2	1 × ROG DIMM.2 with heatsink
	1 × M.2 pad package for ROG Q-DIMM.2
	2 × Thermal pads for ROG Q-DIMM.2
Additional Cooling Kit	2 × Thermal pads for M.2 22110
	1 × DDR5 Fan holder
	1 × ROG Fan Kit
Accessories - Miscellaneous	1 × ASUS WiFi Q-Antenna
	1 × Q-connector
	1 × ROG logo plate sticker
	1 × ROG screwdriver
	1 × ROG stickers
	1 × ROG VIP card
	1 × M.2 Q-Slide package
	5 × M.2 backplate rubber packages
	1 × ROG Bottle Opener
Installation Media	1 × USB drive with utilities and drivers
Documentation	1 × Quick start guide
Operating System	Windows 11
Form Factor	E-ATX
Dimensions	30.5 × 27.7 cm
Warranty Information
Warranty	3 Year Warranty
