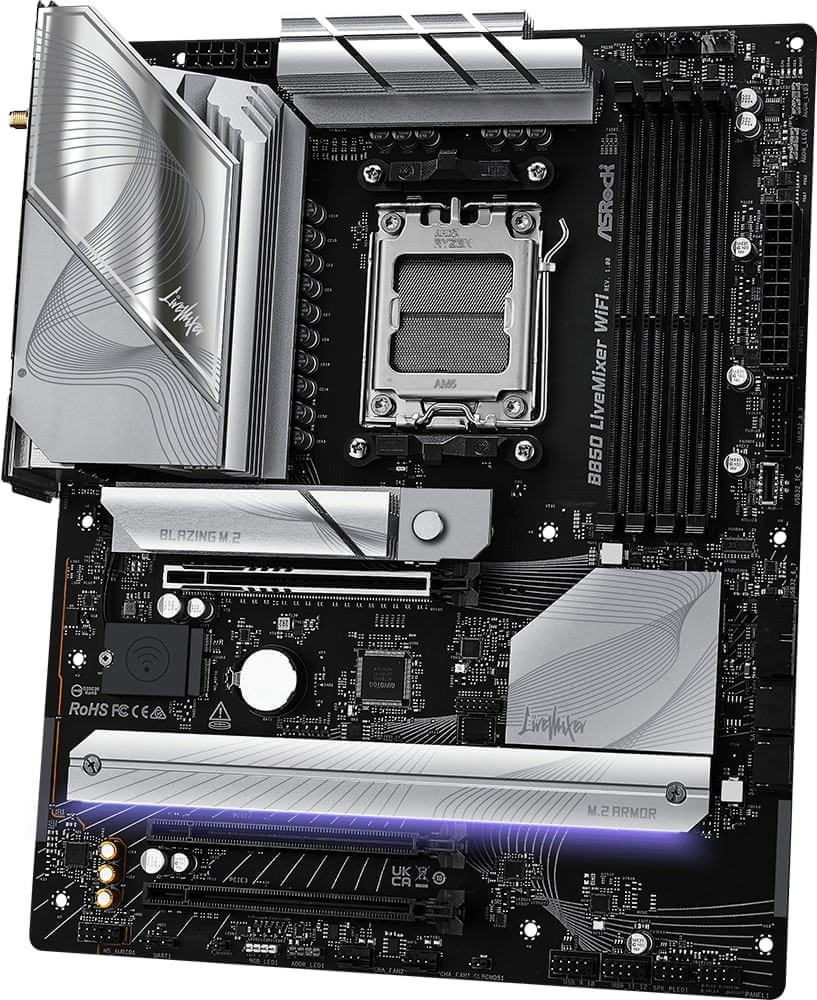

ASRock B850 LiveMixer WiFi AMD B850 Socket Ryzen AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock B850 LiveMixer WiFi AMD B850 Socket Ryzen AM5 ATX Desktop Motherboard

Product ID: 53755

Be the first to review this product

- ATX Form Factor
- AMD X870 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8000+ (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 4.0 x4 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2230/2242/2260/2280 PCIe 4.0 x4 NVMe SSD Slot
- 2x SATA 3.0 Ports
- 1x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 1x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 4x USB 3.2 Gen1 Type-A Ports, 8x USB 2.0 Ports
- 2x Antenna Ports, 1x HDMI Port, 1x DisplayPort 1.4
- 1x Optical SPDIF Out Port, 1x RJ-45 LAN Port
- 1x BIOS Flashback Button, 1x Line Out Jack (Gold Audio Jack)
- 1x Microphone Input Jack (Gold Audio Jack)
- Realtek Dragon RTL8125BG 2.5G RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC1220 Audio Codec
- 14+2+1 Phase VRM Solution
- 80A Dr.MOS for VCore+SOC+MISC
- 3 Year Warranty

16 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Gigabyte B850 GAMING WIFI6 AMD B850 Ryzen Socket AM5 ATX Desktop ...

In stock with Wootware

R4,099.00

R3,499.00

Save: R 600!

3 Review(s)

ASUS TUF GAMING B850M-PLUS WIFI7 W AMD B850 Ryzen Socket AM5 Whit...

In stock with Wootware

R7,799.00

R4,499.00

Save: R 3,300!

ASUS TUF GAMING B850M-PLUS WIFI7 AMD B850 Ryzen Socket AM5 Micro-...

In stock with Wootware

R7,499.00

R4,299.00

Save: R 3,200!

Sapphire 52123-01-40G NITRO+ B850M WIFI AMD B850 Ryzen Socket AM5...

In stock with Wootware

R3,999.00

R3,199.00

Save: R 800!

6 Review(s)

Gigabyte B850 AORUS ELITE WIFI7 AMD B850 Ryzen Socket AM5 ATX Des...

In stock with Wootware

R5,999.00

R4,999.00

Save: R 1,000!

6 Review(s)

Gigabyte B850 EAGLE WIFI6E AMD B850 Ryzen Socket AM5 ATX Desktop ...

In stock with Wootware

R4,799.00

R3,999.00

Save: R 800!

6 Review(s)

MAXSUN Terminator B850M PRO II WiFI7 AMD B850 Ryzen Socket AM5 Mi...

In stock with Wootware

R3,999.00

R2,999.00

Save: R 1,000!

2 Review(s)

Gigabyte B850M AORUS ELITE WIFI6E AMD B850 Ryzen Socket AM5 Micro...

In stock with Wootware

R5,299.00

R4,299.00

Save: R 1,000!

1 Review(s)

Gigabyte B850M AORUS ELITE WIFI6E ICE AMD B850 Ryzen Socket AM5 M...

In stock with Wootware

R5,399.00

R4,299.00

Save: R 1,100!

1 Review(s)

Gigabyte B850I AORUS PRO WiFi 7 AMD B850 Ryzen Socket AM5 Mini-IT...

In stock with Wootware

R7,999.00

R5,599.00

Save: R 2,400!

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	B850 LiveMixer
Model	B850 LiveMixer WiFi
CPU	- Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors*
CPU	* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	- AMD B850
Memory	- Dual Channel DDR5 Memory Technology
	- 4 x DDR5 DIMM Slots
	- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
	- Max. capacity of system memory: 256GB
	- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU)
	- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
	- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
	- Impedance Sensing on Rear Out port
	- Individual PCB Layers for R/L Audio Channel
	- Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
	- Dragon RTL8125BG
	- Supports Dragon 2.5G LAN Software
	- Smart Auto Adjust Bandwidth Control
	- Visual User Friendly UI
	- Visual Network Usage Statistics
	- Optimized Default Setting for Game, Browser, and Streaming Modes
	- User Customized Priority Control
Wireless LAN	- 802.11be 2x2 Wi-Fi 7 Module
	- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
	- Supports 2.4GHz/5GHz/6GHz* frequency band
	- Supports 160MHz channel bandwidth with 6GHz* frequency band
	- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
	- Supports Bluetooth 5.4
	- Supports MU-MIMO
	*The Wi-Fi 7 module is supported by Microsoft Windows 11 only. There is no driver available for Windows 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
Slots	CPU:
	- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
	Chipset:
	- 2 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode*
	- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
	- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
	* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
	If M2_3 is occupied, PCIE3 will be disabled.
	Supports NVMe SSD as boot disks
Storage	CPU:
	- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
	- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
	Chipset:
	- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
	- 2 x SATA3 6.0 Gb/s Connectors
	* Supports NVMe SSD as boot disks
	M2_1 is the first priority for M.2 installation.
	M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
	M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
	If M2_3 is occupied, PCIE3 will be disabled.
RAID	- Supports RAID 0 and RAID 1 for SATA storage devices
	- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
	* Requires additional M.2 NVMe expansion cards to support RAID 10
USB	CPU:
	- 1 x USB 3.2 Gen2 Type-C (Rear)
	- 1 x USB 3.2 Gen2 Type-A (Rear)
	- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1))
	Chipset:
	- 1 x USB 3.2 Gen2x2 Type-C (Front)
	- 7 x USB 3.2 Gen1 Type-A (3 Rear (USB32_234), 4 Front)
	- 12 x USB 2.0 (8 Rear, 4 Front)
	* All USB ports support ESD Protection
Connector	- 1 x SPI TPM Header
	- 1 x Thermistor Cable Header
	- 1 x Power LED and Speaker Header
	- 1 x RGB LED Header*
	- 3 x Addressable LED Headers**
	- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
	- 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
	- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
	- 1 x 24 pin ATX Power Connector
	- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x Front Panel Audio Connector
	- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
	- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
	* Supports in total up to 12V/3A, 36W LED Strip
	** Support in total up to 5V/3A, 15W LED Strip
	*** CPU_FAN1 supports the fan power up to 1A (12W).
	CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
	CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O	- 2 x Antenna Ports
	- 1 x HDMI Port
	- 1 x DisplayPort 1.4
	- 1 x Optical SPDIF Out Port
	- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
	- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
	- 4 x USB 3.2 Gen1 Type-A Ports*
	- 8 x USB 2.0 Ports
	- 1 x RJ-45 LAN Port
	- 1 x BIOS Flashback Button
	- 1 x Line Out Jack (Gold Audio Jack)
	- 1 x Microphone Input Jack (Gold Audio Jack)
	* USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.
	Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power.
Software and UEFI	Software
	- ASRock Motherboard Utility (A-Tuning)
	- ASRock Dragon 2.5G LAN Software
	- ASRock Polychrome SYNC*
	UEFI
	- ASRock EZ Mode
	- ASRock Full HD UEFI
	- ASRock Auto Driver Installer
	- ASRock Instant Flash
	*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	- 2 x SATA Data Cables
	- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
	- 1 x Thermistor Cable
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Form Factor	- 8 Layer PCB
OS	- Microsoft Windows 10 64-bit / 11 64-bit
Certifications	- FCC, CE
Certifications	- ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty Information
Warranty	3 Year Warranty
