ASRock Phantom Gaming B850 Riptide WiFi AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock Phantom Gaming B850 Riptide WiFi AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 50927

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- ATX Form Factor
- AMD B850 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8000 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 3x M.2 2260/2280 PCIe 4.0 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 20Gbps Type-C Ports
- 2x USB 10Gbps Type-C Ports
- 2x USB 10Gbps Type-A Ports
- 3x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (FRL)
- 2x 3.5mm Audio Jacks, 1x Optical S/PDIF Audio Port
- 2x SMA Connectors
- Intel Killer E3100G 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC4082 High-Definition Audio Codec with Nahimic Audio
- 14+2+1 Power Phase with Dr.MOS & Heatsink Armour
- EZ Update BIOS Flashback Button
- ASRock PolyChrome RGB Sync
- Supports Windows 11
- 3 Year Warranty

20 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,497.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	Phantom Gaming Series
Model	Phantom Gaming B850 Riptide WiFi
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	Dual Channel DDR5 Memory Technology
	4x DDR5 DIMM Slots
	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000 (OC)
	Max. capacity of system memory: 256GB
	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Video
HDMI	1x HDMI 2.1 (FRL) Port, supporting a maximum resolution of 4K @ 120 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical)(PCIE1)
AMD B850 Chipset	1x PCIe 4.0 x4 Slot (x16 Physical)(PCIE2)
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
CPU Direct	1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
AMD B850 Chipset	1x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
AMD B850 Chipset	1x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
ASMedia ASM1061 Chipset	4x SATA 6Gbps connectors
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Configurations	M2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M2_2 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	If M2_4 is occupied, PCIE2 will be disabled.
	Please consult your motherboard manual for CPU support with SSDs in the M.2_2 slot.
Networking
LAN	Intel Killer E3100G 2.5 Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 7 Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
	Nahimic Audio

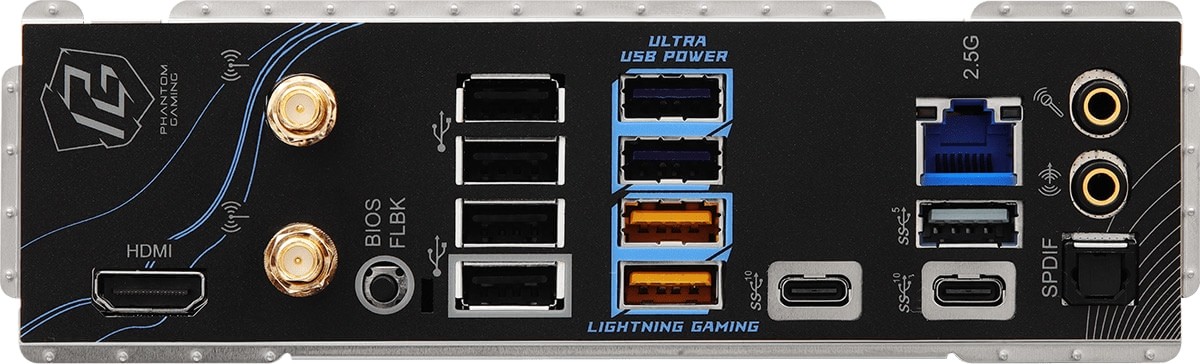

Connectivity
Ports	2x USB 10Gbps Type-C Ports
	2x USB 10Gbps Type-A Ports
	3x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (FRL)
	2x 3.5mm Audio Jacks
	1x Optical S/PDIF Audio Port
	2x SMA Connectors
	1x Intel Killer E3100G 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x ASRock EZ BIOS Update Button

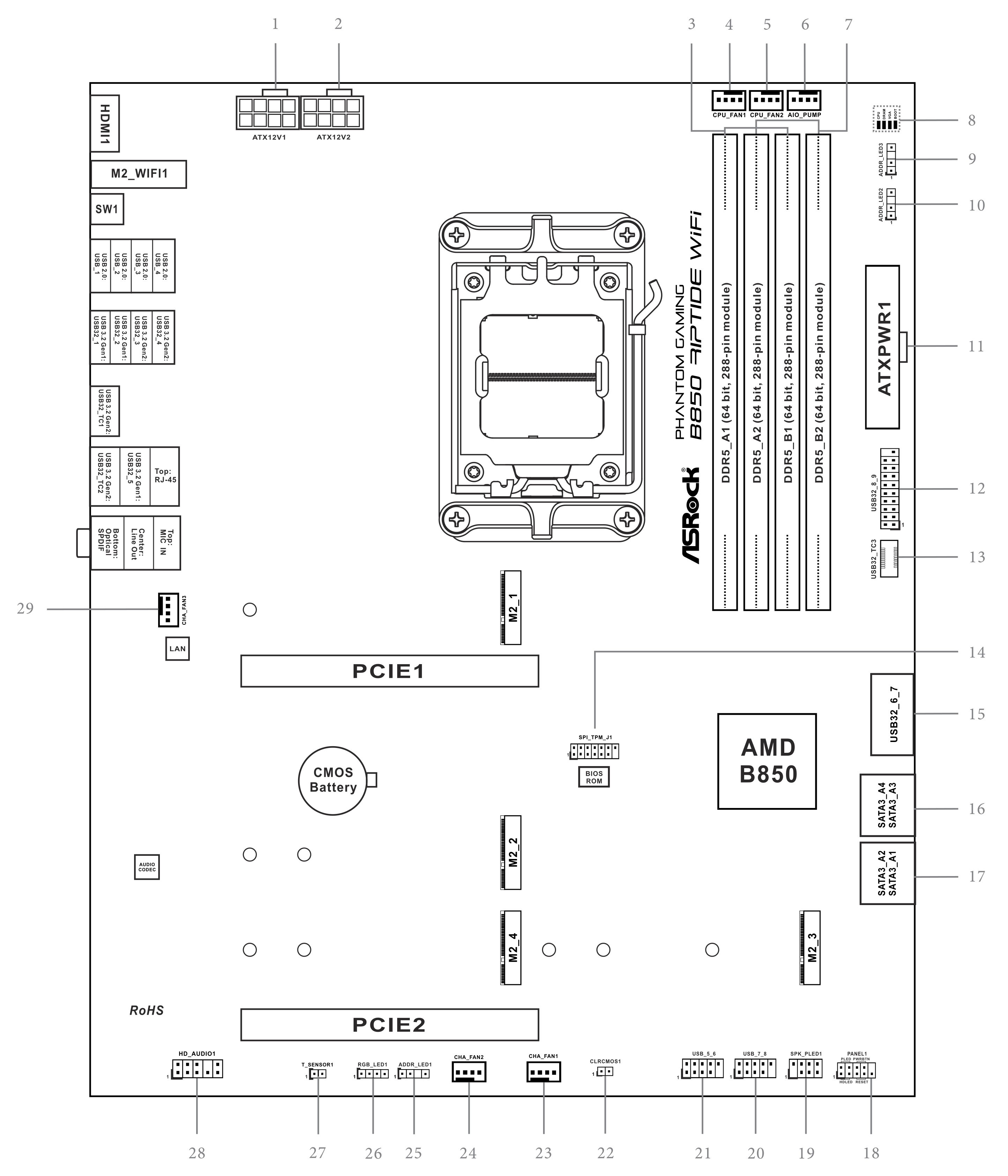

General
Internal Connectors	1x SPI TPM Header
	1x Thermistor Cable Header
	1x Power LED and Speaker Header
	1x RGB LED Header
	3x Addressable LED Headers
	2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
	3x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector (Hi-Density Power Connector)
	2x 8 pin 12V Power Connectors (Hi-Density Power Connector)
	1x Front Panel Audio Connector
	2x USB 2.0 Headers (Support 4 USB 2.0 ports)
	2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
LEDs	POST LED Array (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	2x SATA Data Cables
	2x ASRock WiFi 2.4/5/6 GHz Antennas
	1x ARGB Splitter Cable
	1x Thermistor Cable
Warranty Information
Warranty	3 Year Warranty
