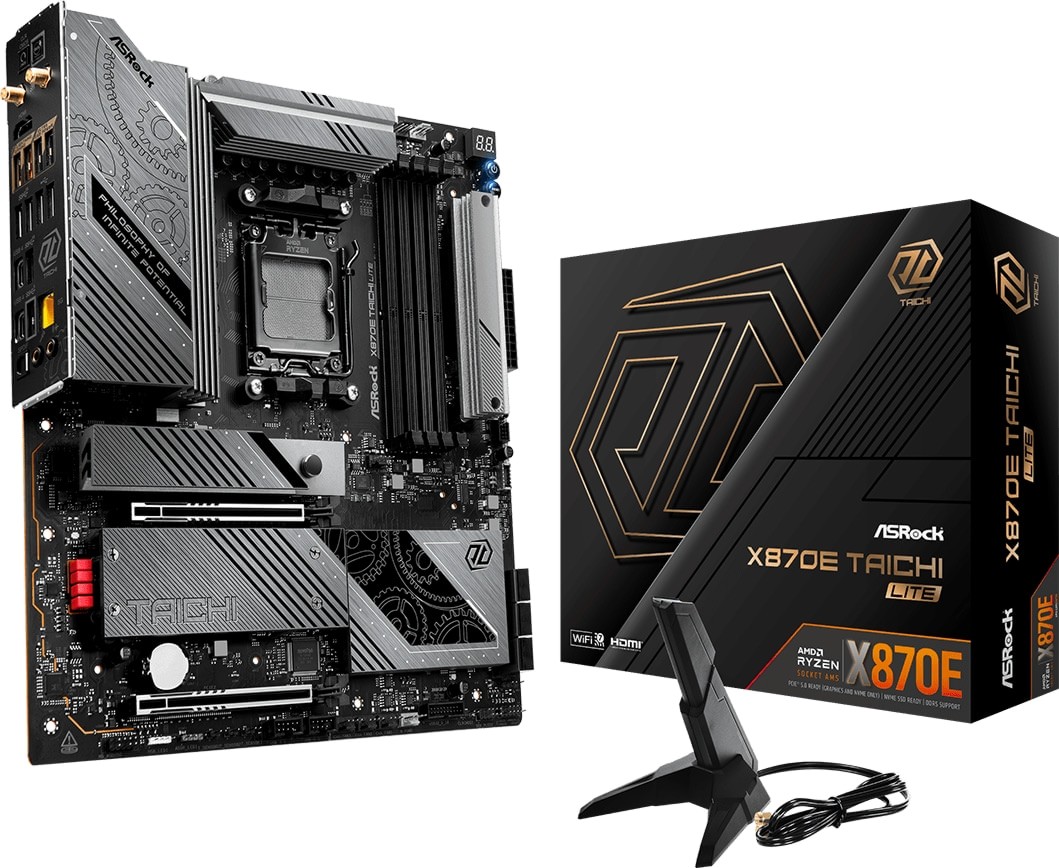

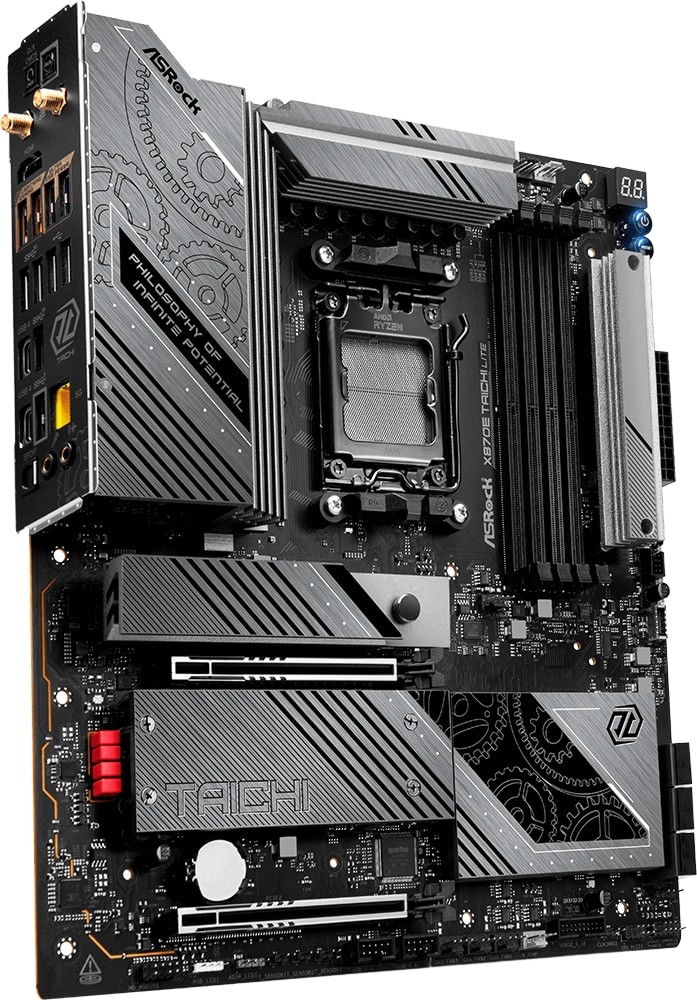

ASRock X870E Taichi Lite WiFi 7 AMD X870E Ryzen Socket AM5 E-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock X870E Taichi Lite WiFi 7 AMD X870E Ryzen Socket AM5 E-ATX Desktop Motherboard

Product ID: 50932

Be the first to review this product

- Extended ATX (E-ATX) Form Factor
- AMD X870E Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8000 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 5.0 x8 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 3x M.2 2280 PCIe 4.0 NVMe SSD Slots
- 6x SATA 3.0 Ports
- Supports Front-Panel USB 20Gbps Type-C Ports
- 2x USB 40Gbps Type-C Ports with DisplayPort
- 5x USB 10Gbps Type-A Ports
- 3x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (FRL)
- 2x 3.5mm Audio Jacks, 1x S/PDIF Optical Port
- 2x SMA Connectors
- Realtek RTL8126 5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC4082 High-Definition Audio Codec
- ESS SABRE9219 DAC with Direct Drive Technology
- Nahimic Audio Certified
- 24+2+1 Power Phase with Dr.MOS & Heatsink Armour
- 7-Segment POST Code Display
- EZ Update BIOS Flashback Button
- ASRock PolyChrome RGB Sync
- Supports Windows 11
- 3 Year Warranty

19 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

Gigabyte X870E AORUS ELITE WIFI7 AMD X870E Ryzen Socket AM5 ATX D...

Stock Coming Soon

R9,399.00

R6,499.00

Save: R 2,900!

2 Review(s)

ASUS ROG Strix X870E-E Gaming WIFI AMD X870E Ryzen Socket AM5 ATX...

In stock with Wootware

R14,799.00

R10,999.00

Save: R 3,800!

Gigabyte X870E AORUS PRO X3D WIFI 7 AMD X870E Ryzen Socket AM5 AT...

In stock with Wootware

R9,799.00

R7,999.00

Save: R 1,800!

R7,199.00

Save: R 1,400!

2 Review(s)

ASUS ROG CROSSHAIR X870E HERO BTF AMD X870E Ryzen Socket AM5 ATX ...

In stock with Wootware

R16,999.00

R13,499.00

Save: R 3,500!

Gigabyte X870E AERO X3D WOOD WIFI 7 AMD X870E Ryzen Socket AM5 AT...

Stock Coming Soon

R9,999.00

R8,499.00

Save: R 1,500!

ASUS ROG CROSSHAIR X870E HERO AMD X870E Ryzen Socket AM5 ATX Desk...

In stock with Supplier

R14,992.00

1 Review(s)

MSI MAG X870E TOMAHAWK MAX WIFI PZ AMD X870E Ryzen Socket AM5 ATX...

In stock with Supplier

R7,699.00

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	Taichi Series
Model	X870E Taichi Lite
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870E Chipset
Memory Support
AMD X870 Chipset	Dual Channel DDR5 Memory Technology
	4x DDR5 DIMM Slots
	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200 (OC)
	Max. capacity of system memory: 256GB
	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Video
DisplayPort	2x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 8K @ 30 Hz, supports DisplayPort 1.4, HDCP & HDR
HDMI	1x HDMI 2.1 FRL Port, supporting a maximum resolution of 8K @ 60 Hz, supports HDCP, VRR & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16/x8 Slot (x16 Physical)(PCIE1)
	1x PCIe 5.0 x16 Slot (x16 Physical)(PCIE2)
	NOTE: AMD CrossFire is supported.
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
AMD X870 Chipset	1x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
	1x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
	1x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
	6x SATA 6Gbps connectors
NOTE:	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
NOTE:	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Configurations	M2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN	Realtek RTL8126 5 Gigabit LAN 10/100/1000/2500 Mbps
WiFi	WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC4082 High-Definition Audio Codec
	Support for 7.1 Surround with front-panel jack retasking, jack detection
	Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
	Nahimic Audio
	ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) with WIMA Audio Capacitors
Connectivity
Ports	2x USB 40Gbps Type-C Ports with DisplayPort
	5x USB 10Gbps Type-A Ports
	3x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (FRL)
	2x 3.5mm Audio Jacks
	1x S/PDIF Optical Port
	2x SMA Connectors
Buttons	1x EZ Update BIOS Flashback Button
General
Internal Connectors	3x Thermistor Cable Headers
	1x Power LED and Speaker Header
	1x RGB LED Header
	3x Addressable LED Headers
	2x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
	4x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	1x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector (Hi-Density Power Connector)
	2x 8 pin 12V Power Connectors (Hi-Density Power Connector)
	1x Front Panel Audio Connector (15μ Gold Audio Connector)
	2x USB 2.0 Headers (Support 4 USB 2.0 ports)
	2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
	1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
	1x Dr. Debug with LED
	1x Power Button with LED
	1x Reset Button with LED
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	E-ATX Form Factor, 305 x 267 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	4x SATA Data Cables
	1x ASRock WiFi 2.4/5/6 GHz Antenna
	1x ARGB Splitter Cable
	3x Thermistor Cable
Warranty Information
Warranty	3 Year Warranty
