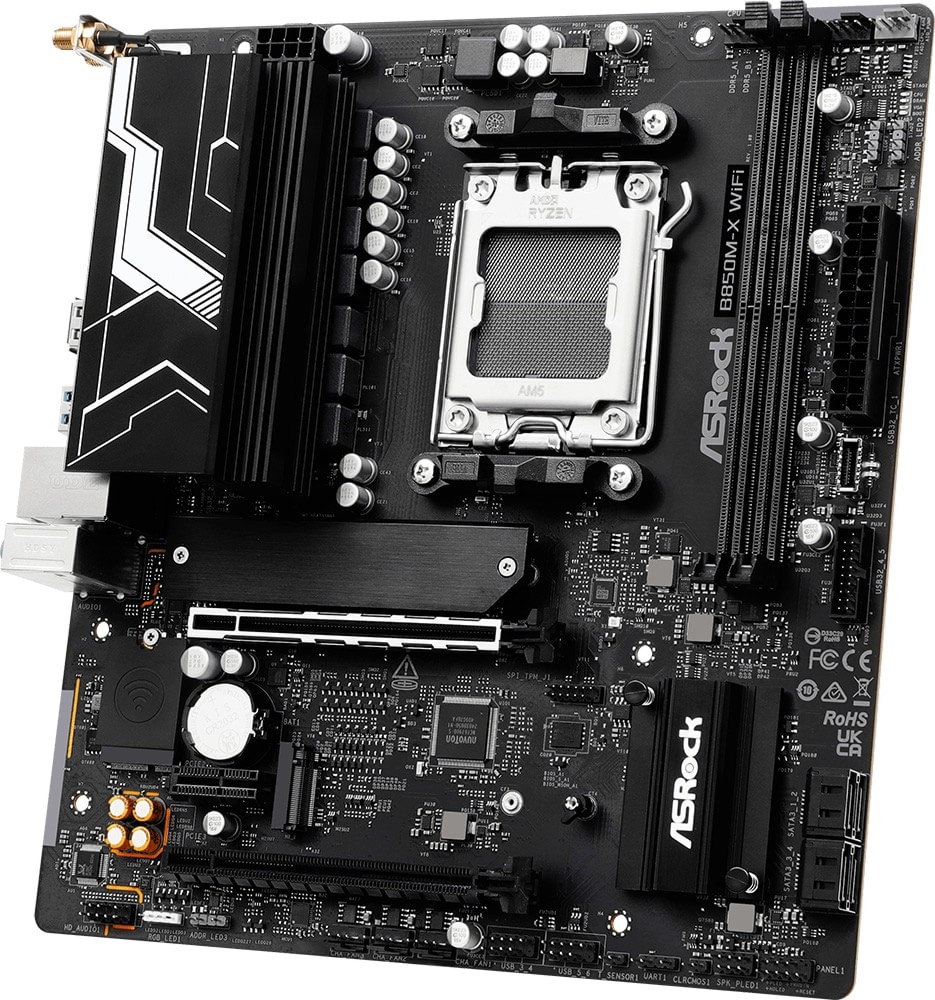

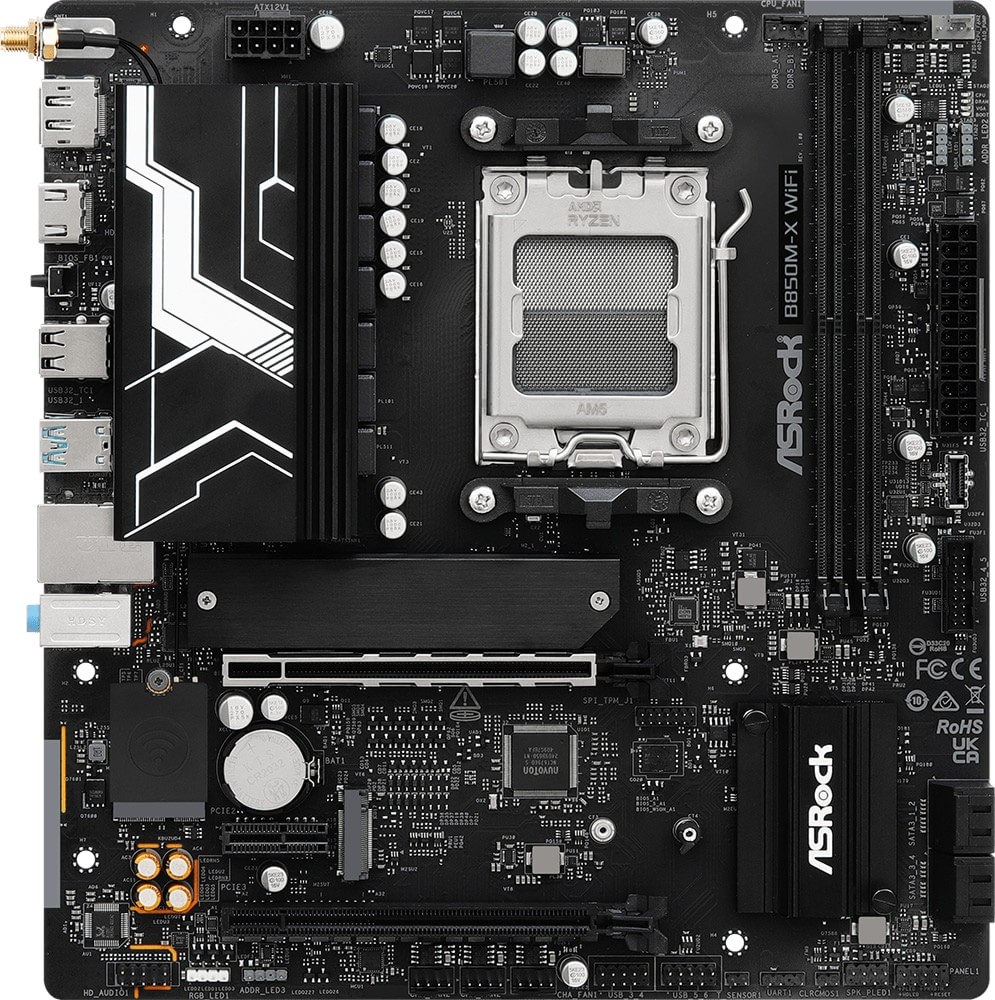

ASRock B850M-X WiFi AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASRock B850M-X WiFi AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 50930

Be the first to review this product

- Micro-ATX Form Factor
- AMD B850 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 2x DDR5 DIMM Slots, Supports Up to 128GB (2x64GB)
- Supports Up to DDR5-8200 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 4.0 x1 Slot (x1 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 1x USB 5Gbps Type-C Port
- 3x USB 5Gbps Type-A Port
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (FRL), 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks
- 2x Antenna Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 6E Tri-Band Adapter, Bluetooth 5.2
- Realtek ALC897 High-Definition Audio Codec
- 6+1+1 Power Phase with Dr.Mos VCore
- ASRock EZ Update BIOS Flashback
- ASRock Polychrome RGB Sync
- Supports Windows 11
- 3 Year Warranty

19 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS TUF GAMING B850M-PLUS WIFI7 W AMD B850 Ryzen Socket AM5 Whit...

In stock with Wootware

R7,499.00

R4,499.00

Save: R 3,000!

Sapphire 52123-01-40G NITRO+ B850M WIFI AMD B850 Ryzen Socket AM5...

In stock with Wootware

R3,999.00

R3,199.00

Save: R 800!

5 Review(s)

Gigabyte B850 AORUS ELITE WIFI7 AMD B850 Ryzen Socket AM5 ATX Des...

In stock with Wootware

R5,999.00

R4,999.00

Save: R 1,000!

5 Review(s)

MAXSUN Terminator B850M PRO II WiFI7 AMD B850 Ryzen Socket AM5 Mi...

Contact for Availability

R3,999.00

R2,799.00

Save: R 1,200!

1 Review(s)

Sapphire 52123-04-40G PULSE B850M WIFI AMD B850 Ryzen Socket AM5 ...

In stock with Wootware

R3,649.00

R2,799.00

Save: R 850!

1 Review(s)

Gigabyte B850 EAGLE WIFI6E AMD B850 Ryzen Socket AM5 ATX Desktop ...

In stock with Wootware

R4,799.00

R3,999.00

Save: R 800!

6 Review(s)

ASUS ROG STRIX B850-E GAMING WIFI AMD B850 Ryzen Socket AM5 ATX D...

In stock with Wootware

R9,999.00

R8,599.00

Save: R 1,400!

1 Review(s)

ASUS ROG STRIX B850-F GAMING WIFI7 NEO AMD B850 Ryzen Socket AM5 ...

In stock with Wootware

R9,999.00

R7,499.00

Save: R 2,500!

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD B850 Ryzen Socket AM5 ...

In stock with Wootware

R9,699.00

R5,999.00

Save: R 3,700!

ASUS ROG STRIX B850-F GAMING WIFI AMD B850 Ryzen Socket AM5 ATX D...

In stock with Wootware

R8,999.00

R6,999.00

Save: R 2,000!

2 Review(s)

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASRock
Series	X Series
Model	B850M-X WiFi
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	Dual Channel DDR5 Memory Technology
	2x DDR5 DIMM Slots
	Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200 (OC)*
	Max. capacity of system memory: 128GB
	Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 4K @ 120 Hz, supports HDCP & HDR
HDMI	1x HDMI 2.1 (FRL) Port, supporting a maximum resolution of 4K @ 120 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Slot (x16 Physical)(PCIE1)
AMD B850 Chipset	1x PCIe 4.0 x4 Slot (x16 Physical)(PCIE3)
AMD B850 Chipset	1x PCIe 4.0 x1 Slot (x16 Physical)(PCIE2)
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
CPU Direct	1x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
AMD B850 Chipset	4x SATA 6Gbps connectors
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Configurations	M2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M2_2 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	Please consult your motherboard manual for CPU support with SSDs in the M.2_2 slot.
Networking
LAN	Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 6E Tri-Band Adapter
Bluetooth	Bluetooth 5.2
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Nahimic Audio
Connectivity
Ports	1x USB 5Gbps Type-C Port
	3x USB 5Gbps Type-A Port
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (FRL)
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks
	2x Antenna Connectors
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x ASRock EZ BIOS Update Button
General
Internal Connectors	1x Thermistor Cable Header
	1x SPI TPM Header
	1x Power LED and Speaker Header
	1x RGB LED Header
	3x Addressable LED Headers
	2x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
	3x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
	1x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
	1x 24 pin ATX Power Connector
	1x 8 pin 12V Power Connector (Hi-Density Power Connector)
	1x Front Panel Audio Connector
	2x USB 2.0 Headers (Support 4 USB 2.0 ports)
	1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
	1x Front Panel Type C USB 3.2 Gen1 Header
LEDs	POST LED Array (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	Micro-ATX Form Factor, 244 x 226 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	1x I/O Shield
	2x SATA Data Cables
	2x ASRock WiFi 2.4/5/6 GHz Antennas
Warranty Information
Warranty	3 Year Warranty
