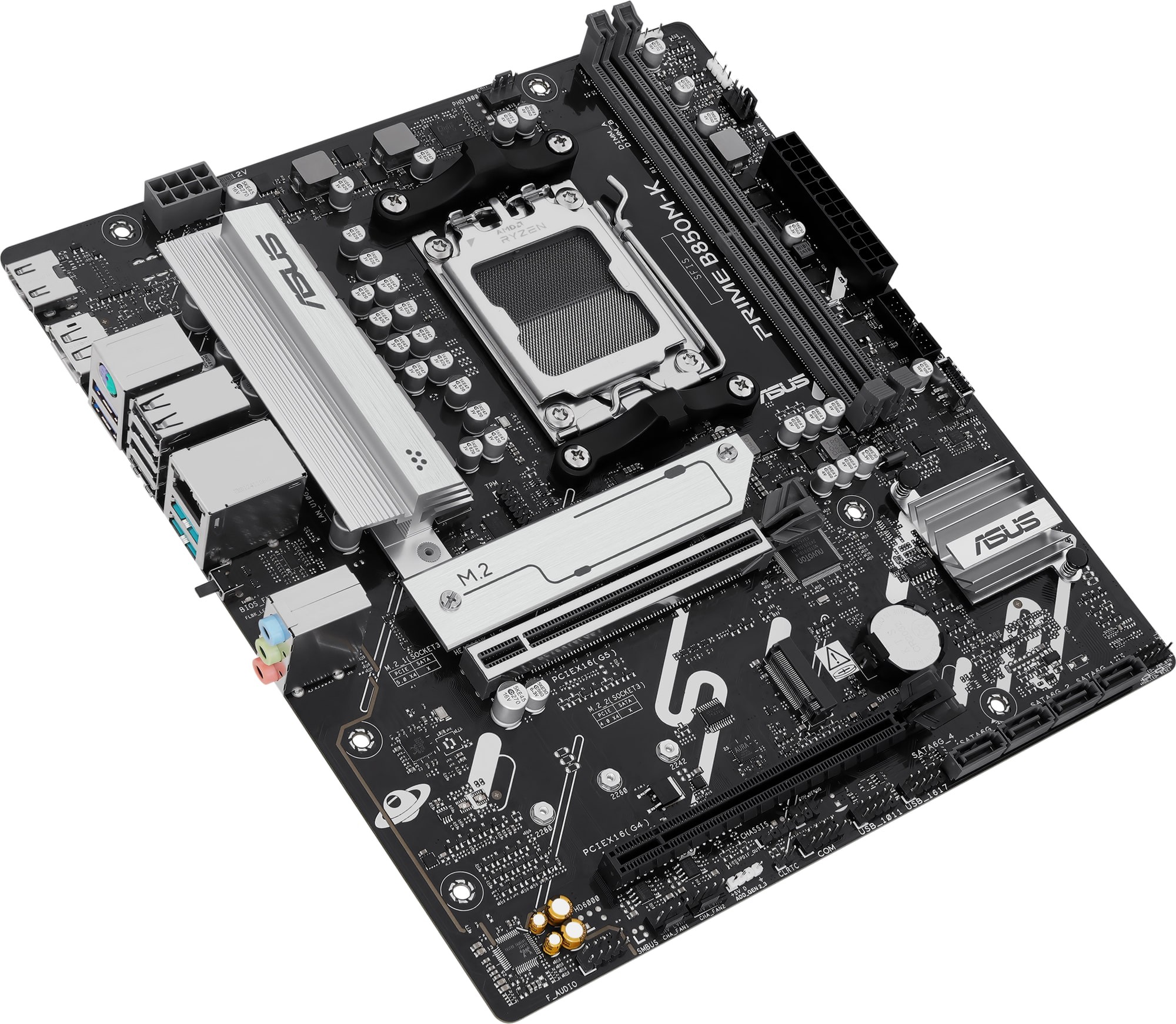

ASUS PRIME B850M-K AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS PRIME B850M-K AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 52664

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor
- AMD B850 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 2x DDR5 DIMM Slots, Supports Up to 128GB (2x64GB)
- Supports Up to DDR5-8400 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 2x USB 10Gbps Type-A Ports
- 2x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port, 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks
- 1x PS/2 Combo Port (Keyboard, Mouse)
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- Realtek ALC897 High-Definition Audio Codec
- ASUS Q-LED Core Status Light
- 8+2+1 Phase VRM Solution with Digi+ Control
- ASUS BIOS FlashBack Button
- ASUS Aura Sync RGB
- ASUS Armoury Crate Software
- Supports Windows 11
- 3 Year Warranty

247 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,549.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	PRIME Series
Model	PRIME B850M-K
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	2x DIMM slots, max. 128GB, DDR5 Supports up to:
	8200 MT/s(OC) with Ryzen 9000 Series Processors,
	8400 MT/s(OC) with Ryzen 8000 Series Processors,
	8000 MT/s(OC) with Ryzen 7000 Series Processors,
	ECC and Non-ECC Un-buffered DIMM
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO)
	ASUS Enhanced Memory Profile (AEMP)
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 8K @ 30 Hz, supports HDCP & HDR
HDMI	1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical)
AMD B850 Chipset	1x PCIe 4.0 x4 Slot (x16 Physical)
Slot Configurations	PCIE5 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE5 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
CPU Direct	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B850 Chipset	4x SATA 6Gbps connectors
Storage Configurations	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	Please consult your motherboard manual for CPU support with SSDs in the M.2_2 slot.
Networking
LAN	Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
LAN	ASUS TUF LANGuard
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Supports up to 24-Bit/192 kHz playback
	Audio Shielding
	Premium audio capacitors
	Dedicated audio PCB layers
Connectivity
Ports	2x USB 10Gbps Type-A Ports
	2x USB 5Gbps Type-A Port
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks
	1x PS/2 Combo Port (Keyboard, Mouse)
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x BIOS FlashBack button
General
Internal Connectors	1x 4-pin CPU Fan header
	3x 4-pin Chassis Fan headers
	1x 24-pin Main Power connector
	1x 8-pin 12V CPU Power connector
	2x M.2 slots (Key M)
	4x SATA 6Gb/s ports
	1x USB 5Gbps connector (supports USB Type-C )
	1x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2x USB 2.0 headers support 4 additional USB 2.0 ports
	3x Addressable RGB Gen 2 headers
	1x Clear CMOS header
	1x COM Port header
	1x Front Panel Audio header (F_AUDIO)
	1x S/PDIF Out header
	1x SPI TPM header (14-1 pin)
	1x 10-1 pin System Panel header
LEDs	Q-LED Core front panel status LED, BIOS Flashback LED
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	Micro-ATX Form Factor, 244 x 221 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	2x SATA 6Gb/s cables
	1x I/O Shield
	1x M.2 rubber package
	1x Screw package for M.2 SSD
	1x Quick start guide
Warranty Information
Warranty	3 Year Warranty
