| SPECIFICATIONS |
| Brand | ASUS |
| Series | Strix Series |

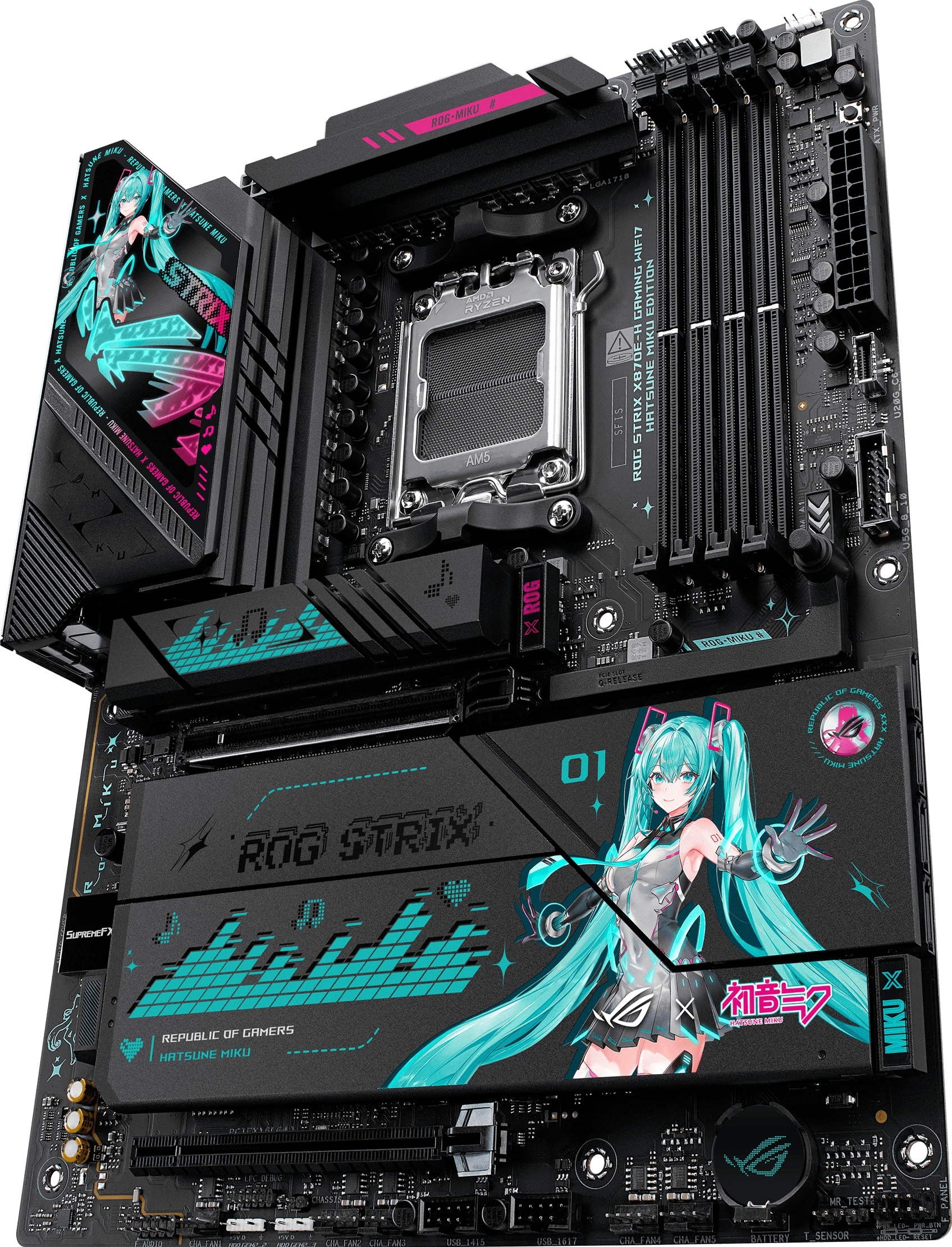

| Model | ROG STRIX X870E-H GAMING WIFI7 HATSUNE MIKU EDITION |
| CPU |
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000 Series Desktop Processors |
| AMD Ryzen 8000 Series Desktop Processors |
| AMD Ryzen 7000 Series Desktop Processors |
| CPU Support Note | Refer To The ASUS CPU Support List For Compatible Processors |
| Chipset |
| Chipset | AMD X870E |
| Memory |
| Memory Slots | 4x DIMM Slots |
| Maximum Memory Capacity | 256GB |
| Memory Type | DDR5 |
| Supported Memory Speed | Up To 8000 MT/s (OC) With AMD Ryzen 9000, 8000 And 7000 Series Processors |
| Memory Architecture | Dual-Channel |
| Memory Overclocking | AMD Extended Profiles For Overclocking (EXPO) |
| Memory Features | DIMM Fit |
| DIMM Fit Pro |
| ASUS Enhanced Memory Profile (AEMP) |
| Memory Type Note | Non-ECC, Unbuffered DDR5 Memory Supports On-Die ECC |
| Memory Support Note | Supported Memory Types, Data Rates And Module Counts Vary According To The Processor And Memory Configuration |
| Integrated Graphics |
| HDMI Output | 1x HDMI Port |
| USB Type-C Display Outputs | 2x USB4 40Gbps Ports Supporting USB Type-C Display Output |
| HDMI Maximum Resolution | Up To 4K @ 60Hz As Specified In HDMI 2.1 |
| USB Type-C Maximum Resolution | Up To 4K @ 60Hz As Specified In DisplayPort 1.4a |
| Graphics Support Note | Graphics Specifications And Supported Resolutions Vary According To The Installed Processor Or Graphics Card |
| Expansion Slots |
| AMD Ryzen 9000 And 7000 Series Processors | 1x PCIe 5.0 x16 Slot Operating At x16 |
| AMD Ryzen 8000 Series Processors | 1x PCIe 4.0 x16 Slot Operating At x8 Or x4 |
| AMD X870E Chipset | 1x PCIe 4.0 x16 Slot Operating At x4 |
| Expansion Slot Note | Expansion Slot Specifications Vary According To The Installed Processor |
| Refer To The ASUS PCIe Bifurcation Table For Supported Configurations |
| Storage |
| Total M.2 Slots | 4 |
| Total SATA Ports | 4x SATA 6Gb/s |
| Storage Support With AMD Ryzen 9000 And 7000 Series Processors |
| M.2_1 Slot | M-Key, Type 2242/2260/2280 |
| PCIe 5.0 x4 |
| M.2_2 Slot | M-Key, Type 2280/22110 |
| PCIe 5.0 x4 |
| M.2_2 Bandwidth Sharing | Shares Bandwidth With PCIEX16(G5) |
| PCIEX16(G5) Operates At x8 When M.2_2 Is Populated |
| Storage Support With AMD Ryzen 8000 Series Processors |
| M.2_1 Slot | M-Key, Type 2242/2260/2280 |
| PCIe 4.0 x4 Or x2 |
| M.2_2 Slot | M-Key, Type 2280/22110 |
| Not Supported |
| M.2_2 Limitation | Disabled When Using AMD Ryzen 8000 Series Desktop Processors |
| Storage Support From AMD X870E Chipset |
| M.2_3 Slot | M-Key, Type 2280 |
| PCIe 4.0 x4 |
| M.2_4 Slot | M-Key, Type 2280 |
| PCIe 4.0 x4 |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support |
| RAID Technology | AMD RAIDXpert2 |
| AMD Ryzen 9000 Series | RAID 0 |
| RAID 1 |
| RAID 5 |
| RAID 10 |
| AMD Ryzen 8000 Series | RAID 0 |
| RAID 1 |
| AMD Ryzen 7000 Series | RAID 0 |
| RAID 1 |
| RAID 10 |
| RAID Note | Supported RAID Modes Vary According To The Installed Processor |
| Ethernet |
| Ethernet Controller | Realtek 5 Gigabit Ethernet |
| Ethernet Port | 1x RJ-45 |
| Ethernet Protection | ASUS LANGuard |
| Wireless And Bluetooth |
| Wireless Controller | MediaTek MT7925 |
| WiFi Standard | 2x2 WiFi 7 (802.11be) |
| Frequency Bands | 2.4GHz |
| 5GHz |
| 6GHz |
| Maximum WiFi Channel Width | 160MHz |
| Bluetooth | Bluetooth 5.4 |
| Operating System Note | Full WiFi 7 Functionality On Windows 11 Requires Version 24H2 Or Later |
| Windows 11 Versions 21H2, 22H2 And 23H2 Support WiFi 6E |
| No Windows 10 Driver Is Available |
| Regional Note | 6GHz Availability And Bandwidth Vary According To Regional Regulations |
| Bluetooth Note | Bluetooth Version May Vary According To The Wireless Module Manufacturer |
| Rear USB Ports |
| Total Rear USB Ports | 14 |
| USB4 Ports | 2x USB4 40Gbps Type-C |
| USB 10Gbps Ports | 3x USB 10Gbps Type-A |
| 1x USB 10Gbps Type-C With Up To 30W PD/PPS Fast Charging |
| USB 5Gbps Ports | 6x USB 5Gbps Type-A |
| USB 2.0 Ports | 2x USB 2.0 Type-A |
| USB Type-C Power Delivery | 5V / 9V At Up To 3A |
| 12V At Up To 2.5A |
| 15V At Up To 2A |
| Up To 30W |
| Front USB Connectivity |
| Total Supported Front USB Ports | 7 |
| USB 20Gbps Connector | 1x USB 20Gbps Connector Supporting USB Type-C |
| USB 5Gbps Header | 1x Header Supporting 2 Additional USB 5Gbps Ports |
| USB 2.0 Headers | 2x Headers Supporting 4 Additional USB 2.0 Ports |
| Front USB Type-C Power Delivery | Up To 5V / 3A |
| Audio |
| Audio Codec | Realtek ALC1220P |
| Audio Channels | 7.1 Surround Sound High-Definition Audio |
| Playback Quality | Up To 32-Bit / 192kHz |
| Stereo Playback Signal-To-Noise Ratio | 120dB |
| Recording Signal-To-Noise Ratio | 113dB |
| Headphone Features | Impedance Sensing For Front And Rear Headphone Outputs |
| Amplification | Internal Audio Amplifier |
| Savitech SV3H712 Amplifier |
| Audio Functions | Jack Detection |
| Multi-Streaming |
| Front-Panel Jack Retasking |
| Audio Features | SupremeFX Shielding Technology |
| Premium Audio Capacitors |
| Audio Cover |
| Digital Audio Output | Rear Optical S/PDIF Output |
| Spatial Audio Note | The Rear Line-Out Port Does Not Support Spatial Audio |
| Connect To The Chassis Front Audio Jack Or A USB Audio Device For Spatial Audio |
| Back Panel I/O Ports |
| USB4 Ports | 2x USB4 40Gbps Type-C |
| USB 10Gbps Ports | 3x USB 10Gbps Type-A |
| 1x USB 10Gbps Type-C With Up To 30W PD/PPS Fast Charging |
| USB 5Gbps Ports | 6x USB 5Gbps Type-A |
| USB 2.0 Ports | 2x USB 2.0 Type-A |
| Display Output | 1x HDMI |
| Wireless Connections | 1x WiFi Module |
| Network Port | 1x Realtek 5 Gigabit Ethernet |
| Analogue Audio | 2x Audio Jacks |
| Digital Audio | 1x Optical S/PDIF Output |
| Rear Buttons | 1x BIOS FlashBack Button |
| 1x Clear CMOS Button |
| Internal Fan And Cooling Connectors |
| CPU Fan Header | 1x 4-Pin CPU Fan Header |
| CPU Optional Fan Header | 1x 4-Pin CPU OPT Fan Header |
| AIO Pump Header | 1x 4-Pin AIO Pump Header |
| Chassis Fan Headers | 5x 4-Pin Chassis Fan Headers |
| Internal Power Connectors |
| Main Power Connector | 1x 24-Pin Main Power Connector |
| CPU Power Connectors | 2x 8-Pin 12V CPU Power Connectors |
| Internal Storage Connectors |
| M.2 Slots | 4x M.2 M-Key Slots |
| SATA Ports | 4x SATA 6Gb/s |
| Internal USB Connectors |
| USB 20Gbps Connector | 1x Connector Supporting USB Type-C |
| USB 5Gbps Header | 1x Header Supporting 2 Additional USB 5Gbps Ports |
| USB 2.0 Headers | 2x Headers Supporting 4 Additional USB 2.0 Ports |
| Other Internal Connectors |
| Addressable RGB Headers | 3x Addressable RGB Gen 2 Headers |
| Chassis Intrusion Header | 1x |
| CPU Overvoltage Jumper | 1x |
| Front-Panel Audio Header | 1x |
| Start Button | 1x |
| Front-Panel System Header | 1x 10-1 Pin |
| Thermal Sensor Header | 1x |
| Power Design |
| Power Stages | 16x 80A |
| 2x 80A |
| 1x 80A |
| CPU Power Design | Dual ProCool II Power Connectors |
| Extreme Engine Digi | 5K Black Metallic Capacitors |
| ASUS Q-Design Features |
| Features | M.2 Q-Latch |
| M.2 Q-Release |
| PCIe Slot Q-Release |
| Q-Antenna |
| Q-Dashboard |
| Q-DIMM |
| Q-Slot |
| Q-LED Indicators | CPU - Red |
| DRAM - Yellow |
| VGA - White |
| Boot Device - Yellow-Green |
| ASUS Thermal Solution |
| Cooling Features | M.2 Heatsink |
| VRM Heatsink Design |
| ASUS EZ DIY Features |
| Features | BIOS FlashBack Button |
| BIOS FlashBack LED |
| Clear CMOS Button |
| ProCool II |
| Pre-Mounted I/O Shield |
| SafeSlot |
| SafeDIMM |
| Lighting |
| Lighting Ecosystem | ASUS Aura Sync |
| Lighting Headers | 3x Addressable RGB Gen 2 Headers |
| ROG Software |
| ROG Exclusive Software | ROG CPU-Z |
| Dolby Atmos |
| ASUS Software |
| Armoury Crate Features | Aura Creator |
| Aura Sync |
| Fan Xpert 4 With AI Cooling II |
| GameFirst |
| Additional ASUS Software | ASUS AI Advisor |
| ASUS DriverHub |
| ASUS GlideX |
| USB Wattage Watcher |
| TurboV Core |
| Monitoring Software | HWiNFO |
| Trial Software | AIDA64 Extreme - 60-Day Free Trial |
| Adobe Creative Cloud - Free Trial |
| Norton 360 For Gamers - 60-Day Free Trial |
| WinRAR - 40-Day Free Trial |
| UEFI BIOS Features |
| AI Features | AI Overclocking Guide |
| AI Cache Boost |
| ASUS EZ DIY Features | ASUS CrashFree BIOS 3 |
| ASUS EZ Flash 3 |
| ASUS UEFI BIOS EZ Mode |
| ASUS MyHotkey |
| Additional BIOS Feature | FlexKey |
| BIOS |
| BIOS Memory | 256Mb Flash ROM |
| BIOS Type | UEFI AMI BIOS |
| Manageability |
| Management Features | Wake-On-LAN By PME |
| PXE |
| Accessories - Cables |
| Included Cables | 2x SATA 6Gb/s Cables |
| Accessories - Miscellaneous |
| Wireless Antenna | 1x ASUS WiFi Q-Antenna |
| Cable Management | 1x Cable Ties Package |
| M.2 Accessories | 1x M.2 Q-Latch Package |
| 4x M.2 Rubbers |
| Expansion Card | 1x ASUS PCIe-To-Front USB Card |
| Expansion Card Ports | 2x USB 5Gbps Type-A |
| 1x USB 10Gbps Type-C |
| Hatsune Miku Accessories | 1x Hatsune Miku Edition Phone Stand |
| 1x Hatsune Miku Edition Thank You Card |
| 1x Hatsune Miku Edition Sticker |
| Documentation |
| Included Documentation | 1x Quick Start Guide |
| Operating System |
| Supported Operating System | Windows 11 |
| Form Factor |
| Form Factor | ATX |
| Dimensions | 305 × 244 mm |
| Warranty Information |
| Warranty | 3 Year Warranty |
