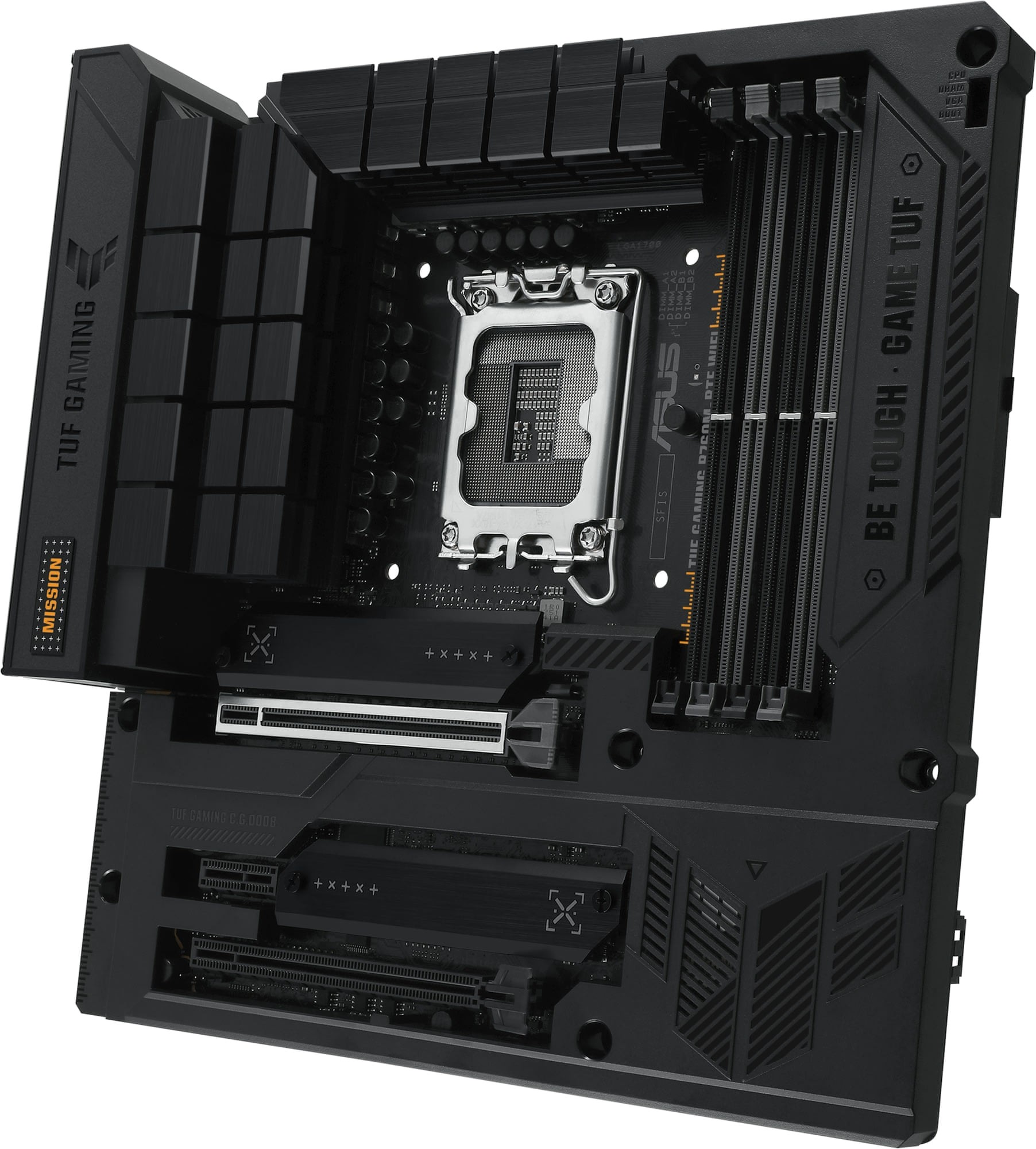

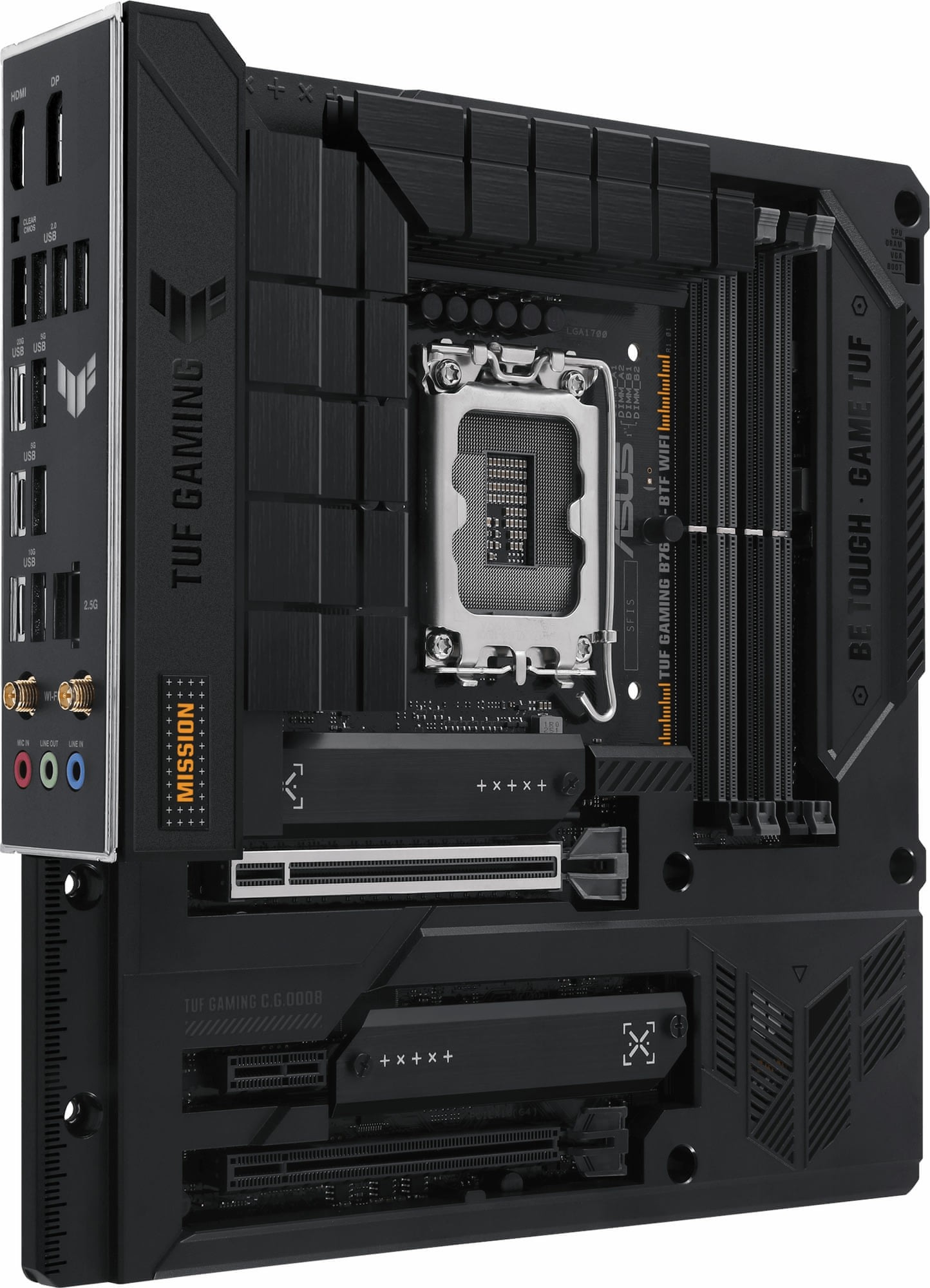

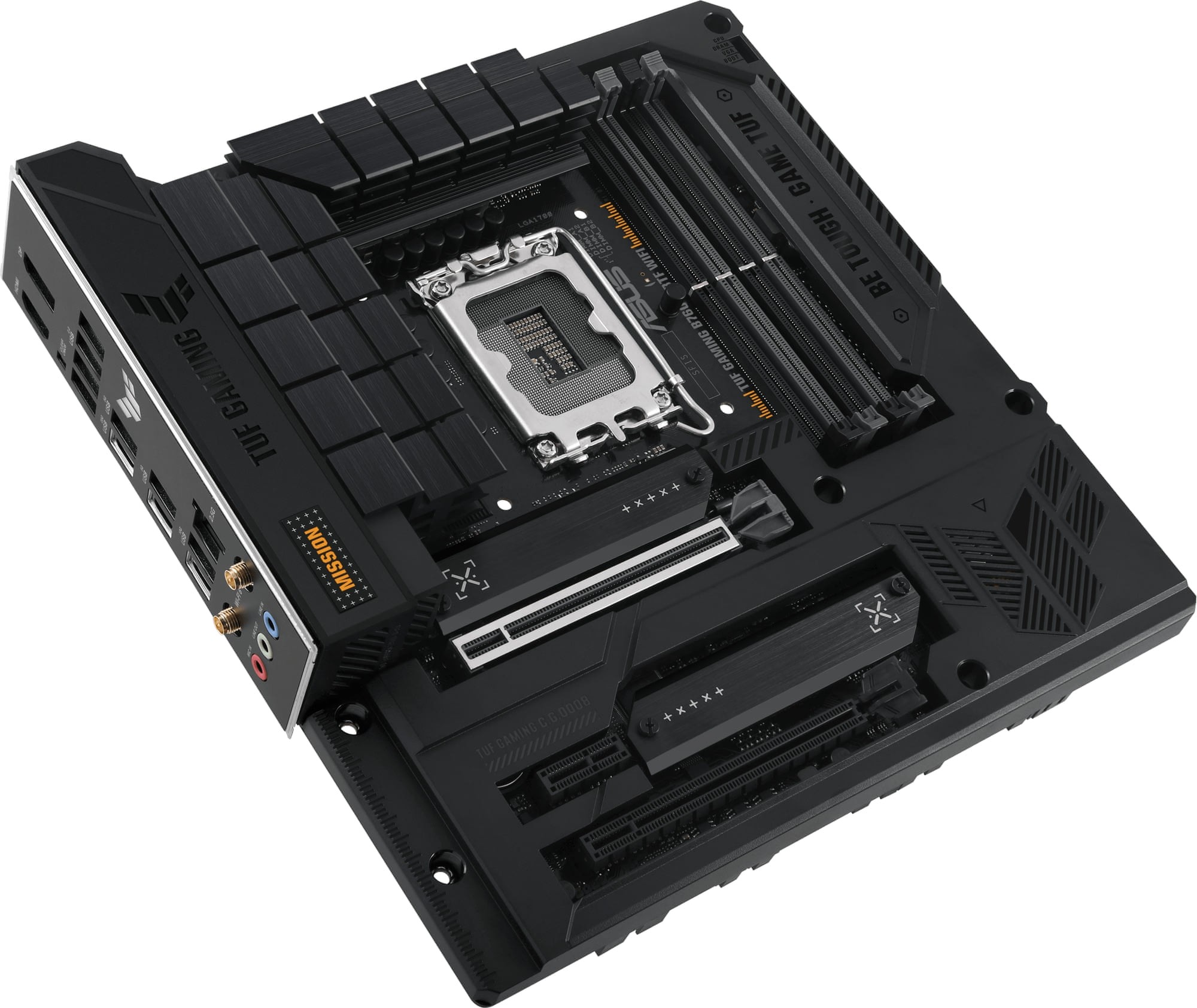

ASUS TUF Gaming B760M-BTF WIFI Intel B760 LGA 1700 Raptor Lake DDR5 Micro-ATX YTX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS TUF Gaming B760M-BTF WIFI Intel B760 LGA 1700 Raptor Lake DDR5 Micro-ATX YTX Desktop Motherboard

Product ID: 45334

Be the first to review this product

- Micro-ATX Form Factor

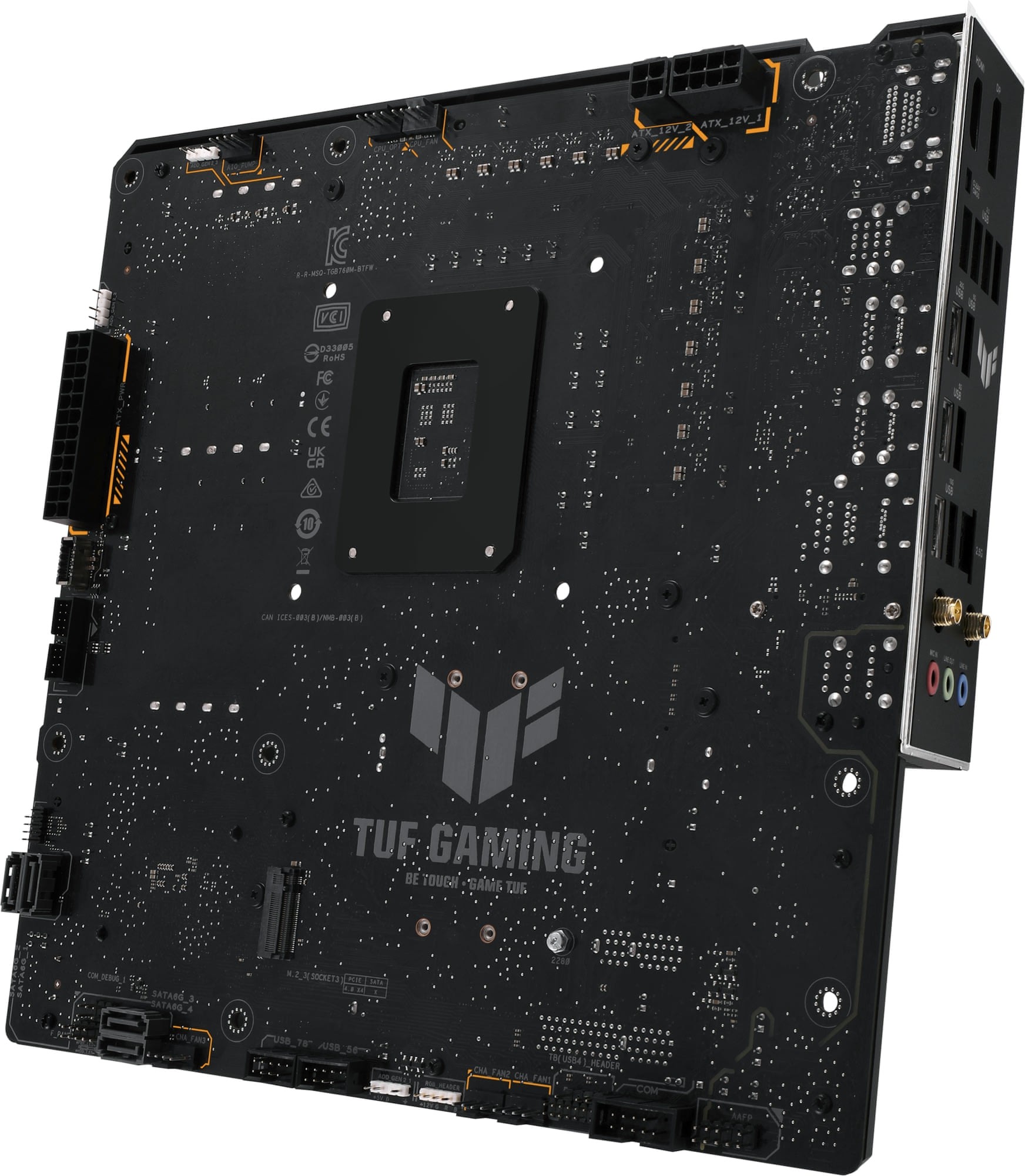

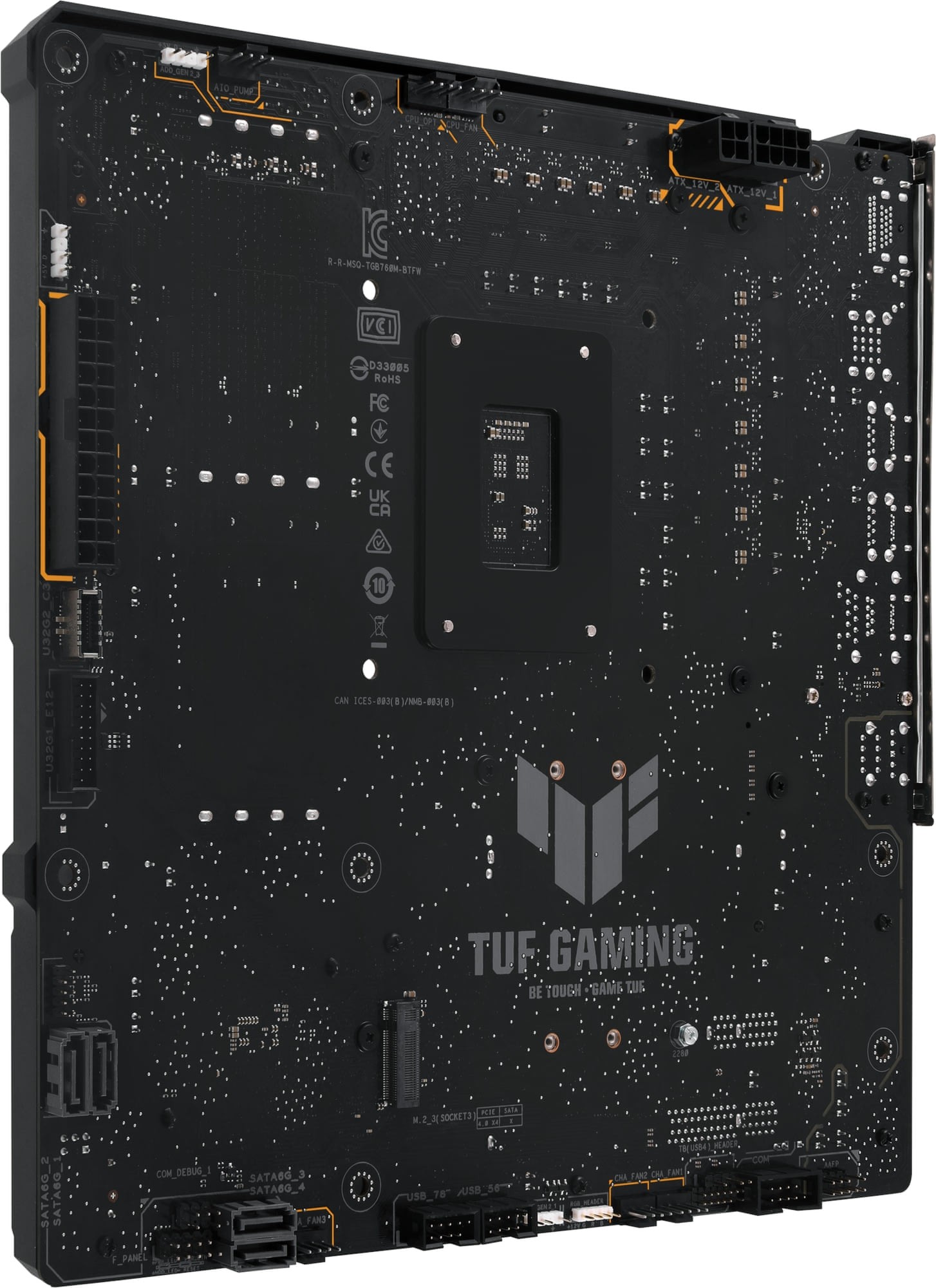

- YTX Reversed Connector Design
- Designed for ASUS Prime A21 Chassis
- Intel B760 Chipset
- Socket LGA 1700
- Supports Intel 12th & 13th Gen Processors
- 4x DDR5 DIMM Slots, Supports Up to 192GB
- Supports up to DDR5-7200 (OC)
- Supports Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x PCIe 4.0 x1 Slot (x1 Physical)
- 3x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 1x USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-C Port
- 2x USB 10Gbps Type-A Port
- 1x USB 5Gbps Type-C Port
- 2x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x DisplayPort 1.4, 1x HDMI 2.1 Port
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- WiFi 6 2x2 MIMO Dual-Band Adapter, Bluetooth 5.2
- Realtek High-Definition Audio Codec
- 12+1 DrMOS Digi+ VRM Solution
- ASUS TUF M.2 Shield
- ASUS Aura RGB Sync
- ASUS Armoury Crate Utility
- Supports Windows 10, Windows 11 64-bit
- 3 Year Warranty

206 Products

- Please note: This motherboard has reversed connectors. It is incompatible with standard Micro-ATX chassis. Please consult the list of supported chassis for compatibility.

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS TUF GAMING B760M-PLUS WIFI II DDR5 Intel B760 LGA 1700 Rapto...

In stock with Wootware

R4,999.00

R2,449.00

Save: R 2,550!

2 Review(s)

MAXSUN Challenger B760M D5 WIFI Intel B760 Raptor Lake LGA 1700 D...

In stock with Wootware

R2,999.00

R1,599.00

Save: R 1,400!

Gigabyte B760M GAMING X DDR4 GEN5 Intel B760 Raptor Lake LGA 1700...

In stock with Supplier

R2,874.00

2 Review(s)

1 Review(s)

Gigabyte B760M H DDR5 Rev 1.0 Intel B760 LGA 1700 Raptor Lake Mic...

In stock with Wootware

R2,499.00

R1,999.00

Save: R 500!

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	TUF Gaming Series
Model	TUF Gaming B760M-BTF WIFI
CPU Support	Intel 12th Gen & 13th Gen Core, Pentium Gold, and Celeron Processors
Chipset	Intel B760
Memory Support
Intel 12th & 13th Gen	4x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
	Dual Channel Memory Architecture
	Supports Intel Extreme Memory Profile (XMP) 3.0
	OptiMem II
Video
HDMI	1x HDMI 2.1 TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz
DisplayPort	1x DisplayPort 1.4, supports HDCP 2.3 and max. resolution up to 4K 60Hz
DisplayPort	Integrated Intel graphics Required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset	1x PCIe 4.0 x16 Physical, x4 Electrical Slot
Intel B760 Chipset	1x PCIe 4.0 x1 Physical Slot
Storage
CPU Direct	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)
	4x SATA3 6.0 Gb/s Connectors
	Intel RST supports RAID 0 and RAID 1 for SATA storage devices
	M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.
Networking
LAN	Realtek RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
WiFi	WiFi 6 2x2 MIMO Dual-Band Adapter
Bluetooth	Bluetooth 5.2
Audio
Codec	Realtek High Definition 7.1 HD Audio CODEC
	Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
	Supports up to 24-Bit/192 kHz playback
	Audio Shielding
	Premium audio capacitors
	Dedicated audio PCB layers
Connectivity
Ports	1x USB 20Gbps Type-C Port
	1x USB 10Gbps Type-C Port
	2x USB 10Gbps Type-A Port
	1x USB 5Gbps Type-C Port
	2x USB 5Gbps Type-A Port
	4x USB 2.0 Type-A Ports
	1x DisplayPort 1.4, 1x HDMI 2.1 Port
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	2x SMA Connectors
	1x 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Clear CMOS button
General
Chassis Compatibility	Compatible with YTX chassis designed for BTF form factor motherboards
	ASUS Prime A21 Black (90DC00H0-B09000)
	ASUS Prime A21 White (90DC00H3-B09010)
Internal Connectors	1x 4-pin CPU Fan header
	1x 4-pin CPU OPT Fan header
	1x 4-pin AIO Pump header
	3x 4-pin Chassis Fan headers
	1x 24-pin Main Power connector
	1x 8-pin 12V Power connector
	1x 4-pin 12V Power connector
	3x M.2 slots (Key M)
	4x SATA 6Gb/s ports
	1x USB 3.2 Gen 2 (10G) connector (supports USB Type-C )
	1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
	2x USB 2.0 headers support 4 additional USB 2.0 ports
	3x Addressable Gen 2 headers
	1x Aura RGB header
	1x COM Port header
	1x Front Panel Audio header (AAFP)
	1x 10-1 pin System Panel header
	1x Thunderbolt (USB4) header
LED Displays	ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Form Factor	YTX Reversed Connector design
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Box Contents	2x SATA 6Gb/s cables
	1x ASUS Wi-Fi moving antenna
	1x TUF Gaming sticker
	1x M.2 Rubber Package
	1x Screw package for M.2 SSD
	1x User guide
Warranty Information
Warranty	3 Year Warranty
