| SPECIFICATIONS | |
| Brand | Cooler Master |
| Series | MWE Gold V3 ATX 3.1 Non-Modular |
| Model | MPE-8506-ACAG-B |
| Overview | |
| Wattage | 850W |
| Color | Black |
| Form Factor | ATX |
| Modular | Non-Modular |
| Standards & Efficiency | |
| ATX Version | ATX 12V Ver. 3.1 |
| 80 PLUS Rating | 80 PLUS Gold |
| Efficiency | ≥90% @ Typical Load |
| ErP 2014 Lot 3 | Yes |
| Electrical | |
| PFC | Active PFC |
| Input Voltage | 100V - 240V |
| Input Current | 10-6A |
| Input Frequency | 50-60Hz |
| Performance & Reliability | |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥16ms at 80% Load |
| MTBF | >100,000 Hours |
| Cooling | |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Fan Speed | 2400 RPM |
| Protections | UVP / OVP / OPP / OTP / SCP / OCP |

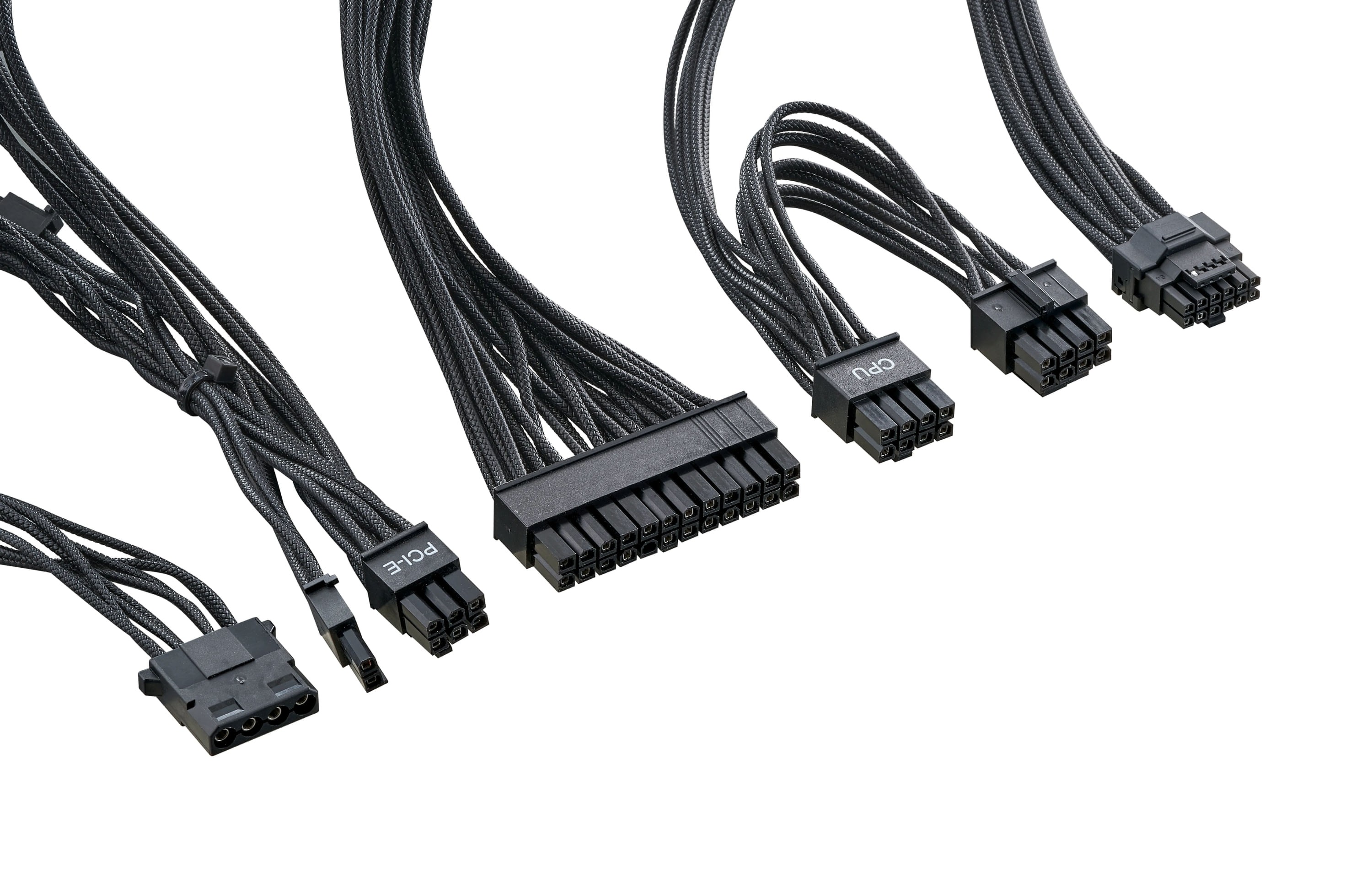

| Connectors | |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 (12+4 Pin) Connectors | 1 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| Compliance | |
| Regulatory | cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC |
| Physical | |
| Dimensions (L x W x H) | 140mm x 150mm x 86mm |
| Warranty Information | |
| Warranty | 5 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
