ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 49588

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

2 Review(s) | Add Your Review

- Micro-ATX Form Factor
- AMD B850 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 192GB (4x48GB)
- Supports Up to DDR5-8000 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x1 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 1x USB 20Gbps Type-C Port
- 3x USB 10Gbps Type-A Ports
- 4x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS), 1x DisplayPort 1.4 Port
- 5x 3.5mm Audio Jacks Support Surround Sound
- 2x Antenna Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek ALC1220P High-Definition Audio Codec
- ASUS Q-Design with M.2 Q-Latch
- ASUS PCIe Slot Q-Release
- 14+2+2 DRPS Phase VRM Solution
- ASUS BIOS FlashBack Button
- ASUS Aura Sync RGB
- ASUS Armoury Crate Software
- Supports Windows 11
- 3 Year Warranty

254 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,585.00

Qty:

Add to Wishlist

Product Description
Additional Information
We Also Recommend
Reviews (2)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	TUF Gaming Series
Model	TUF GAMING B850M-PLUS WIFI
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	4x DIMM slots, max. 192GB, DDR5
	Supports up to 8000 MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO)
	ASUS Enhanced Memory Profile (AEMP)
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 8K @ 30 Hz, supports HDCP & HDR
HDMI	1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical)
AMD B850 Chipset	1x PCIe 4.0 x1 Slot (x16 Physical)
Slot Configurations	PCIE5 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE5 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
CPU Direct	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B850 Chipset	M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	4x SATA 6Gbps connectors
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Configurations	M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	Please consult your motherboard manual for CPU support with SSDs in the M.2_2 slot.
Networking
LAN	Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
LAN	ASUS TUF LANGuard
WiFi	WiFi 6E Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek ALC1220P High-Definition Audio Codec
	Impedance sense for front and rear headphone outputs
	Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	Supports up to 32-Bit/192 kHz playback*
	Audio Shielding
	Premium audio capacitors
	Dedicated audio PCB layers
	Audio cover
	Unique de-pop circuit
Connectivity
Ports	1x USB 20Gbps Type-C Port
	3x USB 10Gbps Type-A Ports
	4x USB 5Gbps Type-A Port
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (TMDS)
	1x DisplayPort 1.4 Port
	5x 3.5mm Audio Jacks Support Surround Sound
	2x Antenna Connectors
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x BIOS FlashBack button
General
Internal Connectors	1x 4-pin CPU Fan header
	1x 4-pin CPU OPT Fan header
	1x 4-pin AIO Pump header
	3x 4-pin Chassis Fan headers
	1x 24-pin Main Power connector
	2x 8-pin 12V CPU Power connectors
	3x M.2 slots (Key M)
	4x SATA 6Gb/s ports
	1x USB 10Gbps connector (supports USB Type-C )
	1x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2x USB 2.0 headers support 3 additional USB 2.0 ports
	3x Addressable Gen 2 headers
	1x Clear CMOS header
	1x Chassis Intrusion header
	1x COM Port header
	1x Front Panel Audio header (F_AUDIO)
	1x 10-1 pin Front Panel System header
LEDs	Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
I/O Controller	N/A
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit

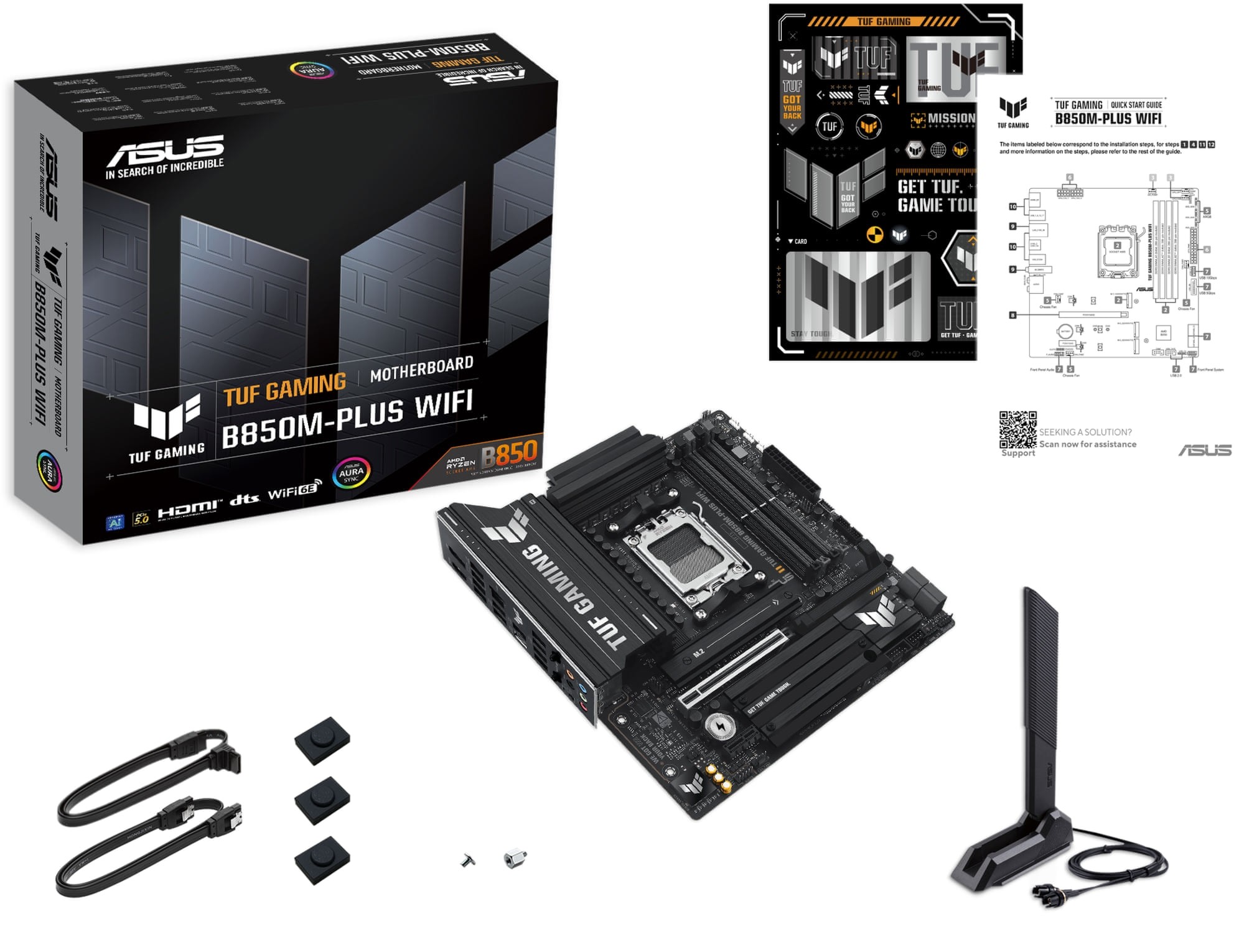

Boxed Accessories	2x SATA 6Gb/s cables
	1x ASUS WiFi Q-Antenna
	1x TUF GAMING sticker
	2x M.2 rubber packages
	1x Screw package for M.2 SSD
	1x Quick start guide
Warranty Information
Warranty	3 Year Warranty
