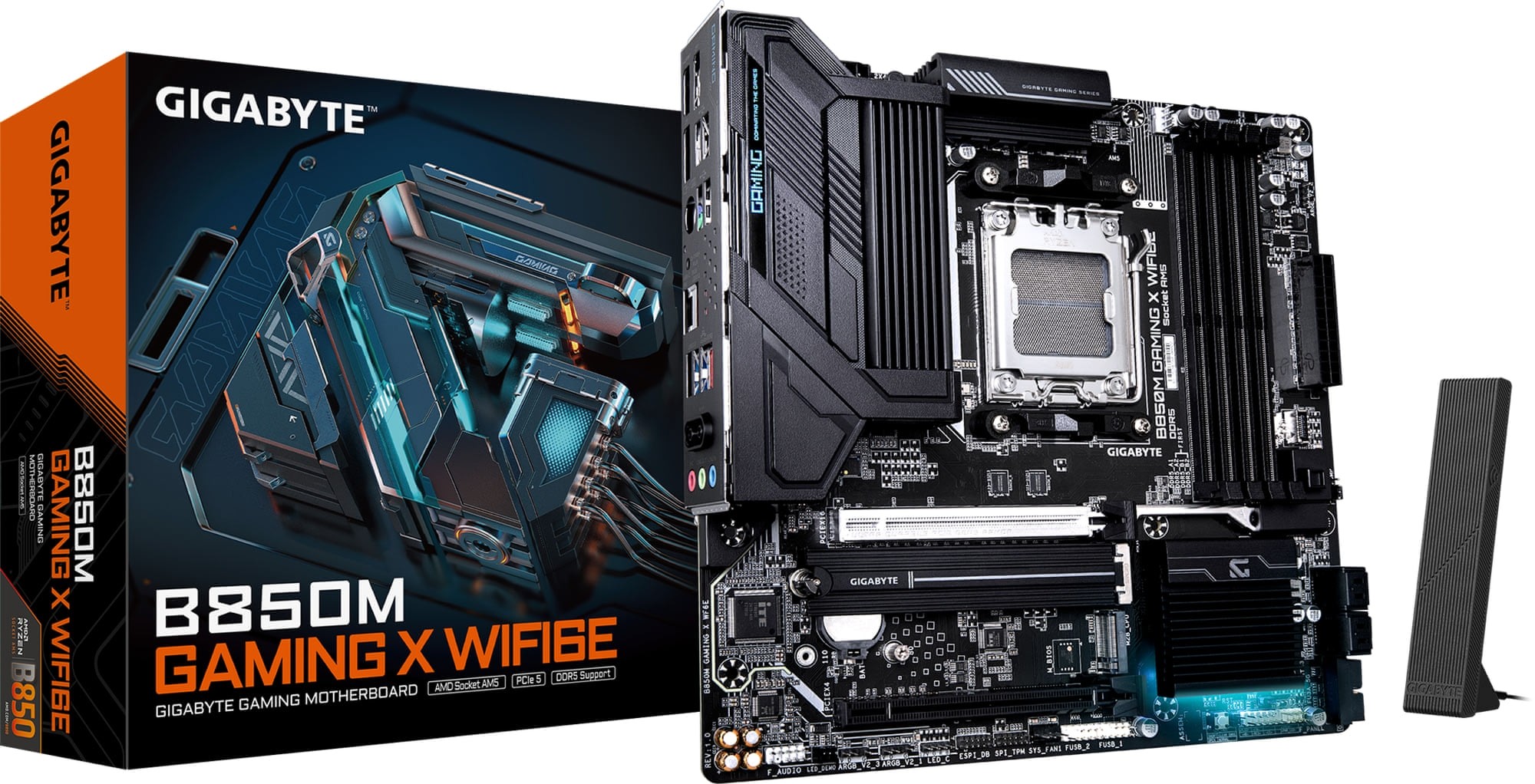

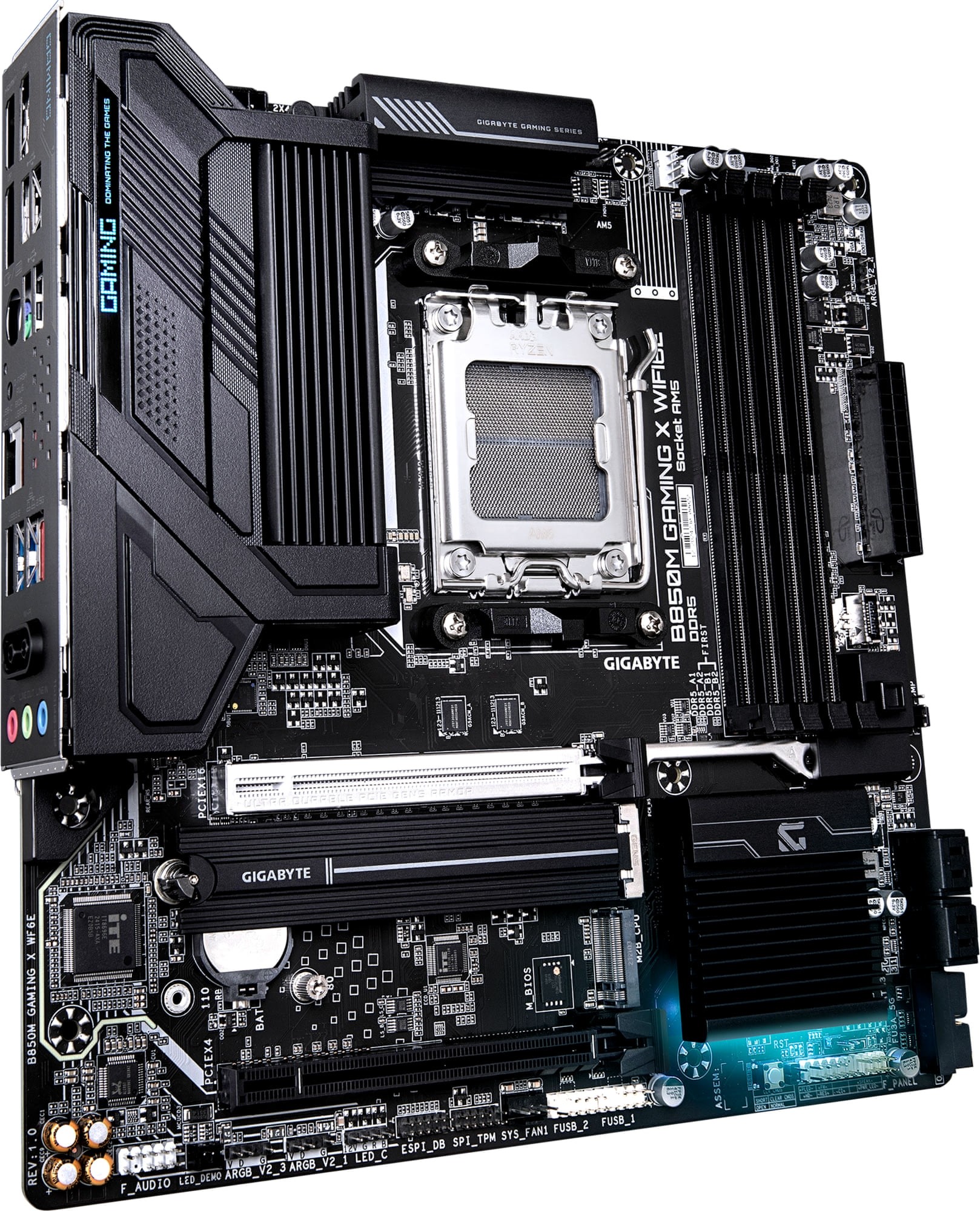

Gigabyte B850M GAMING X WIFI6E AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B850M GAMING X WIFI6E AMD B850 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 49737

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 599.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

1 Review(s) | Add Your Review

- Micro-ATX Form Factor
- AMD B850 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8200 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x4 Slot (x16 Physical)
- 1x M.2 25110/2580 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 25110/2580 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 1x USB 20Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 2x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS), 2x DisplayPort 1.4 Ports
- 3x 3.5mm Audio Jacks, 1x PS/2 Combo Port (Keyboard/Mouse)
- 2x Antenna Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek High-Definition Audio Codec
- 10+2+2 Twin Digital VRM Solution
- Gigabyte PCIe EZ-Latch Plus
- Gigabyte Q-Flash Plus BIOS Button
- Gigabyte RGB Fusion
- Gigabyte Control Center
- Supports Windows 11
- 3 Year Warranty

151 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,899.00

R3,799.00

Save: R 1,100!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Gaming X Series
Model	B850M GAMING X WIFI6E (GA-B850M-GAMING-X-WF6E)
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
	4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	2x DisplayPort 1.4 Ports, supporting a maximum resolution of 8K @ 30 Hz, supports HDCP & HDR
HDMI	1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4K @ 60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical)
AMD B850 Chipset	1x PCIe 3.0 x4 Slot (x16 Physical)
Slot Configurations	PCIE5 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIE5 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
CPU Direct	1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
AMD B850 Chipset	4x SATA 6Gbps connectors
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M2B_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2B_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
	Please consult your motherboard manual for CPU support with SSDs in the M.2_2 slot.
Networking
LAN	Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 6E Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

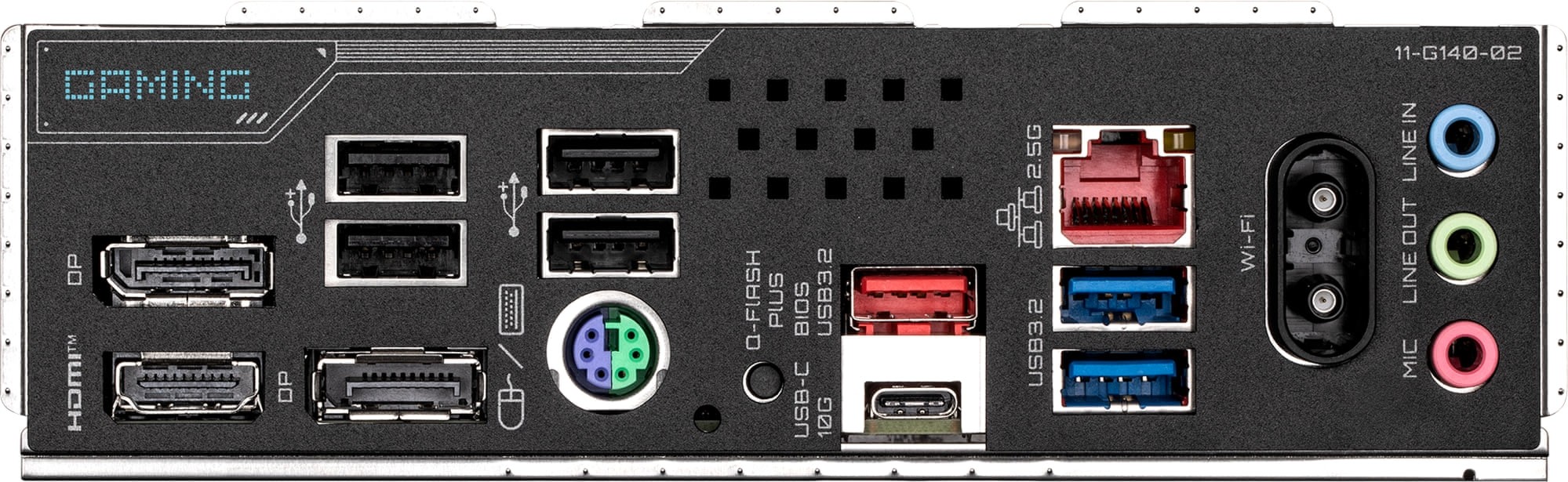

Connectivity
Ports	1x USB 20Gbps Type-C Port
	1x USB 10Gbps Type-A Port
	2x USB 5Gbps Type-A Port
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (TMDS)
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks
	1x PS/2 Combo Port (Keyboard/Mouse)
	2x Antenna Connectors
Buttons	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port

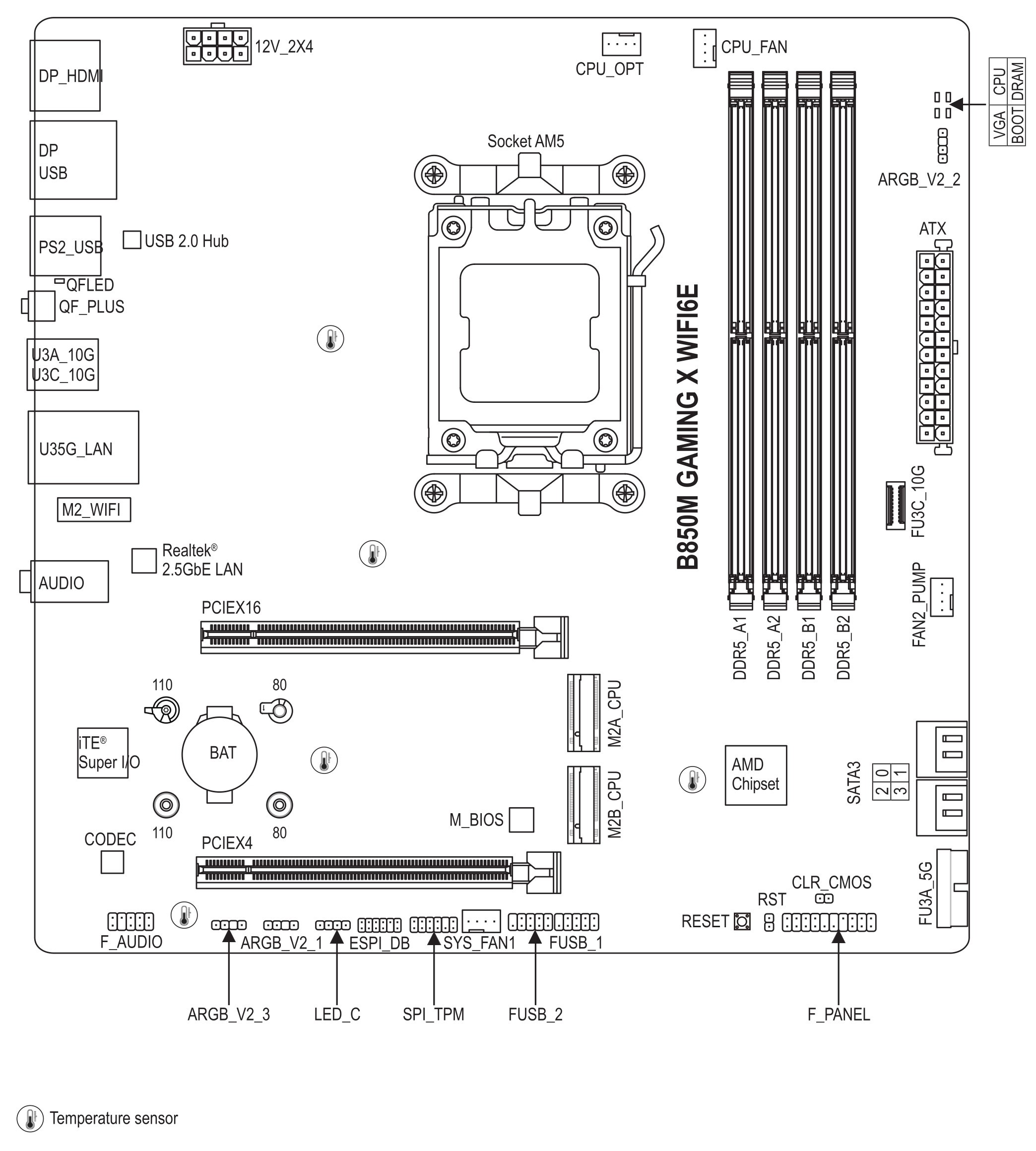

General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	1x system fan header
	1x system fan/water cooling pump header
	3x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	4x SATA 6Gb/s connectors
	2x M.2 Socket 3 connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 2 support
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1x reset button
	1x reset jumper
	1x Clear CMOS jumper
LEDs	Gigabyte POST LED Array (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
I/O Controller	iTE I/O Controller Chip
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro-ATX Form Factor, 244 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	User's Manual
	Quick Installation Guide
	I/O Shieldk
	One antenna
	Two SATA cables
	One G Connector
	M.2 screw(s)
	One pack of M.2 thick/thin rubber pads
Warranty Information
Warranty	3 Year Warranty
