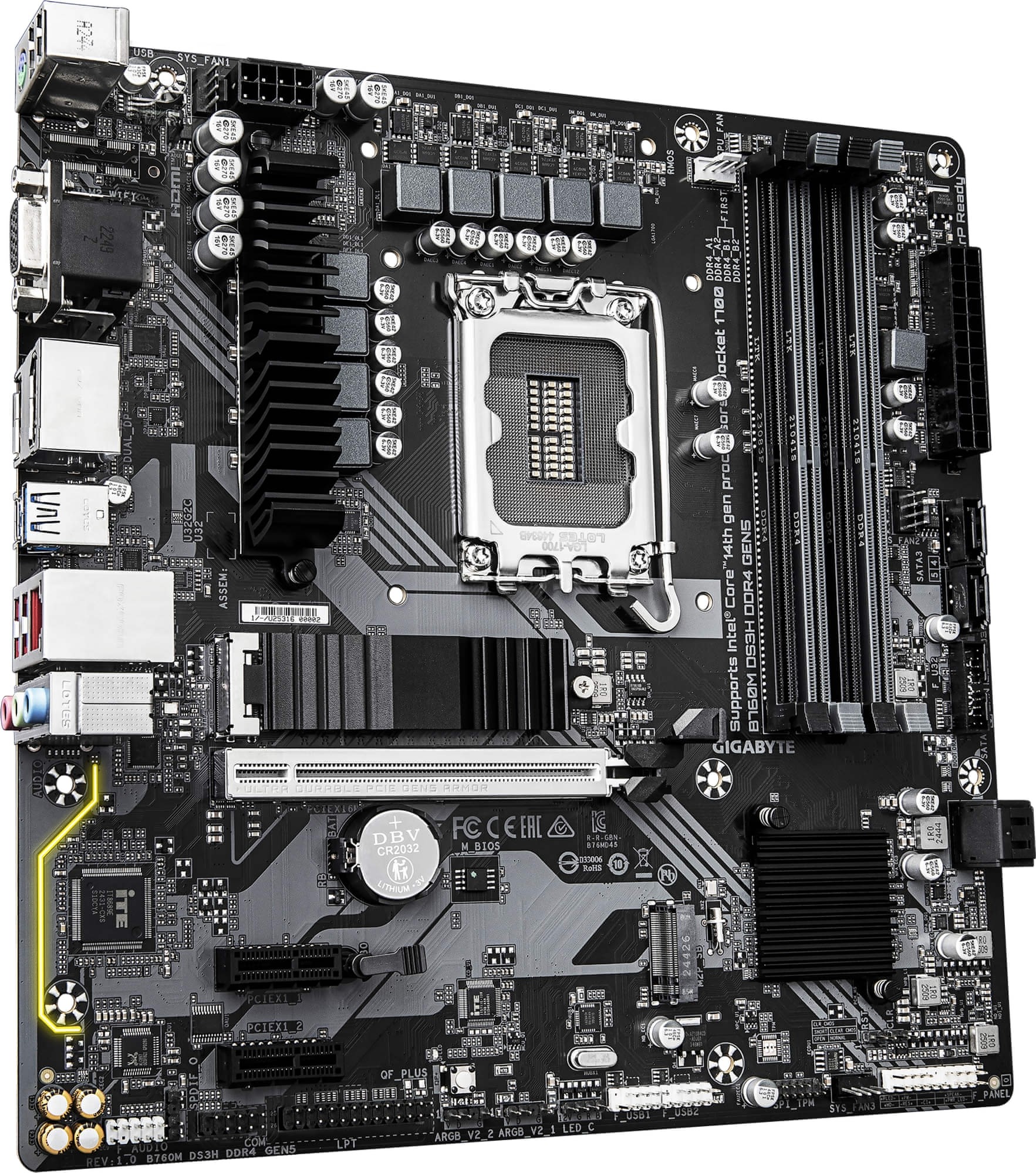

Gigabyte B760M DS3H DDR4 GEN5 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B760M DS3H DDR4 GEN5 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

Product ID: 52293

Be the first to review this product

- Micro-ATX Form Factor Motherboard
- Intel B760 Chipset
- LGA 1700 Socket Supports 12th, 13th, 14th Gen Core Processors
- 4x DDR5 DIMM Slots, Up to 128GB (4x32GB)
- Supports Up to DDR4-5333 (OC)
- Supports Intel XMP 2.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x1 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 1x USB 10Gbps Type-C Port
- 3x USB 5Gbps Type-A Port
- 2x USB 2.0 Type-A Ports
- 2x DisplayPort 1.2 Ports
- 1x HDMI 2.1 (TMDS) Port
- 1x VGA D-Sub Port
- 1x PS/2 Combo Port (Keyboard, Mouse)
- 3x 3.5mm Audio Jacks
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- Realtek ALC897 High-Definition Audio Codec
- 6+2+1 Hybrid Digital VRM Solution
- Gigabyte EZ-DIY POST LED Array (CPU, MEM, VGA, BOOT)
- Gigabyte Q-Flash Plus BIOS Flashback
- Gigabyte EZ-Latch PCIe Slot Design
- Gigabyte Control Center with RGB Fusion
- Supports Windows 11 64-bit
- 3 Year Warranty

189 Products

Out of Stock

Add to Wishlist

Customers Who Viewed This Product Purchased

ASUS TUF GAMING B760M-PLUS WIFI II DDR5 Intel B760 LGA 1700 Rapto...

In stock with Wootware

R5,499.00

R3,199.00

Save: R 2,300!

2 Review(s)

Gigabyte B760M GAMING X DDR4 GEN5 Intel B760 Raptor Lake LGA 1700...

In stock with Wootware

R3,299.00

R2,999.00

Save: R 300!

6 Review(s)

MAXSUN Challenger B760M D5 WIFI Intel B760 Raptor Lake LGA 1700 D...

In stock with Wootware

R2,999.00

R1,499.00

Save: R 1,500!

2 Review(s)

1 Review(s)

Gigabyte B760 GAMING X GEN5 Intel B760 Raptor Lake LGA 1700 DDR5 ...

In stock with Supplier

R2,929.00

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	DS3H Series
Model	B760M-DS3H-DDR4-GEN5
CPU Support	LGA1700 socket with support for 12th, 13th, 14th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel B760 Express
Memory Support
Intel 12th, 13th & 14th Gen Series	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	2x DisplayPort 1.2 Ports, supporting a maximum resolution of 4096x2160 @ 60 Hz, Support for DisplayPort 1.2 and HDCP 2.3
HDMI	1x HDMI 2.1 TMDS port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Support for HDMI 2.1 and HDCP 2.3
VGA D-Sub	1 x D-Sub port, supporting a maximum resolution of 1920x1200 @ 60 Hz
VGA D-Sub	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset	2x PCIe 3.0 x1 Physical, x1 Electrical Slots
Storage
CPU Direct	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Intel B760 Chipset	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	4x SATA 3.0 6Gbps connectors
	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC897 High-Definition Codec
Codec	7.1-Channel USB High Performance Audio with front-panel jack retasking, jack detection
Connectivity
Ports	1x USB 10Gbps Type-C Port
	3x USB 5Gbps Type-A Port
	2x USB 2.0 Type-A Ports
	2x DisplayPort 1.2 Ports
	1x HDMI 2.1 (TMDS) Port
	1x VGA D-Sub Port
	1x PS/2 Combo Port (Keyboard, Mouse)
	3x 3.5mm Audio Jacks
	1x 2.5 Gigabit Ethernet RJ-45 LAN
Buttons	1x Q-Flash Plus BIOS Flashback Button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	3x system fan headers
	2x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	2x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1x serial port header
	1x parallel port header
	1x S/PDIF Out header
	1x Q-Flash Plus button
	1x reset jumper
	1x Clear CMOS jumper
I/O Controller	iTE I/O Controller Chip
LED Displays	1x QLED Status LED, 4x POST Debug LEDs (BOOT, CPU, VGA, RAM)
BIOS	1x 128 Mb flash
	UEFI AMI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
	Multi-language
Form Factor	Micro-ATX Form Factor, 244 x 244mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	User's Manual
	I/O Shield
	Two SATA cables
	One pack of M.2 thick/thin rubber pads
Warranty Information
Warranty	3 Year Warranty
