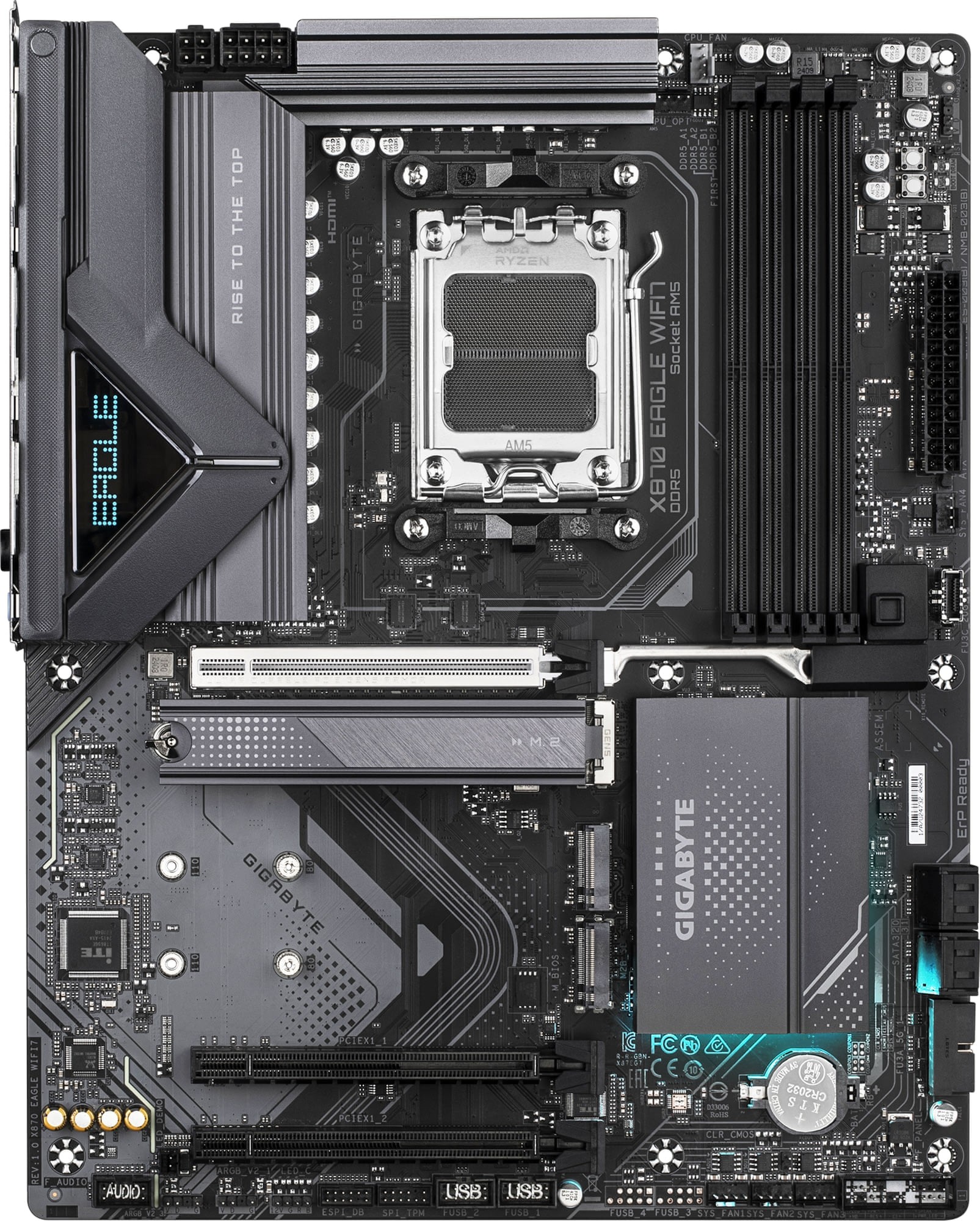

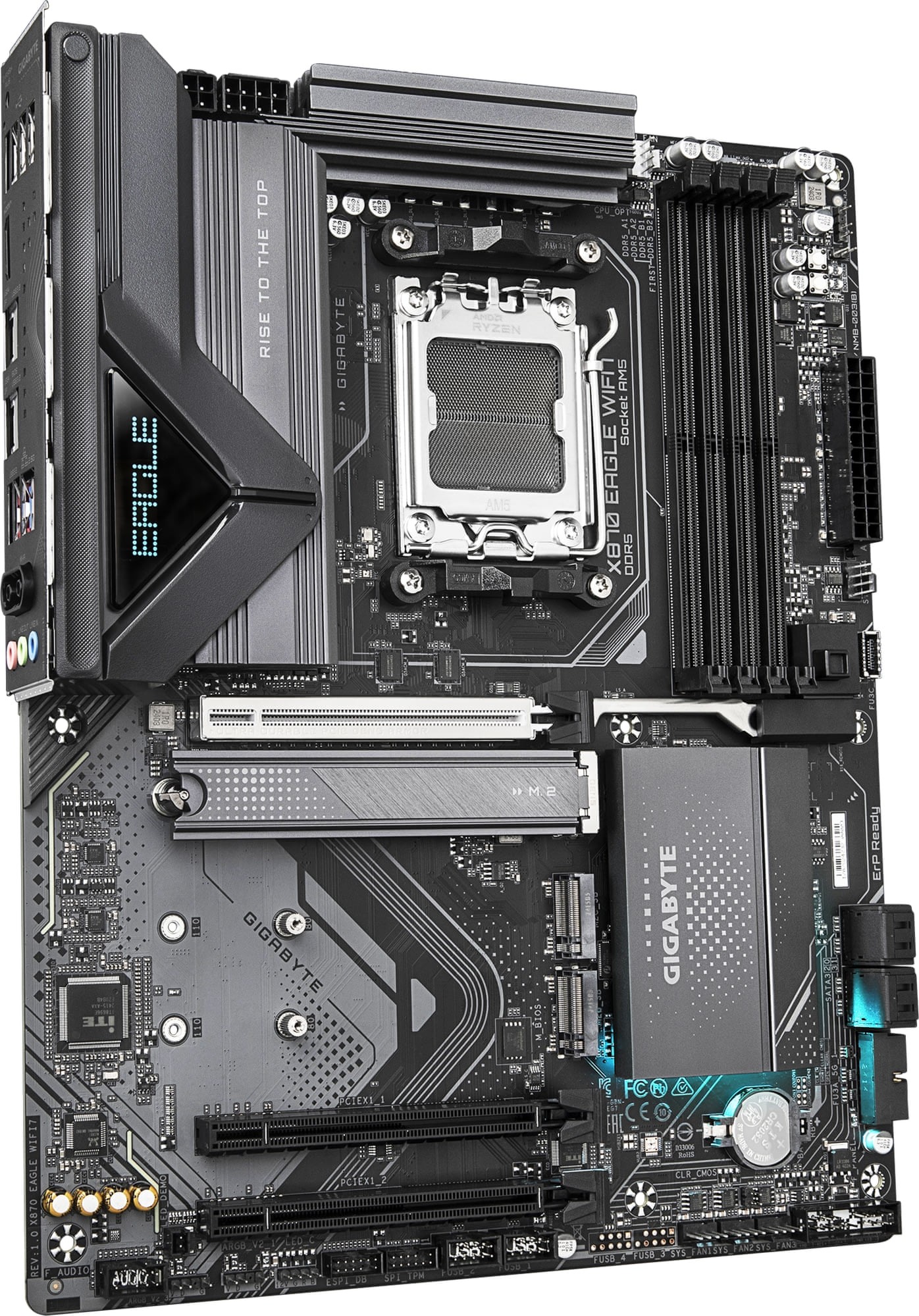

Gigabyte X870 EAGLE WIFI7 AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte X870 EAGLE WIFI7 AMD X870 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 48162

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

2 Review(s) | Add Your Review

- ATX Form Factor
- AMD X870 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8000 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 22110 / 2280 PCIe 4.0 NVMe SSD Slots
- 4x SATA 3.0 Ports
- 2x USB 40Gbps Type-C Ports with DisplayPort
- 1x USB 10Gbps Type-A Port
- 3x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS)
- 3x 3.5mm Audio Jacks, 2x SMA Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- PCIe x16 EZ-Latch Quick-Release Mechanism
- Digital Twin 14+2+2 Phase VRM Solution
- Gigabyte Q-Flash Plus Button
- Gigabyte RGB Fusion
- Supports Windows 11
- 3 Year Warranty

159 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R5,999.00

R4,499.00

Save: R 1,500!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (2)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	EAGLE Series
Model	X870 EAGLE WIFI7
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD X870 Chipset
Memory Support
AMD X870 Chipset	Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
	4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	2x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, supports DisplayPort 1.4, HDCP & HDR
HDMI	1x HDMI 2.1 Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot (x16 Physical)(PCIEX16)
AMD X870 Chipset	2x PCIe 3.0 x1 Slots (x16 Physical)
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x M.2 25110/22110/2580/2280 PCIe 5.0 x4 NVMe SSD Slot (M2A_CPU)
AMD X870 Chipset	1x M.2 25110/22110/2580/2280 PCIe 4.0 x2 NVMe SSD Slot (M2C_SB)
AMD X870 Chipset	1x M.2 25110/22110/2580/2280 PCIe 4.0 x4 NVMe SSD Slot (M2B_SB)
NOTE:	The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.
	4x SATA 6Gbps connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN	Realtek 2.5 Gigabit LAN 10/100/1000/2500 Mbps
WiFi	WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection

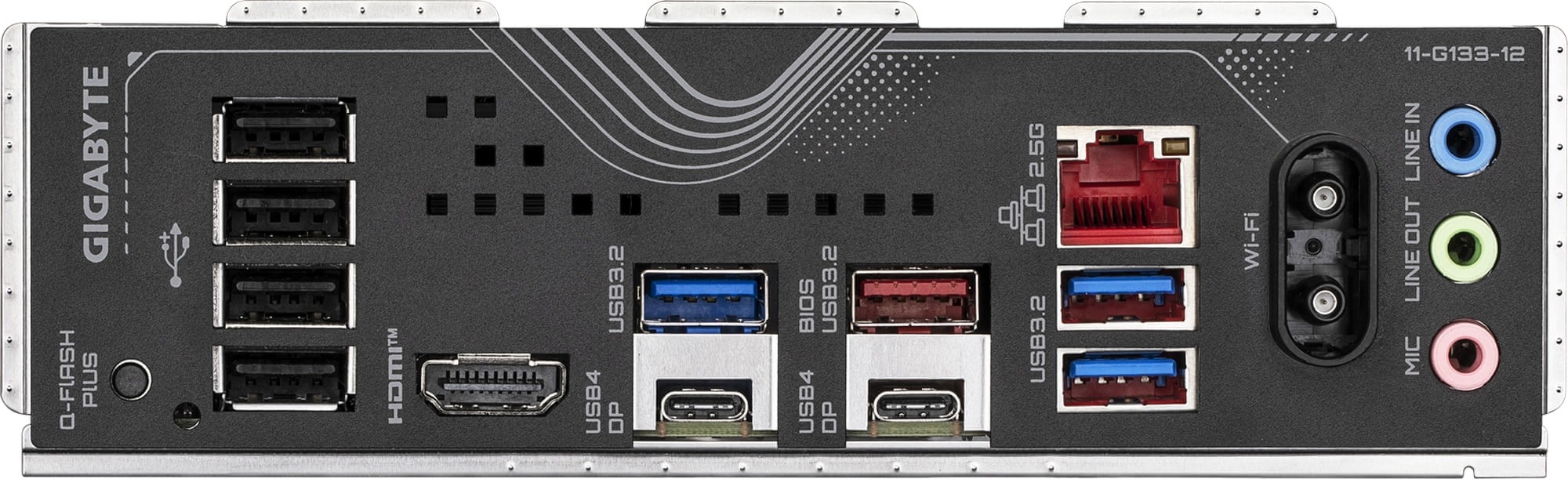

Connectivity
Ports	2x USB 40Gbps Type-C Ports with DisplayPort
	1x USB 10Gbps Type-A Port
	3x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port (TMDS)
	3x 3.5mm Audio Jacks
	2x SMA Connectors
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Q-Flash Plus button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x 4-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	4x system fan headers
	3x addressable RGB Gen2 LED strip headers
	1x RGB LED strip header
	4x SATA 6Gb/s connectors
	3x M.2 Socket 3 connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 2x2 support
	1x USB 3.2 Gen 1 header
	2x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1x power button
	1x reset button
	1x reset jumper
	1x Clear CMOS jumper
I/O Controller	iTE I/O Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	User's Manual
	Quick Installation Guide
	1x Wireless antenna
	2x SATA cables
	1x G-Connector (front panel)
	M.2 screw(s)
Warranty Information
Warranty	3 Year Warranty
