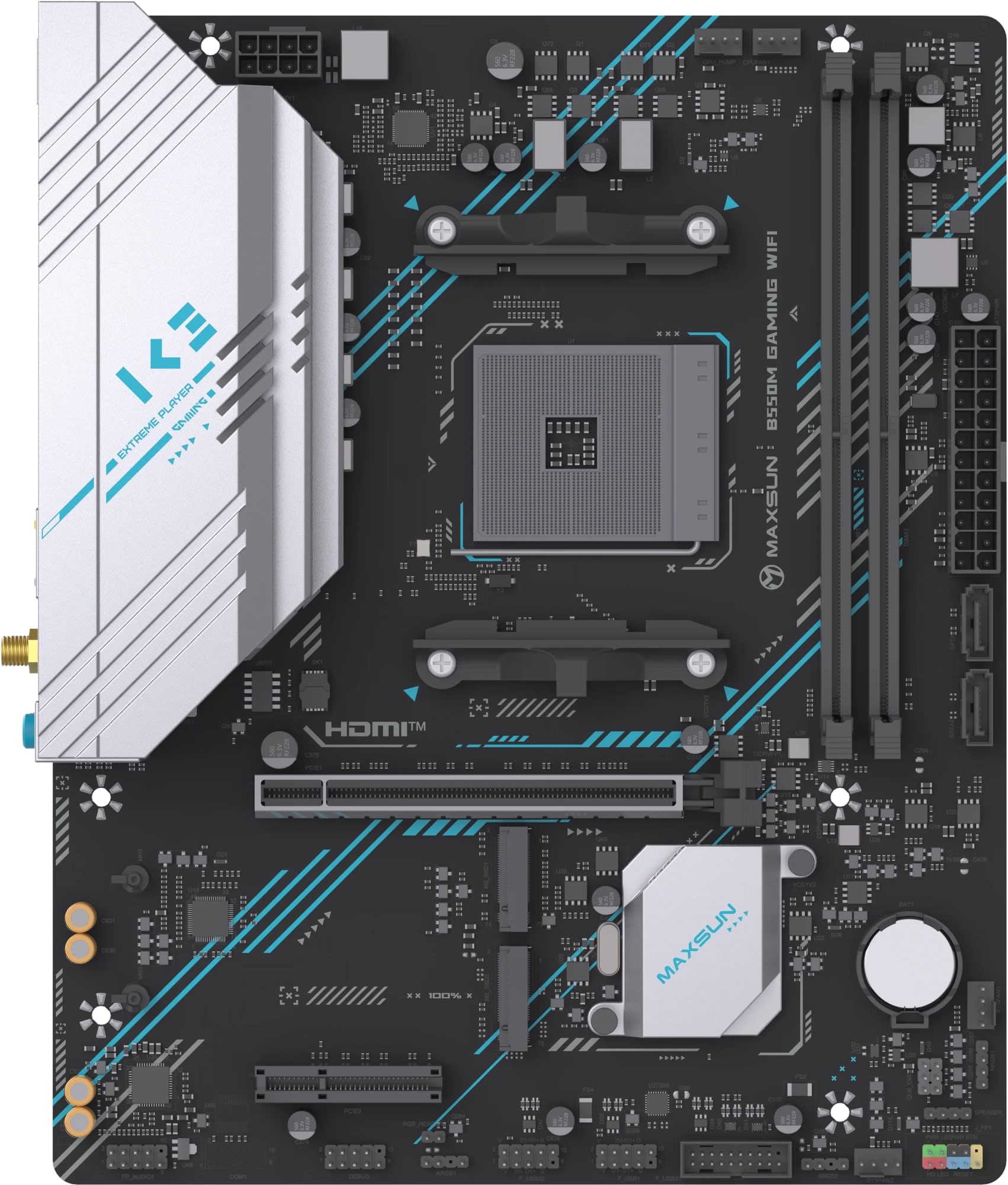

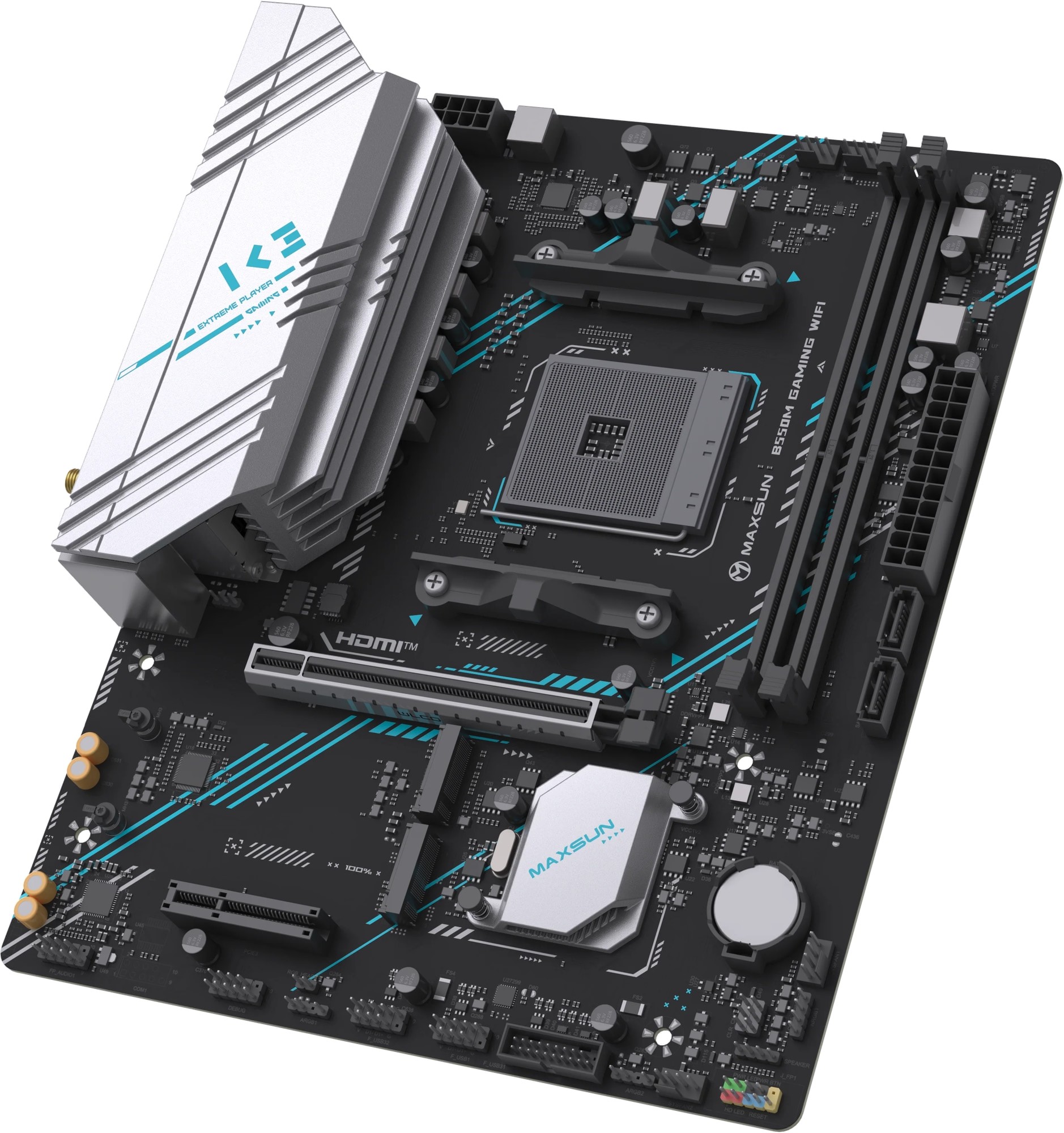

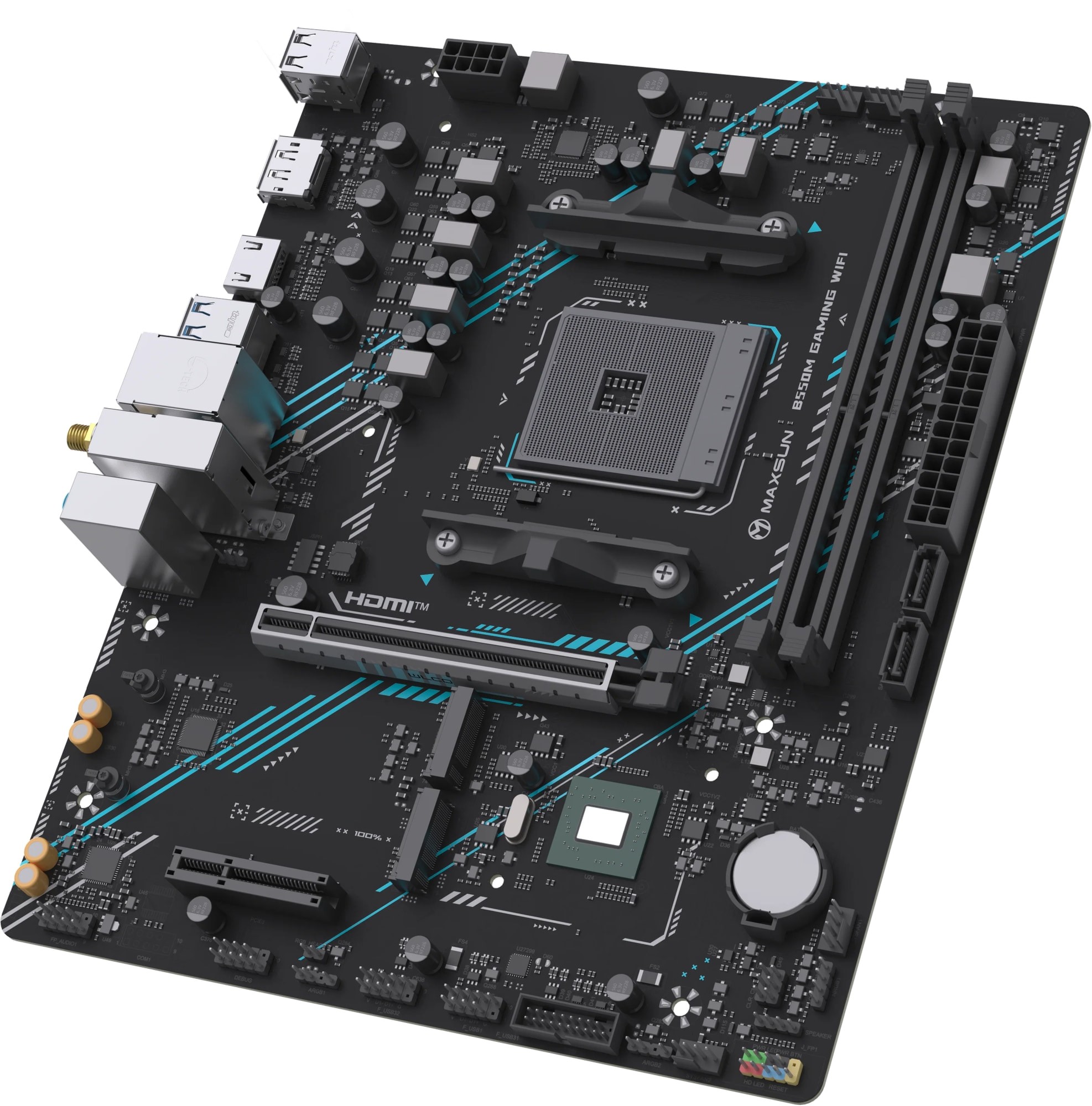

MAXSUN MS-B550M GAMING WIFI AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MAXSUN MS-B550M GAMING WIFI AMD B550 Ryzen Socket AM4 Micro-ATX Desktop Motherboard

Product ID: 52008

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

1 Review(s) | Add Your Review

- Micro-ATX Form Factor
- AMD B550 Chipset, Socket AM4
- Supports Ryzen 5000/5000G, 4000G, 3000, 2000, 1000-Series Processors
- 2x DDR4 DIMM Slots, Supports Up to 64GB (2x32GB)
- Supports up to DDR4-3200 (OC)
- Supports Intel XMP 2.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x4 Slot (x4 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot
- 2x SATA 3.0 Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 1.4 Port
- 1x DisplayPort 1.2 Port
- 3x 3.5mm Audio Jacks
- 2x Antenna Jacks
- Realtek Gigabit Ethernet RJ-45 LAN Port
- Realtek WiFi 5 Dual-Band Adapter, Bluetooth 4.2
- Realtek ALC897 High-Definition Audio Codec
- Reinforced PCIe Slot Armour
- MAXSUN ARGB Control App
- Supports Windows 11 64-bit
- Supports Ubuntu Linux 64-bit
- 3 Year Warranty

See the CPU Support List See the Memory Support List

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,499.00

R1,999.00

Save: R 500!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)

Product Description

SPECIFICATIONS
Brand	MAXSUN
Series	GAMING Series
Model	MS-B550M GAMING WIFI
CPU Support	Supports Ryzen 5000/5000G, 4000G, 3000, 2000, 1000-Series Processors
Chipset	AMD B550 Chipset
Memory Support
AMD B550 Chipset	2x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
	Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules
	Dual channel memory architecture
	Supports AMD A-XMP Memory Modules
	Support for Extreme Memory Profile (XMP) memory modules
Video
HDMI	1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @ 30Hz, Support HDCP
DisplayPort	1x DisplayPort 1.2 Port, supports a maximum resolution of 4096x2160 @ 60Hz, Support HDCP & HDR
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical, x16 Physical Slot
AMD B550 Chipset	1x PCIe 3.0 x4 Electrical, x4 Physical Slot
Storage
CPU Direct	1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot (PCIe Gen 3 with Ryzen 5000G / 4000G / 2000 / 1000 Series)
AMD B550 Chipset	1x M.2 2280 PCIe 3.0 x2 NVMe SSD Slot
AMD B550 Chipset	2x SATA 3.0 6Gbps connectors
Networking
LAN	Realtek 8111M Gigabit LAN 10/100/1000Mbps
WiFi	Realtek 8821CE WiFi 5 Dual-Band Adapter
Bluetooth	Bluetooth 4.2
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking
Connectivity
Ports	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 1.4 Port
	1x DisplayPort 1.2 Port
	3x 3.5mm Audio Jacks
	2x Antenna Jacks
	1x Gigabit Ethernet RJ-45 LAN Port
Buttons	N/A
General
Internal Connectors	1x 24-Pin motherboard ATX power supply interface
	1x 8-Pin motherboard ATX 12V power supply interface with 12V input
	2x System fan headers (1x 4-Pin PWM, 1x 3-Pin DC)
	1x CPU fan header (4-Pin PWM)
	1x Water Pump header (3-Pin DC)
	2x USB 2.0 9-Pin headers
	1x USB 3.2 Gen 1 5Gbps 16-Pin header
	2x 3-Pin 5V ARGB headers
	1x 4-Pin 12V RGB header
	1x CLR_CMOS header
	1x DEBUG Header
	1x JP_USB1 power supply control header
	1x Front Panel Audio Header
	1x 11-Pin Front Panel System Header
I/O Controller	N/A
LED Displays	N/A
BIOS	1x 128Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	Micro-ATX Form Factor, 225 x 200mm (H x W)
Operating System Support	Windows 10 64-bit
	Windows 11 64-bit (Recommended)
	Ubuntu Linux 64-bit
Warranty Information
Warranty	3 Year Warranty
