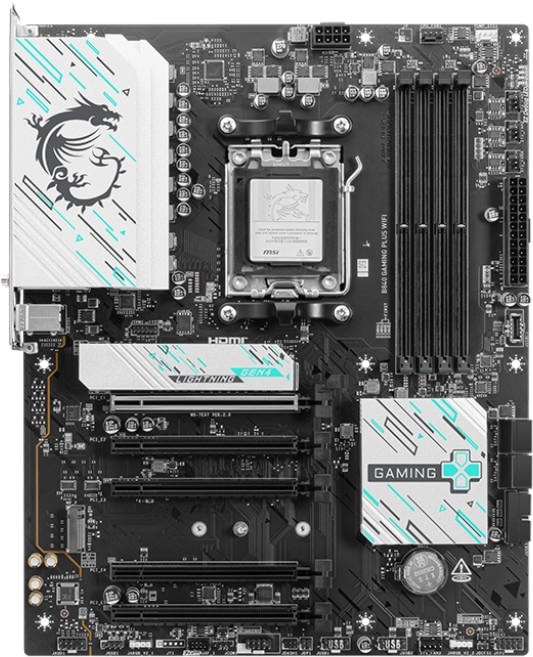

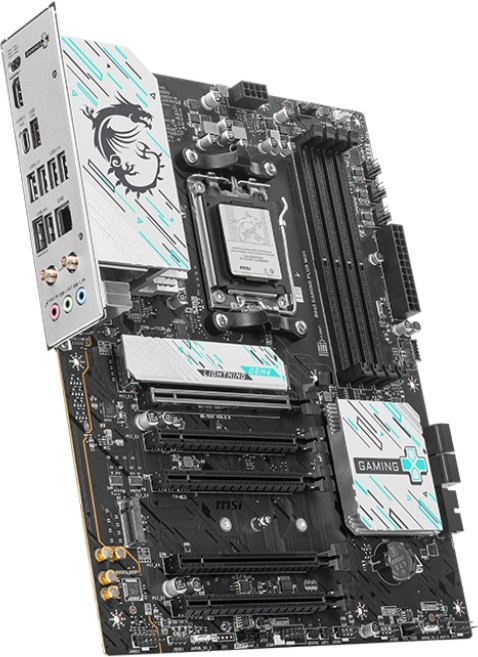

MSI B840 GAMING PLUS WIFI AMD B840 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI B840 GAMING PLUS WIFI AMD B840 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 49906

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- ATX Form Factor
- AMD B840 Chipset
- Socket AM5 Supports Ryzen 7000, 8000, 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8000 (OC)
- Supports DDR5 CUDIMM Memory
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x4 Slot (x16 Physical)
- 3x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB 5Gbps Type-C Port
- 1x USB 10Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 2x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS)
- 2x 3.5mm Audio Jacks (Headphone, Microphone)
- 2x SMA Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- MSI EZ M.2 Shield FROZR II with EZ M.2 CLIP II
- 7+2+1 DRPS Phase VRM Solution
- MSI Flash BIOS Button
- MSI Control Center Software
- Supports Windows 11
- 3 Year Warranty

91 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,670.00

Qty:

Add to Wishlist

Product Description

Additional Information

Reviews (0)

Product Description

SPECIFICATIONS
Brand MSI
Series GAMING Series
Model B840 GAMING PLUS WIFI
CPU Support Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset AMD B850 Chipset
Memory Support
AMD B840 Chipset 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8000 MT/s
1DPC 2R Max speed up to 6400 MT/s
2DPC 1R Max speed up to 6400 MT/s
2DPC 2R Max speed up to 4800 MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Video
HDMI 1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct 1x PCIe 4.0 x16 Slot (x16 Physical) (PCI_E1)
AMD B840 Chipset 1x PCIe 3.0 x4 Slot (x16 Physical) (PCI_E3)
3x PCIe 3.0 x1 Slots (x16 Physical) (PCI_E2, PCI_E4, PCI_E5)
Slot Configurations PCI_E1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
PCI_E1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
AMD B840 Chipset 4x SATA 6Gbps connectors
NOTE: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations M.2_2 with Ryzen 8000 Phoenix 1 Processors support PCIe 3.0 x4/x2 SSDs
M.2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 3.0 x2 SSDs
Networking
LAN Realtek 8125BG 2.5G Gigabit Ethernet RJ-45 LAN Port
WiFi WiFi 7 Tri-Band Adapter
Bluetooth Bluetooth 5.4
Audio
Codec Realtek High-Definition Audio Codec
Support for 7.1 Surround with front-panel jack retasking, jack detection

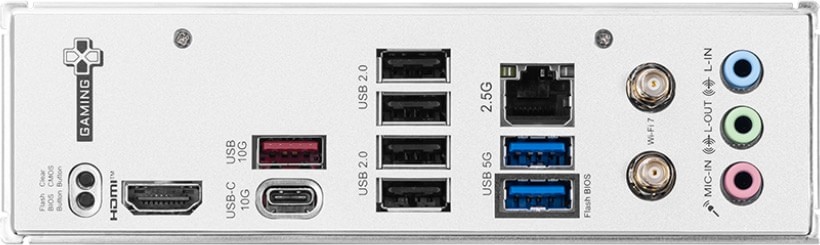

Connectivity
Ports 1x USB 10Gbps Type-C Port
1x USB 10Gbps Type-A Port
2x USB 5Gbps Type-A Port
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port (TMDS)
2x 3.5mm Audio Jacks (Headphone, Microphone)
2x SMA Connectors
1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons 1x MSI Flash BIOS button, Reset CMOS button

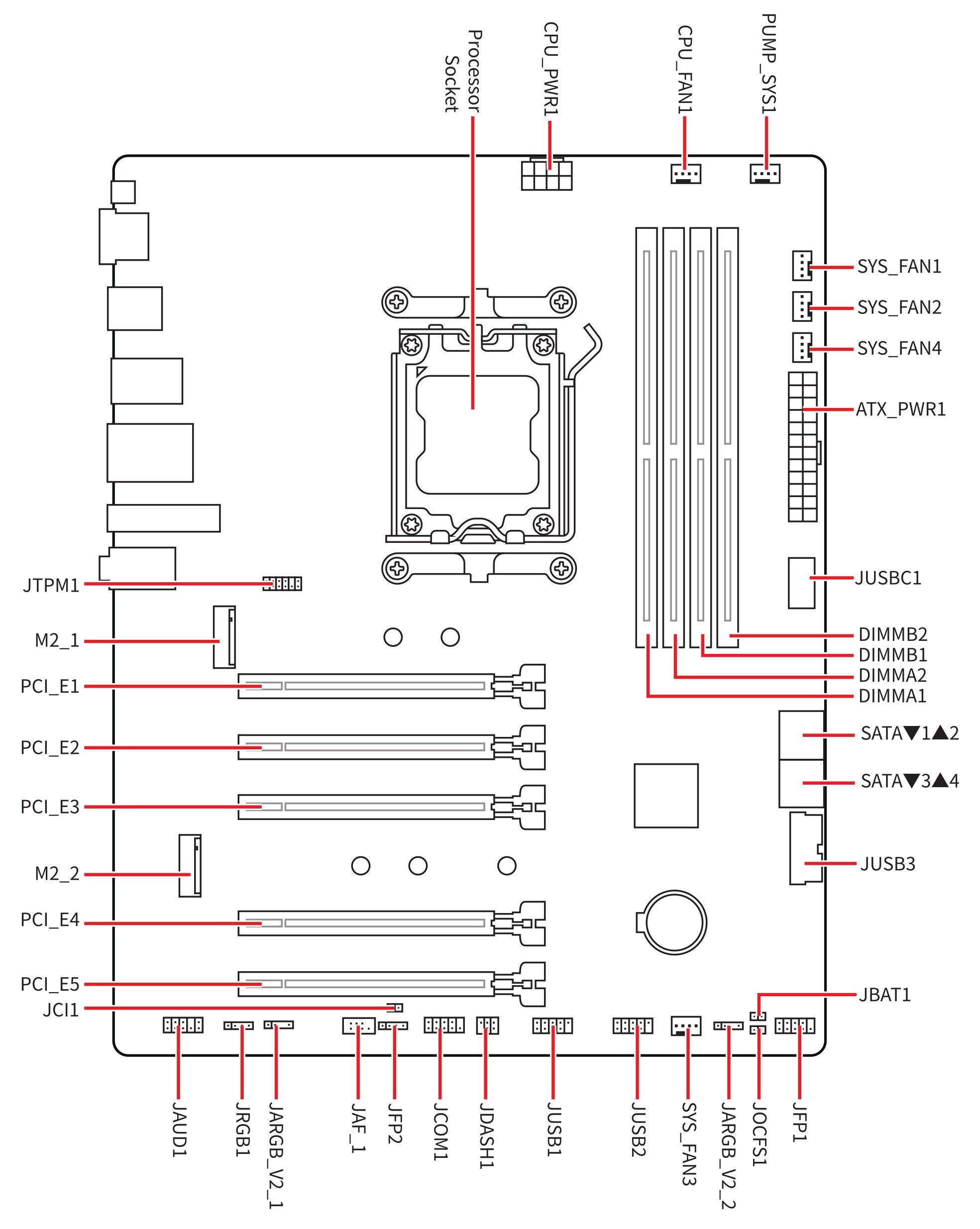

General
Internal Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LEDs MSI EZ-Debug Status LEDs (BOOT, CPU, VGA, MEM)
I/O Controller NUVOTON NCT6687D-R Controller Chip
BIOS 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Form Factor ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support Windows 11 64-bit
Warranty Information
Warranty 3 Year Warranty
