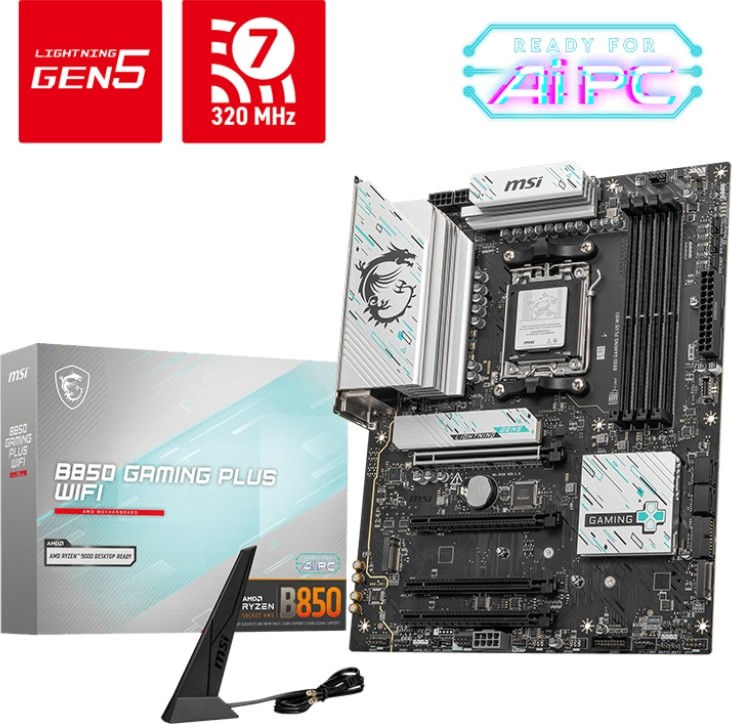

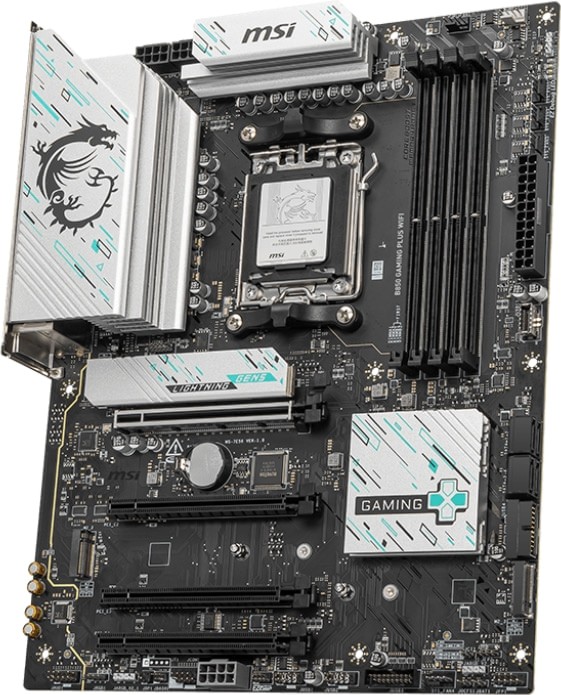

MSI B850 GAMING PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI B850 GAMING PLUS WIFI AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 49408

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

4.5

2 Review(s) | Add Your Review

- ATX Form Factor
- AMD B850 Chipset
- Socket AM5 Supports Ryzen 7000, 8000, 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8200 (OC)
- Supports DDR5 CUDIMM Memory
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110/2280 PCIe 4.0 x4 NVMe SSD Slot
- 1x M.2 2280 PCIe 4.0 x2 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 10Gbps Type-C Ports
- 1x USB 10Gbps Type-A Port
- 1x USB 5Gbps Type-A Port
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port (TMDS)
- 2x 3.5mm Audio Jacks (Headphone, Microphone), 2x SMA Connectors
- 1x Optical S/PDIF Audio Port
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek High-Definition Audio Codec
- MSI EZ M.2 Shield FROZR II with EZ M.2 CLIP II
- MSI EZ PCIe CLIP II Release Mechanism
- 12+2+1 DRPS Phase VRM Solution
- MSI Flash BIOS Button
- MSI Control Center Software
- Supports Windows 11
- 3 Year Warranty

87 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R4,839.00

Qty:

Add to Wishlist

Product Description

Additional Information

Reviews (2)

Product Description

SPECIFICATIONS
Brand MSI
Series GAMING Series
Model B850 GAMING PLUS WIFI
CPU Support Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset AMD B850 Chipset
Memory Support
AMD B850 Chipset 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200 MT/s
1DPC 2R Max speed up to 6400 MT/s
2DPC 1R Max speed up to 6400 MT/s
2DPC 2R Max speed up to 4800 MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Video
HDMI 1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct 1x PCIe 5.0 x16 Slot (x16 Physical) (PCI_E1)
AMD B850 Chipset 1x PCIe 4.0 x4 Slot (x16 Physical) (PCI_E3)
2x PCIe 3.0 x1 Slots (x16 Physical) (PCI_E2, PCI_E4)
Slot Configurations PCI_E1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
PCI_E1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
PCI_E2, PCI_E3 & PCI_E4 share bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot.
Storage
CPU Direct 1x M.2 22110 / 2280 PCIe 5.0 x4 NVMe SSD Slot (M.2_1)
AMD B850 Chipset 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot (M.2_2)
1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot (M.2_3)
4x SATA 6Gbps connectors
NOTE: RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN Realtek 8126VB 5G Gigabit Ethernet RJ-45 LAN Port
WiFi WiFi 7 Tri-Band Adapter
Bluetooth Bluetooth 5.4
Audio
Codec Realtek High-Definition Audio Codec
Support for 7.1 Surround with front-panel jack retasking, jack detection
Connectivity
Ports 2x USB 10Gbps Type-C Ports
1x USB 10Gbps Type-A Port
1x USB 5Gbps Type-A Port
4x USB 2.0 Type-A Ports
1x HDMI 2.1 Port (TMDS)
2x 3.5mm Audio Jacks (Headphone, Microphone)
2x SMA Connectors
1x Optical S/PDIF Audio Port
1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port
Buttons 1x MSI Flash BIOS button, Reset CMOS button
General
Internal Connectors 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
LEDs MSI EZ-Debug Status LEDs (BOOT, CPU, VGA, MEM)
I/O Controller NUVOTON NCT6687-R Controller Chip
BIOS 1x 256 Mbit flash
Use of licensed AMI UEFI BIOS
Form Factor ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support Windows 11 64-bit
Warranty Information
Warranty 3 Year Warranty

Additional Information

Manufacturer's Site Visit the manufacturer's website

Product Link Visit the manufacturer's page for this product

Reviews (2)

Good value - Sabs, 20 December 2025

Really enjoyed the simplicity of using the CPU clip. Used for my first PC build. I appreciate the generous amount of heatsinks provided!

Good Motherboard - Shaun, 19 December 2025

My previous X470 Mboard from MSI was amazing.
This upgrade has all the bells and whistles that you need for this day and age.
I appreciate the EZ debug LEDs. Memory training was pretty quick which was quite a surprise.
The BIOS is nice and clean too.
