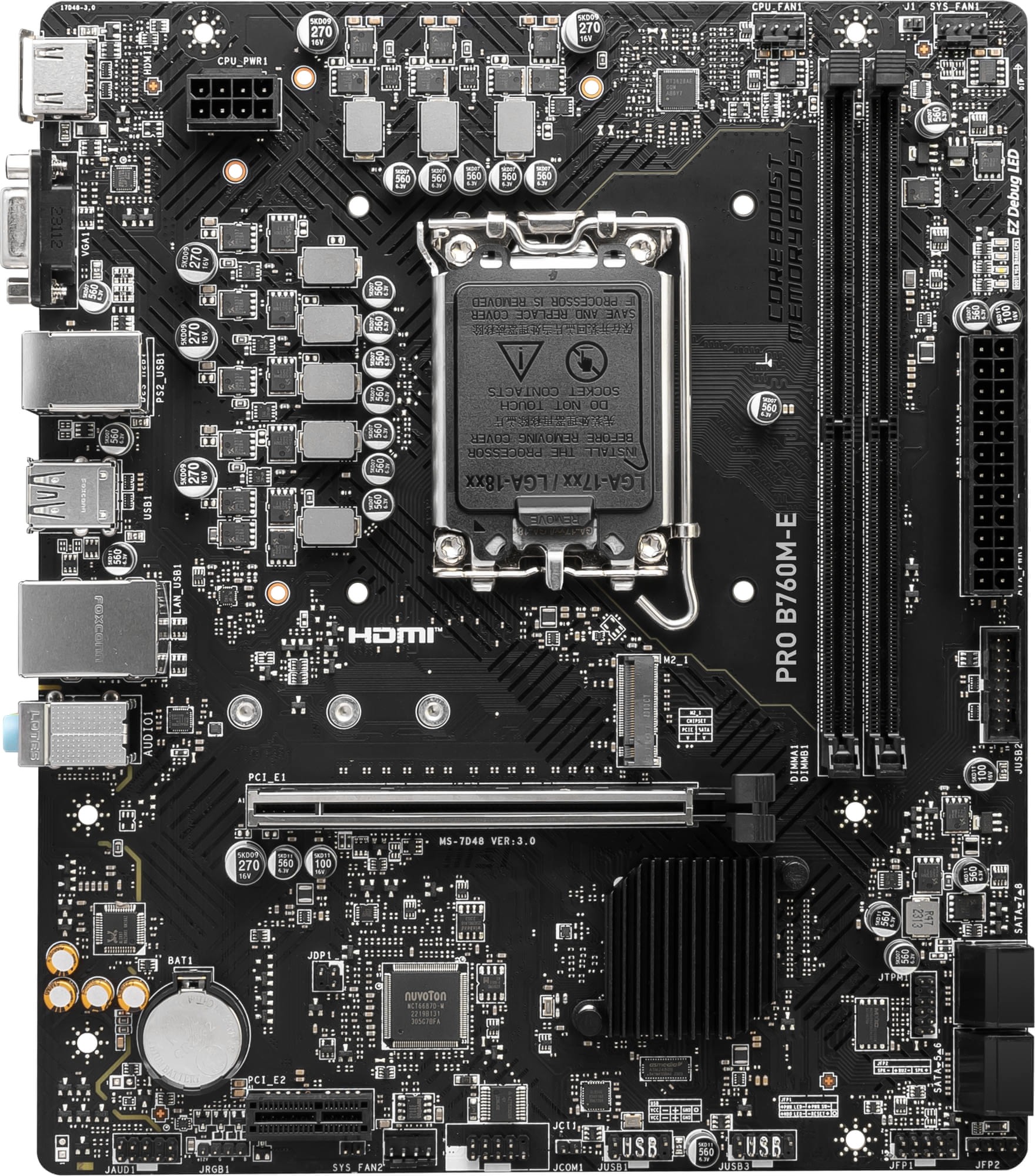

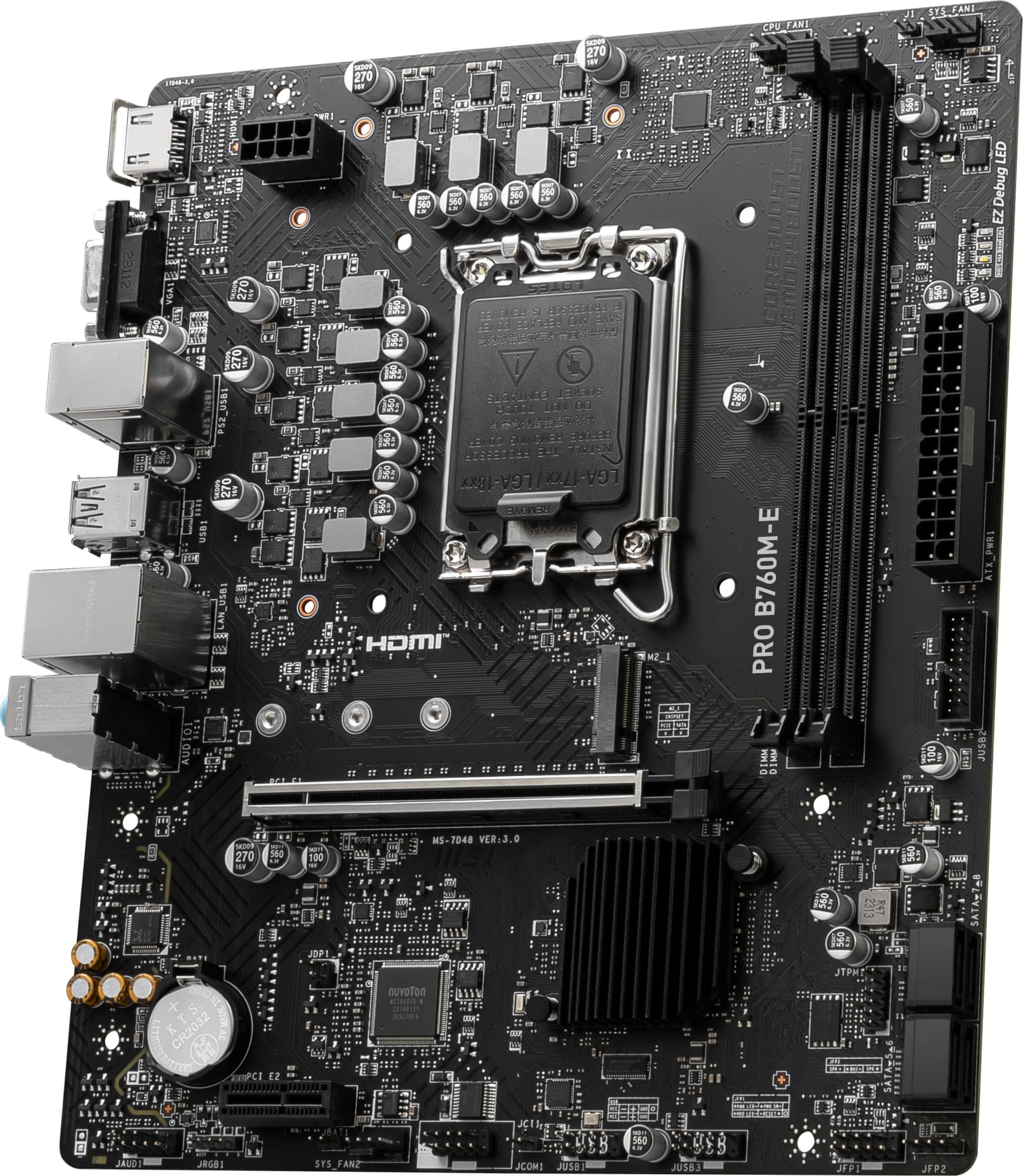

MSI PRO B760M-E DDR5 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO B760M-E DDR5 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

Product ID: 51430

In stock with Supplier

Lead time before dispatch; 1 - 2 business days

Be the first to review this product

- Micro-ATX Form Factor Motherboard
- Intel B760 Chipset
- LGA 1700 Socket Supports 12th, 13th & 14th Gen Core Processors
- 2x DDR5 DIMM Slots, Up to 128GB (2x64GB)
- Supports Up to DDR5-6400 (OC)
- Supports Intel XMP 3.0 Memory Modules
- 1x PCIe 4.0 x16 Slot
- 1x PCIe 3.0 x1 Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x PS/2 Combo Port
- 1x HDMI 1.4 Port
- 1x VGA D-Sub Port
- 3x 3.5mm Audio Jacks
- Realtek Gigabit Ethernet RJ-45 LAN Port
- Realtek ALC897 High-Definition Audio Codec
- MSI EZDebug LED
- MSI Steel Armour PCIe Slot Design
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 11 64-bit
- 3 Year Warranty

124 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,175.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO B760M-E DDR5
CPU Support	LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
	LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors
	LGA1700 socket: Support for 14th Generation Intel Core Processors
Chipset	Intel B760 Express
Memory Support
Intel 12th & 13th Gen Series	2x DDR5, Maximum Memory Capacity 128GB
	Memory Support DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
	Max. overclocking frequency:
	1DPC 1R Max speed up to 6400 MHz
	1DPC 2R Max speed up to 5600 MHz
	Supports Intel XMP 3.0 OC
	Supports Dual-Controller Dual-Channel mode
	Supports non-ECC, un-buffered memory
Video
VGA	1x VGA D-Sub, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
HDMI	1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30 Hz, Support for HDMI 1.4 and HDCP
HDMI	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset	1x PCIe 3.0 x1 Physical, x1 Electrical Slot
Storage
CPU Direct	1x M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Intel B760 Chipset	4x SATA 6Gbps connectors
Intel B760 Chipset	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Networking
LAN	Realtek RTL8111H Gigabit LAN 10/100/1000Mbps
WiFi	N/A
Bluetooth	N/A
Audio
Codec	Realtek ALC897 Codec
Codec	7.1-Channel USB High Performance Audio with front-panel jack retasking

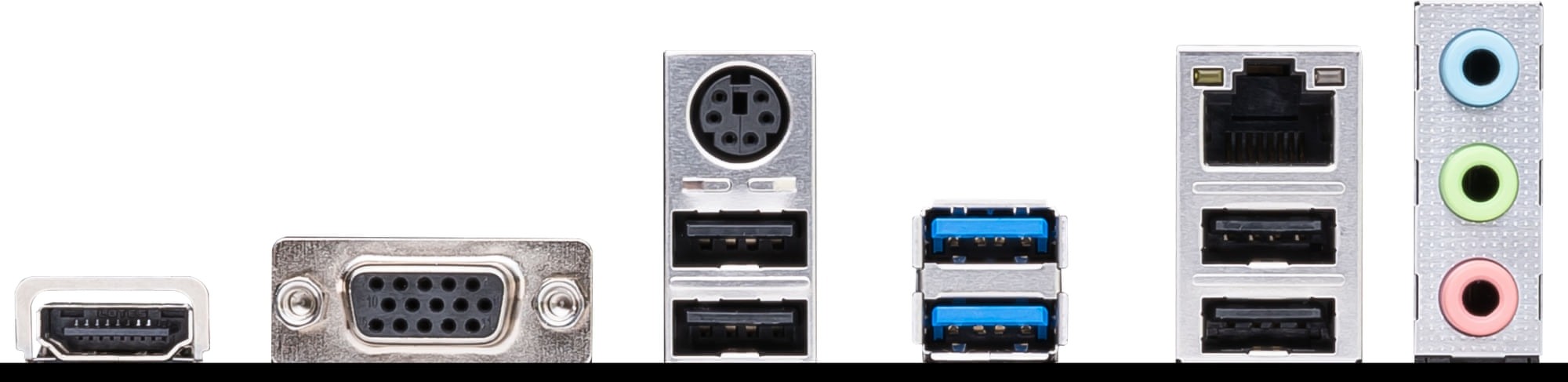

Connectivity
Ports	2x USB 2Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x VGA D-Sub
	1x HDMI 1.4
	3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
	1x PS/2 Combo Port
	1x Realtek RTL8111H Gigabit LAN
Buttons	N/A
General

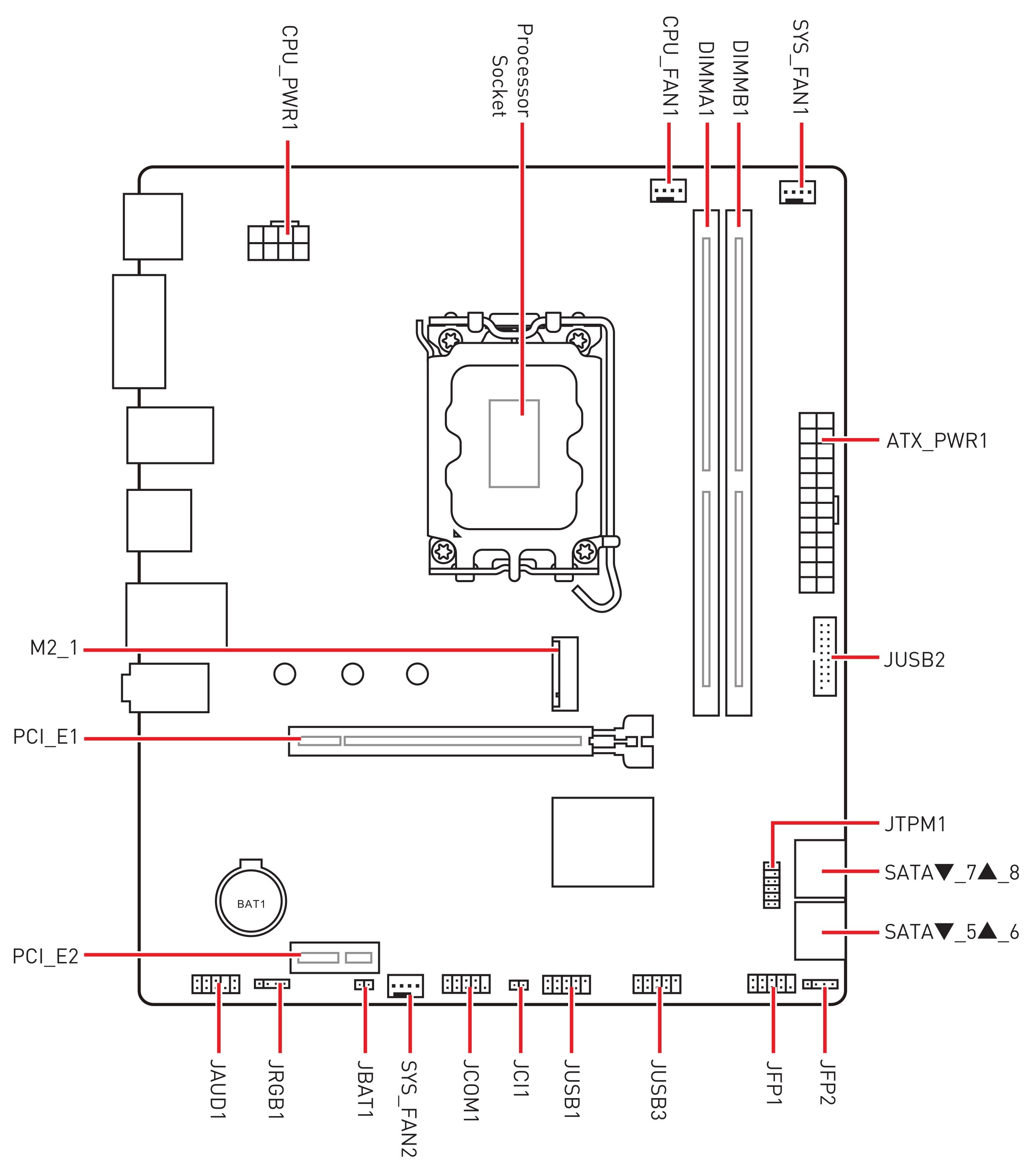

Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
I/O Controller	NUVOTON NCT6687-D Controller Chip
LED Displays	4x EZ Debug LED
BIOS	1x 256 Mb flash
	UEFI AMI BIOS
	ACPI 6.4, SMBIOS 3.5
	Multi-language
Form Factor	Micro-ATX Form Factor, 236.16 x 200mm (H x W)
Operating System Support	Windows 11 64-bit

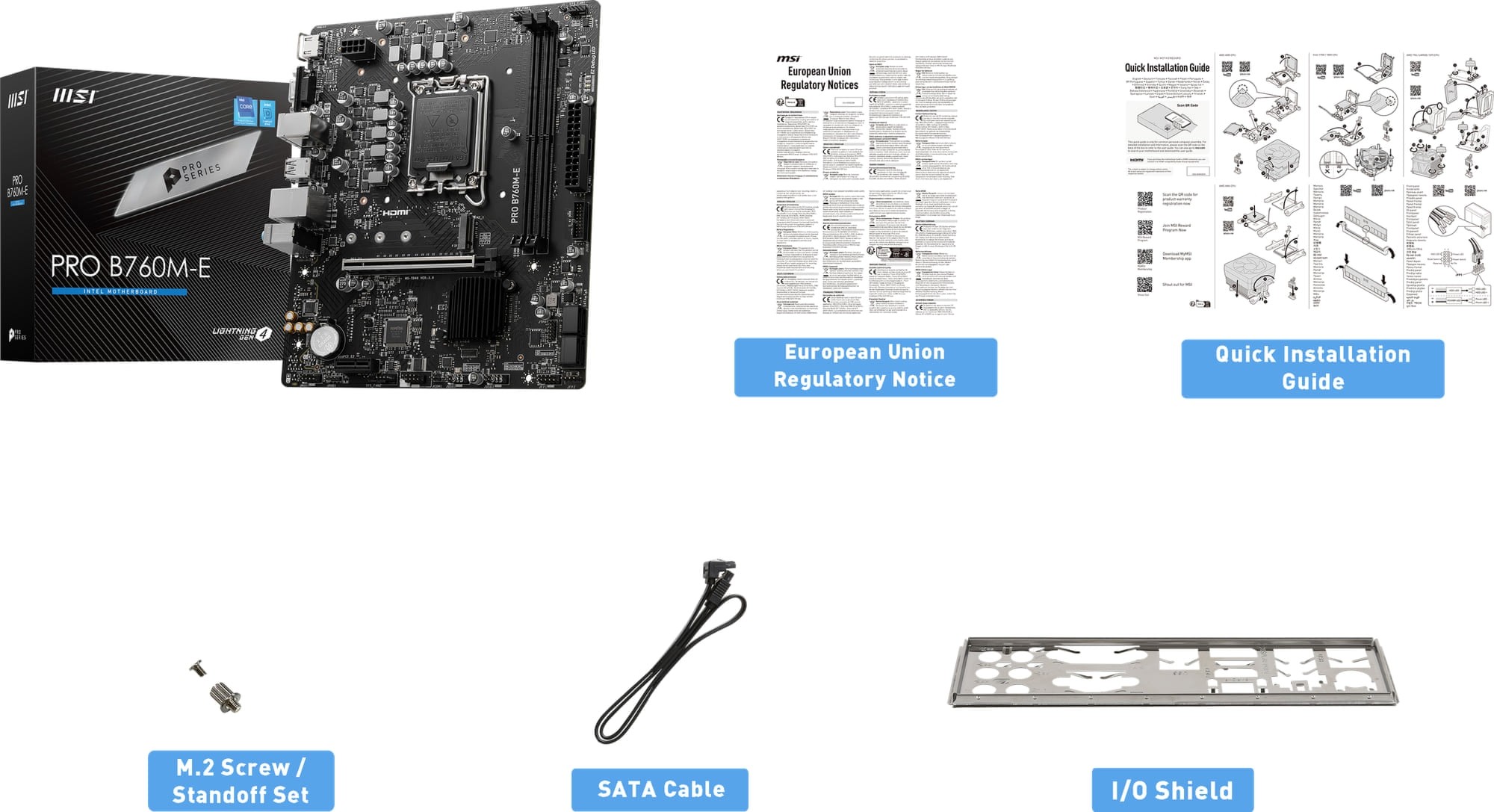

Boxed Accessories	Quick installation guide
	European Union regulatory notice
	1x SATA 6Gb/s cable
	1x M.2 screw and standoff package (1 set/pack)
Warranty Information
Warranty	3 Year Warranty
