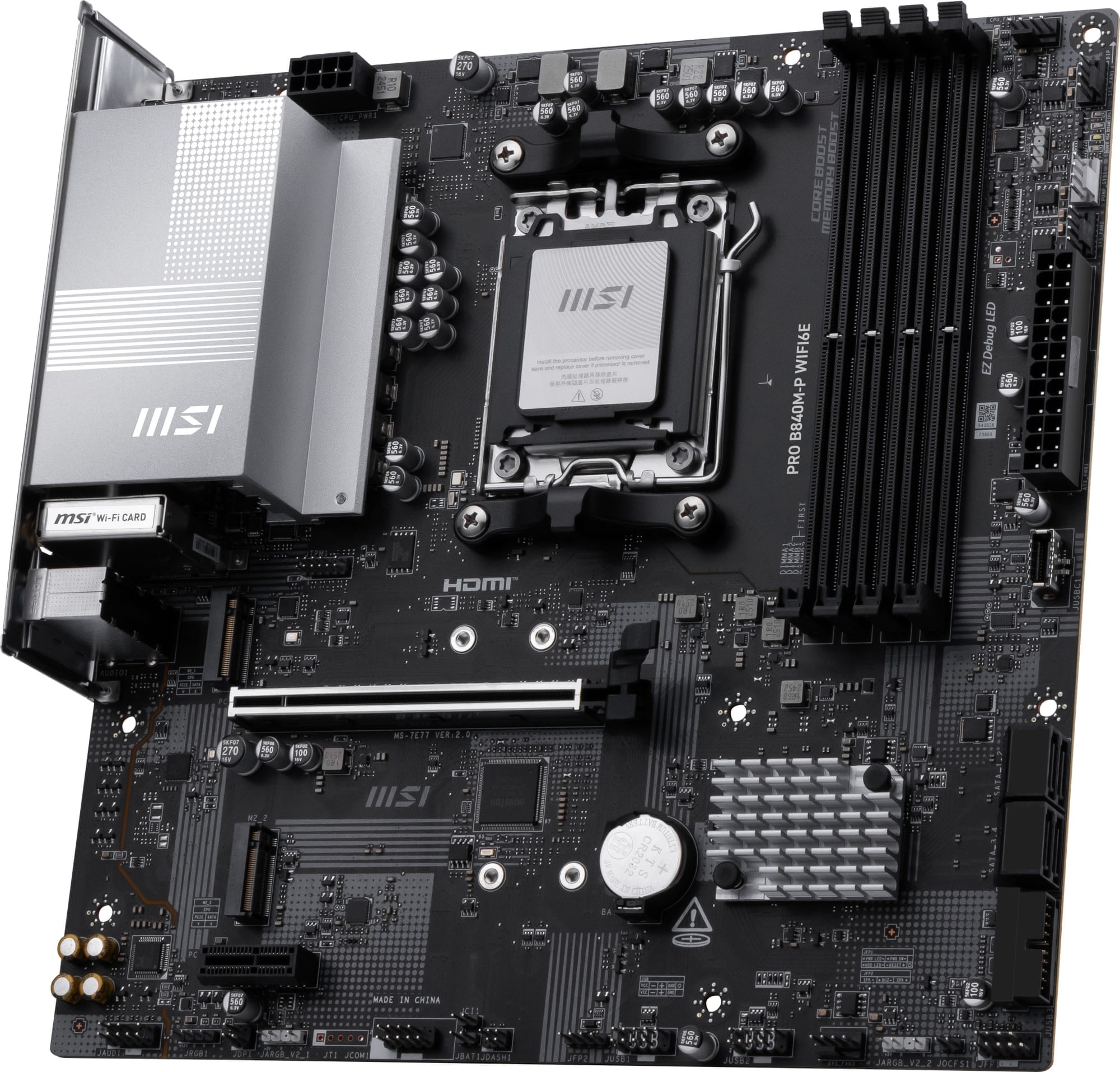

MSI PRO B840M-P WIFI6E AMD B840 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

MSI PRO B840M-P WIFI6E AMD B840 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 52126

In stock with Supplier

Lead time before dispatch; 2 - 5 business days

Be the first to review this product

- Micro-ATX Form Factor
- AMD B840 Chipset
- Socket AM5 Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-8000 (OC)
- Supports DDR5 CUDIMM Memory
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x1 Physical)
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports USB 5Gbps Front-Panel Chassis Port
- 1x USB 10Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 2x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 3x 3.5mm Audio Jacks, 2x SMA Connectors
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 6E Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High-Definition Audio Codec
- MSI EZ PCIe CLIP II Mechanism
- 7+2+1 Digital VRM Solution
- MSI Flash BIOS Button
- MSI Control Center Software
- Supports Windows 11
- 3 Year Warranty

91 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R2,847.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO B840M-P WIFI6E
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B840 Chipset
Memory Support
AMD B840 Chipset	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
	Ryzen 9000 Series Processors max. overclocking frequency:
	1DPC 1R Max speed up to 8000 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	2DPC 1R Max speed up to 6400 MT/s
	2DPC 2R Max speed up to 4800 MT/s
	Supports AMD POR Speed and JEDEC Speed
	Supports Memory Overclocking and AMD EXPOTM
	Supports Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM, Clock Driver bypass mode only
Video
HDMI	1x HDMI 2.1 (TMDS) Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Slot (x16 Physical) (PCI_E1)
AMD B840 Chipset	1x PCIe 3.0 x1 Slot (x1 Physical) (PCI_E2)
Slot Configurations	PCI_E1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCI_E1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
CPU Direct	M.2_2 supports up to PCIe 4.0 x4 , supports 2280/2260 devices
AMD B840 Chipset	4x SATA 6Gbps connectors
	NOTE: RAID 0, RAID 1 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_2 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_2 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Networking
LAN	Realtek 8125D 2.5 Gigabit Ethernet RJ-45 LAN Port
WiFi	WiFi 6E Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek ALC897 High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking, jack detection

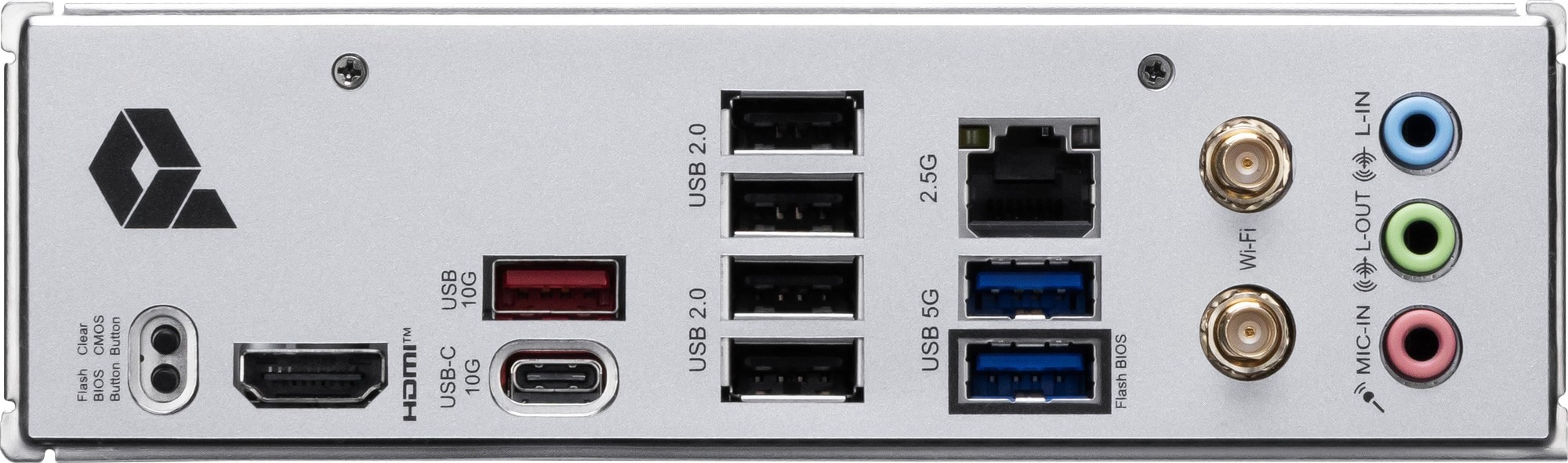

Connectivity
Ports	1x USB 10Gbps Type-C Port
	1x USB 10Gbps Type-A Port
	2x USB 5Gbps Type-A Ports
	4x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	3x 3.5mm Audio Jacks
	2x SMA Connectors
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x MSI Flash BIOS button, Reset CMOS button
General

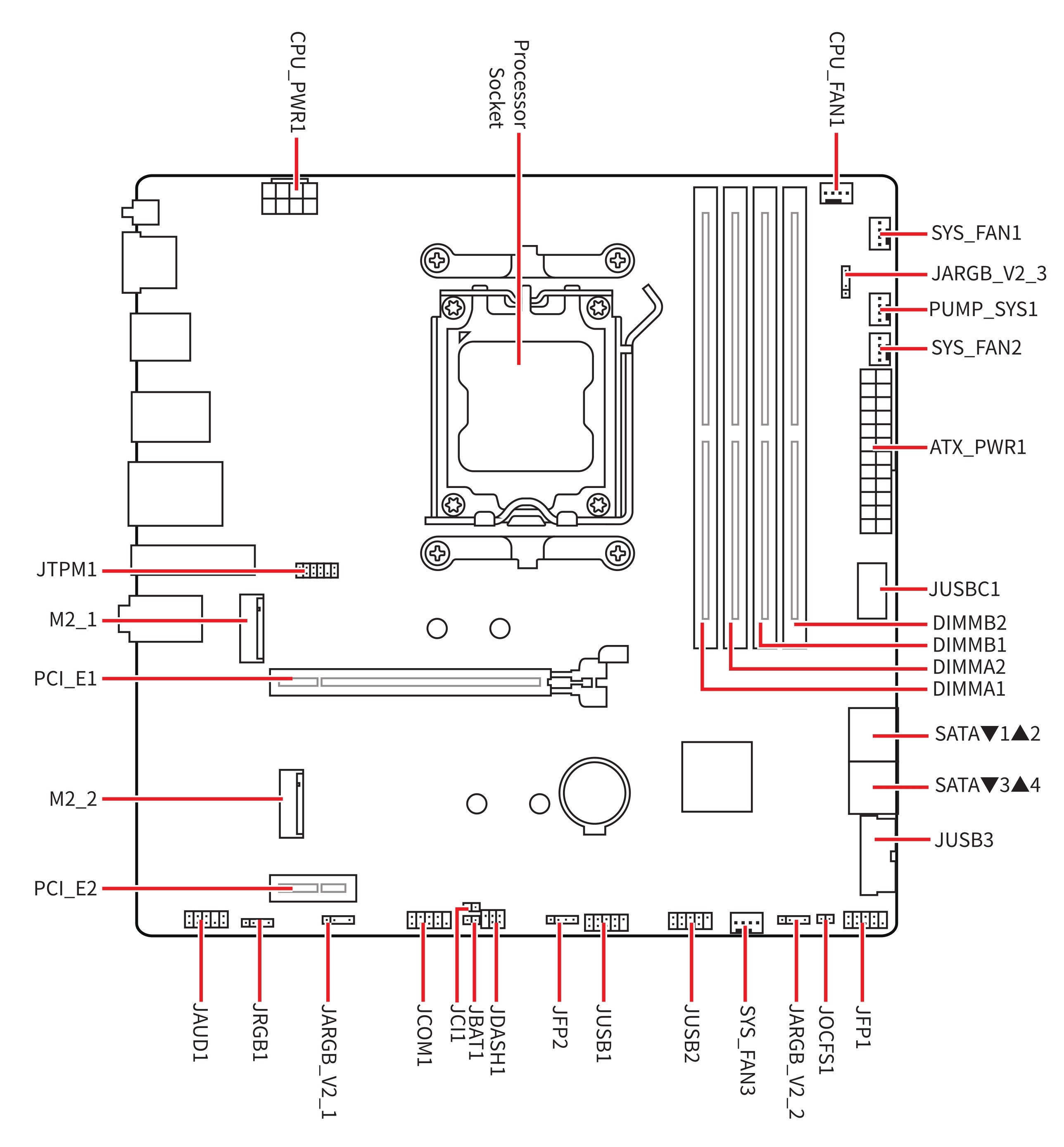

Internal Connectors	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	3x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Com Port (JCOM)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 5Gbps Type C ports
LEDs	MSI EZ-Debug Status LEDs (BOOT, CPU, VGA, MEM), 1x EZ Memory Detection LED
I/O Controller	NUVOTON Controller Chip
BIOS	1x 256 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	ATX Form Factor, 243.84 x 243.84 mm (H x W)
Operating System Support	Windows 11 64-bit
Warranty Information
Warranty	3 Year Warranty
