Product Description
Additional Information
Reviews (0)
| SPECIFICATIONS | |
| Brand | MSI |
| Series | PRO Series |
| Model | PRO H610M-S DDR4 |
| CPU Support | Supports 14th, 13th & 12th Gen Core Processors |
| Chipset | Intel H610 |
| Memory Support | |
| 14th, 13th & 12th Gen Core Processors | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Video | |
| HDMI | 1x HDMI, Supports HDMI 1.4b, maximum resolution of UltraHD 4K 30Hz |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical |
| Intel H610 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical |
| Storage | |
| Intel H610 Chipset | M.2_1 supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 2x SATA 6Gb/s Ports | |
| Supports RAID 0, RAID 1 for SATA storage devices | |
| Networking | |
| LAN | Realtek Gigabit Ethernet RJ-45 |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC892 High-Definition Codec |
| 7.1-Channel High Definition Audio with front-panel jack retasking | |
| Connectivity | |

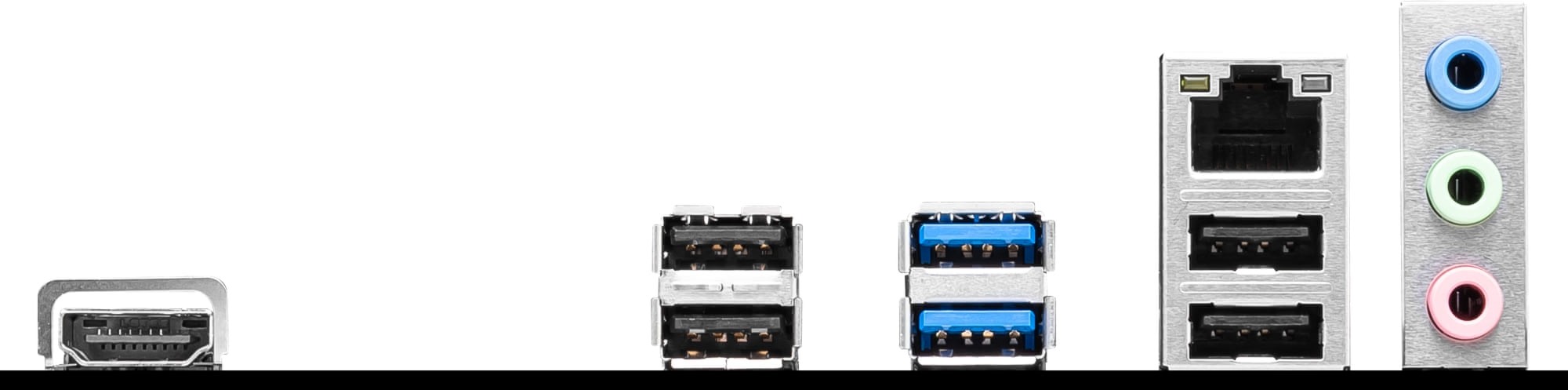

| Ports | 2x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x PS/2 Combo Port (Keyboard/Mouse) | |
| 1x HDMI 1.4b Port | |
| 3x 3.5mm Audio Jacks | |
| 1x Realtek Gigabit Ethernet RJ-45 LAN | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| I/O Controller | NUVOTON NCT6687-R Controller Chip |
| LED Displays | 4x EZ Debug Diagnostic LEDs |
| BIOS | 256Mb UEFI AMI BIOS |
| ACPI 6.4, SMBIOS 3.4, Multiple languages | |
| Form Factor | ATX Form Factor, 236.16 x 200mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit (Recommended) | |
| Box Contents | 1x Motherboard |
| 1x Quick installation guide | |
| 1x European Union regulatory notice | |
| 1x SATA 6Gb/s cable | |
| 1x M.2 screw and standoff package (1 set/pack) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
