MSI PRO Z890-S WIFI Intel Z890 LGA 1851 Arrow Lake ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

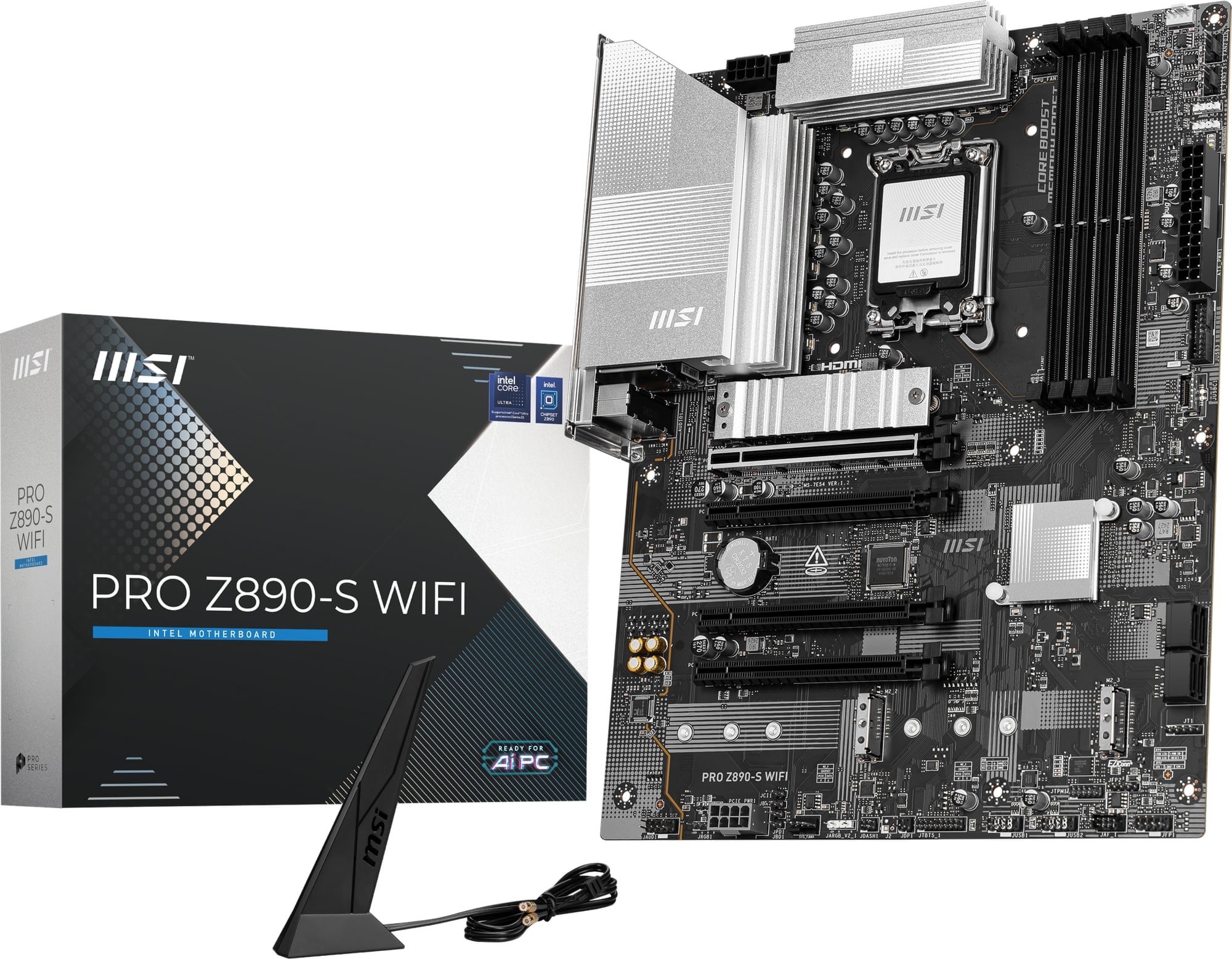

MSI PRO Z890-S WIFI Intel Z890 LGA 1851 Arrow Lake ATX Desktop Motherboard

Product ID: 52266

In stock with Supplier

Lead time before dispatch; 1 - 2 business days
Limited stock with Supplier

Be the first to review this product

- ATX Form Factor
- Intel Z890 Chipset, Socket LGA 1851
- Supports Intel Core Ultra Series 2 Processors
- 4x DDR5 DIMM Slots, Supports Up To 256GB (4x64GB)
- Supports Up to DDR5-8800 (OC)
- Supports Intel XMP 3.0 Memory Modules
- Supports Clock Unbuffered DIMMs (CUDIMM)
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 2x PCIe 4.0 x4 Slots (x16 Physical)
- 1x PCIe 3.0 x1 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 4x SATA 3.0 Ports
- Supports USB 20Gbps Type-C Front Chassis Port
- 1x Thunderbolt 4 USB 40Gbps Type-C Port with DisplayPort
- 1x USB 20Gbps Type-C Port
- 6x USB 5Gbps Type-A Ports
- 4x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 1x DisplayPort 1.4 Port
- 3x 3.5mm Audio Jacks
- 2x WiFi Antenna Jacks
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN
- Intel WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- Realtek ALC897 High Definition Audio CODEC
- 12+1+2+1 Duet Rail VRM Solution
- MSI EZDebug LED
- MSI EZ PCIe Clip II Release Mechanism
- MSI M.2 Shield Frozr
- MSI Mystic Light RGB Sync
- MSI Center Software
- Supports Windows 11 64-bit
- 3 Year Warranty

123 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R6,145.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	MSI
Series	PRO Series
Model	PRO Z890-S WIFI
CPU Support	LGA 1851 Supports Intel Core Ultra Processors (Series 2)
Chipset	Intel Z890 Express
Memory Support
Intel Core Ultra Processors (Series 2)	4x DDR5 UDIMM, Maximum Memory Capacity 256GB
	Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	1DPC 1R Max speed up to 8800 MT/s
	1DPC 2R Max speed up to 7200 MT/s
	2DPC 1R Max speed up to 6400 MT/s
	2DPC 2R Max speed up to 5600 MT/s
	Supports Intel POR Speed and JEDEC Speed
	Supports Memory Overclocking and Intel XMP 3.0
	Supports Dual-Controller Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM
Video
USB Type-C	1x Thunderbolt 4 Port with DisplayPort 2.1, supporting a maximum resolution of 8K @ 60 Hz, Support for HDR and HDCP 2.3
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 4096x2304 @ 60 Hz, Support for HDR and HDCP 2.3
HDMI	1x HDMI 2.1 TMDS Port, supporting a maximum resolution of 4K @ 60 Hz, Support for HDR and HDCP 2.3
HDMI	Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Physical, x16 Electrical Slot
Intel Z890 Express	1x PCIe 4.0 x16 Physical, x4 Electrical Slot
Intel Z890 Express	1x PCIe 4.0 x16 Physical, x4 Electrical Slots
Intel Z890 Express	1x PCIe 3.0 x16 Physical, x1 Electrical Slots
Storage
CPU Direct	M.2_1 Source supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
Intel Z890 Express	M.2_2 Source supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
	M.2_3 Source supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
	4x SATA 6G
	Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
	Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Networking
LAN	Realtek 8125D 2.5Gbps LAN Adapter
WiFi	Intel WiFi 7 2x2 MIMO Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	Realtek ALC897 Codec
Codec	7.1-Channel surround with front-panel jack retasking, jack detection
Connectivity
Ports	1x Thunderbolt 4 USB 40Gbps Type-C Port with DisplayPort
	1x USB 20Gbps Type-C Port
	6x USB 5Gbps Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	1x DisplayPort 1.4 Port
	3x 3.5mm Audio Jacks
	2x WiFi Antenna Jacks
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN
Buttons	Clear CMOS Button

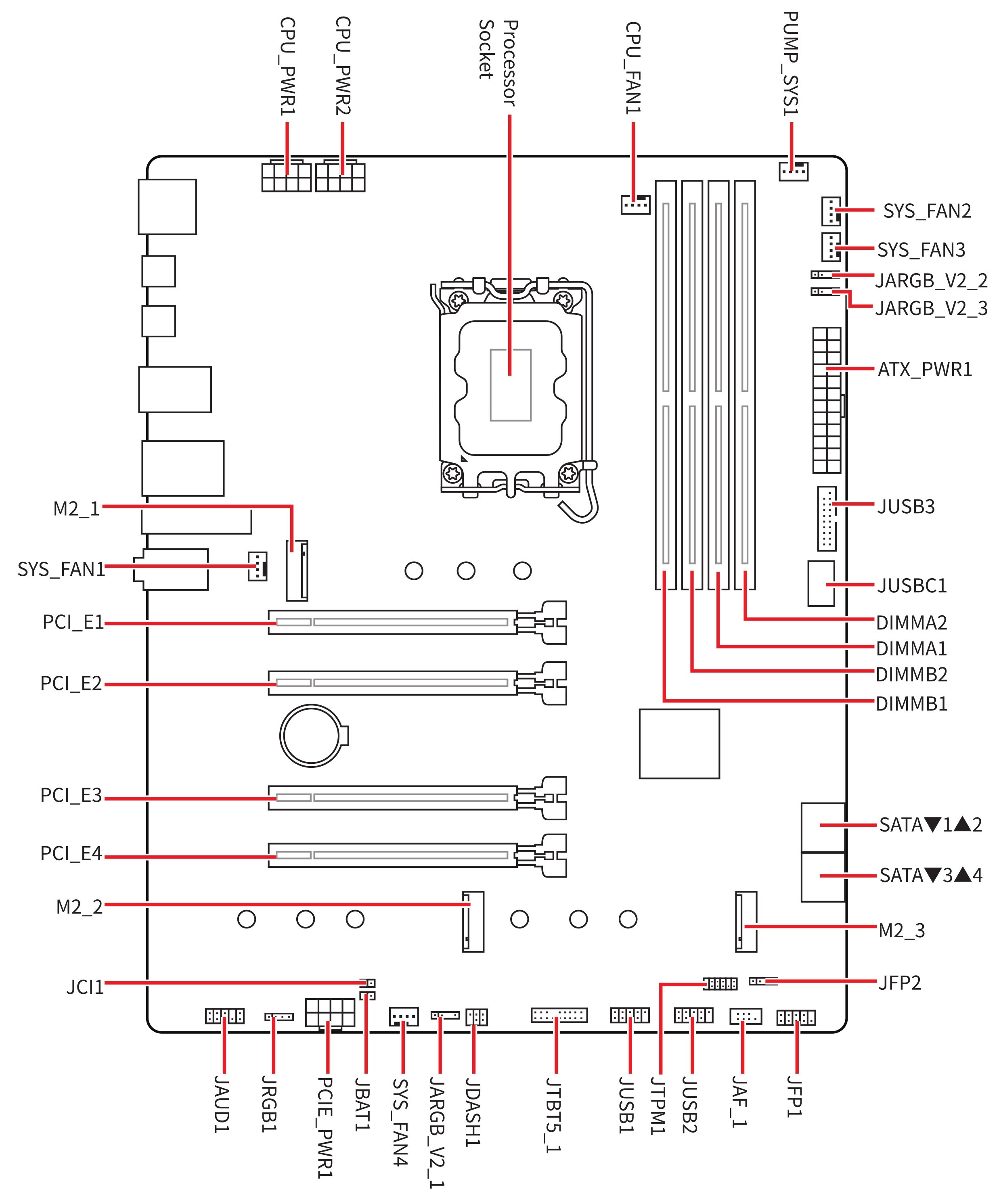

General
Internal Connectors	1x Thunderbolt5 card connector(JTBT5, support RTD3)
	1x Power Connector(ATX_PWR)
	2x Power Connector(CPU_PWR)
	1x Power Connector(PCIE_PWR 8pin)
	1x CPU Fan
	1x Combo Fan (Pump_Sys Fan)
	4x System Fan
	1x EZ Conn-header (JAF_1)
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 20Gbps Type C ports
I/O Controller	NUVOTON NCT6687D-M Controller Chip
LED Displays	4x EZ Debug LEDs
BIOS	1x 256 Mb flash
BIOS	UEFI AMI BIOS
Form Factor	ATX Form Factor, 305 x 244mm (H x W)
Operating System Support	Windows 11 64-bit
Boxed Accessories	1x Quick installation guide
	1x European Union Regulatory Notices
	2x SATA cables
	1x 1-to-2 EZ Conn-Cable (V1)
	1x EZ Wi-Fi Antenna
	3x EZ M.2 Clip II
	1x EZ M.2 Clip II Remover
Warranty Information
Warranty	3 Year Warranty
