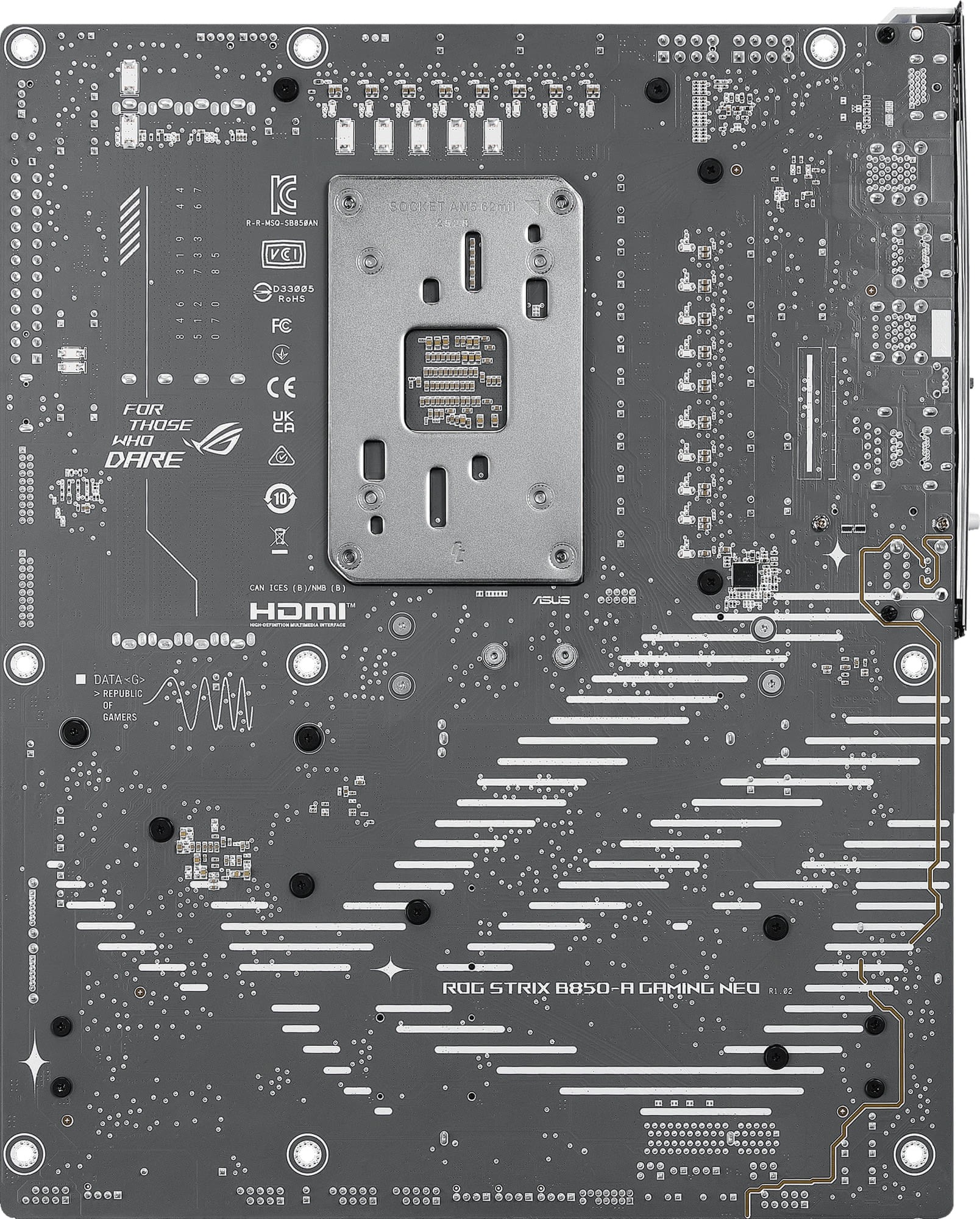

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

ASUS ROG STRIX B850-A GAMING WIFI7 NEO AMD B850 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 53984

In stock with Wootware

Lead time before dispatch; 1 - 2 business days
Limited stock remaining

Be the first to review this product

- ATX Form Factor
- AMD B850 Chipset, Socket AM5
- Supports Ryzen 7000, 8000 & 9000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB (4x64GB)
- Supports Up to DDR5-9000 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 5.0 x16 Slot (x16 Physical)
- 1x PCIe 4.0 x4 Slot (x16 Physical)
- 1x M.2 2280 PCIe 5.0 x4 NVMe SSD Slot
- 3x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
- 2x SATA 3.0 Ports
- Supports USB 20Gbps Type-C Chassis Port
- 2x USB 10Gbps Type-C Ports
- 2x USB 10Gbps Type-A Ports
- 6x USB 5Gbps Type-A Ports
- 2x USB 2.0 Type-A Ports
- 1x HDMI 2.1 (TMDS) Port
- 2x 3.5mm Audio Jacks, 1x Optical S/PDIF Out
- 2x Antenna Connectors
- Realtek 5 Gigabit Ethernet RJ-45 LAN Port
- Mediatek WiFi 7 Tri-Band Adapter, Bluetooth 5.4
- ROG SupremeFX 7.1 ALC4080 High-Definition Audio Codec
- Savitech SV3H712 High-Impedence Headphone Amplifier
- PCIe Quick-Release button Mechanism
- 14+2+2 Phase Digital VRM Solution
- ASUS BIOS Flashback Button
- ASUS Aura Sync & Armoury Crate Software
- Supports Windows 11
- 3 Year Warranty

251 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R9,699.00

R5,999.00

Save: R 3,700!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	ASUS
Series	ROG Strix Series
Model	ROG STRIX B850-A GAMING WIFI7 NEO
CPU Support	Supports Ryzen 7000, 8000, 9000-Series Processors
Chipset	AMD B850 Chipset
Memory Support
AMD B850 Chipset	4 x DIMM slots, max. 256GB, DDR5
	Supports up to:
	8400 MT/s(OC)/8200 MT/s(OC) with Ryzen 9000 Series Processors
	9000 MT/s(OC)/8600 MT/s(OC) with Ryzen 8000 Series Processors
	8000 MT/s(OC)/8000 MT/s(OC) with Ryzen 7000 Series Processors
	ECC and Non-ECC Un-buffered DIMM
	Dual channel memory architecture
	Supports AMD Extended Profiles for Overclocking (EXPO)
	ASUS Enhanced Memory Profile (AEMP)
Video
HDMI	1x HDMI 2.1 Port, supporting a maximum resolution of 4K (3840x2160) @ 60Hz, supports HDCP & HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 5.0 x16 Slot, x16 Physical (PCIEX16_G5)
AMD B850 Chipset	1x PCIe 4.0 x4 Slot, x16 Physical (PCIEX16_G4)
Slot Configurations	The PCIEX16_G5 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_G5 slot.
	PCIEX16_G5 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
	PCIEX16_G5 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x M.2 2280/2260/2242 PCIe 5.0 x4 NVMe SSD Slot (M.2_1)
CPU Direct	1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot (M.2_2)
AMD B850 Chipset	1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot (M.2_3)
	1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot (M.2_4)
	2x SATA 6Gbps connectors
Storage Notes	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	Ryzen 9000-Series RAID 5 support for NVMe SSD storage devices
	RAID 0, RAID 1 support for SATA storage devices
	M.2_1 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M.2_1 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	The M.2_3 slot shares bandwidth with the PCIEX16_G4 slot. When the PCIEX16_G4 slot is occupied along with the M.2_3 slot, they will will be running in x2 mode.
Networking
LAN	Realtek 5 Gigabit LAN 10/100/1000/2500/5000 Mbps
WiFi	Mediatek MT7925 WiFi 7 Tri-Band Adapter
Bluetooth	Bluetooth 5.4
Audio
Codec	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Features	Impedance sense for front and rear headphone outputs
	Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
	High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
	Supports up to 32-Bit/384 kHz playback on front panel
	SupremeFX Shielding Technology
	Savitech SV3H712 AMP
	Rear optical S/PDIF out port
	Premium audio capacitors
	Audio cover
	NOTE: The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Connectivity
Ports	2x USB 10Gbps Type-C Ports
	2x USB 10Gbps Type-A Ports
	6x USB 5Gbps Type-A Ports
	2x USB 2.0 Type-A Ports
	1x HDMI 2.1 (TMDS) Port
	2x 3.5mm Audio Jacks
	1x Optical S/PDIF Out
	2x Antenna Connectors
	1x Realtek 5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x BIOS Flashback button, 1x Clear CMOS Button
General
Internal Connectors	1x 4-pin CPU Fan header
	1x 4-pin CPU OPT Fan header
	1x 4-pin AIO Pump header
	4x 4-pin Chassis Fan headers
	1x 24-pin Main Power connector
	2x 8-pin 12V CPU Power connector
	4x M.2 slots (Key M)
	2x SATA 6Gb/s ports
	1x USB 20Gbps connector (supports USB Type-C )
	2x USB 5Gbps headers support 4 additional USB 5Gbps ports
	3x USB 2.0 headers support 6 additional USB 2.0 ports
	3x Addressable RGB Gen 2 headers
	1x CPU Over voltage jumper
	1x Front Panel Audio header (F_AUDIO)
	1x Start button
	1x 10-1 pin Front Panel System header
	1x Thunderbolt (USB4) header
I/O Controller	N/A
BIOS	1x 512 Mbit flash
BIOS	Use of licensed AMI UEFI BIOS
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 11 64-bit
Warranty Information
Warranty	3 Year Warranty
