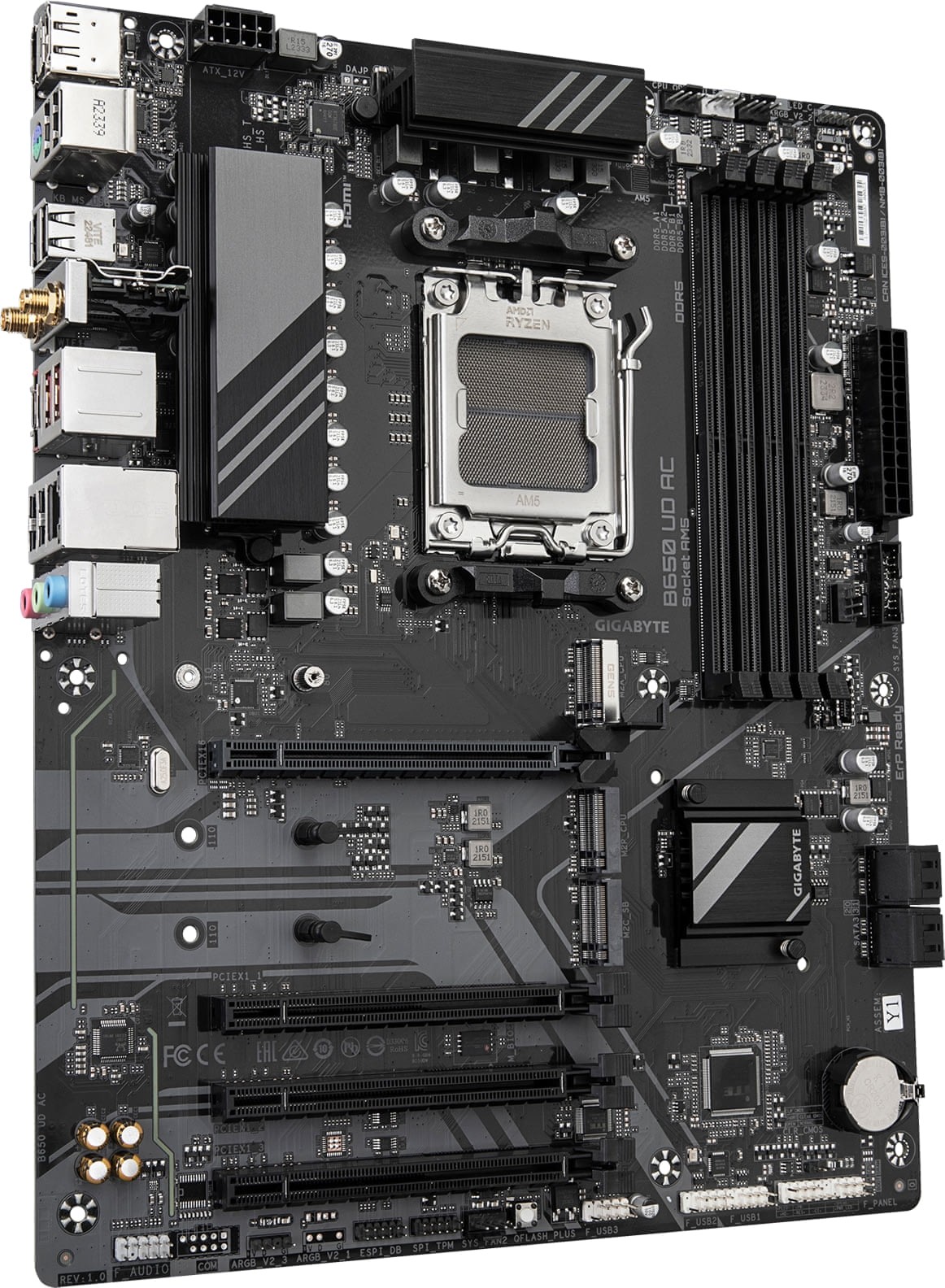

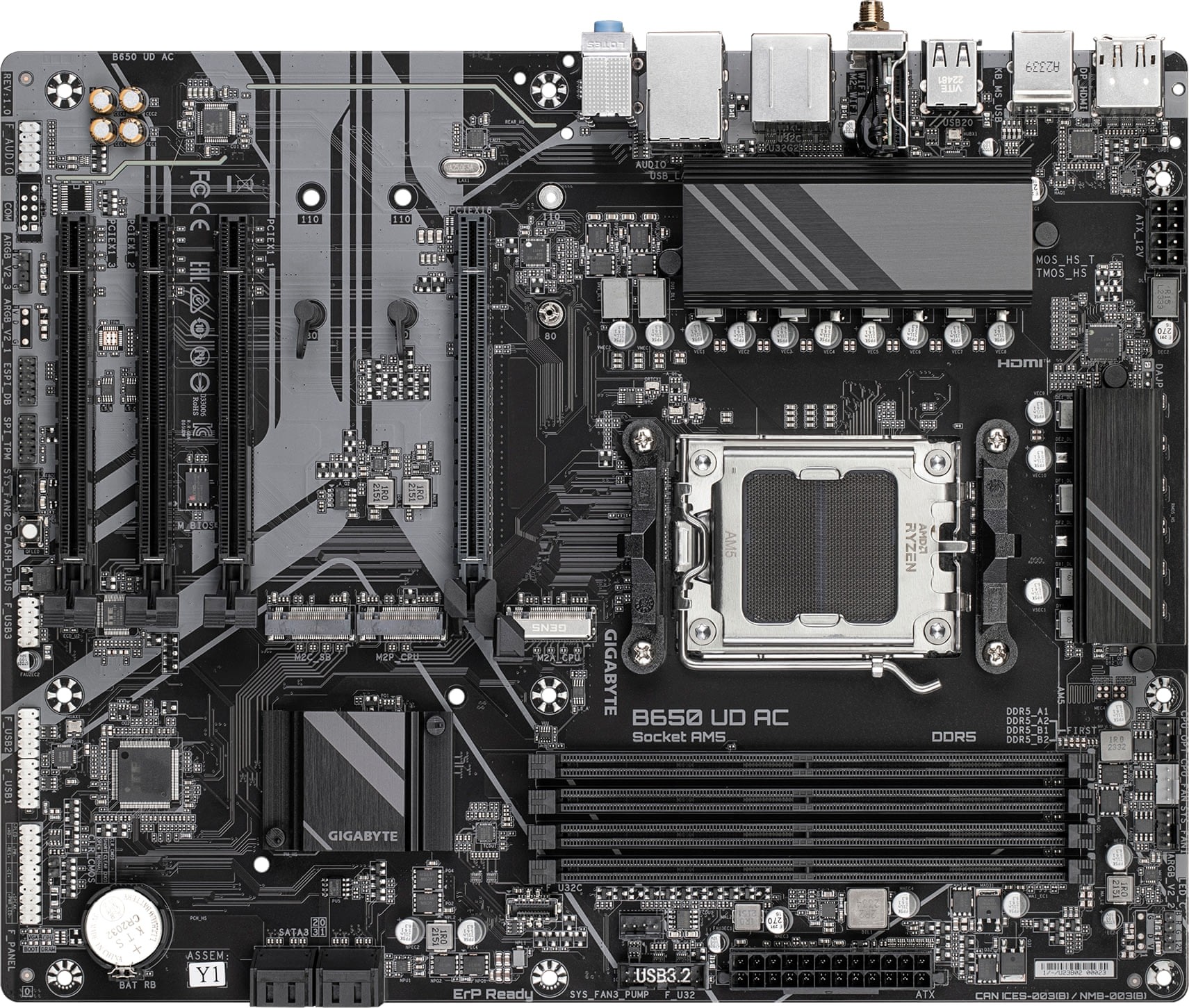

Gigabyte B650-UD-AC B650 UD AC WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B650-UD-AC B650 UD AC WiFi AMD B650 Ryzen Socket AM5 ATX Desktop Motherboard

Product ID: 46508

Be the first to review this product

- ATX Form Factor
- AMD B650 Chipset
- Socket AM5 Supports Ryzen 7000 & 8000 Series Processors
- 4x DDR5 DIMM Slots, Supports Up to 256GB
- Supports Up to DDR5-7600 (OC)
- Supports AMD EXPO & Intel XMP 3.0 Modules
- 1x PCIe 4.0 x16 Slot (x16 Physical)
- 2x PCIe 3.0 x1 Slots (x16 Physical)
- 1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot
- 1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot
- 4x SATA 3.0 Ports
- Supports Front-Panel USB Type-C Port
- 1x USB 5Gbps Type-C Port
- 2x USB 10Gbps Type-A Ports
- 6x USB 2.0 Type-A Ports
- 1x DisplayPort 1.4 Port
- 1x HDMI 2.1 Port
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- 2x SMA Connectors
- 1x PS/2 Combo Port (Mouse/Keyboard)
- Realtek Gigabit Ethernet RJ-45 LAN
- Realtek WiFi 6 2x2 MIMO Dual-Band Adapter, Bluetooth 5.0
- Realtek High-Definition Audio Codec
- PCIe x16 EZ-Latch Quick-Release Mechanism
- Direct 6+2+2 Phase Digital VRM Solution
- Gigabyte Q-Flash Plus
- Gigabyte M.2 EZ-Latch
- Gigabyte Smart Fan 6 Technology
- Supports Windows 11 64-bit
- 3 Year Warranty

184 Products

Out of Stock

Add to Wishlist

Product Description
Additional Information
Reviews (0)
Questions (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Ultra Durable Series
Model	B650 Ultra Durable AC Rev 1.0 (B650-UD-AC-rev1.0)
CPU Support	Supports Ryzen 7000 & 8000 Series Processors
Chipset	AMD B650 Chipset
Memory Support
AMD B650 Chipset	Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
	4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
Video
DisplayPort	1x DisplayPort 1.4 Port, supporting a maximum resolution of 3840x2160@144 Hz, supports HDCP, HDR
HDMI	1x HDMI 2.1 Port, supporting a maximum resolution of 4096x2160@60 Hz, supports HDCP, HDR
HDMI	Integrated graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Electrical Slots (x16 Physical)(PCIEX16)
AMD B650 Chipset	3x PCIe 3.0 x1 Electrical Slots (x16 Physical)
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x M.2 25110 / 2580 PCIe 5.0 x4 NVMe SSD Slot (M2A_CPU)
CPU Direct	1x M.2 22110 / 2280 PCIe 4.0 x2 NVMe SSD Slot (M2P_CPU)
AMD B650 Chipset	1x M.2 22110 / 2280 PCIe 4.0 x4 NVMe SSD Slot (M2C_SB)
	4x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	M2P_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x2 SSDs
	M2P_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Networking
LAN	Realtek Gigabit LAN 10/100/1000Mbps
WiFi	Realtek RTL8821CE WiFi 6 2x2 MIMO Dual-Band Adapter
Bluetooth	Bluetooth 5.0
Audio
Codec	Realtek High-Definition Audio Codec
Codec	Support for 7.1 Surround with front-panel jack retasking
Connectivity
Ports	1x USB 5Gbps Type-C Port
	2x USB 10Gbps Type-A Ports
	6x USB 2.0 Type-A Ports
	1x DisplayPort 1.4 Port
	1x HDMI 2.1 Port
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	2x SMA Connectors
	1x PS/2 Combo Port (Mouse/Keyboard)
	1x Realtek Gigabit Ethernet RJ-45 LAN
Buttons	1x Q-Flash Plus button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	1x CPU fan/water cooling pump header
	2x system fan headers
	1x system fan/water cooling pump header
	1x addressable RGB Gen2 LED strip header lm
	1x RGB LED strip header
	3x M.2 Socket 3 connectors
	4x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	3x USB 2.0/1.1 headers
	1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/
	GC-TPM2.0 SPI V2 module only)
	1x Q-Flash Plus button
	1x Clear CMOS jumper
I/O Controller	iTE I/O Controller Chip
BIOS	1x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor, 305 x 244 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit
Boxed Accessories	Users Manual
	2x WiFi antenna
	2x SATA cables
	1x I/O Shield
	1x M.2 Screw
Warranty Information
Warranty	3 Year Warranty
