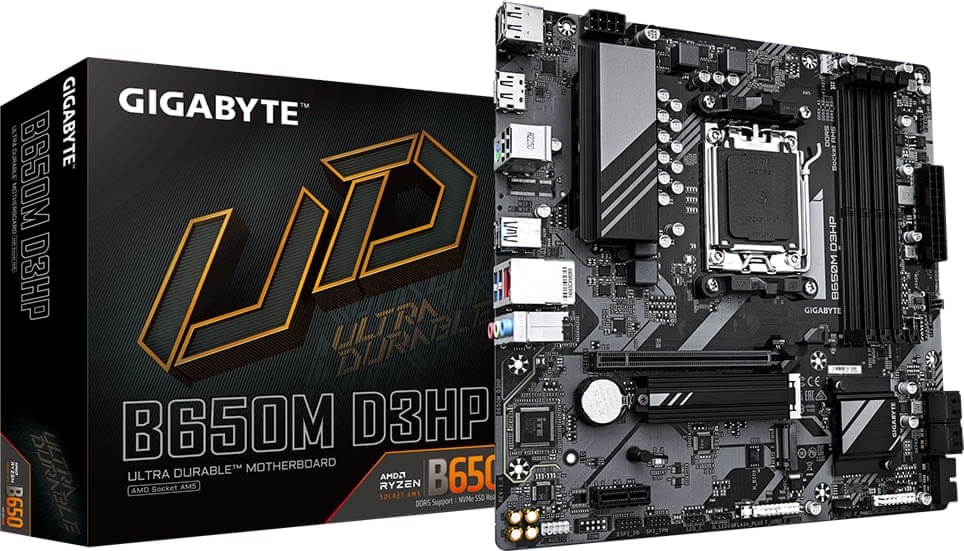

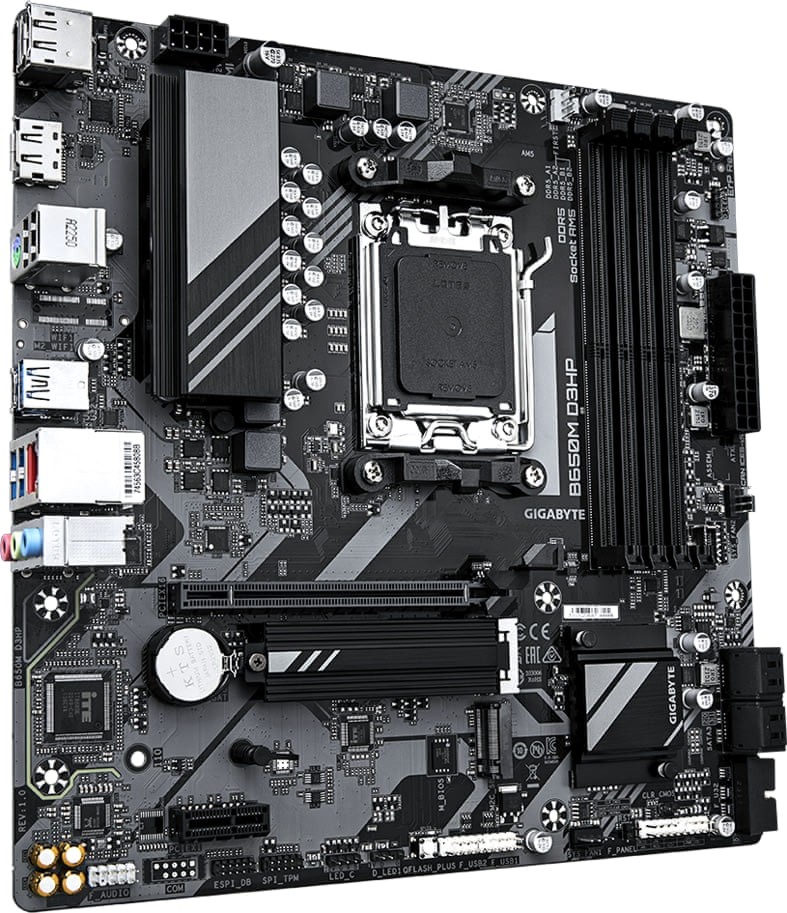

Gigabyte GA-B650M-D3HP B650M D3HP AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte GA-B650M-D3HP B650M D3HP AMD B650 Ryzen Socket AM5 Micro-ATX Desktop Motherboard

Product ID: 48100

✅ Please note: There are optional configurations available below. Simply click on an option to include it with your purchase.

WiFi & Bluetooth Adapter (Optional):
ASUS WiFi 7 Tri-Band PCIe Wireless Adapter

R 599.00
- View

In stock with Wootware

Lead time before dispatch; 1 - 2 business days

1 Review(s) | Add Your Review

- Micro-ATX Form Factor
- AMD B650 Chipset
- Socket AM5
- 4x DDR5 DIMM Slots, Supports Up To 256GB
- Supports Up to DDR5-7600MHz+ (OC)
- Supports AMD EXPO DDR5 Modules
- 1x PCIe 4.0 x16 Slot, 1x PCIe 3.0 x1 Slot
- 2x M.2 PCIe NVMe Gen 4 x4 25110/2280 Slots
- 4x SATA 3.0 6.0Gbps Ports
- 1x USB 3.2 Gen 1 Type-C Port
- 3x USB 3.2 Gen 1 Ports, 2x USB 2.0/1.1 Ports
- 1 x HDMI Port, 2 x DisplayPorts Ports
- Realtek 2.5GbE LAN Chip
- Realtek Audio Codec
- 5+2+2 Phases Digital VRM Solution
- Gigabyte Smart Fan 6
- Gigabyte Q-Flash Plus
- 3 Year Warranty

150 Products

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,099.00

R2,499.00

Save: R 600!

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (1)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	B650M D3HP
Model	GA-B650M-D3HP
CPU	AMD Socket AM5, support for:
CPU	AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD B650
Memory	Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon Graphics support
	- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 1.4 version.
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support for native HDMI 2.1 TMDS compatible ports.
	Support for up to triple-display at the same time
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
	- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
	- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
	- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
	- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
	- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
	- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
	1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
	4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
	- 1 x USB 3.2 Gen 1 port on the back panel
	- 1 x USB 2.0/1.1 port on the back panel
	Chipset:
	- 2 x USB 3.2 Gen 1 ports on the back panel
	- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
	- 2 x USB 3.2 Gen 1 ports available through the internal USB header
	- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	2 x addressable LED strip headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x USB Type-C port, with USB 3.2 Gen 1 support
	3 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x HDMI port
	2 x DisplayPorts
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Fan fail warning
	Fan speed control
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor
Form Factor	24.4cm x 24.4cm
Warranty Information
Warranty	3 Year Warranty
