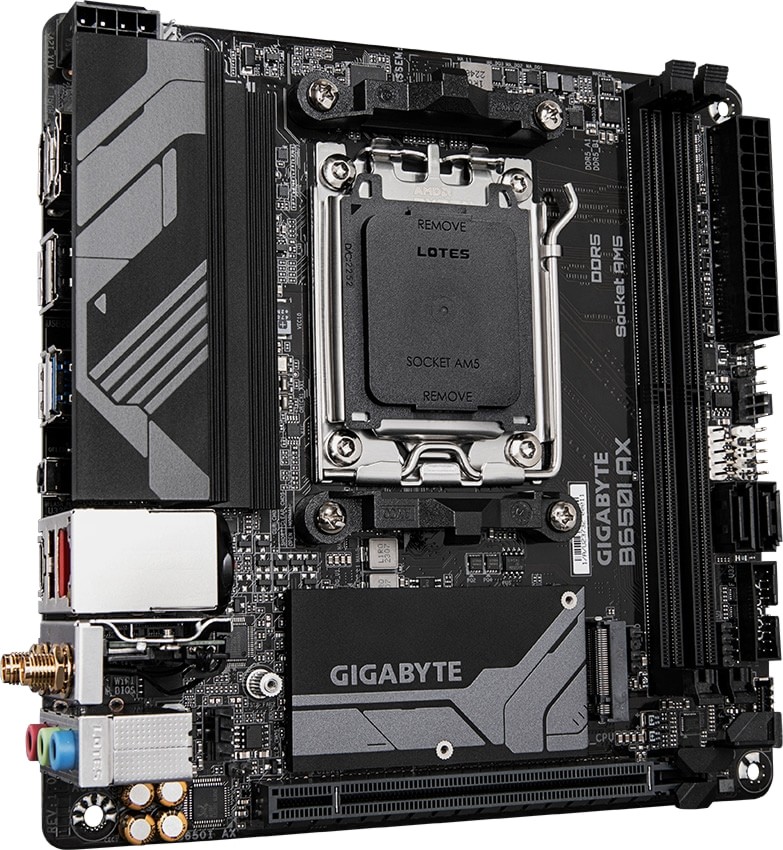

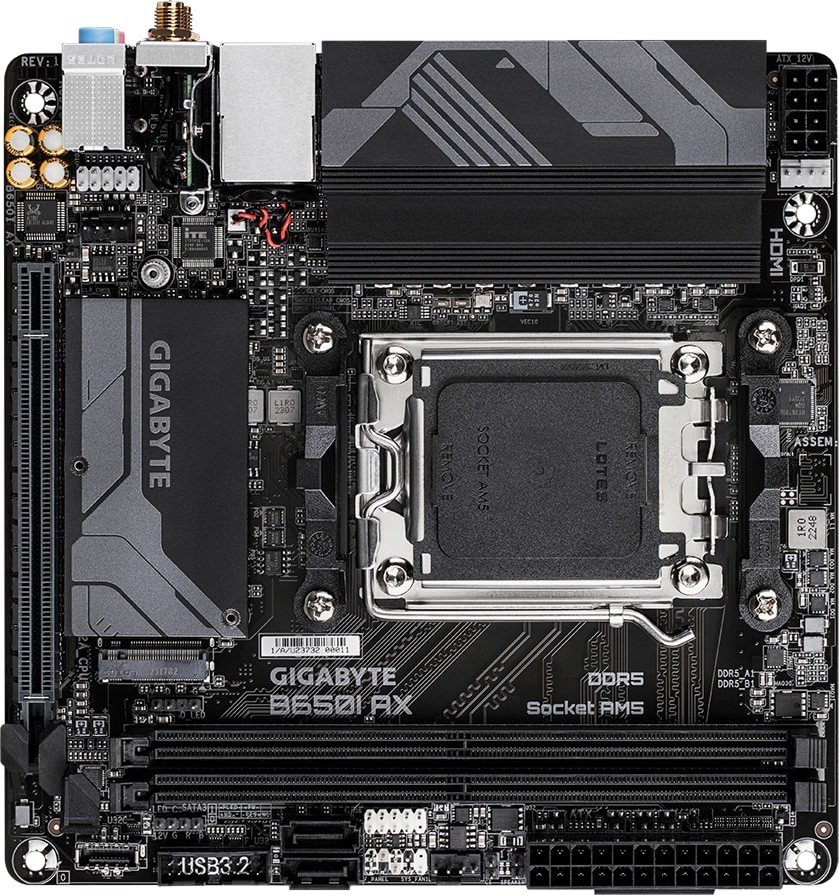

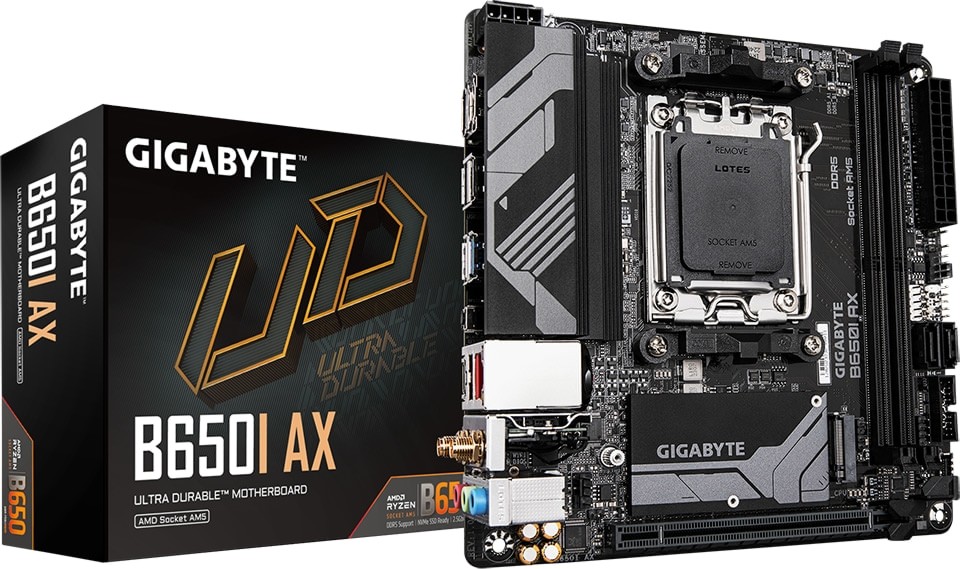

Gigabyte B650I AX Rev1.0 WiFi 6E AMD B650 Ryzen Socket AM5 Mini-ITX Desktop Motherboard

More Views

Please note:
Images are for illustrative purposes only.

Gigabyte B650I AX Rev1.0 WiFi 6E AMD B650 Ryzen Socket AM5 Mini-ITX Desktop Motherboard

Product ID: 46860

In stock with Supplier

Lead time before dispatch; 2 - 5 business days
Limited stock with Supplier

Be the first to review this product

- Mini-ITX Form Factor
- AMD B650 Chipset
- Socket AM5
- Supports Ryzen 7000, 8000-Series Processors
- Q-Flash Plus BIOS Flash Supports Future Processors
- 2x DDR5 DIMM Slots, Supports Up to 96GB
- Supports up to DDR5-6400 (OC)
- Supports AMD EXPO Memory
- 1x PCIe 4.0 x16 Slot
- 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
- 2x SATA 3.0 Ports
- Supports Front Panel USB Type-C Headers
- 1x USB 5Gbps Type-C Port
- 1x USB 10Gbps Type-A Port
- 1x USB 5Gbps Type-A Port
- 3x USB 2.0 Type-A Ports
- 1x HDMI 2.1 Port
- 1x DisplayPort 1.4 Port
- 2x SMA Connectors
- 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
- Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
- WiFi 6E Tri-Band Adapter, Bluetooth 5.3
- Realtek High-Definition Audio Codec
- 5+2+1 Heatsinked Digital VRM Solution
- Gigabyte PCIe EZ-Latch Design
- Gigabyte RGB Fusion Software
- Gigabyte Smart Fan 6 Technoogy
- Supports Windows 11 64-bit
- 3 Year Warranty

184 Products

- Please note: Please consult Gigabyte's QVL for compatible memory modules: Click Here!

Please note: pricing visible is already subject to a 2% discount applicable only to EFT payments.

R3,578.00

Qty:

Add to Wishlist

Product Description
Additional Information
Reviews (0)

Product Description

SPECIFICATIONS
Brand	Gigabyte
Series	Mini-ITX Series
Model	B650I AX (rev. 1.0)
CPU Support	Supports Ryzen 7000, 8000-Series Processors
Chipset	AMD B650
Memory Support
AMD Ryzen 7000 Series	Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
	2x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme
	Memory Profile (XMP) memory modules
Video
HDMI	1x HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @ 60 Hz, Supports HDCP 2.3
DisplayPort	1x DisplayPort 1.4 port, supporting a maximum resolution of 3840x2160 @ 144 Hz, Support for HDCP 2.3
DisplayPort	Integrated AMD graphics Required. Actual support may vary by CPU.
Expansion Slots
CPU Direct	1x PCIe 4.0 x16 Physical, x16 Electrical Slot
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x8 mode
Slot Configurations	PCIEX16 with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4 mode
Storage
CPU Direct	1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
AMD B650 Chipset	2 x SATA3 6.0 Gbps Connectors
	RAID 0 and RAID 1 support for NVMe SSD storage devices
	RAID 0 and RAID 1 support for SATA storage devices
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Configurations	M2A_CPU with Ryzen 8000 Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Networking
LAN	Realtek 2.5 Gigabit LAN Port 10/100/1000/2500Mbps
WiFi	WiFi 6E Tri-Band Adapter
Bluetooth	Bluetooth 5.3
Audio
Codec	Realtek High Definition Audio
Codec	2/4/5.1/7.1-channel support with front-panel jack retasking

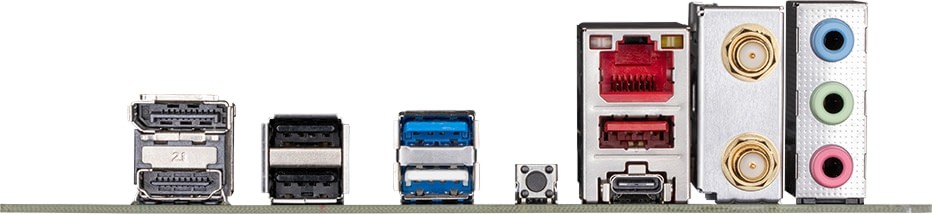

Connectivity
Ports	1x USB 5Gbps Type-C Port
	1x USB 10Gbps Type-A Port
	1x USB 5Gbps Type-A Port
	3x USB 2.0 Type-A Ports
	1x HDMI 2.1 Port
	1x DisplayPort 1.4 Port
	2x SMA Connectors
	3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
	1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port
Buttons	1x Q-Flash Plus button
General
Internal Connectors	1x 24-pin ATX main power connector
	1x 8-pin ATX 12V power connector
	1x CPU fan header
	2x system fan headers
	1x addressable LED strip header
	1x RGB LED strip header
	1x M.2 Socket 3 connector
	2x SATA 6Gb/s connectors
	1x front panel header
	1x front panel audio header
	1x speaker header
	1x USB Type-C header, with USB 3.2 Gen 1 support
	1x USB 3.2 Gen 1 header
	1x USB 2.0/1.1 header
	1x Clear CMOS jumper
	1x chassis intrusion header
LED Displays	Gigabyte Q-Flash LED
I/O Controller	iTE I/O Controller Chip
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
BIOS	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Mini-ITX Form Factor, 170 x 170 mm (H x W)
Operating System Support	Windows 10 64-bit
Operating System Support	Windows 11 64-bit (recommended)
Warranty Information
Warranty	3 Year Warranty
