| SPECIFICATIONS | |
| Brand | Gigabyte |
| Series | WINDFORCE MAX OC 8G |

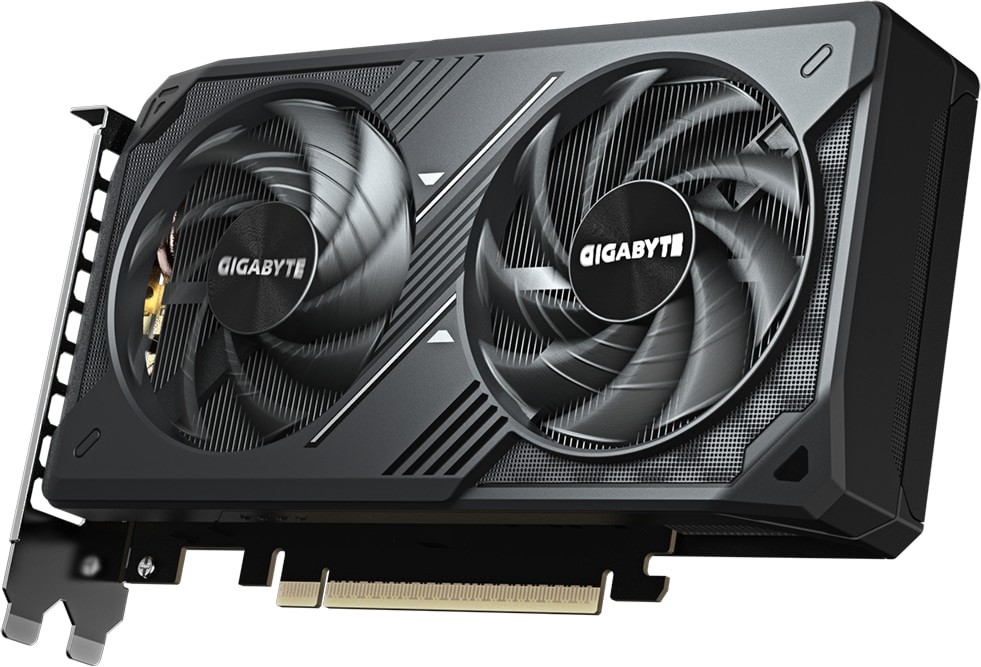

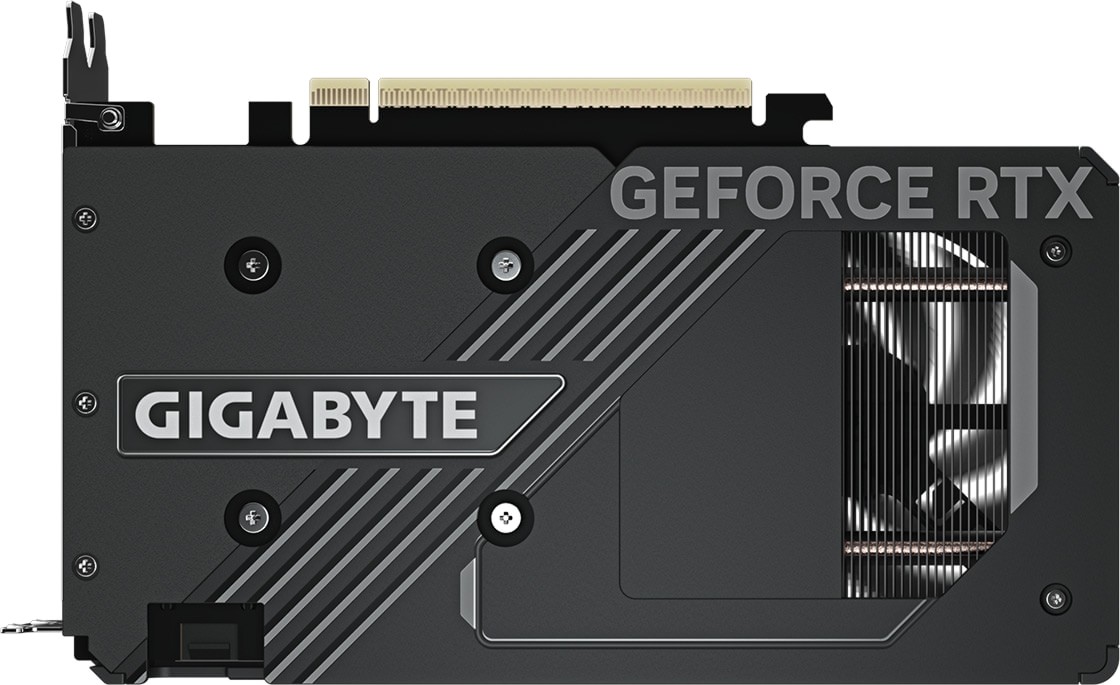

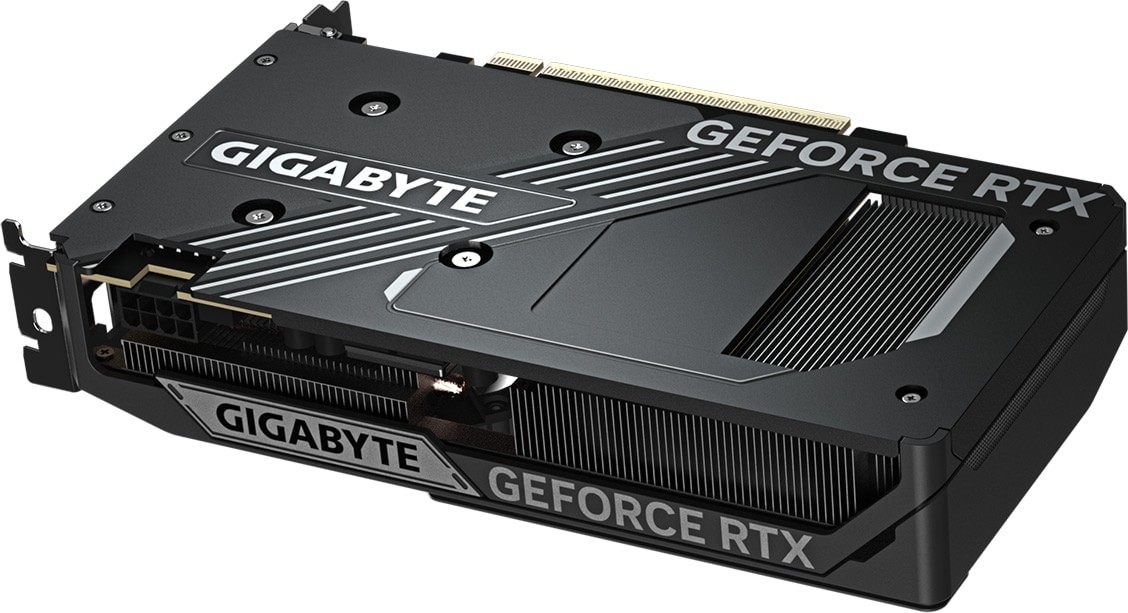

| Model | GeForce RTX 5060 WINDFORCE MAX OC 8G (GV-N5060WF2MAX OC-8GD) |
| Chipset | |
| GPU | GeForce RTX 5060 |
| Chipset Manufacturer | Nvidia |
| Interface | PCIe 5.0 x8 (x16 Physical) |
| Core Clock | 2512 MHz |
| CUDA Cores | 3840 |
| GPU Architecture | NVIDIA Blackwell |
| Memory | |
| Effective Memory Clock | 28Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-bit |
| Memory Type | GDDR7 |
| 3D API | |
| DirectX | Microsoft DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Vulkan | Vulkan 1.4 |
| Connectivity | |
| Ports | 3x DisplayPort 2.1b |
| 1x HDMI 2.1b | |
| Multi-Monitor Support | 4 |
| Maximum Digital Resolution | 7680x4320 |
| VR Ready | Yes |
| General | |
| SLI Support | N/A |
| Features | WINDFORCE Cooling System |
| Hawk fan | |
| Server-grade Thermal conductive gel | |
| Reinforced structure | |
| Copper Plate & Composite Copper Heat Pipe | |
| Screen Cooling | |
| 3D Active Fan | |
| 5th Generation Tensor Cores | |
| 4th Generation Ray Tracing Cores | |
| NVIDIA DLSS 4 | |
| Super Resolution | |
| DLAA | |
| Ray Reconstruction | |
| Frame Generation | |
| Multi Frame Generation | |
| NVIDIA Reflex 2 | |
| NVIDIA Broadcast | |
| Resizable BAR | |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| Game Ready Drivers | |
| NVIDIA Omniverse | |
| RTX Remix | |
| 9th Gen NVIDIA Encoder (NVENC) | |
| 6x Gen NVIDIA Decoder (NVDEC) | |
| AV1 Encode | |
| AV1 Decode | |
| Power Requirements | |
| Recommended Power Supply | 550 W |
| Power Connector | 1x 8-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 40mm |
| Dimensions | 199mm x 116mm x 40mm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Simply perfect! - Jordan, 17 November 2025
I am coming from integrated graphics so the difference is Night and day. Happy about the upgrade path from Pcie 3.0 to 5.0. That said, Pcie 3.0 seems fine and my games run amazing. The Graphics card looks nice and uniformed in my PC case. Very solid buying experience from Wootware as always. Service was impeccable. Thank you so much.
