| SPECIFICATIONS | |
| Brand | Zotac |
| Series | Twin Edge Series |

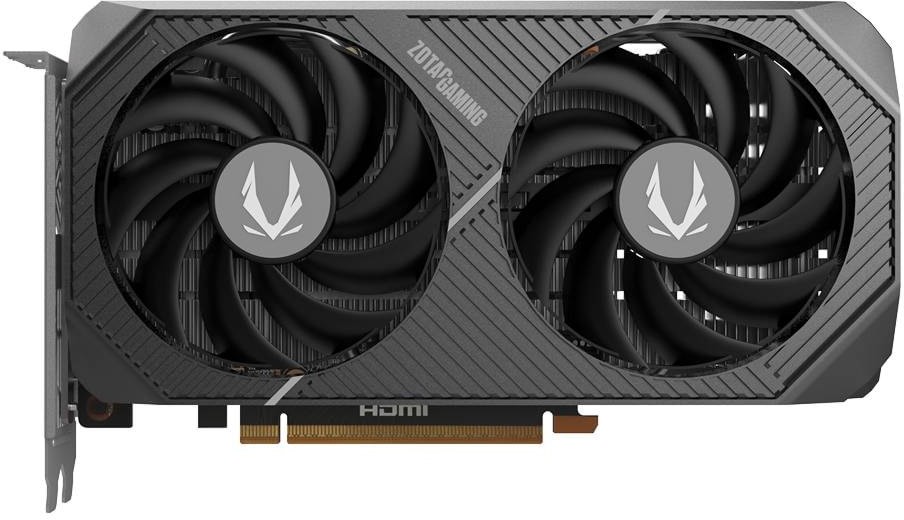

| Model | GeForce RTX 5060 Twin Edge (ZT-B50600E-10M) |
| Chipset | |
| GPU | GeForce RTX 5060 |
| Chipset Manufacturer | NVIDIA |
| Interface | PCIe 5.0 x16 (x8 Mode) |
| Core Clock | 2280 MHz |
| Boost Clock | 2497 MHz |
| CUDA Cores | 3840 Cores |
| GPU Architecture | NVIDIA Blackwell |
| Memory | |
| Effective Memory Clock | 28Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-bit |
| Memory Type | GDDR7 |
| 3D API | |
| DirectX | Microsoft DirectX 12.1 Ultimate |
| OpenGL | OpenGL 4.6 |
| Vulkan | Vulkan 1.4 API |
| Connectivity | |

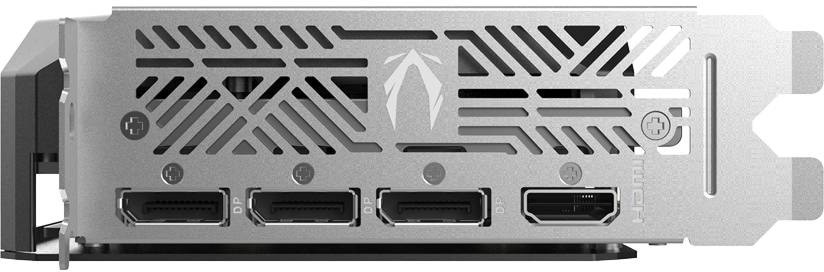

| Ports | 1x HDMI 2.1b |
| 3x DisplayPort 2.1b | |
| HDCP Support | Yes, 2.3 |
| Multi-Monitor Support | Up to 4x simultaneous |
| Maximum Digital Resolution | 7680 x 4320 |
| VR Ready | Yes |
| General | |
| SLI Support | N/A |
| Features | IceStorm 2.0 Enhanced Cooling |
| BladeLink Fans | |
| Metal Backplate | |
| SFF-ready Compact Card | |
| 4th Generation Ray Tracing Cores | |
| 5th Generation Tensor Cores | |
| NVIDIA DLSS 4 | |
| NVIDIA Reflex 2 | |
| NVIDIA Broadcast | |
| Resizable BAR | |
| NVIDIA App | |
| NVIDIA Ansel | |
| NVIDIA FreeStyle | |
| NVIDIA ShadowPlay | |
| NVIDIA Highlights | |
| NVIDIA G-SYNC | |
| Game Ready Drivers | |
| NVIDIA Studio Drivers | |
| NVIDIA Omniverse | |
| RTX Remix | |
| NVIDIA GPU Boost | |
| Vulkan 1.4, OpenGL 4.6 | |
| 9th Generation NVIDIA Encoder (NVENC) | |
| 6th Generation NVIDIA Decoder (NVDEC) | |
| AV1 Encode | |
| AV1 Decode | |
| Power Requirements | |
| Total Board Power | 145W |
| Recommended Power Supply | 550W |
| Power Connector | 1x 8-Pin |
| Physical Aspects | |
| Form Factor | ATX |
| Slot Width | 41.6mm |
| Dimensions | 220.5mm x 120.25mm x 41.6mm |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Manufacturer's Site | Visit the manufacturer's website |
|---|---|
| Product Link | Visit the manufacturer's page for this product |
- Great Performance - Handles Ultra Settings with Ease - Edwin, 2 April 2026
The Zotac RTX 5060 Twin Edge has exceeded expectations in my testing. It handles modern games on ultra settings smoothly at 1080p and performs well even at 1440p, delivering consistent frame rates without noticeable drops. The overall experience is very fluid, making it a great choice for both gaming and general GPU workloads.
Thermal performance is solid for a compact dual-fan card, and noise levels stay reasonable under load. I also tested it across multiple applications, including development and GPU-accelerated tasks, and it remained stable throughout.
For the price, this GPU offers excellent performance and versatility. It’s a great option if you want strong gaming capability alongside reliable everyday and technical workload performance.
